Chevrolet Camaro (1995) – fuse box diagram

Year of production: 1995

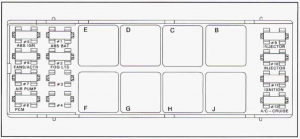

Underhood Electrical Center

Chevrolet Camaro - wiring diagram - fuse box - underhood electrical center
Chevrolet Camaro – wiring diagram – fuse box – underhood electrical center
Fuse Fusename Usage
1 ABS BAT

Electronic Brake Control Module

2 FOG LTS Fog lamps
3
4
5 ABS IGN

Anti-Lock Brake System

6 FAN/ACTR

Coolant Fan Relays;EVAP Canister Purge Solenoid; Exhaust Gas Recirculation; LowCoolant Relay; Reverse Lockout Solenoid

7 AIR PUMP

Air Injection Pump Assembly; Air Pump Relay

8 PCM Power Train Control Module
9 INJECTOR

Fuel Injector

10 INJECTOR

Fuel Injector

11 IGNITION

VIN Engine Code S: Camshaft Position Sensor; Crankshaft Position Sensor; Electronic Ignition Module (10 Amp.) VIN Engine Code P: Ignition Coil; Ignition Coil Driver

12 A/C-CRUISE

Air Conditioning Compressor Relay; Cruise Control Switches and Module

Relays Usage
B

Air Conditioning Compressor

C

Anti-Lock Brake System

D

Primary Coolant Fan(Driver Side)

E

Air Pump

F

Secondary Coolant Fan (Passenger Side)

G

ASR

H

Fan Lamps

J

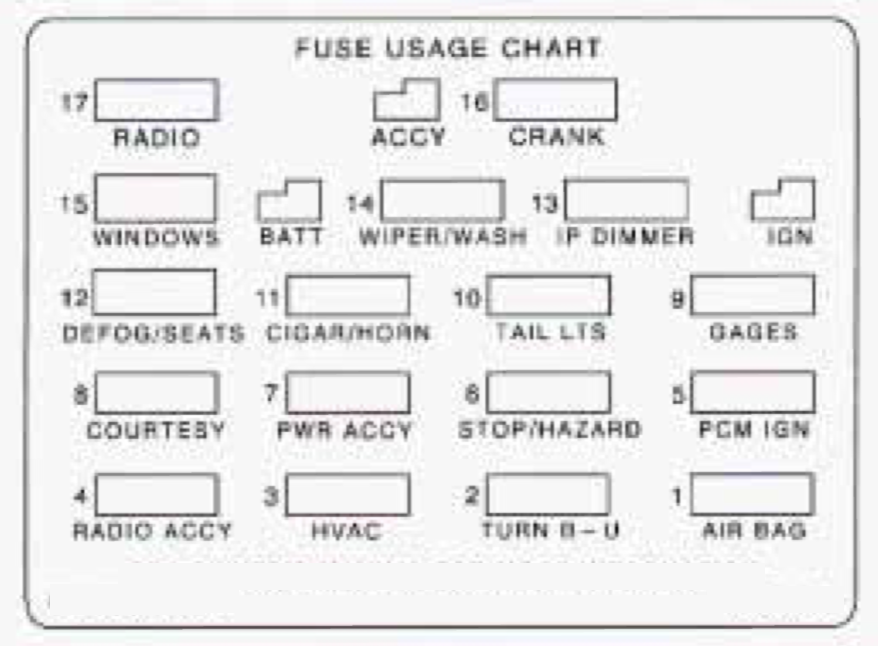

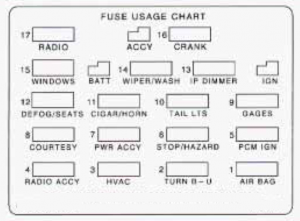

Main Fuse Block

Chevrolet Camaro - wiring diagram - fuse box - main fuse block
Chevrolet Camaro – wiring diagram – fuse box – main fuse block
Fuses/Circuit Breaker Fuse name Usage
1 AIR BAG

Air Bag: SIR Components

2 TURN B-U

Backup Lights; Daytime Running Lights Module (Canada); Turn Flasher

3 HVAC

Heater Control Selector Switch (Heater/Air Conditioner); Rear Defogger

4 RADIO ASSY

BOSE’ Relay

5 PCM IGN

Powertrain Control Module; PASS-Keys II Decoder Module; Fuel Pump Relay

6 STOP/HAZARD

Brake Ligh/Cruise Release Switch, Hazard Flasher

7 PWR ACCY

Power Door Locks; Power Mirrors; Hatch Release

8 COURTESY

Audio Alarm Module; Courtesy Lamps: Console Compartment, Glove Box, Dome, Trunk, Rear Courtesy, Rearview Mirror and Radio

9 GAGES

AudioAlarmModule;DaytimeRunning lamps Module (Canada); Diagnostic Energy Reserve Module; Instrument Cluster; Remote Lock Control Module

10 TAIL LTS

Exterior Lighting

11 CIGAR/HORN Cigarette Lighter; Horn Relay
12 DEFOG/SEATS

Power Seats: Rear Defogger (Circuit Breaker)

13 IP DIMMER

Brightness Control

14 WIPER/WASH

Windshield Wiper/Washer

15 WINDOWS

Power Windows, Convertible Top Switch (Circuit Breaker)

16 CRANK

Diagnostic Energy Reserve Module

17 RADIO

Radio Amplifier

 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
