Chevrolet Blazer (1998) – fuse box diagram

Year of production: 1998

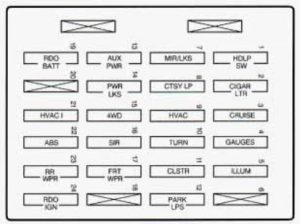

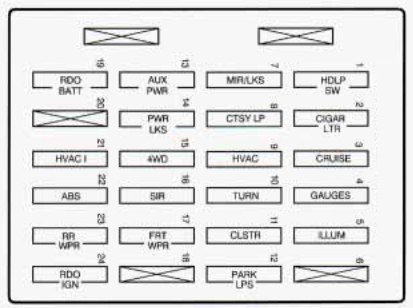

Instrument Panel Fuse Block

Chevrolet Blazer - wiring diagram - fuse box - instrument panel
Chevrolet Blazer – wiring diagram – fuse box –
instrument panel
Fuse/Circuit Breaker Usage
A Not Used
B Not Used
1 Headlamp Switch, Body Control Module, Headlamp Relay
2 Cigarette Lighter, Data Link Connector
3 Cruise Control Module and Switch, Body Control Module, Heated Seats
4 Gages, Body Control Module, Instrument Panel Cluster
5 Interior Lights
6 Not Used
7 Power Outside Mirror, Power Lock Relay
8 Courtesy Lamps, Battery Run-Down Protection
9 HVAC Control Head (Manual)
10 Turn Signal
11 Cluster, Engine Control Module
12 Parking Lamps, Power Window Switch, Body Control Module, Ashtray Lamp
13 Auxiliary Power
14 Power Locks Motor
15 4WD Switch, Engine Controls (VCM, PCM, Transmission)
16 Supplemental Inflatable Restraint, SDM Module
17 Front Wiper
18 Not Used
19 Radio Battery
20 Not Used
21 HVAC (Manual), HVAC I (Automatic), HVAC Sensors (Automatic)
22 Anti-Lock Brakes
23 Rear Wiper
24 Radio, Ignition

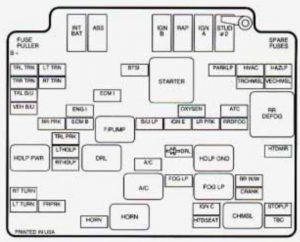

Engine Compartment Fuse Block

Chevrolet Blazer - wiring diagram - fuse box - engine compartment
Chevrolet Blazer – wiring diagram – fuse box – engine compartment
Name Usage
TRL TRN Trailer Left Turn
TRR TRN Trailer Right Turn
TRL B/U Trailer Back-up Lamps
VEH B/U Vehicle Back-up Lamps
RT TURN Right Turn Signal Fron
LT TURN Left Turn Signal Front
LT TRN Left Turn Signal Rear
RT TRN Right Turn Signal Rear
RR PRK Right Rear Parking Lamp
TRL PRK Trailer Parking Lamps
LT HDLP Left Headlamp
RT HDLP Right Headlamp
FR PRK Front Parking Lamps
INT BAT I/P Fuse Block Feed
ENG I Engine Sensors/Solenoids, MAP, CAM, PURGE, VENT
ECM B Engine Control Module, Fuel Pump, Module, Oil Pressure
ABS Anti-Lock Brake System
ECM 1 Engine Control Module Injectors
HORN Horn
BTSI Brake-Transmission Shift Interlock
B/U LP Back-up Lamps
A/C Air Conditioning
RAP Retained Accessory Power
O2 Oxygen Sensor
IGN B Column Feed, IGN 2, 3,4
DRL Daytime Running Lamps
FOG LP Fog Lamps
IGN A Starting and Charging IGN 1
STUD #2 Accessory Feeds, Electric Brake
PARKLP Parking Lamps
LR PRK Left Rear Parking Lamps
IGN C Starter Solenoid, Fuel Pump, PRNDL
HTDSEAT Heated Seat
ATC Electronic Transfer Case
RRDFOG Rear Defogger
HVAC HVAC System
TRCHMSL Trailer Center High-Mount Stop Lamp
RR W/W Rear Window Wipe
CRANK Clutch Switch, NSBU Switch
HAZLP Hazard Lamps
VECHMSL Vehicle Center High-Mount Stop Lamp
HTDMIR Heated Mirror
STOPLP Stoplamps
TBC Truck Body Computer
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
