Chevrolet Astro (1990) – wiring diagrams – fuse box

Chevrolet Astro (1990) – wiring diagrams – fuse box

Year of productions:  1990

Fuse Box

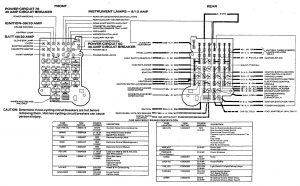

Chevrolet Astro - wiring diagram - fuse box (part 1)
Chevrolet Astro – wiring diagram – fuse box (part 1)

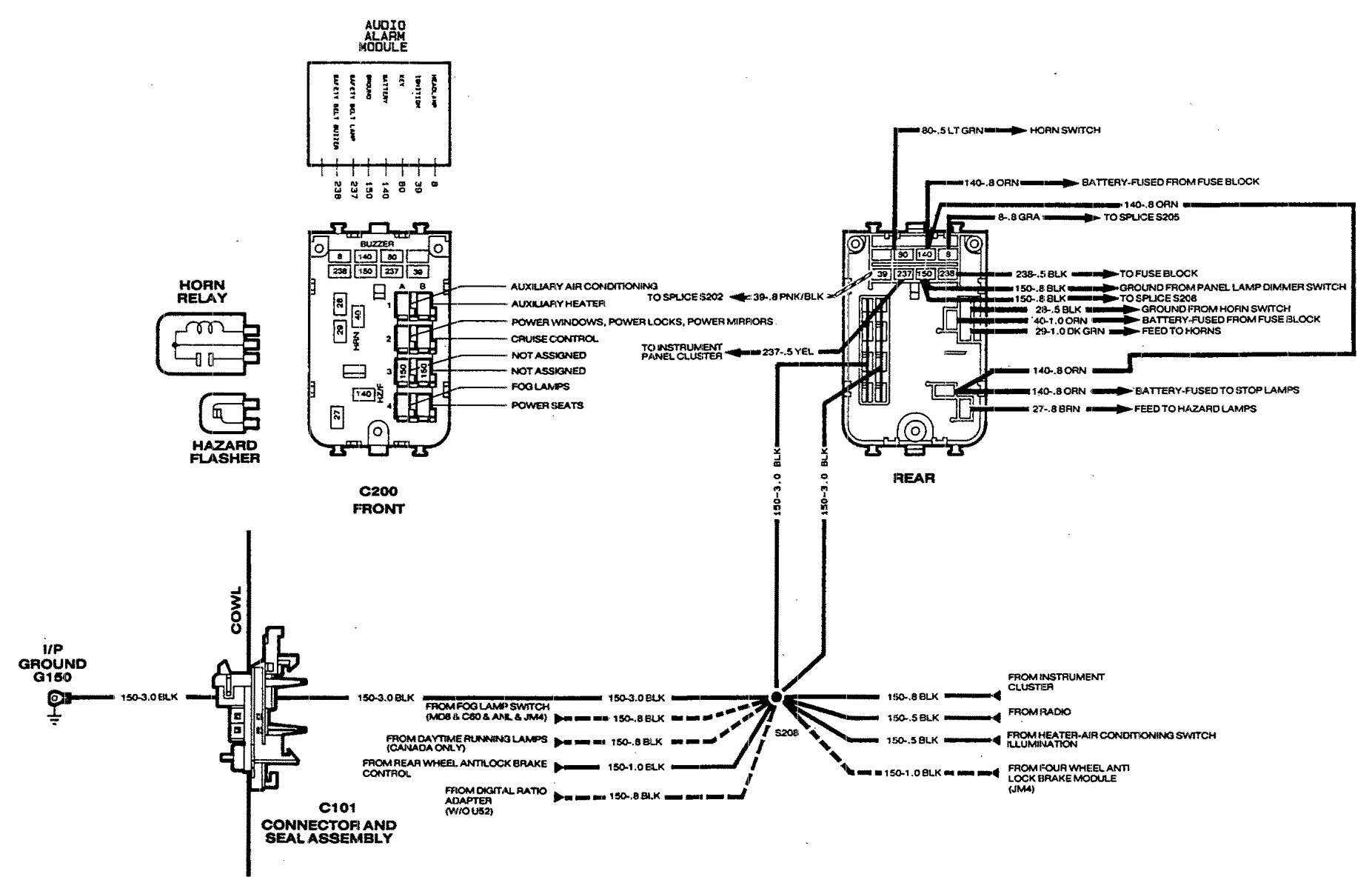

Chevrolet Astro - wiring diagram - fuse box (part 2)
Chevrolet Astro – wiring diagram – fuse box (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
