Cadillac Escalade (2000) – wiring diagrams – ground distribution

15 January 2019 admin Cadillac, Escalade 0

Cadillac Escalade (2000) – wiring diagrams – ground distribution

Year of productions:  2000

Ground distribution

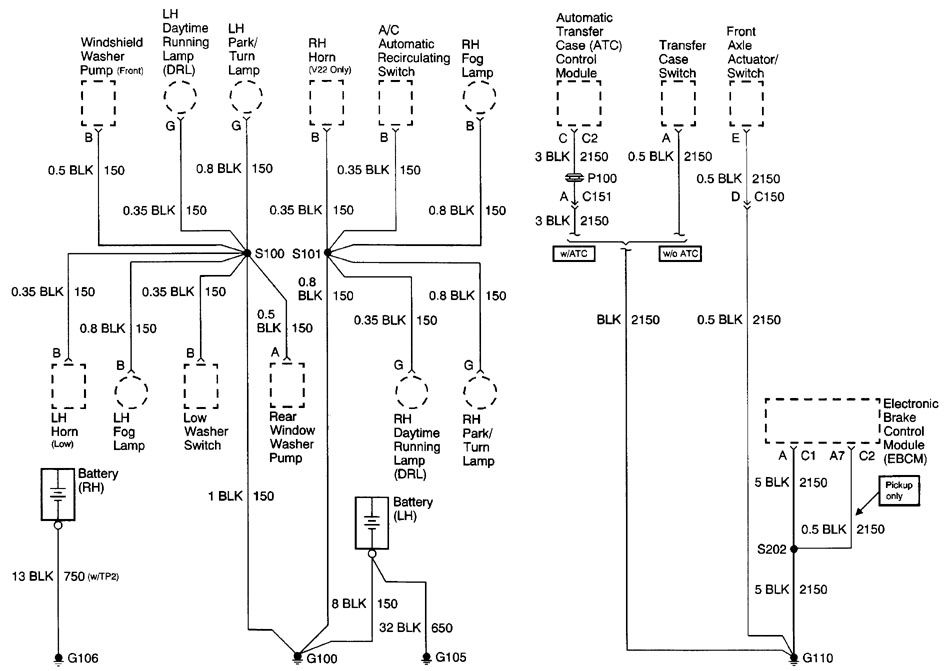

Cadillac Escalade – wiring diagrams – ground distribution (part 1)

Cadillac Escalade – wiring diagrams – ground distribution (part 1)
Cadillac Escalade – wiring diagrams – ground distribution (part 1)

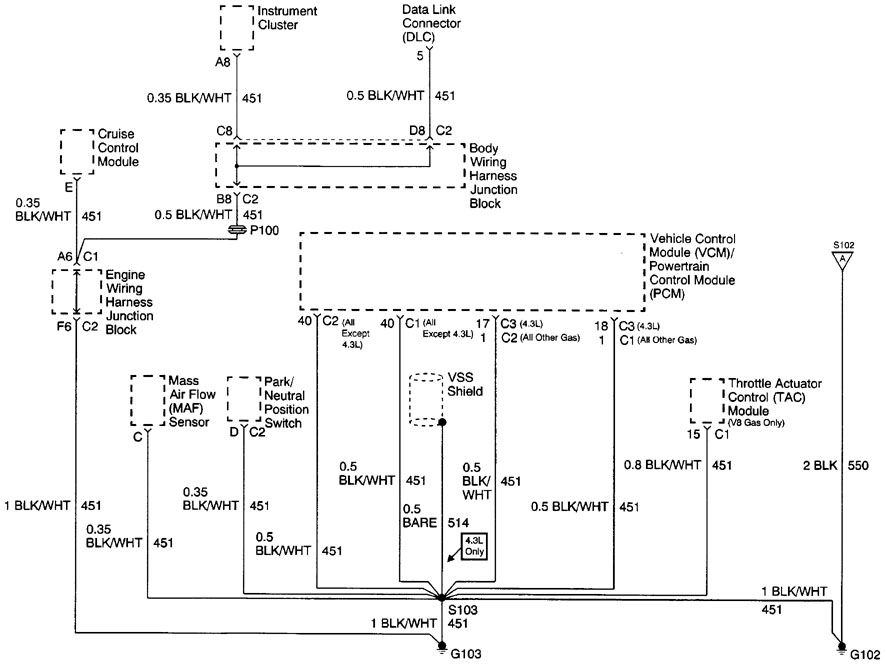

Cadillac Escalade – wiring diagrams – ground distribution (part 2)
Cadillac Escalade – wiring diagrams – ground distribution (part 3)
Cadillac Escalade – wiring diagrams – ground distribution (part 3)

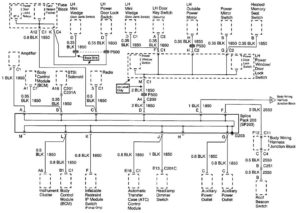

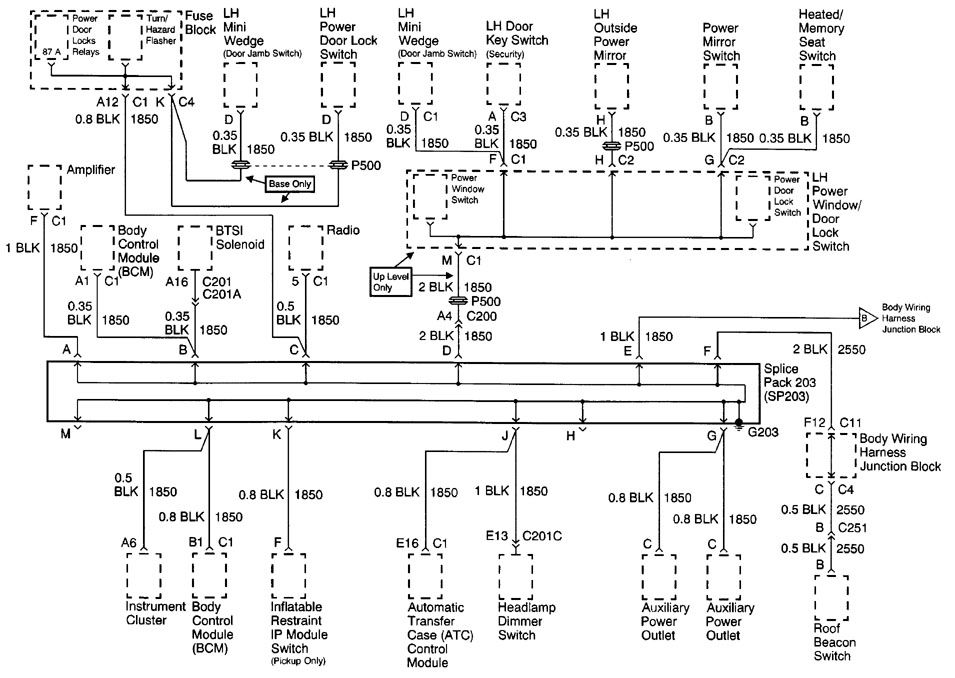

Cadillac Escalade – wiring diagrams – ground distribution (part 4)
Cadillac Escalade – wiring diagrams – ground distribution (part 4)
Cadillac Escalade – wiring diagrams – ground distribution (part 5)
Cadillac Escalade – wiring diagrams – ground distribution (part 5)

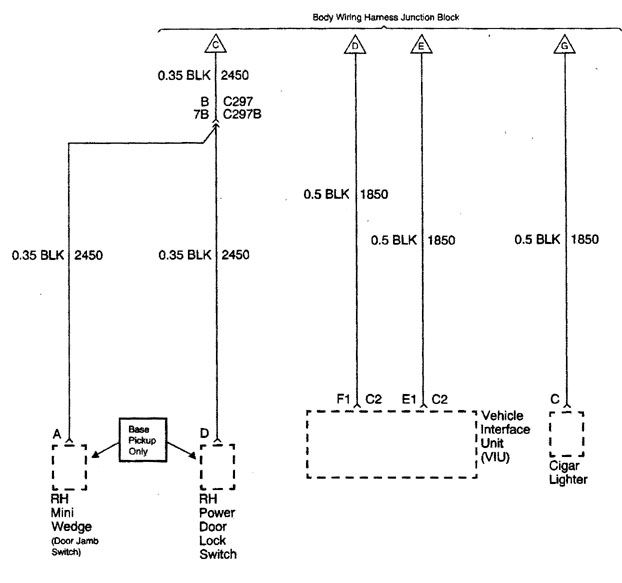

Cadillac Escalade – wiring diagrams – ground distribution (part 6)
Cadillac Escalade – wiring diagrams – ground distribution (part 6)

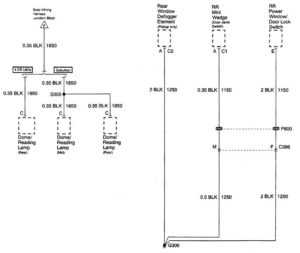

Cadillac Escalade – wiring diagrams – ground distribution (part 7)
Cadillac Escalade – wiring diagrams – ground distribution (part 7)

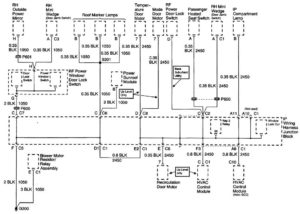

Cadillac Escalade – wiring diagrams – ground distribution (part 8)
Cadillac Escalade – wiring diagrams – ground distribution (part 8)

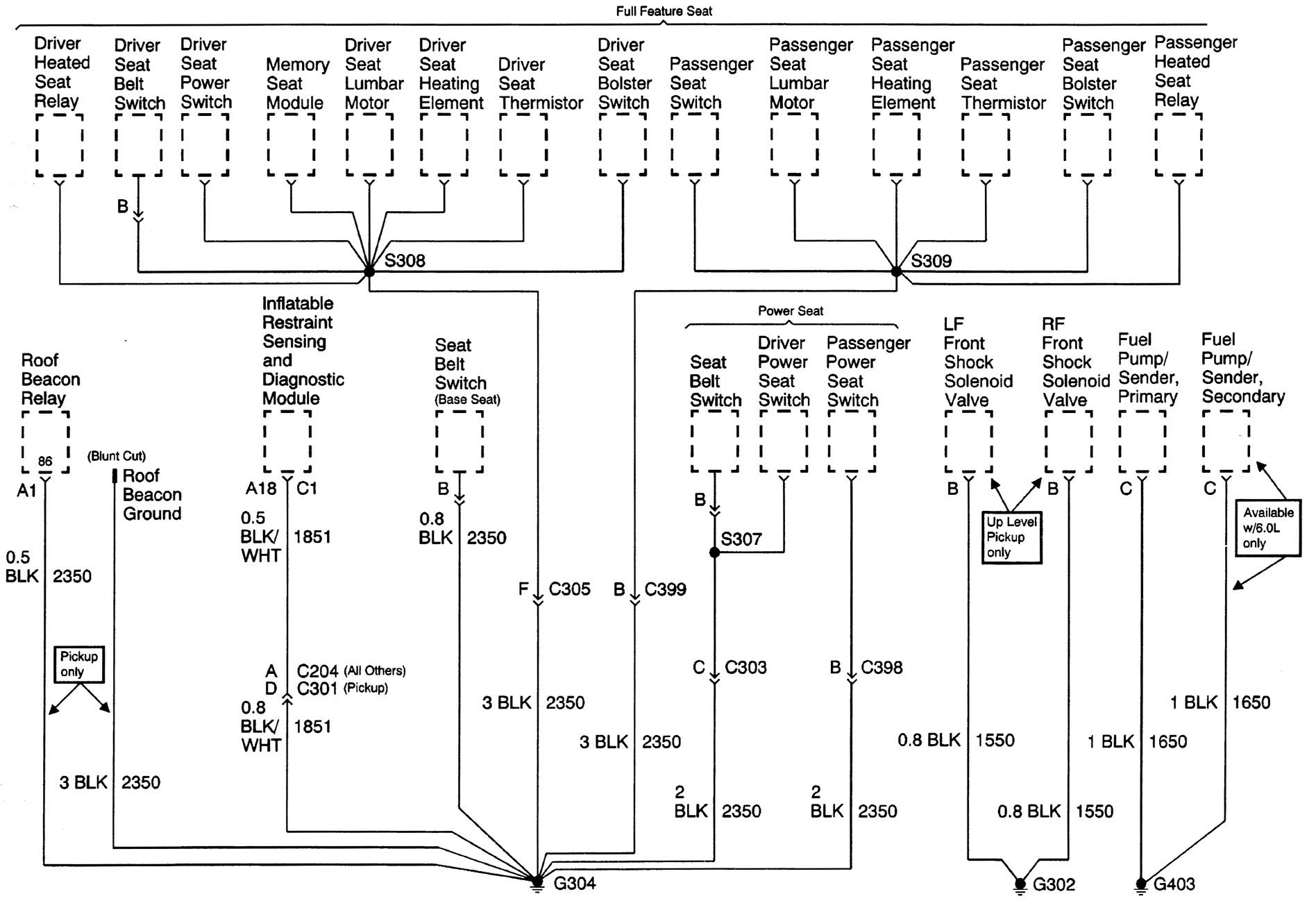

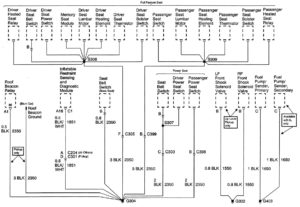

Cadillac Escalade – wiring diagrams – ground distribution (part 9)
Cadillac Escalade – wiring diagrams – ground distribution (part 9)

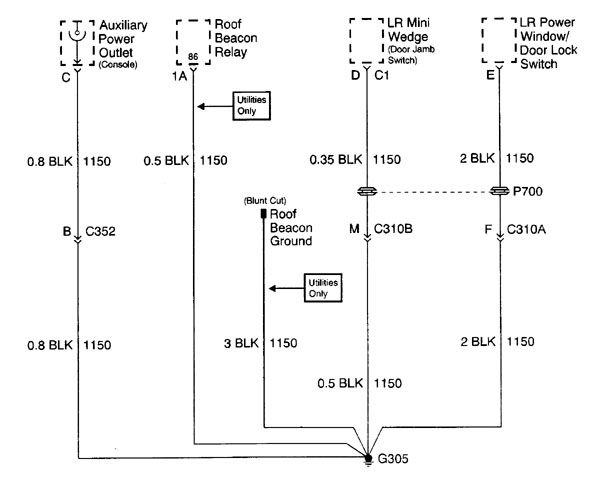

Cadillac Escalade – wiring diagrams – ground distribution (part 10)
Cadillac Escalade – wiring diagrams – ground distribution (part 10)

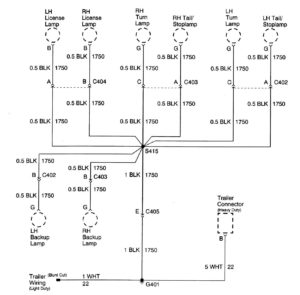

Cadillac Escalade – wiring diagrams – ground distribution (part 11)
Cadillac Escalade – wiring diagrams – ground distribution (part 11)

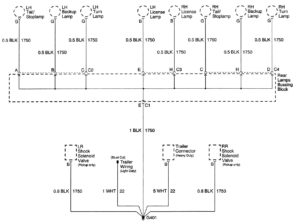

Cadillac Escalade – wiring diagrams – ground distribution (part 12)
Cadillac Escalade – wiring diagrams – ground distribution (part 12)

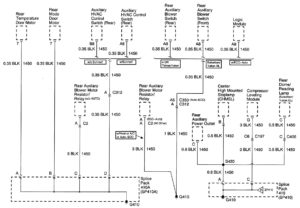

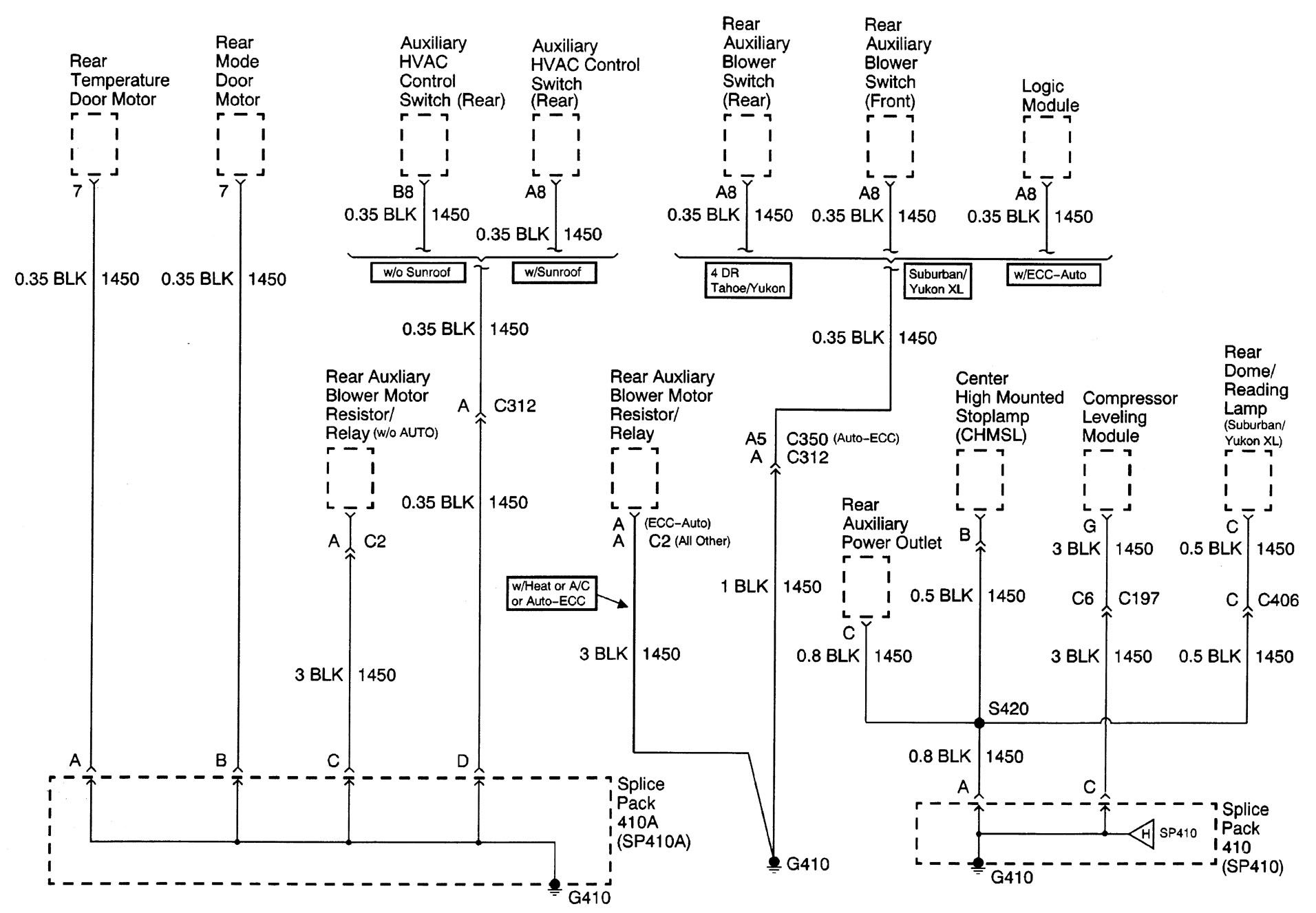

Cadillac Escalade – wiring diagrams – ground distribution (part 13)
Cadillac Escalade – wiring diagrams – ground distribution (part 13)

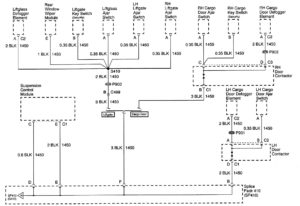

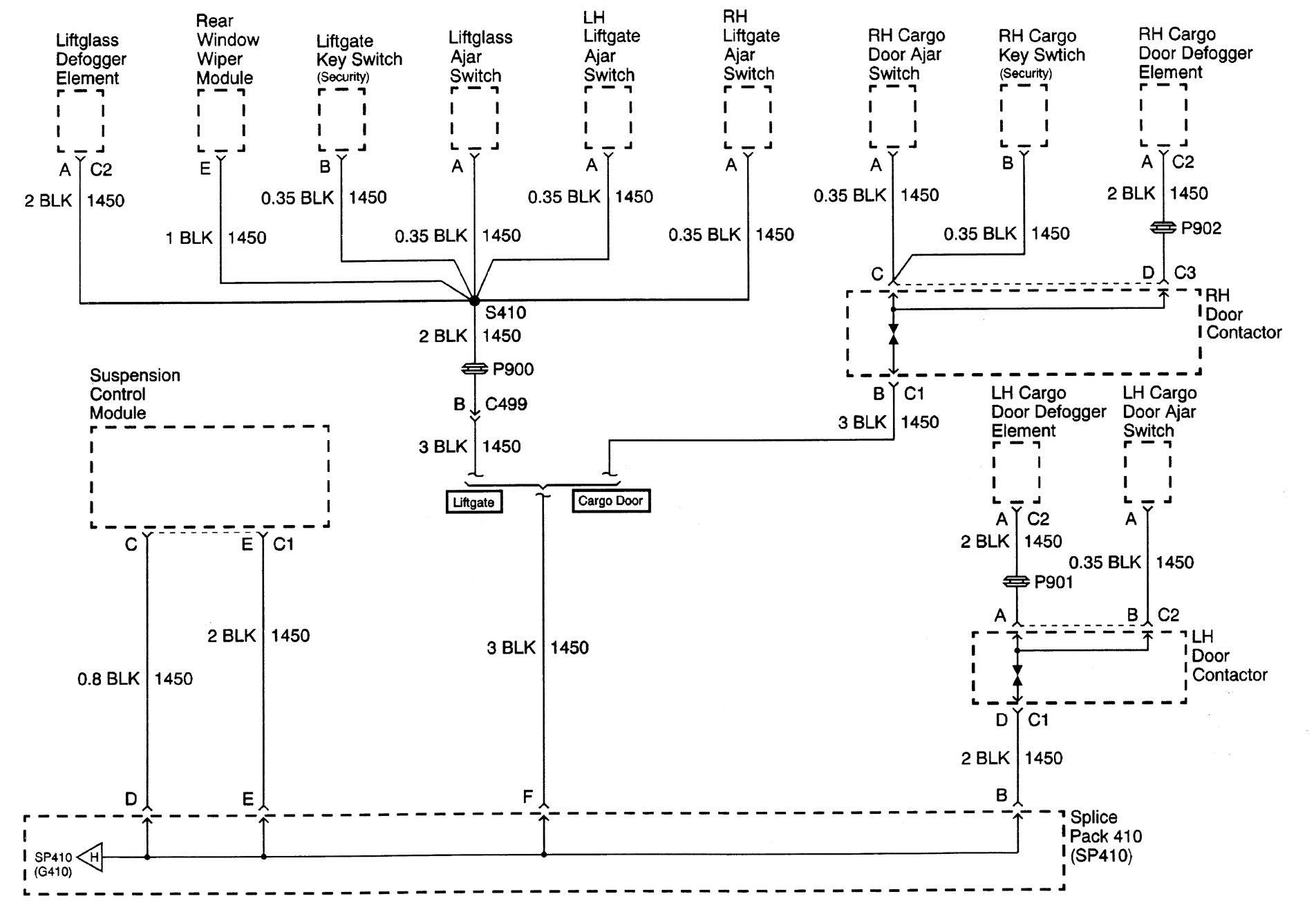

Cadillac Escalade – wiring diagrams – ground distribution (part 14)
Cadillac Escalade – wiring diagrams – ground distribution (part 14)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
