Cadillac Escalade (2000) – wiring diagrams – fuse box diagram
Year of productions: 2000
Engine compartment
BRAKE
| Fuse | Fuse name | A | Description |
| 1 | STUD 1 | 40 | Trailer Wiring I Automatic LeBRAKEvel Control Compressor |
| 2 | ABS | 60 | Brake Pressure Modulator Valve (Pump) |
| 3 | IGN A | 40 | Starter Relay, Ignition Switch-IGN 1, TURN, SEO IGN Fuses |
| 4 | AIR | 30 | Secondary Air Injection Reaction Pump |
| 5 | RAP | 50 | Rap Relay, MIA/LOCK DR LOCK Fuses and SEATS Circuit Breaker |
| 6 | IGN B | 50 | Ignition Switch-Rap Relay, Wiper/Washer and SEO ACCY Fuses |
| 7 | RAP 2 | 50 | Power Window RF switch, Power Window AA Switch,Power Sunroof |
| 8 | STUD 2 | 30 | Body Wiring Provisions, Trailer Wiring |
| 9 | TRL R TRN | 10 | Trailer Turn and Stop |
| 10 | TRL L TRN | 10 | Trailer Turn |
| 11 | INJ B | 15 | Fuel Injectors 2, 4, 6, and 6, Ignition Coils, Engine Shutoff Solenoid and Sensor-Diesel |
| 12 | PARK LP | 30 | Park Lamp Relay, Headlamp and Panel Dimmer Switch-Park Lamps |
| 13 | FAT HVAC | 30 | Blower Motor (High Speed) |
| 14 | STOP LPS | 20 | VEH STOP and CHMSL Fuses, Trailer Wiring (LH, RH Tum and Stop Lamp) |
| 15 | ECM 1 | 10 | Vehicle Control Module (VCM)/Powertrain Control Module (PCM)- (from IGN 1 Relay) |
| 16 | CHMSL | 10 | Center High Mounted Stop Lamp |
| 17 | VEH STOP | 10 | Vehicle Stop Lamps |
| 18 | 125 | ||
| 19 | TRL B/U | 10 | Trailer Backup Lamps |
| 20 | INJA | 15 | Fuel Injectors 1, 3, 5, and 7, Ignition Coils. Glow Plug Module, Fuel Heat, Water in Fuel (WIF) Sensor, Wastegate Solenoid |
| 21 | RR HVAC | 30 | Rear Heater,Rear Blower Relays |
| 22 | VEH B/U | 15 | Vehicle Backup Lamps |
| 23 | ENG 1 | 10 | Mass Air Flow (MAF) Sensor, Camshaft Position (CMP) Sensor, Evaporator Emission (EVAP) Canister Vent Valve, Evaporative Emission (EVAP) C Purge Valve |
| 24 | ETC | 15 | Electronic Throttle Control (ETC) |
| 25 | IGN E | 10 | A/C Compressor Clutch Relay, DRL Relay, Rear Defog Relay, Secondary Injection Reaction Pump Relay |
| 26 | B/U LP | 25 | Backup Lamps, BTSI |
| 27 | ATC | 20 | Automatic Transfer Case (ATC) Control Module, Encoder Motor |
| 28 | RTD | 30 | Real Time Damping (RTD) |
| 29 | RR PRK | 10 | RR Park Lamps |
| 30 | ECM B | 20 | Fuel Pump Relay, Vehicle Control Module (VCM)/Powertrain Control Module (PCM) |
| 31 | 02 A | 15 | Heated Oxygen Sensors |
| 32 | 02 B | 15 | Heated Oxygen Sensors |
| 33 | LR PRK | 10 | LR Park Lamps |
| 34 | RR DEFOG | 30 | Rear Window Defogger |
| 35 | TRL PRK | 15 | Trailer Park |
| 36 | PRIME | — | Fuel Pump Prime Port |
| 37 | RT HDLP | 15 | RH Headlamps (Hi and Low) |
| 38 | HTD MIA | 10 | Heated Outside Mirrors |
| 39 | LT HDLP | 15 | LH Headlamps (Hi and Low) |
| 40 | A/C | 10 | A/C Compressor Clutch |
| 41 | AUX PWR | 20 | Auxiliary Power Outlets |
| 42 | SEO 2 | 30 | Roof Beacon and Relay, Full Feature Seat – LH and RH |
| 43 | SEO 1 | 15 | Roof Beacon Switch, Cellular Phone Wiring Provisions |
| 44 | DRL | 10 | Daytime Running Lamps (DRL) |
| 45 | FOG LPS | 15 | Fog Lamps |
| 46 | RADIO | 15 | Radio and Instrument Cluster |
| 47 | CIGAR | 15 | Data Link Connector, Cigar Lighter |
| 48 | RT TURN | 10 | RH Tum Signals |
| 49 | ATSLC | 10 | Automatic Transmission Shift Lock Control Solenoid |
| 50 | LT TURN | 10 | LH Tum Signals |
| 51 | FR PRK | 10 | Front Park Lamps |
| 52 | W/W Pump | 15 | Windsheild Washer Pump |
| 53 | IGN C | 20 | Ignition Switch, Crank, IGN 0 Fuses |
| 54 | RDO AMP | 25 | Radio/Audio Systems Amplifier |
| 55 | HAZ LP | 20 | Hazard Lamps |
| 56 | EXP LPS | 10 | — |
| 57 | HORN | 15 | Horn/Horn Relay |
| 58 | CTSY LP | 15 | Inadvertent Power Relay (Courtesy Lamps) |
| 59 | RR WPR | 25 | RR Wiper Washer, RR Wiper Motor |
| 60 | TBC | 10 | Body Control Module |

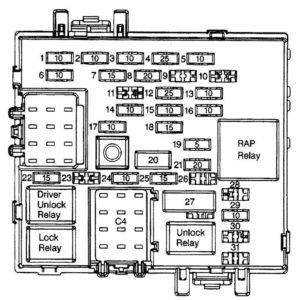

Interior panel
| Fuse | Fuse name | A | Description |
| 1 | HVAC 1 | 10 | HVAC Control Module, Mode Door Motors/Actuators |
| 2 | IGN 3 | 10 | Memory Seat Module, LH and RH Heated Seat Switch |
| 3 | BRAKE | 10 | Electronic Brake Control Module (EBCM) |
| 4 | HTR NC | 25 | Blower Motor (all except high speed) |
| 5 | IGN 0 | 10 | Automatic Transmission, Instrument Cluster, Vehicle Control Module (VCM)/Powertrain Control Module (PCM) |
| 6 | CRUISE | 10 | Cruise Control Module. Cruise Control Switch, Instrument Cluster, Body Control Module (BCM) |
| 7 | 4WD | 15 | Auxiliary Battery Relay, Front Axle Actuator/Switch, Automatic Transfer (ATC) Control Module, Vehicle Control Module (VCM) |
| 8 | TURN | 20 | Feeds L T Turn and AT Turn fuses – turn signals |
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | WS WIPER | 25 | Windshield Wiper, Windshield Washer Pump |
| 13 | SEO IGN | 10 | Selectable Ride |
| 14 | ILLUM | 10 | Instrument Cluster. Instrument Panel Switches (backlit) |
| 15 | IGN 1 | 10 | Body Control Module (BCM). Instrument Cluster, Automatic Day-Night |
| 16 | SEO ACCY | 10 | Body Builder Provision |
| 17 | CRANK | 10 | Starter Relay |
| 18 | AIR BAG | 15 | Inflatable Restraint Sensing and Diagnostic Module, lnflatabile Restraint Instrument Panel Module Switch |
| 19 | MIA/LOCK | 3 | Power Mirrors, Memory Seat Switch, Power Door Lock Relays |
| 20 | SEATS (CB) | 25 | Power Seats, Memory Seats {LH and RH) |
| 21 | DR LOCKS | 20 | Power Door Lock Actuators |
| 22 | LOCK | 15 | Power Door Locks {Act.uators) |
| 23 | |||
| 24 | INT PK | 10 | Park Lamp Relay Bypass (w/Manual Park Lamp Switch use) |
| 25 | UNLOCK | 15 | Power Door Locks (Actuators) |
| 26 | |||
| 27 | PWR WOO (CB) | 25 | Power Windows (Uplevel Vehicle) |
| 28 | |||
| 29 | ROO I | 10 | Radio (Base Vehicle) |
| UNLOCK JMPR (Relay/Fuse) | 30 | Power Door Locks {non-Keyless Entry) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
