Buick Skylark (1996 – 1997) – fuse box diagram

Year of production: 1996, 1997

Instrument Panel Fuse Block

The main fuse panel is located on the left side of the instrument panel.

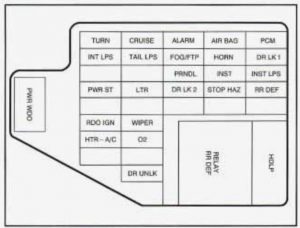

Buick Skylark - wiring diagram - fuse box diagram - instrument panel
Buick Skylark – wiring diagram – fuse box diagram – instrument panel
Fuse Usage
PWR WDO Pow Power Window (Circuit Breaker)
TURN Turn Signal Lamps
INT LPS Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, Mapmeading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brake
PWR ST Power Seat
RDO IGN Radio
HTR-A/C Heater/Air Conditioning Blower, Daytime Running Lamps and Automatic Light Control (If equipped)
CRUISE Cruise Control
TAIL LPS Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm
LTR Cigarette Lighter, Auxiliary Power Outlet
WIPER Windshield Wipers/Washers
02 Heated Oxygen Sensors
DR UNLK Automatic Door Unloc
ALARM Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Keyless Entry
FOG/FTP Flash to Pass
PRNDL Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK 2 Door Locks
AIR BAG Air Bag-Power
HORN Horn, Service Tool Power
INST Instrument Cluster
STOP HA2 Stoplamps, Hazard Lamps, Anti-Lock Brakes
PCM Powertrain Control Modul
DR LK 1 Door Locks, Remote Keyless Entry
INST LPS Instrument Panel Ligh
RR DEF Rear Window Defogger
HDLP Headlamps, Daytime Running Lamps (If equipped) (Circuit Breaker

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the engine compartment, near the battery.

Buick Skylark - wiring diagram - fuse box diagram - engine compartment
Buick Skylark – wiring diagram – fuse box diagram – engine compartment
Fuses Usage
F/P INJ Fuel Pump, Fuel Injector
ERLS Back-up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Air Conditioning Compressor, Park Lock Solenoid
ABS/EVO Anti-Lock Brake Solenoids
IGN MOD Ignition System
WAC BLO MOT Heater/Air Conditioner-High Blower, Generator-Voltage Sense
PCM BATT Powertrain Computer
CLG FAN Engine Cooling Fan
HDLP Lighting Circuits
STOP LPS PWR ACC RR DEFG Power Accessories, Stoplamp Circuits, Rear Window Defogger
ABS Anti-Lock Brakes
IGN SW Ignition Switched Circuits

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
