Buick Skylark (1995) – fuse box diagram

Buick Skylark (1995) – fuse box diagram

Year of production: 1995

Fuses and Circuit Breakers

The fuse panel is to the left of the steering column, near the parking brake release lever.

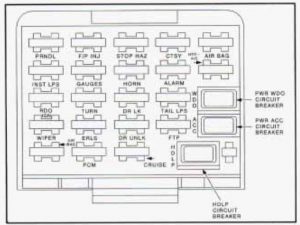

Buick Skylark - wiring diagram - fuse box diagram
Buick Skylark – wiring diagram – fuse box diagram
Fuse Usage
PRNDL Electronic PRNDL Display
F/P INJ Fuel Pump, Injectors
STOP HAZ Stop/Hazard Lamps
CTSY Door Lock Switches, Power Mirrors, Cigar Lighter
AIR BAG Supplemental Inflatable Restraint, Crank Input
INST LPS Instrument Panel, Interior Lamps Dimming
GAUGES Gauges, Rear Defog, Warning Lights
ALARM Interior Lamps, Chime, Auto Door Locks, Remote Keyless Entry
HTR-A/C Heater, Air Conditioning, Antilock Brakes, Daytime Running Lamps (Canada)
RDO Radio Power
TURN Turn Signals
DR LK Auto Door Lock
TAIL LPS Tail Lamps, Marker Lamps, License Lamps
WDO Power Windows, Sunroof (Circuit Breaker
WIPER Windshield Wipers/Washers
ERLS Engine Controls, Back-up Lamps
DR UNLK Auto Door Unlock (Remove to Disable)
FTP Flash-to-Pass (U.S. Only)
ACC Rear Window Defogger, Power Seats, Power Sunroof (Circuit Breaker)
AIR BAG Supplemental Inflatable Restraint
PCM Powertrain Control Module, Ignition System
CRUISE Cruise Control
HDLP Headlamps (Circuit Breaker)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
