Buick Park Avenue (1995) – fuse box diagram

Buick Park Avenue (1995) – fuse box diagram

Year of production: 1995

Left Side Fuse Panel

The left side fuse panel is located under the instrument panel, next to the parking brake.

Buick Park Avenue - wiring diagram - fuse box diagram - left side fuse panel
Buick Park Avenue – wiring diagram – fuse box diagram – left side fuse panel
Position Circuity
1 Circuit Breaker-Power Windows, Astroroof
2 Not Used
3 Circuit Breaker-Power Seats
4 Not Used
5 Not Used
1A Start-up Signal – Air Bag. PASS-Kep‘”’I1
2A Spare
3A Not Used
4A Interior Lamps
5A Base Cluster, Automatic A/C, Lamp Monitors – Low Coolant, Oil Level
6A Courtesy Lamps, Power Mirrors, Memory Seat Switch
7A Not Used
8A Not Used
9A Front Ashtray Cigar Lighter
1B Turn Signal, Back-up Lamps? Cornering Lamps, Brake-Transaxle Shift Interlock
2B Spare
3B Not Used
4B Not Used
5B Anti-Lock Brake System. Firm Rid
6B Brake and Hazard Lamps
7B Not Used
8B Not Used
9B Electronic Level Control
1C Air Bag
2C Spare
3C Not Used
4C Not Used
5C Cooling Fans, Transaxle
6C Parking Lamps
7C Not Used
8C Not Used
9C Chime. Radio, Cluster
1D Ignition (RunKrank), Chime, Cluster
2D Spare
3D Heated Mirro
4D Not Used
5D Base NC
6D Not Used
7D Not Used
8D Radio
9D Rear Cigar Lighters
1E Not Used
2E Not Used
3E Ignition (Off/Unlock)
4E Not Used
5E Not Used
6E Not Used
7E Not Used
8E Wipers, Washer
9E Rear Defog

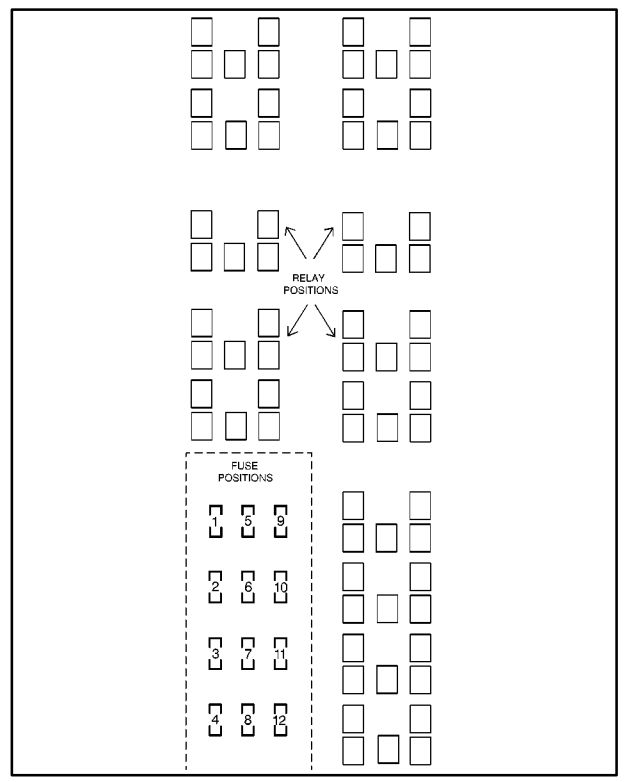

Right Side Fuse Panel

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

Buick Park Avenue -  wiring diagram - fuse box diagram - right side fuse panel
Buick Park Avenue –
wiring diagram – fuse box diagram – right side fuse panel
Position Circuity
1 Door Locks. Trunk Pull-Down. Fuel Door Release
2 Power Antenna. Lock Switch. Trunk Release
3 Horns
4 Not Used
5 Cruise Control. Misc. Engine Controls
6 Fuel Pump
7 Injectors
8 Powertrain Control Module, PASS-Key’ 11
9 Not Used
10 Not Used
11 A/C Proglamrner
12 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
