Buick Century (1996) – fuse box diagram

Year of production:  1996

Instrument Panel Fuse Block

The fuse panel is located inside the glove box, on the left side.

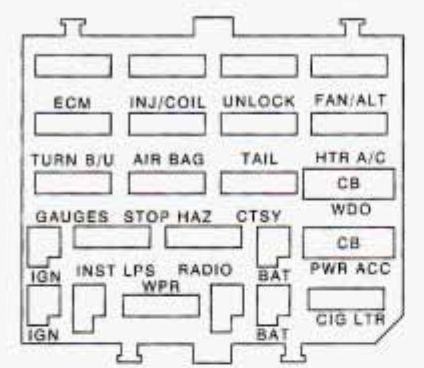

Buick Century - wiring diagram - fuse box diagram - instrument panel
Buick Century – wiring diagram – fuse box diagram – instrument panel
Fuse Usage
ECM Powertrain Control Module
TNJ/COIL Fuel Injectors
UNLOCK Auto Door Locks (Remove this fuse to disable the automatic door unlock)
FAN/ALT Electric Fan, Starter and Generator, Seq. Fuel Inj (V6), Cruise Control, Anti-Lock Brakes
TURN B/U Back-up Lamps
AIR BAG Supplemental Inflatable Restraint (Air Bag System)
TAIL Taillamps, Parking, Sidemarker, License Plate, Stopflurn Signal
HTR A/C Heater/Air Conditioner Blower Controls
GAUGES I/P Cluster, Warning Indicators, Torque Converter Clutch, Audible Warning System, Trunk Release, Brake Warning Indicator, Rear Defog Switch, Remote Keyless Entry, Headlamps, Air Bag System
STOP HAZ Stop Lamps, Hazard Flashers
CTSY Interior, Underhood, Courtesy, UP, Trunk Lamps, Door Locks, Horn Relay, Passive Restraint System, Deck Lid Release, Power Antenna Remote Keyless Entry, Vanity Mirror
WDO Power Windows
INST LPS Illumination for: I/P, Radio, Pod Lamps, Ashtray, Console Lamp,
Heater and A/C Control, Defog Switch, Headlamp Switch, Power Antenna
RADIO Radio
PWR ACC* Seats, Door Locks, Rear Defog, Power Seat Recliner, Rear Window Wiper, Trunk Release
WPR Windshield Wiper/Washer
CIG LTR Cigarette Lighter
*Circuit Breaker

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
