Buick Century (1988) – wiring diagrams – HVAC controls

23 May 2017 admin Buick, Century 0

Buick Century (1988) – wiring diagrams – HVAC controls

Year of productions:  1988

HVAC controls

Version 1

Buick Century – wiring diagrams – HVAC controls

Version 2

Buick Century – wiring diagrams – HVAC controls

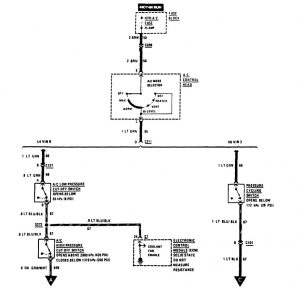

Version 3

Buick Century – wiring diagrams – HVAC controls

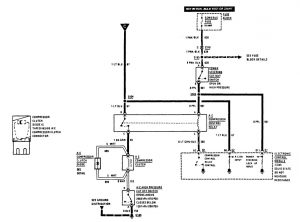

Version 4

Buick Century – wiring diagrams – HVAC controls

Version 5

Buick Century – wiring diagrams – HVAC controls

Version 6

Buick Century – wiring diagrams – HVAC controls

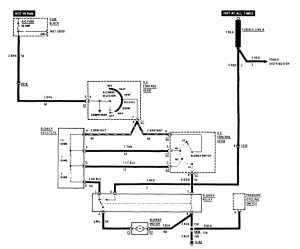

Version 7

Buick Century – wiring diagrams – HVAC controls

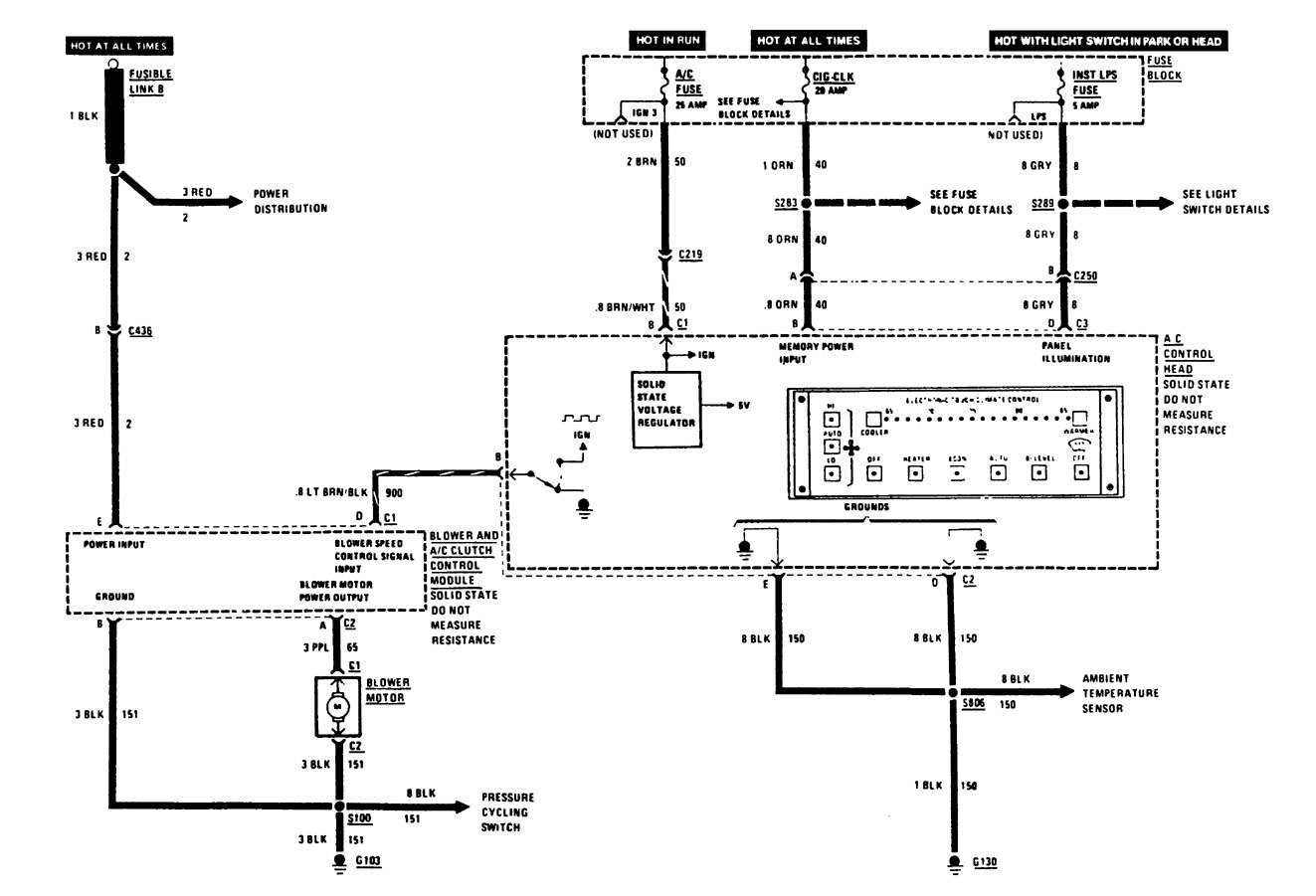

Version 8

Buick Century – wiring diagrams – HVAC controls

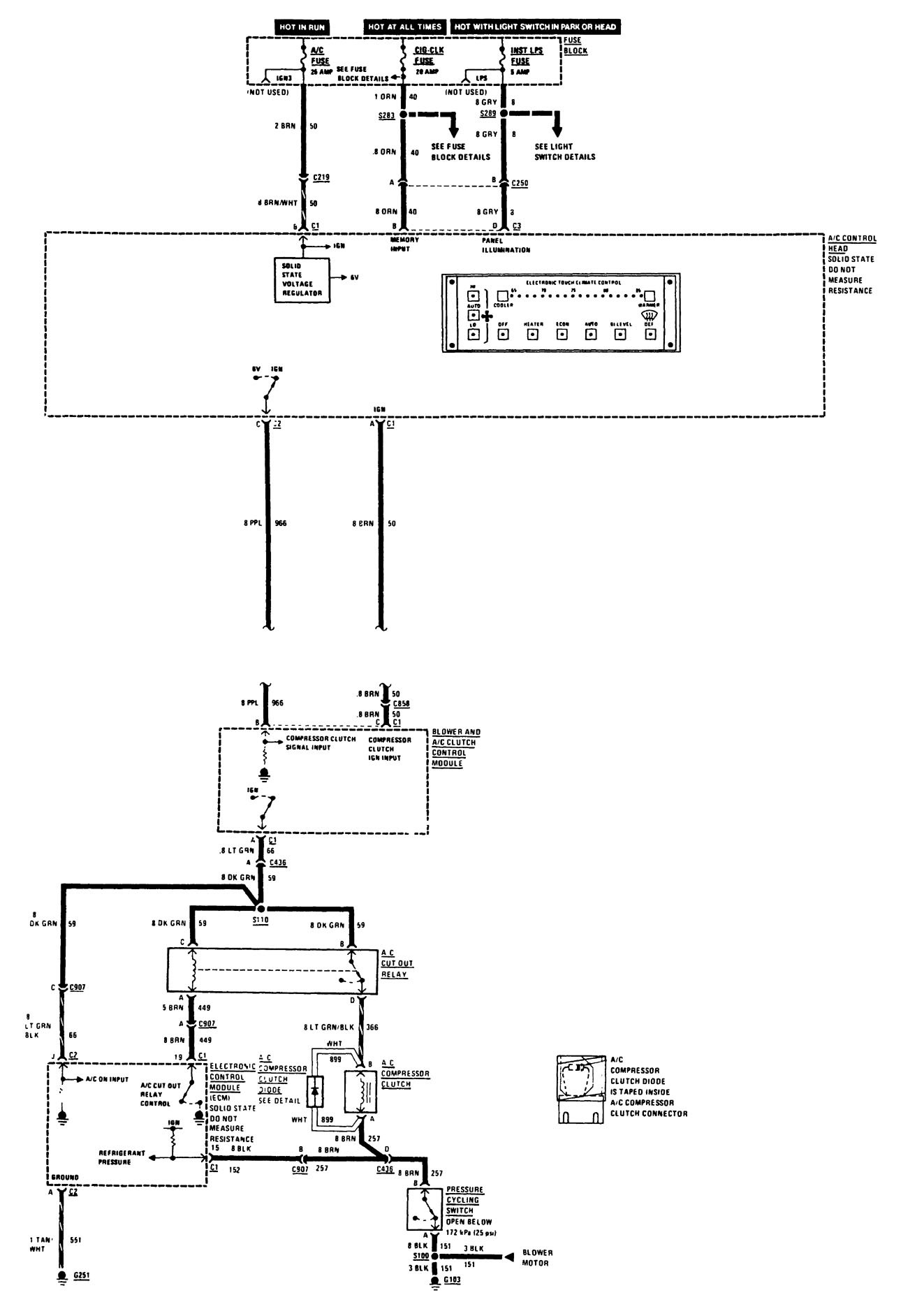

Version 9

Buick Century – wiring diagrams – HVAC controls

Version 10

Buick Century – wiring diagrams – HVAC controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
