Bobcat 324 (Mini excavator) – fuse box diagram

Bobcat 324 (Mini excavator) – fuse box diagram

Year of production:

Fuse box

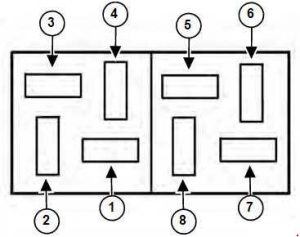

Bobcat 324 - wiring diagram - fuse box diagram
Bobcat 324 – wiring diagram – fuse box diagram
Number Ampers Protected circuit
1 10 Instrument – Hourmeter, Warning Buzzer and Fuel Gauge Back Light
2 20 Accessory – Accessory Connector, Heater and Horn.
3 20 Start – Key Switch, Unswitched Accessory Connector
4 15 Cab – Cab Power, Lights, Wiper and Dome Light
5 15 Power – Appliance Socket
6 15 Time Power – Stop Timer Module
7 15 Power – Stop Timer Module
8

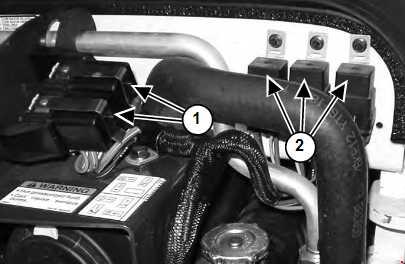

The  excavator  has  a  12  volt,  negative  ground  electrical system. The electrical system is controlled by fuses and relays located in the right side of the engine compartment (Items  1  and  2).  The  fuses  will  protect  the electrical  system  when  there  is  an  electrical  overload. The reason for the overload must be found and corrected before starting the engine again..

Bobcat 324 - wiring diagram - fuse box diagram
Bobcat 324 – wiring diagram – fuse box diagram

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
