BMW 6 Series (E63, E64) (2004 – 2010) – fuse box diagram

BMW 6 Series (E63, E64) (2004 – 2010) – fuse box diagram

Years: 2004, 2005, 2006, 2007, 2008, 2009, 2010

Fuse box on the dashboard

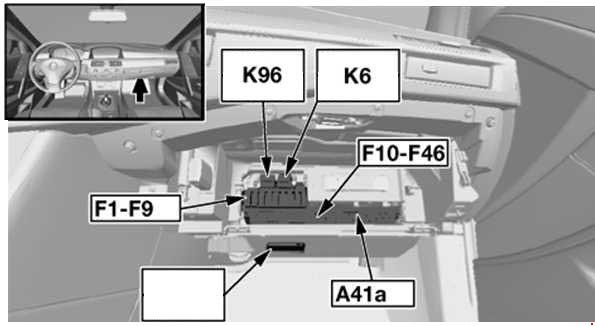

BMW 6-Series (E63 and E64) – fuse box diagram – dashboard
BMW 6-Series (E63 and E64) – fuse box diagram – dashboard
Fuse Ampere rating [A] Description
1 50 Dynamic stability  control (DSC)

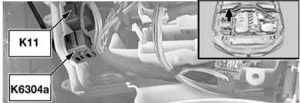

2 60 Petrol: Secondary air pump relay
Diesel: Fuel heater
3 40 Blower output stage
4 40 up to 09.2005: Active steering
20 as of 09.2005: Power-saving relay, electronic  damper control
5 50 Light module
6 50 Light module
7 50 Car access system
30 Ignition / starter electronic
8 60 N62:
Integrated supply module (IVM)
N62 with SMG:
Fuse carrier, engine electronics (F01: Hydraulic pump relay, SMG)
S85:
B+ potential distributor
DME relay
Fuse carrier, engine electronics (F01)
N52:
B+ potential distributor
DME control unit
DME relay
Fuse carrier, engine electronics:
F05: Relay, fuel injectors
F07: VVT relay

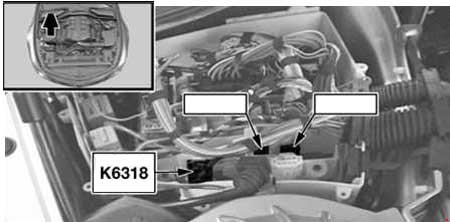

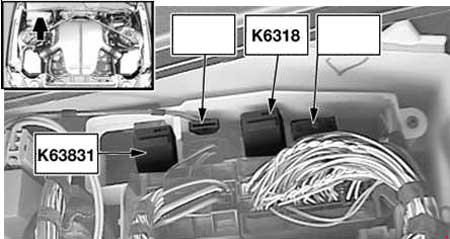

F08: Hydraulic pump relay, SMG
F010: Engine breather heating relay
9 60 Electric fan
10 30 up to 09.2005: Driver’s door module
as of 09.2005: Body-gateway module (LHD: window lift, driver’s side; RHD: window lift, passenger’s side)
11 5 Basic body module (central locking system, window lift, windscreen wiper relay)
12 30 up to 09.2005: Passenger’s door module
as of 09.2005: Body-gateway module (LHD: window lift, passenger’s side; RHD: window lift, driver’s side)
13 7,5 up to 09.2005: Instrument cluster control unit
30 VTG transfer case; as of 09.2005:  Control unit, transfer box
15 S85; as of 09.2005: Sequential manual transmission (SMG)
14 30 Seat module, front right (not semi-electric basic seat)
Switch, passenger’s seat adjustment (RHD; semi-electric basic seat)
Passenger’s lumbar support switch (RHD; semi-electric basic seat)
Switch, driver’s seat adjustment (LHD; semi-electric basic seat)
Driver’s lumbar support switch (LHD; semi-electric basic seat)
15 5 Car access system
16 30 Windscreen wiper relay
17 15 S85; up to 09.2005: Sequential manual transmission (SMG)
5 as of 09.2005: Steering column switch cluster
18 30 up to 09.2005: Relay, headlight washer
as of 09.2005: Body-gateway module
19 5 USA: Gear indicator lighting
S85: EDC Electronic damper control
20 20 SHZH independent/auxiliary heater: Heater Independent auxiliary heater
EDC Damper Control: Power-saving relay, electronic damper control
21 30 Seat module, front right (not semi-electric basic seat)
Switch, driver’s seat adjustment (RHD; semi-electric basic seat)
Driver’s lumbar support switch (RHD; semi-electric basic seat)
Switch, passenger’s seat adjustment (LHD; semi-electric basic seat)
Passenger’s lumbar support switch (LHD; semi-electric basic seat)
22 30 Basic body module (LHD: window lift rear, driver’s side; RHD: window lift rear, passenger’s side)
23 30 S85; as of 09.2005: Relay, electric vacuum pump
24 30 Basic body module (LHD: window lift rear, passenger’s side; RHD: window lift rear, driver’s side)
25 30 Dynamic stability control (DSC)
26 7,5 IHKA Basic: Heating/air conditioning system
20 as of 09.2005: Power-saving relay, terminal 15
27 30 Basic body module (central locking system)
28 20 Steering column  switch cluster
29 10 OBDII socket
Airbag
30 15 IHKA High: Heating/air conditioning system
20 Fuel pump output stage
Fuel pump relay
31 30 LHD: Seat module, front left (heated, active backrest-width adjustment, active seat)
RHD: Seat module, front right (heated, active backrest-width adjustment, active seat)
32 10 up to 09.2005: Dynamic drive
S85; up to 09.2005: Relay, electric vacuum pump
as of 09.2005:
Switch block, driver’s door
Electrochromic outside mirror, driver’s side
Electrochromic outside mirror, passenger’s side
33 30 Centre console switch centre
LHD: Seat module, front right (heated, active backrest-width adjustment, active seat)
RHD: Seat module, front left (heated, active backrest-width adjustment, active seat)
34 30 up to 09.2005: CCC/M-ASK
20 as of 09.2005: CCC/M-ASK
35 5 Navigation system
36 7,5 Comfort access control unit
Outer door handle electronic module, driver’s side
Outer door handle electronic module, passenger’s side
Electronic outer door handle module, rear left
Electronic outer door handle module, rear right
37 10 up to 09.2005:
TCU (telematics control unit)
ULF (universal charging & hands-free unit)
Eject box
5 09.2005-03.2007:
TCU (telematics control unit)
ULF (universal charging & hands-free unit)
Eject box
as of 03.2007:
ULF-SBX interface box
TCU (telematics control unit)
ULF-SBX-H interface box High
USB hub
Eject box
38 10 up to 09.2005: CD changer
5 as of 09.2005: CD changer
39
40 10 DVD changer
41 5 as of 09.2005: Instrument cluster  control unit
42 15 S85: Sequential manual transmission (SMG)
43
44
45
46
Relay
K6 Relay, headlight washer
K93 Relay, electronic damper control (as of 09.2005)
K96  Fuel pump relay (M54 or N62)
K9 Power-saving relay, terminal 15 (as of 09.2005)
A41a Fuse box

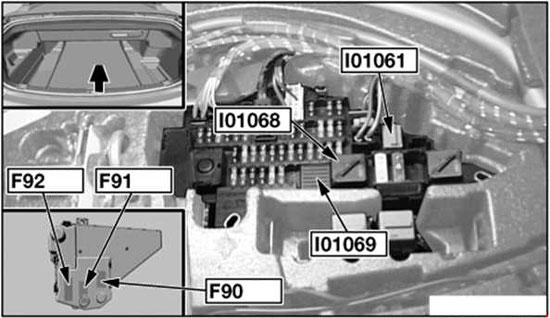

Fuse box in rear

up to 09.2005

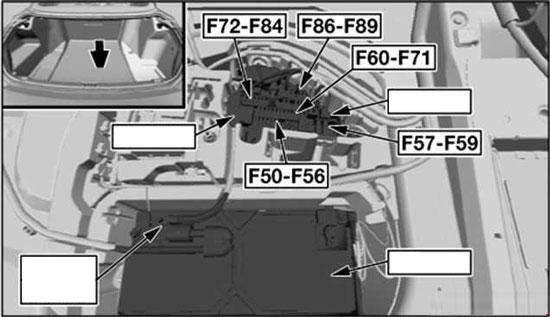

BMW 6-Series (E63 and E64) – fuse box diagram – in rear
BMW 6-Series (E63 and E64) – fuse box diagram – in rear

as of 09.2009

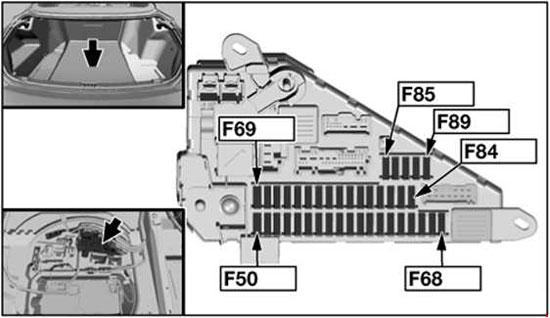

BMW 6-Series (E63 and E64) – fuse box diagram – in rear
BMW 6-Series (E63 and E64) – fuse box diagram – in rear
Fuse Ampere rating [A] Description
50 20 M54, N62: Fuel pump relay
N52, diesel: Fuel pump control (EKPS)
S85: Fuel pump output stage
30 as of 09.2005: Headlight washer pump
51 5 Siren and tilt alarm  sensor
Electrochromic interior rear view mirror
Microwave sensor, driver’s door
Microwave sensor, passenger’s door
Microwave sensor, rear left
Microwave sensor, rear right
52 10 Micro-power module
40 E64:
Relay, convertible top 1
Relay, convertible top 2
53 7,5 up to 09.2005: Automatic soft-close drive, boot lid/tailgate
09.2004-09.2005:
Comfort access control unit
Outer door handle electronic module, driver’s side
Outer door handle electronic module, passenger’s side
Electronic outer door handle module, rear left
Electronic outer door handle module, rear right
30 as of 09.2005:
Active backrest width adjustment, passenger
Active backrest width adjustment, driver
54 20 up to 09.2005: Power-saving relay, terminal 15
40 as of 09.2005: Rear window defogger
55 5 up to 09.2005: Rain/headlight sensor
40 as of 09.2005: Boot lid lift
56 5 as of 09.2005: Rain/headlight sensor
57 20 up to 09.2005: Micro-power module
5 IHKA Basic; as of 09.2005: Heating/air conditioning system
58 40 up to 09.2005: Rear window defogger
20 as of 09.2005: Rear wiper relay
57 5 Aerial tuner with remote control receiver
60 5 as of 09.2005: Rollover protection controller
61 20 up to 09.2005:
Front cigar lighter
Charging socket, glovebox
7,5 as of 09.2005: Cooler box
62 5 up to 09.2005: Power-saving relay, terminal 15
30 as of 09.2005:
    E64:
Relay for lowering rear window
Relay for raising rear window
63 5 up to 09.2005:
Electrochromic interior rear view mirror
Park distance control (PDC)
20 as of 09.2005: Independent auxiliary heater
64 10 up to 09.2005:
Rear compartment display
Central information display
Controller
15 IHKA High; as of 09.2005: Heating/air conditioning system
65 10 up to 09.2005:
Headset connection module
Head-up display
66 5 up to 09.2005:
Dynamic stability control (DSC)
    VTG Transfer case:
Dynamic stability control (DSC)
Control unit, transfer box
20 E63: Panorama glass roof
E64: Convertible top module
67 10 up to 03.2006:
Video module
Satellite receiver
20 as of 03.2006:
Automatic soft-close drive, passenger’s door (LHD)
Automatic soft-close drive, driver’s door (RHD)
Automatic soft-close drive, rear right
68 5 up to 03.2006:
Centre console switch centre
Switch, driver’s seat adjustment
Switch, passenger’s seat adjustment
20 as of 03.2006:
Automatic soft-close drive, driver’s door (LHD)
Automatic soft-close drive, passenger’s door (RHD)
Automatic soft-close drive, rear left
69 5 Park distance control (PDC)
70 5 up to 09.2005: Adaptive headlight
10 09.2005-03.2007: Active cruise control
as of 03.2007:
Active cruise control
Far-range sensor
Close-range sensor, right
Close-range sensor, left
71 20 up to 09.2005:
S85: Fuel pump output stage
30 as of 09.2005: Centre console switch centre
72 40 up to 09.2005:
   E64:
Relay, convertible top 1
Relay, convertible top 2
20 N62: Fuel pump relay
Diesel: Fuel pump control (EKPS)
73 30 up to 09.2005:
E63:
Relay for lowering rear window
Relay for raising rear window
Trailer module
09.2005-03.2007:
Hifi amplifier
40 as of 03.2007: Hifi amplifier
74 20 up to 09.2005: Trailer socket
10 as of 09.2005:
Centre console switch centre
Switch, driver’s seat adjustment
Switch, passenger’s seat adjustment
75 30 up to 09.2005: Control unit, trans-  fer box
10 as of 09.2005:
Satellite receiver
Digital tuner
Video module
76 40 up to 09.2005: Boot lid lift
10 as of 09.2005: Dynamic drive
77 5 up to 09.2005: Aerial tuner with remote control receive
10 as of 09.2005:
Head-up display
Headset connection module
78 5 as of 09.2005:
Dynamic stability control (DSC)
Control unit, transfer box
79 7,5 up to 09.2005: Electronic ride height control
10 as of 09.2005:
Central information display
Controller
80 30 up to 09.2005: HiFi amplifier
10 as of 09.2005:
Selector lever
Gear indicator lighting
Eject box
TCU (telematics control unit)
Compensator (mobile phone)
Fan, spare wheel well
Electronic night vision module
81 7,5 as of 09.2005: Electronic ride height control
82 20 up to 09.2005:
Luggage compartment socket outlet
Rear cigarette lighter
Socket outlet, rear
7,5 as of 09.2005: Tyre pressure control (RDC)
83 20 up to 09.2005:
E63: Panorama glass roof
    E64: Convertible top module
30 as of 09.2005:
Active backrest width adjustment, driver (LHD)
Active backrest width adjustment, passenger (RHD)
84 10 up to 09.2005: Active cruise control
15 as of 09.2005:
Transmission control
Sequential manual transmission (SMG)
85 7,5 as of 09.2005: Sequential manual transmission  (SMG)
86 15 up to 09.2005:
Transmission control
Sequential manual transmission (SMG)
40 as of 09.2005: Active steering
87 20 as of 09.2005:
Front cigar lighter
Charging socket,  glovebox
88 30 up to 09.2005: Centre console switch centre
20 as of 09.2005:
Luggage compartment socket outlet
Rear cigarette lighter
Socket outlet, rear
89 10 up to 09.2005:
Fan, MMC
Gear indicator lighting
Selector lever
Gear indicator lighting
Fan, spare wheel well
TCU (telematics control unit)
ULF (universal charging & hands-free unit)
Eject box
5 as of 09.2005:
Electrochromic interior rear view mirror
Power-saving relay, terminal 15



BMW 6-Series (E63 and E64) – fuse box diagram – in rear
BMW 6-Series (E63 and E64) – fuse box diagram – in rear
Fuse Ampere rating [A] Description
90 200 Fuse holder, front (fuse 1-33)
91 100 Diesel: DDE main relay
N62, TU:
Integrated supply module (IVM)
VVT relay 1
VVT relay 2
Variable valve timing gear control unit
92 100 Electric auxiliary heater
Relay
I01061 Rear deffogger
I01068 Terminal 30G
I01069 Terminal 15

Fuse in engine compartment

M54

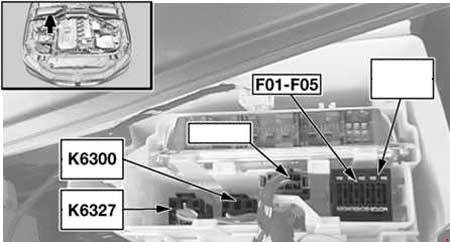

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment M54
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment M54
Number Realy
K6300 DME relay
K6327 Relay, fuel injectors

Diesel engine

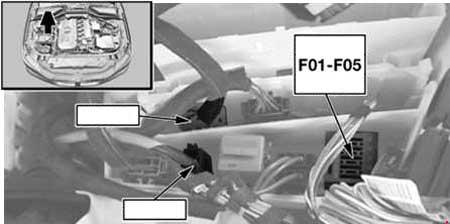

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (diesel engine)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (diesel engine)

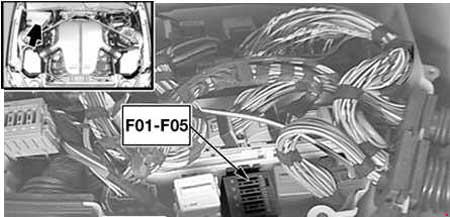

S85



BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (S85)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (S85)

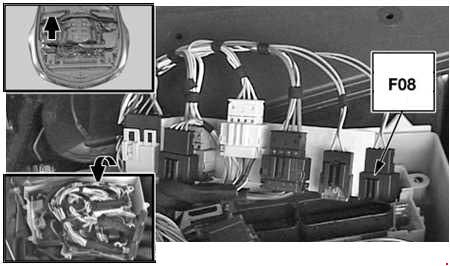

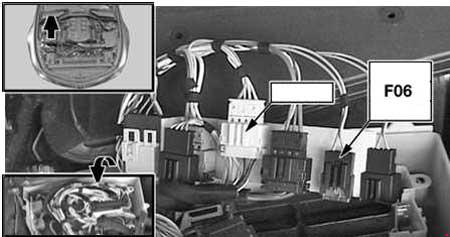

N52

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)

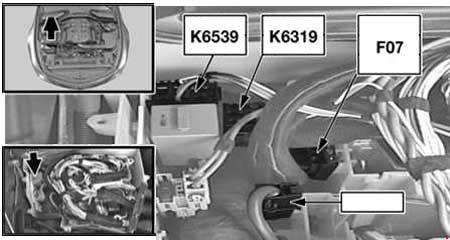

Number Realy
K6319 VVT relay
K6539 Engine breather heating relay

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N52)
Fuse Ampere rating [A] Description
F01 30 N62: Hydraulic pump relay, SMG
N52:
Interference suppression capacitor for ignition coils
Ignition coil (1, 2, 3, 4, 5, 6)
20 M57, TU:
Hall-effect sensor, camshaft 1
Hot-film air mass meter
Rail pressure control valve
Volume control valve
Solenoid valve, boost pressure control
Heating, crankcase breather
S85:
Power-saving relay, terminal 15
Fuel injector (1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
M57 TUTOP:
Hall-effect sensor, camshaft 1
Hot-film air mass meter
Rail pressure control valve
Throttle valve
Turbine control valve
Volume control valve
Solenoid valve, boost pressure control
Heating, crankcase breather
F2 20 M57, TU:
Solenoid valve, exhaust gas recirculation
Oil level sensor
Electric changeover valve, swirl flaps
Preheating control unit
Electrical changeover valve, engine mount
Heating, crankcase breather
Boost pressure adjuster 1
Oxygen sensor be-fore catalytic converter
M57 TUTOP:
Solenoid valve, exhaust gas recirculation
Oil level sensor
Electric changeover valve, swirl flaps
Preheating control unit
Electrical changeover valve, engine mount
Oxygen sensor be-fore catalytic converter
Wastegate valve
Compressor bypass valve
S85:
Oxygen sensor be-fore catalytic converter
Oxygen sensor 2 be-fore catalytic converter
Oxygen sensor after catalytic converter
Oxygen sensor 2 after catalytic converter
30 N52:
Electric coolant pump
Thermostat, characteristic map cooling
Intake camshaft sensor
Exhaust camshaft sensor
VANOS solenoid valve, intake
VANOS solenoid valve, exhaust
F03 30 Diesel: Digital diesel electronics control unit
S85: DME control unit
20 N52:
DME control unit
Oil condition sensor
DISA actuator 1
DISA actuator 2
Fuel tank vent valve
Crankshaft sensor
Hot-film air mass meter
F04 10 Diesel:
Solenoid, radiator shutter
E-box fan
Exhaust flap
Brake air flap sensor, left
Brake air flap sensor, right
AUC sensor
S85: Ionic current control unit
30 N52:
Sequential manual transmission (SMG)
Oxygen sensor be-fore catalytic converter
Oxygen sensor 2 be-fore catalytic converter
Oxygen sensor after catalytic converter
Oxygen sensor 2 after catalytic converter
Crankshaft breather heating 1
F05 30 S85:
Pressure accumulator valve VANOS
Fuel tank vent valve 2
Intake camshaft sensor 2
Exhaust camshaft sensor 2
Air mass flow sensor 2
Idle actuator
Air mass flow sensor
Oil condition sensor
Intake camshaft sensor
Exhaust camshaft sensor
Secondary air pump valve
Charcoal filter valve
F06 10 N52; up to 03.2007:
Solenoid, radiator shutte
Secondary air pump relay
Exhaust flap
E-box fan
Diagnostic module for fuel tank leakage
Secondary air-hot-film air-mass meter
as of 03.2007:
Solenoid, radiator shutte
Secondary air pump relay
Exhaust flap
E-box fan
AUC sensor
Brake air flap sensor, left
Brake air flap sensor, right
Nitrogen oxide module
Diagnostic module for fuel tank leakage
Secondary air-hot-film air-mass meter
F07 40 N52: VVT relay
F08 30 N52: Hydraulic pump relay, SMG

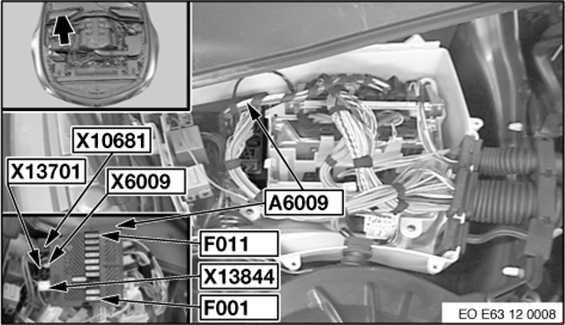

N62, TU

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N62, TU)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (N62, TU)

S85

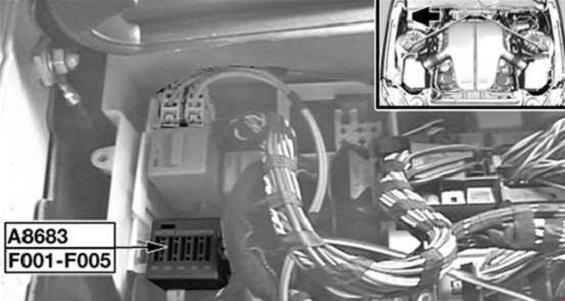

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (S85)
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment (S85)
Fuse Ampere rating [A] Description
F001 30 N62:
DME control unit
Variable valve timing gear control unit
Fuel injector (5, 6, 7, 8)
Sequential manual transmission (SMG)
20 S85: Idle actuator, cylinder bank 1
F002 20 N62, TU:
DME control unit
Fuel tank vent valve
Intake camshaft sensor 2
Exhaust camshaft sensor 2
VANOS solenoid valve 2, intake
VANOS solenoid valve 2, exhaust
S85: Idle actuator, cylinder bank 2
F003 20 N62: Ignition coil (1, 2, 3, 4)
30 S85: Electric throttle valve, bank 1
F004 20 N62: Ignition coil (5, 6, 7, 8)
10 S85: Ionic current control unit 2
F005 30 N62, TU:
DME control unit
Crankshaft sensor
Hot-film air mass meter
Intake camshaft sensor
Exhaust camshaft sensor
Characteristic map thermostat
VANOS solenoid valve, intake
VANOS solenoid valve, exhaust
S85: Electric throttle valve, bank 2
F006 20 N62:
DME control unit
Fuel injector (1, 2, 3, 4)
F007 20 N62:
DME control unit
Sequential manual transmission (SMG)
F008 30 N62:
DME control unit
Oxygen sensor 2 after catalytic converter
Oxygen sensor before catalytic converter
Oxygen sensor 2 before catalytic converter
Oxygen sensor after catalytic converter
Oil quality sensor
F009 10 p to 03.2007:
Fuel pump relay
Exhaust flap
Solenoid, radiator shutter
E-box fan
Diagnostic module for fuel tank leakage
Secondary air pump relay
as of 03.2007:
Fuel pump relay
Exhaust flap
Solenoid, radiator shutter
E-box fan
Diagnostic module for fuel tank leakage
Secondary air pump relay
Brake air flap sensor, left
Brake air flap sensor, right
AUC sensor
F010 40 N62, TU: Variable valve timing gear control unit
5 N54: Engine breather heating relay
F011 40 N62, TU: Variable valve timing gear control unit

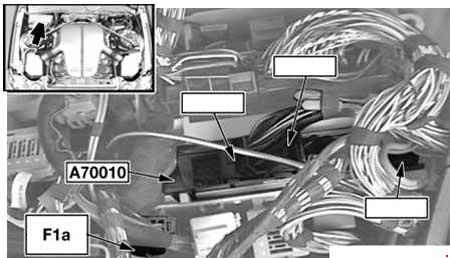

BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment
BMW 6-Series (E63 and E64) – fuse box diagram – engine compartment
Fuse Ampere rating [A] Description
F1a 10 S85:
Solenoid, radiator shutter
E-box fan
Gear indicator lighting
Selector lever
Shift lock selector lever lock
Power-saving relay, electronic damper control
Bonnet switch, right
Bonnet switch, left
Rpm sensor, transmission main shaft
Relay, electric vacuum pump
Diagnostic module for fuel tank leakage
Secondary air-hot-film air-mass meter
Secondary air pump relay
A70010 Sequential manual transmission control unit

Windscreen Wiper Relay (K11), Secondary Air Pump Relay (K6304a)

BMW 6-Series (E63 and E64) – fuse box diagram – Windscreen Wiper Relay (K11) Secondary Air Pump Relay (K6304a)
BMW 6-Series (E63 and E64) – fuse box diagram – Windscreen Wiper Relay (K11) Secondary Air Pump Relay (K6304a)

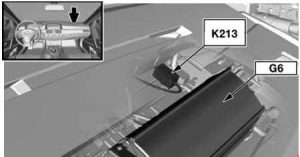

Relay, electric vacuum pump (K213)

BMW-6-Series (E63 and E64) – fuse box diagram – relay electric vacuum pump (K213)
BMW-6-Series (E63 and E64) – fuse box diagram – relay electric vacuum pump (K213)

DDE main relay (K2003a)

M57 TU

BMW 6-Series (E63 and E64) – fuse box diagram – DDE main relay (K20030a) – M57 TU
BMW 6-Series (E63 and E64) – fuse box diagram – DDE main relay (K20030a) – M57 TU

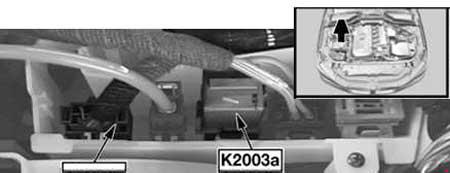

M57, M57 TUTOP, M47 TU2

BMW 6-Series (E63 and E64) – fuse box diagram – DDE main relay (K20030a) – M57, M57 TUTOP, M47 TU2
BMW 6-Series (E63 and E64) – fuse box diagram – DDE main relay (K20030a) – M57, M57 TUTOP, M47 TU2

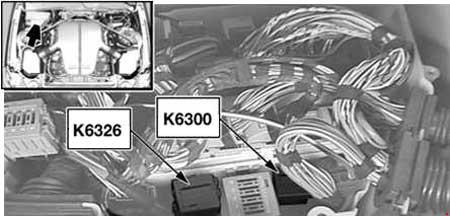

DDE relay (K6300)

S85

BMW 6-Series (E63 and E64) – fuse box diagram – DDE relay (K6300) – S85
BMW 6-Series (E63 and E64) – fuse box diagram – DDE relay (K6300) – S85
Number Description
K3626 Power-saving relay, terminal 15

N52

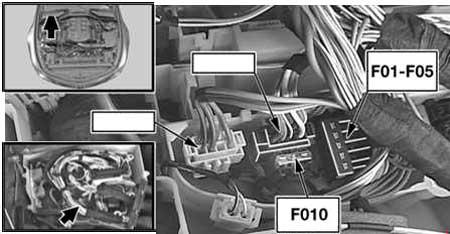

BMW 6-Series (E63 and E64) – fuse box diagram – DDE main relay (K20030a) – N52
BMW 6-Series (E63 and E64) – fuse box diagram – DDE main relay (K20030a) – N52

Hydraulic pump relay, SMG (K6318)

N62

BMW 6-Series (E63 and E64) – fuse box diagram – hydraulic pump relay, SMG (K6318) – N62
BMW 6-Series (E63 and E64) – fuse box diagram – hydraulic pump relay, SMG (K6318) – N62

S85

BMW 6-Series (E63 and E64) – fuse box diagram – hydraulic pump relay, SMG (K6318) – S85
BMW 6-Series (E63 and E64) – fuse box diagram – hydraulic pump relay, SMG (K6318) – S85
Number Description
K63831 Transmission fluid pump relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
