BMW 525i – E34 (1989 – 1990) – fuse box diagram

Year of production: 1989, 1990

Front Power Distribution Box

The fuse block is located on the lower portion of the instrument panel on the driver’s side.

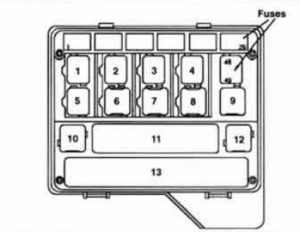

BMW 525i - wiring diagram - fuse box -  front power distribution box
BMW 525i – wiring diagram – fuse box –
front power distribution box
Fuses Usage
1 Starter relay
2 Horn relay
3 Unloader relay (KLR)
4 Blower relay
5 Vacant
6 Phone alert relay
7 Unloader relay (K 61)
8 Water pump relay
9 Unloader relay (K 15)
10 Hazard flasher relay
11 Check control module
12 Crash control unit
13 Lamp control module

Rear Power Distribution Box

The rear power distribution box is located beneath the rear seat cushion and houses auxiliary fuses. relays . and control modules.

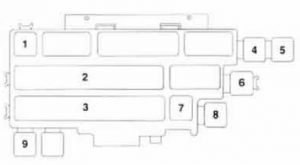

BMW 525i - wiring diagram - fuse box - rear distribution box
BMW 525i – wiring diagram – fuse box – rear distribution box
Fuse Usage
1 Fuse block
2 General module
3 Relay module
4 Electric power protection module
5 Wiper relay
6 Rear defogger relay
7 Fuse block
8 Fuse block
9 Wiper pressure control relay (ADV), as applicable

Electronics Box (E-box)

The electronics box or E·box is located in the right·hand rear corner of the engine compartment.

BMW 525i - wiring diagram - fuse box -  electronics E-box
BMW 525i – wiring diagram – fuse box –
electronics E-box
Fuse Usage
1 ABS or Slip (traction) control module
2 DME control module
3 Cruise control module
4 System (main) relay
5 Fuel pump relay
6 Oxygen sensor heater relay

Auxiliary Relay Panel

The auxiliary relay panel is mounted to the front left corner of the engine compartment.

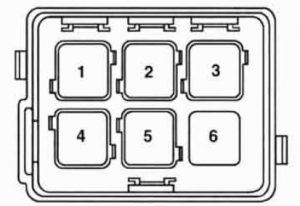

BMW 525i - wiring diagram - fuse box -  auxiliary relay box
BMW 525i – wiring diagram – fuse box –
auxiliary relay box
Fuse Usage
1 Headlight/fog light cleaning system module (Canada)
2 High speed relay
3 Normal speed relay
4 Phone horn alert relay
5 Air conditioning relay
6 Fuses



Fuse postion

Fuses number 1 through fuse 29 are mounted in the front power distribut ion box. Additional fuse locations include the rear power distribution box (Fuse #30-37. and #40-47) and the auxiliary relay panel (Fuse # 48. 49 or #55-56).

Fuse Ampere rating [A] Usage
1 15 ABSffraction system (see also Fuse 17)
Instrument cluster check control (see also Fuses 15. 17. 20. 29)
Lamp monitor (see also Fuses 2, 3, 5, 7,
10, 11, 13, 14, 15)
Brake lights
Cruise control (see also Fuse 17)
On-board computer (see also Fuses 17, 20)
Electronic throttle control (EML) (see also Fuses 17, 20)
Electronic transmission control (see also Fuse 12, 17)
2 7,5 Fuel injection (M60 engine only)
Headlights/Fog lights (see also Fuses 3, 4, 5, 7, 10, 11, 13, 14, 15, 24)
Lamp monitor (see also fuses 1, 3, 4, 5, 7, 10,
11, 13, 14, 15)
Turn signal hazard lights (see also Fuses 3,
6, 13, 14)
Crash control unit (see also Fuses 6, 10, 11 )
3 7,5 Headlights/Fog lights (see also Fuses 2, 5, 7,
10, 11, 13, 14, 24)
Lamp monitor (see also Fuses 1, 2, 4, 5, 7, 10, 11, 13, 14, 15)
Turn signal/hazard lights (see also Fuses 2,
6, 13, 14)
Headlight washer (Canada) (see also Fuses
4, 5, 17, 22, 24)
Central body electronics (ZKE) (see also
Fuses 4, 5, 17, 24, 30, 47)
4 7,5 Park/tail/underhood lights (see also Fuses 5,
15, 20)
Lamp monitor (see also Fuses 1, 2, 3, 5, 7, 10, 11, 13, 14, 15)
Power mirrors (see also Fuses 5, 12)
Headlight washer (Canada) (see also Fuses
3, 5, 17, 22, 24)
Central body electronics (ZKE) (see also
Fuses 3, 5, 17, 24, 30, 47)
5 10 Headlights/Fog lights (see also Fuses 2, 3, 7,
10, 11, 13, 14)
Headlight washer (Canada) (see also Fuses
3, 4, 17, 22, 24)
Parkitail/underhood lights (see also Fuses 4, 15, 20)
License/trunk illumination (see also 15, 21)
Glove box lighVcigar lighter (see also Fuses
18, 21, 26)
lnterior lighting (see also Fuses 17, 18,
20, 21)
Lamp monitor (see also Fuses 1, 2, 3, 4, 7, 10, 11, 13, 14, 15)
Power mirrors (see also Fuses 4, 12)
Central body electronics (ZKE) (see also
Fuses 3, 5, 17, 24, 30, 47)
6 15 Turn signal/hazard lights (see also Fuses 2, 3, 13, 14)
Crash control unit (see also Fuses 2,  10, 11)
7 15 Headlights/Fog lights (see also Fuses 2, 3, 5, 10, 11, 13, 14, 15)
Lamp monitor (see also Fuses 1, 2, 3, 4, 5,
10, 11, 13, 14)
8 7,5
9 15 Horn
Integrated Climate Control Regulation
(IHKR) (see also Fuses 19, 20, 27, 29, 46)
Cellular telephone (see also Fuses 18, 31 )
Auxiliary fan (see also Fuses 25,  29)
10 7,5 Headlights/Fog lights (see also Fuses 2, 3, 5,
7, 11, 13, 14)
Lamp monitor (see also Fuses 1, 2, 3, 4, 5, 7,
11, 13, 14, 15)
Crash control unit (see also Fuses 2, 10, 11 )
11 7,5 Headlights/Fog lights (see also Fuses 2, 3, 5,
7, 10, 13, 14)
Lamp monitor (see also Fuses 1, 2, 3, 4, 5, 7
10, 13, 14, 15)
Crash control unit (see also Fuses 2, 10, 11)
12 15 Windshield washer nozzle heaters
Backup lights
Power Mirrors
Memory seats (see also Fuses 16, 18, 42)
Electronic transmission control (see also Fuse 1 , 17)
13 7,5 Headlights/Fog lights (see also Fuses 2, 3, 5,
7, 10,11, 14)
Turn signal/hazard lights (see also Fuses 2,
3, 6, 14)
Lamp monitor (see also Fuses 1, 2, 3, 4, 5, 7, 10, 11, 14, 15)
14 7,5 Headlights/Fog lights (see also Fuses 2, 3, 5,
7, 10, 11, 13, 37)
Turn signal/hazard lights (see also Fuses 2, 3, 6, 13)
Lamp monitor (see also Fuses 1, 2, 3, 4, 5, 7,
10, 11, 13, 15)
15 7,5 Park/tail/underhood lights (see also Fuses 4, 5, 20)
License/trunk illumination (see also Fuses 5,
21)
Brake lights (see also Fuse 1)
Lamp monitor (see also Fuses 1, 2, 3, 4, 5, 7,
10, 11, 13, 14)
16 30 Heated seats
Memory seats (see also Fuses 12, 18, 42)
Lumbar support
17 7,5 Fuel injection (see also Fuse 23)
Charging system
Starting
E-box fan (see also Fuse 28)
Electronic Transmission control (see also Fuses 1 , 12)
ABSlTraction (see also Fuse 1)
Door lock heating (see also Fuse 30)
Power windows (see also Fuses 30, 31 , 47)
Power sunroof (see also Fuses 30, 31, 47)
Headlight washer (Canada) (see also Fuses 3, 4, 5, 22, 24)
Instrument cluster/check control (see also
Fuses 1, 17, 20, 29)
Lamp monitor (see also Fuses 2, 3, 4, 5, 7, 10, 11, 13, 14, 15)
Brake lights (see also fuse 15)
Interior lights (see also Fuses 5, 18, 21, 30, 44)
Electronic throttle control (EML) (see also Fuses 1, 20)
Cruise control (see also Fuse 1)
On board computer Lamp monitor (see also Fuses 1, 20)
Central body electronics (ZKE) (see also Fuses 3, 4, 5, 24, 30, 47)
18 15 Interior lights (see also Fuses 5, 17, 21 ,30, 44)
Glove box light/cigar lighter (see also Fuses 5, 21, 26)
Radio/CD player (see also Fuse 41)
Cellular phone (see also Fuses 9, 31)
Memory seats (see also Fuses 12, 16, 42)
Anti-theft (Alpine) (see also Fuse 21)
Remote control locking
19 30 Integrated Climate Control Regulation (IHKR) (see also Fuses 9. 20. 27, 29, 46)
20 7,5 Instrument cluster/check control (see also Fuses 1, 17, 29)
Park/tail/underhood lights (see also Fuses 4, 5, 15)
Interior lights (see also Fuses 5, 17, 18, 21, 30)
Integrated Climate Control Regulation (IHKR) (see also Fuses 9, 19, 27, 29, 46)
On board computer (see also Fuses 1. 17)
Electronic throttle control (EML) (see also Fuses 1, 17)
21 7,5 License/trunk illumination (see also Fuses 5, 15)
Interior lights (see also Fuses 5, 17, 18, 30, 44)
Glove box light/cigar lighter (see also Fuses 5, 18, 26)
Anti-theft (Alpine) (see also Fuse 18)
22 30 Windshield wiper pressure control (ADV) (see also Fuses 15, 44)
Headlight washer (Canada) (see also Fuses 3, 4, 5, 17, 24)
23 15 Fuel injection/fuel pump (see also Fuse 17)
24 10 Headlight cleaning system (not US)
Windshield wiper control (SWSI (see also Fuse 44)
Central body electronics (ZKE) (see also Fuses 3, 4, 5, 17, 30, 47)
25 30 Auxiliary fan (see also Fuse 29)
26 30 Glove box light/cigar lighter (see also Fuses 5, 18, 21 )
27 7,5 Integrated Climate Control Regulation (IHKR) (see also Fuses 9, 19, 20, 29, 46)
28 15 E·box fan (also Fuse 17)
Charging system (see also Fuse 17)
Font seat heating
Heated rear window
Power assist steering (Servotronic)
29 7,5 Integrated Climate Control Regulation (IHKR) (see also Fuses 9, 19, 20, 24, 27, 46)
Auxiliary fan (see also Fuse 25)
Instrument cluster/check cont rol (see also Fuses 1, 17, 20)
30 7,5 Door lock heating (see also Fuse 17)
Central locking (see also Fuse 31, 47)
Power windows (see also Fuse 17, 31, 47)
Power sunroof (see also Fuses 17, 31, 47)
Central body electronics (ZKE) (see also Fuses 3, 4, 5, 17, 24, 47)
Interior lights (see also Fuses 5, 17, 18, 20, 21)
31 7,5 Central locking (see also Fuses 30, 47)
Power windows (see also Fuses 17, 30, 47)
Power sunroof (see also Fuses 17, 30, 47)
Cellular telephone (see also Fuses 9, 18)
32 7,5
34 20 Electric steering column adjust
35 30 Central locking
37 20 Rear window wiper/washer control (Touring)
40 15
41 30 Radio/CD player (see also Fuse 18)
Heated seats
42 30 Power seats (see also Fuse 43)
Memory seats (see also Fuses 12, 16, 18)
43 30 Power seats (see also Fuse 42)
44 30 Windshield wiper control (SWS) (see also Fuse 24)
Windshield wiper pressure control (SWS) (see also Fuse 15, 22)
46 30 Integrated Climate Control Regulation (IHKR) (see also Fuses 9, 19, 20, 27, 29)
47 30 Central body electronics (ZKE) (see also Fuses 3, 4, 5, 17,24,30)
Power sunroof (see also Fuses 17, 30, 31 )
Power windows (see also Fuses 17, 30,31)
Central locking (see also Fuses 30, 31 )
48 15
49

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
