Audi S4 (2011 – 2012) – fuse box diagram

Audi S4 (2011 – 2012) – fuse box diagram

Year of production: 2011, 2012

Instrument panel (driver’s side)

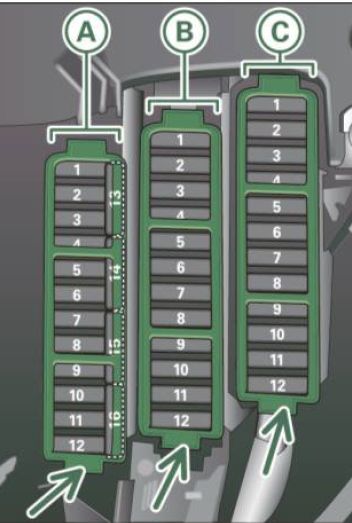

Audi S4 - wiring diagram - fuse box diagram - left cocpit
Audi S4 – wiring diagram – fuse box diagram – left cocpit

Fuse panel A (black)

Number Electric equipment Ampere rattings [A]
1 Dynamic steering 5
2
3 Homelink 5
4
5 Climate control 5
6 Right headlight range adjustment 5
7 Left headlight range adjustment 5
8 Vehicle electrical system control module 1 5
9 Adaptive Cruise Control 5
10 Shift gate 5
11 Heater washer fluid nozzles 5
12 Climate control 5
13 Cell phone prep 5
14 Airbag 5
15 Terminal 15 25
16 Terminal 15 engine 40



Fuse panel B (brown)

Number Electric equipment Ampere rattings [A]
1 Automatic dimming interior rearview mirror 5
2 Clutch sensor 5
3 Gasoline fuel pump 25
4
5 Left seat heating with/without seat heating 15
30
6 Electronic Stabilization Program 10
7 Horn 25
8 Left door window regulator motor 30
9 Wiper motor 30
10 Electronic Stabilization Program 25
11 Left doors 15
12 Rain and light sensor 5

Fuse panel C (red)

Number Electric equipment Ampere rattings [A]
1
2
3 Lumbar support 10
4 Dynamic steering 35
5 Antenna (Avant) 5
6 Vehicle electrical system control module 1 35
7 Vehicle electrical system control module 1 20
8 Vehicle electrical system control module 1 30
9 Sunroof 20
10 Vehicle electrical system control module 1 30
11 Sunroof shade (Avant) 20
12 Convenience electronics 5

Instrument panel (right)

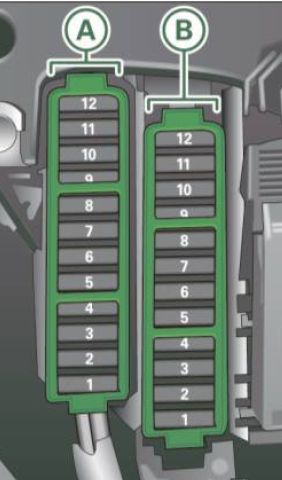

Audi S4 - wiring diagram - fuse box diagram - right cocpit
Audi S4 – wiring diagram – fuse box diagram – right cocpit

Fuse carrier A (black)

Number Electric equipment Ampere rattings [A]
1
2
3
4
5 Steering column switch module 5
6 Electronic Stabilisation Program 5
7 Terminal 15 diagnostic connector 5
8 Gateway (Databus diagnostic interface) 5
9
10
11
12

Fuse panel B (brown)

Number Electric equipment Ampere rattings [A]
1 CD-/DVD player 5
2 Audi drive select switch module 5
3 MMI/Radio 5
20
4 Instrument cluster 5
5 Gateway (instrument cluster control module) 5
6 Ignition lock 5
7 Rotary light switch 5
8 Climate control system blower 40
9 Steering column lock 5
10 Climate control 10
11 Terminal 30 diagnostic connector 10
12 Steering column switch module 5

Luggage compartment

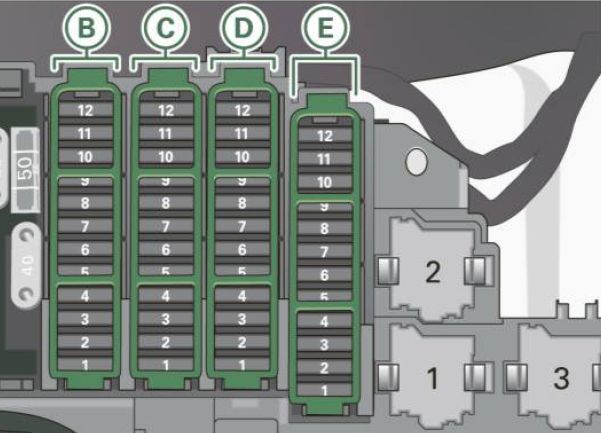

Audi S4 - wiring diagram - fuse box diagram - luggage compartment
Audi S4 – wiring diagram – fuse box diagram – luggage compartment

Fuse panel B (black)

Number Electric equipment Ampere rattings [A]
1 Luggage compartment lid control module (Avant) 30
2 Trailer control module 15
3 Trailer control module 20
4 Trailer control module 20
5 Electromechanical parking brake 5
6 Electronic damping control 15
7 Electromechanical parking brake 30
8 Vehicle electrical system control module 2 30
9 Quattro Sport 35
10 Vehicle electrical system control module 2 30
11 Vehicle electrical system control module 20
12 Terminal 30 5



Fuse panel C (brown)

Number Electric equipment Ampere rattings [A]
1 Luggage compartment lid control module 30
2 Right front seat heating 15
3 DCDC converter path 1 40
4 DCDC converter path 2 40
5 Socket 30
6
7 Electromechanical parking brake 30
8 Rear seat heating 30
9 Passenger side door con rol module 30
10
11 Passenger side door control module 15
12



Fuse panel D (red)

Number Electric equipment Ampere rattings [A]
1 Rear center console outlet 15
2 Front center console outlet 15
3 Luggage compartment outlet 15
4 Cigarette lighter 15
5 V6 FSI 5
6 Rear Seat Entertainment supply 5
7 Parking system 7,5
8 Rear wiper (Avant) 15
9 Electromechanical parking brake switch 5
10 Audi side assist 5
11 Rear seat heating 5
12 Terminal 15 control modules 5

Fuse panel E (black)

Number Electric equipment Ampere rattings [A]
1
2
3 DSP amplifier, radio 30
20
4 MMI 7,5
5 Radio/navigation/cell phone prep 7,5
6
7 Cell phone prep 5
8
9
10
11
12

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
