Alfa Romeo MiTo (2008 – 2013) – fuse box diagram

Alfa Romeo MiTo (2008 – 2013) – fuse box diagram

Year of production: 2008, 2009, 2010, 2011, 2012, 2013

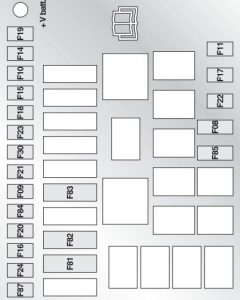

Fuse box in engine compartment

Alfa Romeo MiTo -  wiring diagram - fuse box diagram - engine compartment
Alfa Romeo MiTo – wiring diagram – fuse box diagram – engine compartment

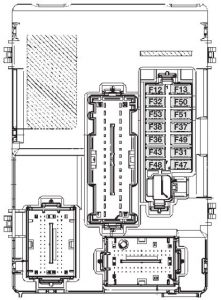

Fuse box on dashboard

Alfa Romeo MiTo -  wiring diagram - fuse box diagram -  dashboard
Alfa Romeo MiTo – wiring diagram – fuse box diagram – dashboard

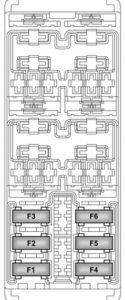

Luggage compartment fuse box

Alfa Romeo MiTo - wiring diagram - fuse box diagram - luggage
Alfa Romeo MiTo – wiring diagram – fuse box diagram – luggage

Fuse summary table

Lights Fuse Ampere rating [A] Location
Main beams F14 15 Engine compartment
Right hand dipped beam headlight F12 7,5 Dashboard
Left hand dipped beam headlight F13 7,5 Dashboard
Headlight gas discharge system (right side) F12 15 Dashboard
Headlight gas discharge system (left side) F13 15 Dashboard
Fog lights F30 15 Engine compartment
3rd Brake light F37 5 Dashboard
Reversing light F51 5 Dashboard
Front courtesy light, luggage compartment light, Sun visor courtesy light, Door lights, Glove compartment light F32 5 Dashboard



Consumers Fuse Ampere rating [A] Location
Passenger compartment fan F08 30 Engine compartment
Headlight washer pump F09 20 Engine compartment
Two-tone horn F10 15 Engine compartment
Waste gate solenoid, Shut off solenoid, Canister solenoid, Lambda Sensor Heater, VGT solenoid, EGR cooling bypass solenoid, Swirl solenoid, Throttle solenoid, Glow plug preheating control unit F11 10 Engine compartment
Headlight alignment adjustment system f13 7,5 Dashboard
Additional heater (PTC 1) F15 30 Engine compartment
Engine management control unit F16 5 Engine compartment
Engine management control unit (power supply) F17 10 Engine compartment
Control system relay coil, Engine management control unit (1.4 versions), Engine cooling system remote control switch coil (300W+300W) F18 5 Engine compartment
Air conditioning compressor F19 7,5 Engine compartment
Heated rear windscreen, demisting system F20 30 Engine compartment
Fuel pump on tank F21 15 Engine compartment
Engine management system main loads (1.4 versions) F22 10 Engine compartment
Engine management system main loads (1.6 JTDM versions) F22 20 Engine compartment
Braking system control unit (control unit and solenoid unit) F23 20 Engine compartment
Electric steering control unit (power supply + Key), Brake system control unit (power supply + Key), Yaw sensor on tunnel F24 5 Engine compartment
INT/A key exhaust relay coils on engine fuse box F31 5 Dashboard
Radio, Blue&MeTM control unit, Climate control unit, Alarm control unit, Volume sensing system control unit, EOBD external diagnostic socket, Tyre pressure detection control unit F36 10 Dashboard
Instrument panel, Brake light switch, Gas discharge headlights management system F37 5 Dashboard
Door lock motor on door, Safe Lock motor on doors, Tailgate unlocking motor F38 15 Dashboard
Windscreen / rearscreen washer pump F43 20 Dashboard
Electric window motor complete with control unit (driver-side door) F47 20 Dashboard
Electric window motor complete with control unit (passenger-side door) F48 20 Dashboard
Parking sensors control unit, Tyre pressure detection control unit, Rain/dusk sensor on rear-view mirror, Electro-chrome sensor on rear-view mirror, Seat belts fastened warning light display on rear-view mirror, Control panel illumination (Central control panel, Driver-side control panel, Steering wheel control panel, Blue&MeTM control panel), Front seat heating pad activation switch, Alarm system volume-sensing sensors control unit, Electric sunroof control unit, PND socket on dashboard F49 5 Dashboard
Air Bag system control unit F50 7,5 Dashboard
Clutch switch, Brake light switch, relay coils on engine fuse box, Control system on internal heater/air conditioning unit, Blue&MeTM control unit, Radio wiring, Air flow meter, Water in diesel fuel sensor F51 5 Dashboard
Instrument panel F53 5 Dashboard
Bose HI-FI system amplifier control unit F4 15 Luggage
Bassbox subwoofer in spare wheel compartment F5 10 Luggage
Left and right front seat heater F6 15 Luggage
Electric sunroof opening system F1 20 Luggage
Fuse wiring F2 Luggage
Luggage compartment power socket F3 15 Luggage
Passenger compartment fan F83 40 Engine compartment
Power socket on tunnel F85 15 Engine compartment
Passenger/driver-side door mirror demister, Demister on front jets, Heated windscreen relay coil F87 7,5 Engine compartment

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
