Alfa Romeo Giulietta (2010 – 2013) – fuse box diagram

Alfa Romeo Giulietta (2010 – 2013) – fuse box diagram

Year of production: 2010, 2011, 2012, 2013

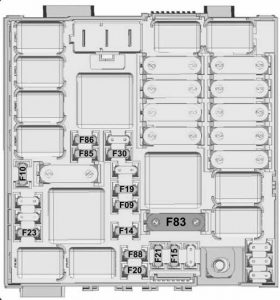

Fuse box in engine compartment

Alfa Romeo Giulietta -  wiring diagram - fuse box diagram - engine compartment
Alfa Romeo Giulietta – wiring diagram – fuse box diagram – engine compartment

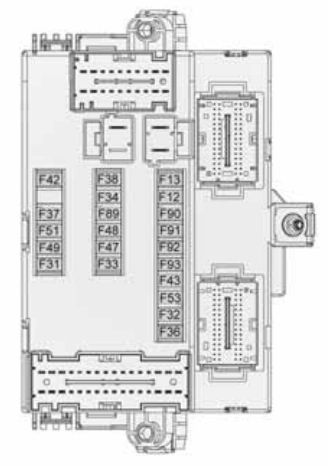

Fuse box in dashboard

Alfa Romeo Giulietta -  wiring diagram - fuse box diagram - dashboard
Alfa Romeo Giulietta –
wiring diagram – fuse box diagram – dashboard

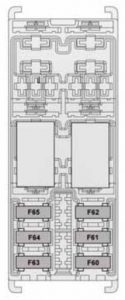

Fuse box in the boot

Alfa Romeo Giulietta -  wiring diagram - fuse box diagram - boot compartment
Alfa Romeo Giulietta –
wiring diagram – fuse box diagram – boot compartment

Fuse table

Light Fuse Ampere rating [A] Location
Right main beam headlight F91 7,5 Dashboard
Left main beam headlight F90 7,5 Dashboard
Right dipped beam headlight (versions with halogen headlights) F12 7,5 Dashboard
Left dipped beam headlight (versions with halogen headlights) F13 7,5 Dashboard
Right dipped beam headlight (versions with Bi-Xenon headlights) F12 15 Dashboard
Left dipped beam headlight (versions with Bi-Xenon headlights) F13 15 Dashboard
Right fog light F93 7,5 Dashboard
Left fog light F92 7,5 Dashboard
Boot light/Sun visor lights/ Door puddle light/Glove compartment light/ Front/rear ceiling light Radionavigator display F32 10 Dashboard



Users Fuse Ampere rating [A] Location
Headlight washer pump supply F09 30 Engine compartment
Horn F10 15 Engine compartment
AC compressor F19 7,5 Engine compartment
Heated rear window F20 30 Engine compartment
Fuel pump f21 15 Engine compartment
Fuel pump F21 20 Engine compartment
Various devices F31 5 Dashboard
Rear electric window (left side) F33 20 Dashboard
Rear electric window (right side) F34 20 Dashboard
+30 F36 10 Dashboard
Various devices f37 7,5 Dashboard
Central locking F38 20 Dashboard
Body Computer power supply F42 5 Dashboard
Two-way windscreen washer pump F43 20 Dashboard
Front electric window (driver side) F47 20 Dashboard
Front electric window (passenger side) F48 20 Dashboard
Various devices F49 5 Dashboard
Various devices F51 5 Dashboard
+30 F53 7,5 Dashboard
Lumbar adjustments F60 15 Boot
Front seat heater F61 15 Boot
BOSE amplifier + Subwoofer F62 20 Boot
Left front seat movement F63 15 Boot
Right front seat movement F64 15 Boot
Electric sunroof F65 15 Boot
Cigar lighter/power socket F85 15 Boot
12V boot power socket F86 15 Boot
IBS Battery charge status sensor for Start&Stop system F87 5 Boot
External mirror defrosters F88 7,5 Boot

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
