Alfa Romeo 147 FL (2005 – 2010) – bulbs specification

Alfa Romeo 147 FL (2005 – 2010) – bulbs specification

Year of production: 2005, 2006, 2007, 2008, 2009, 2010

Type of bulbs

Alfa Romeo 147 – bulbs
Alfa Romeo 147 – bulbs

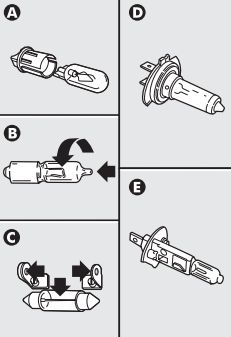

A – All glass bulbs These are pressed on. Pull to remove

B – Bayonet type bulbs Press the bulb, turn counter-clockwise to remove this type of bulb from its holder

C – Tubular bulbs Free them from their contacts to remove

D – E – Halogen bulbs To remove, free it from the clip on its housing

Bulbs Figure Type Power
High beam D H7 55W
Low beam D H7 55W
Front sidelights B H6W 6W
Foglight E H1 55W
Front direction indicators B H21W 21W
Side direction indicators A W5W 5W
Rear direction indicators B P21W 21W
Rear sidelights – braking lights B P21/5W 5W/21W
Third stop (additional braking lights) A W2.3W 2,3W
Reversing light B P21W 21W
Rear fog guards B P21W 21W
Number plate light A W5W 5W
Puddle lights C C5W 5W
Front roof light C C10W 10W
Rear roof light V C10W 10W
Courtesy mirror light A W1.2W 1.2W
Glovebox light A W5W 5W
Boot light C C5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
