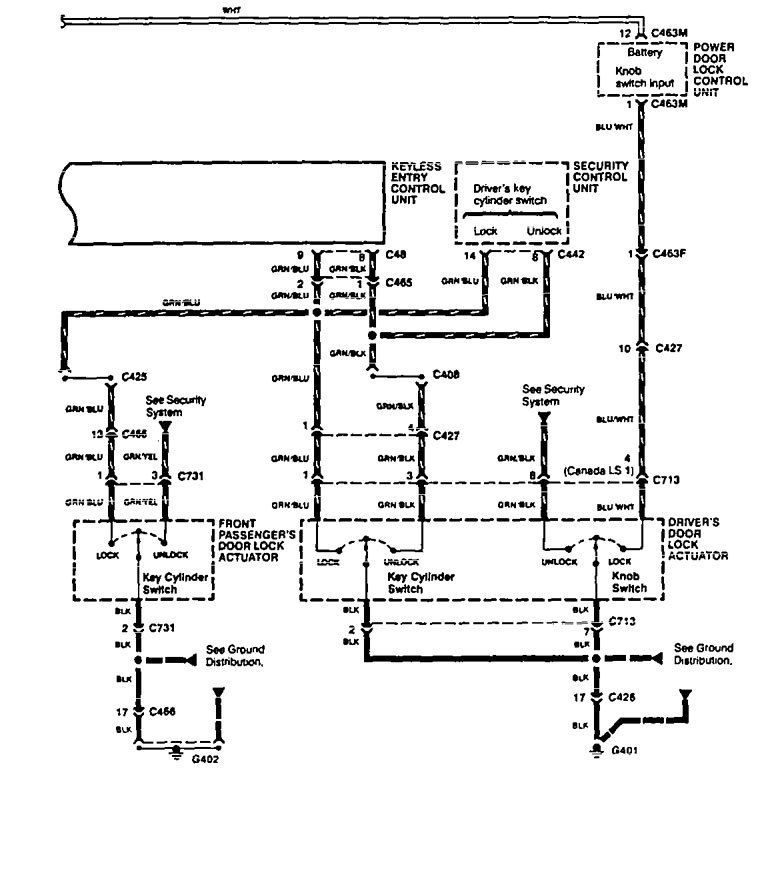

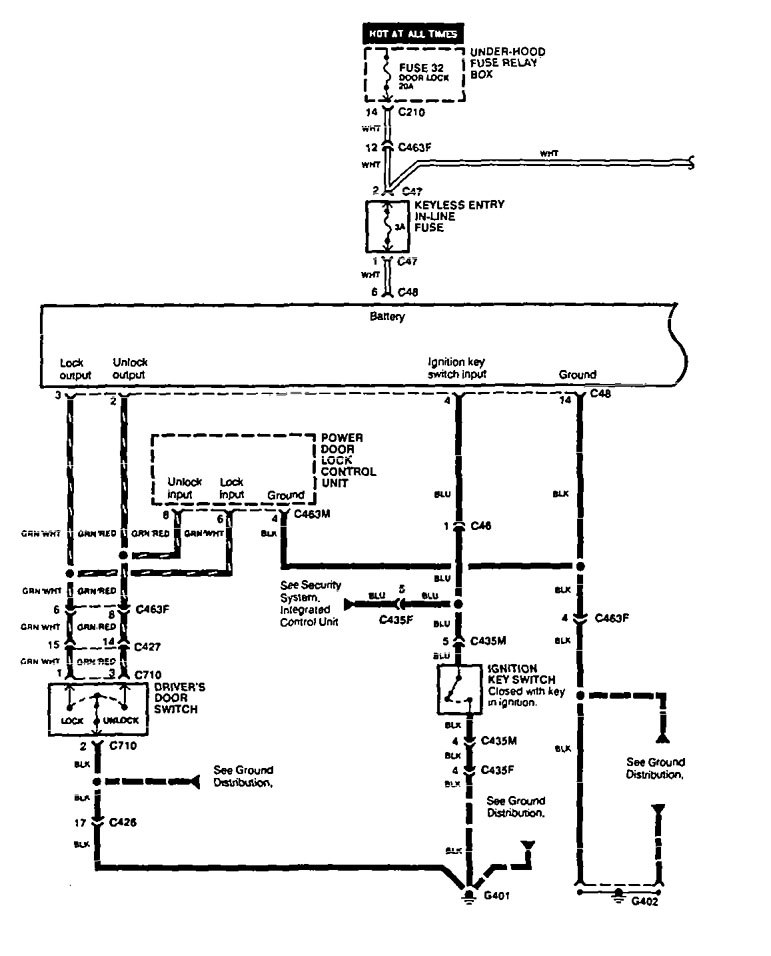

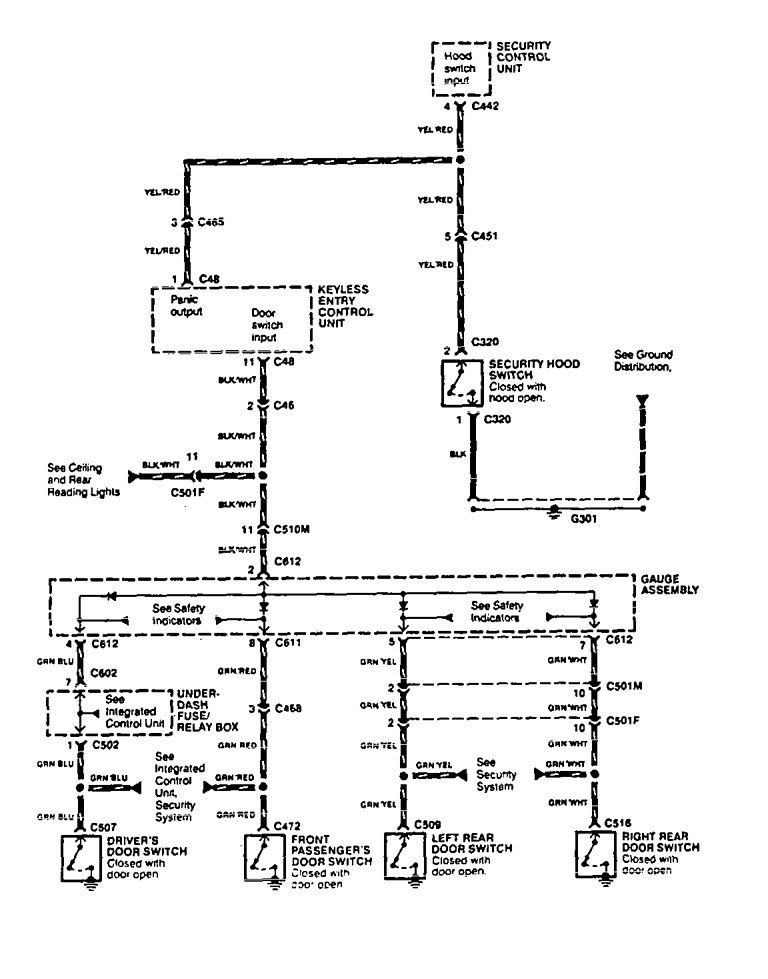

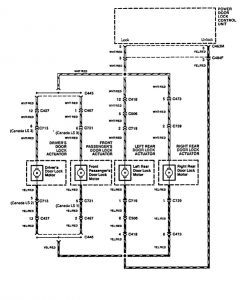

Acura Vigor (1994) – wiring diagrams – keyless entry

Acura TL (2006) – wiring diagram – luggage compartment release Year of productions:  2006 Luggage compartment release WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volvo V70 (2002) – wiring diagrams – mobile telephone Year of productions:  2002 Mobile telephone WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (1988) – wiring diagrams – HVAC controls Year of productions:  1988 HVAC controls Version 1 Version 2 Version 3 Version 4 Version 5 Version 6 Version 7 Version 8 Version 9 Version 10 […]
