Acura TL (2011 – 2013) – wiring diagrams – instrumentation

Acura TL (2011 – 2013) – wiring diagrams – instrumentation

Year of productions:  2011, 2012, 2013

Instrumentation

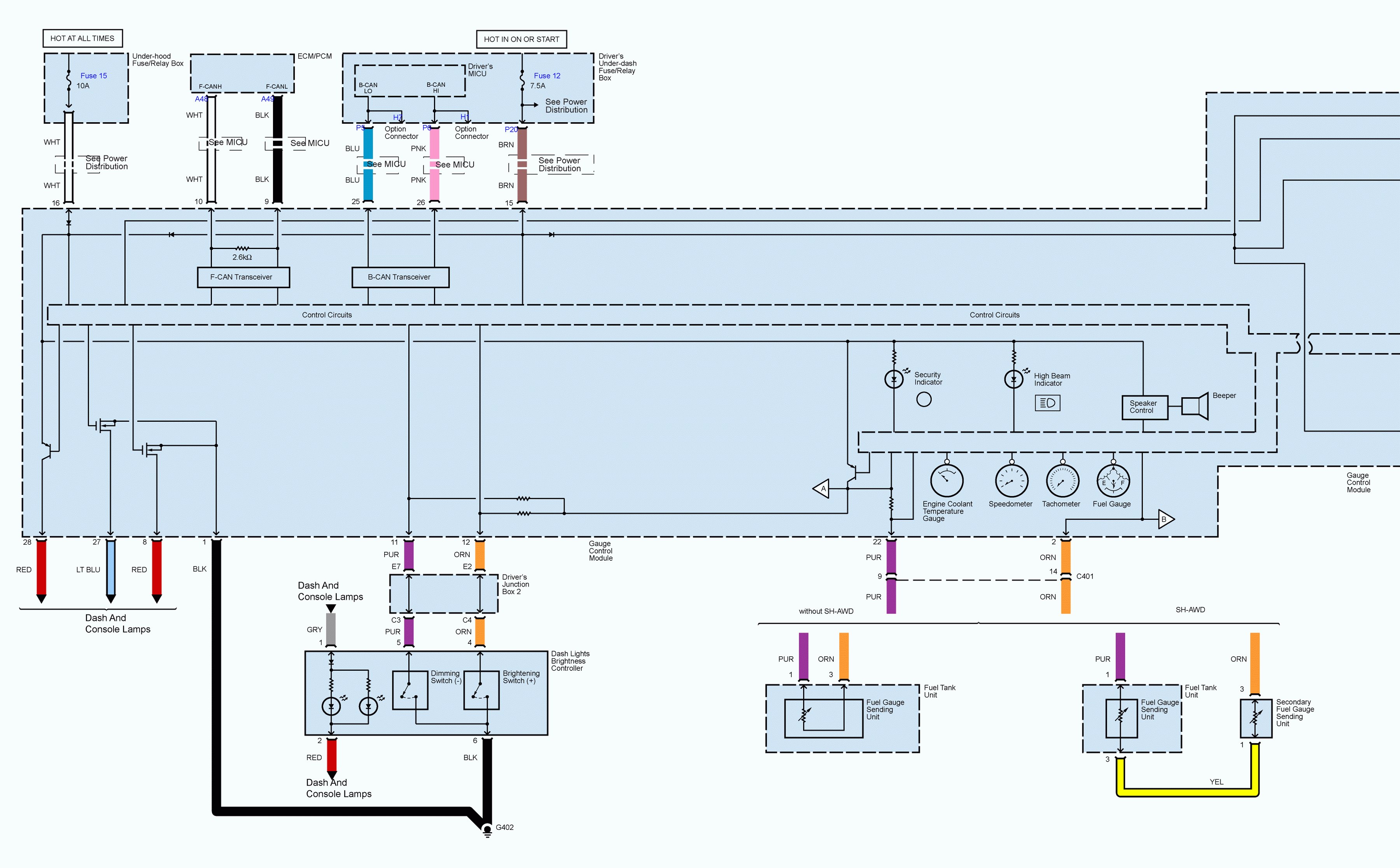

Acura TL - wiring diagram - instrumentation (part 1)
Acura TL – wiring diagram – instrumentation (part 1)

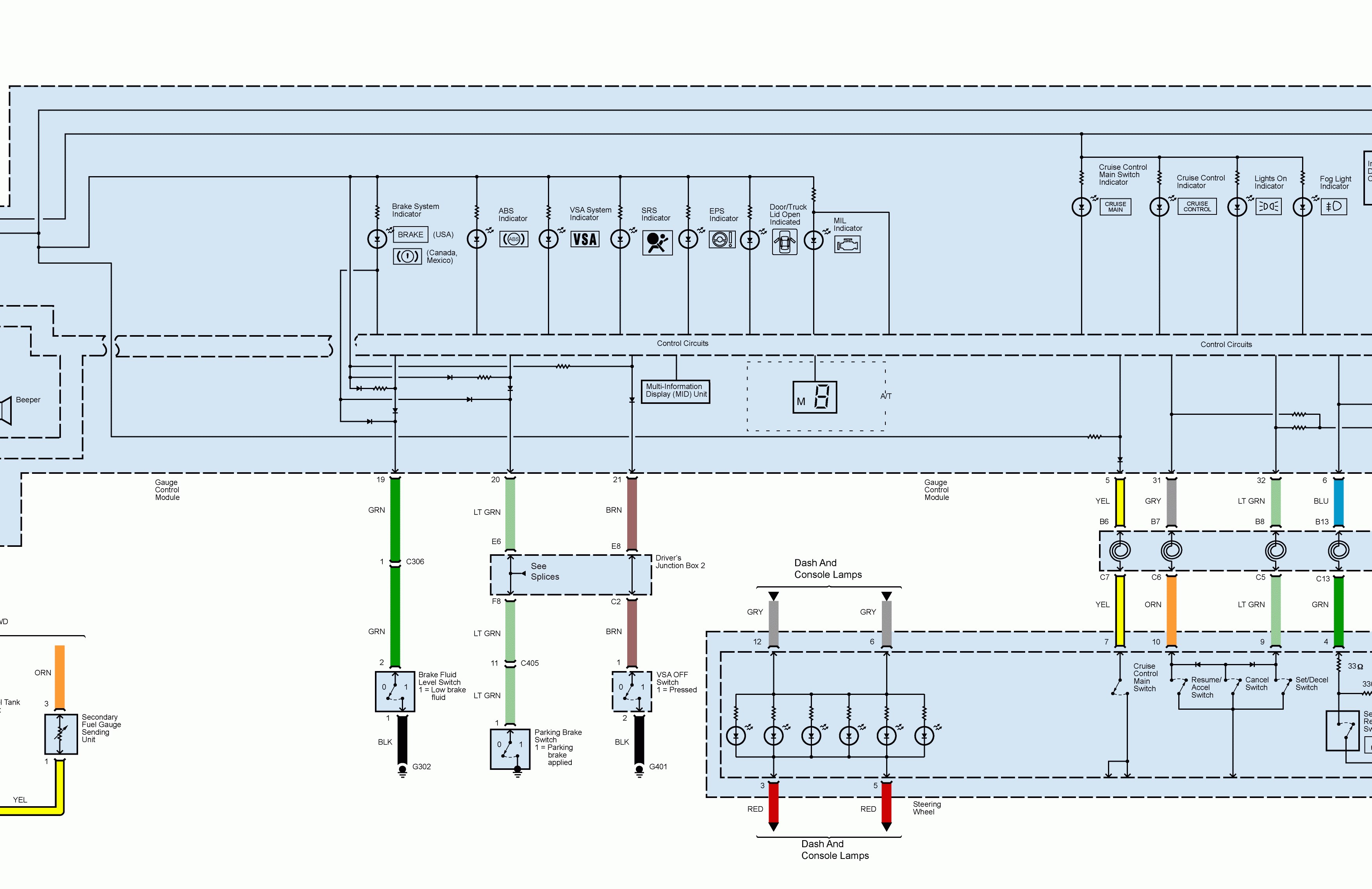

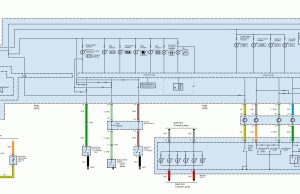

Acura TL - wiring diagram - instrumentation (part 2)
Acura TL – wiring diagram – instrumentation (part 2)

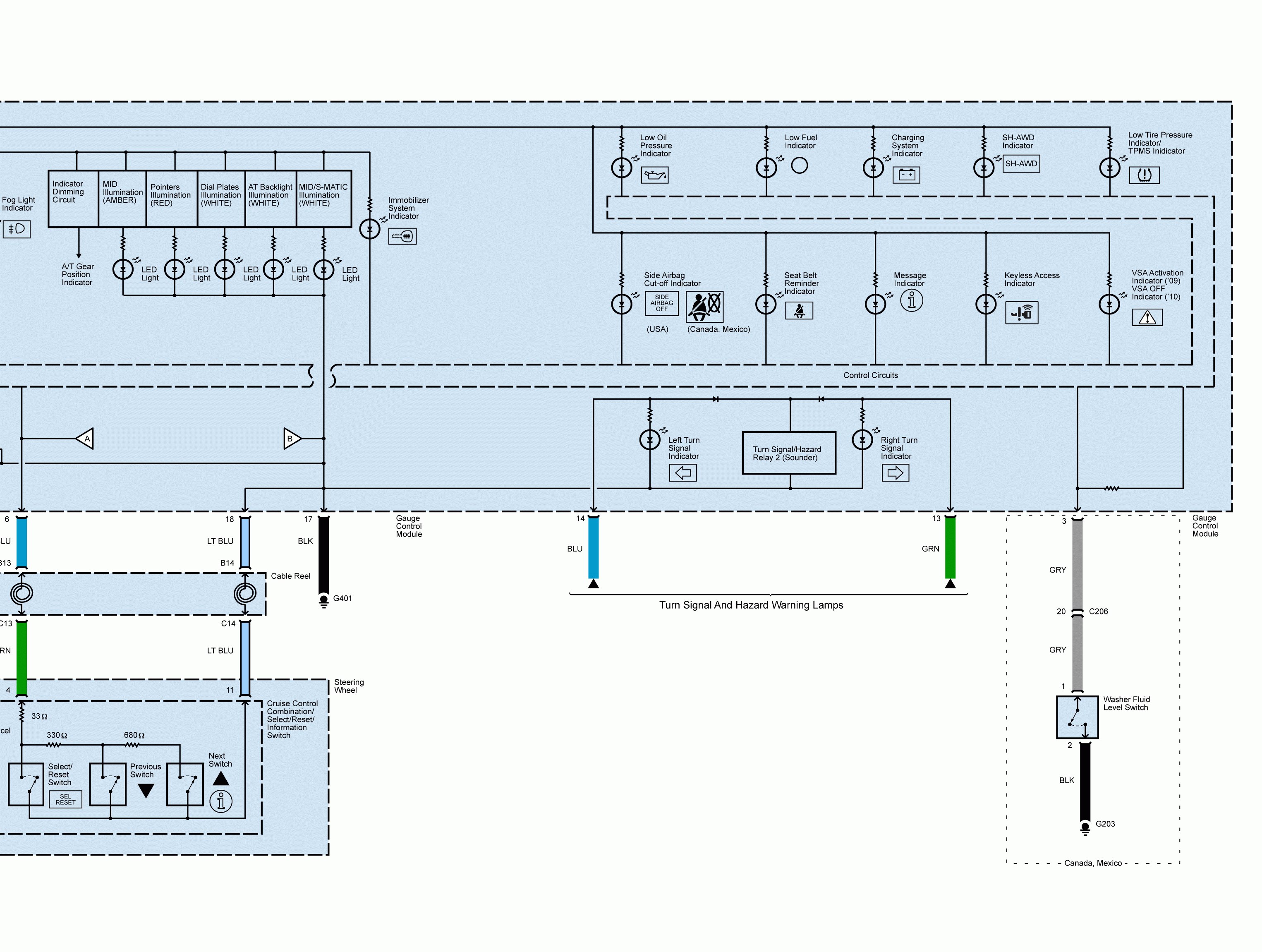

Acura TL - wiring diagram - instrumentation (part 3)
Acura TL – wiring diagram – instrumentation (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
