Acura TL (2011 – 2014) – wiring diagrams – horn

Acura TL (2011 – 2014) – wiring diagrams – horn

Year of productions:  2011, 2012, 2013, 2014

Horn

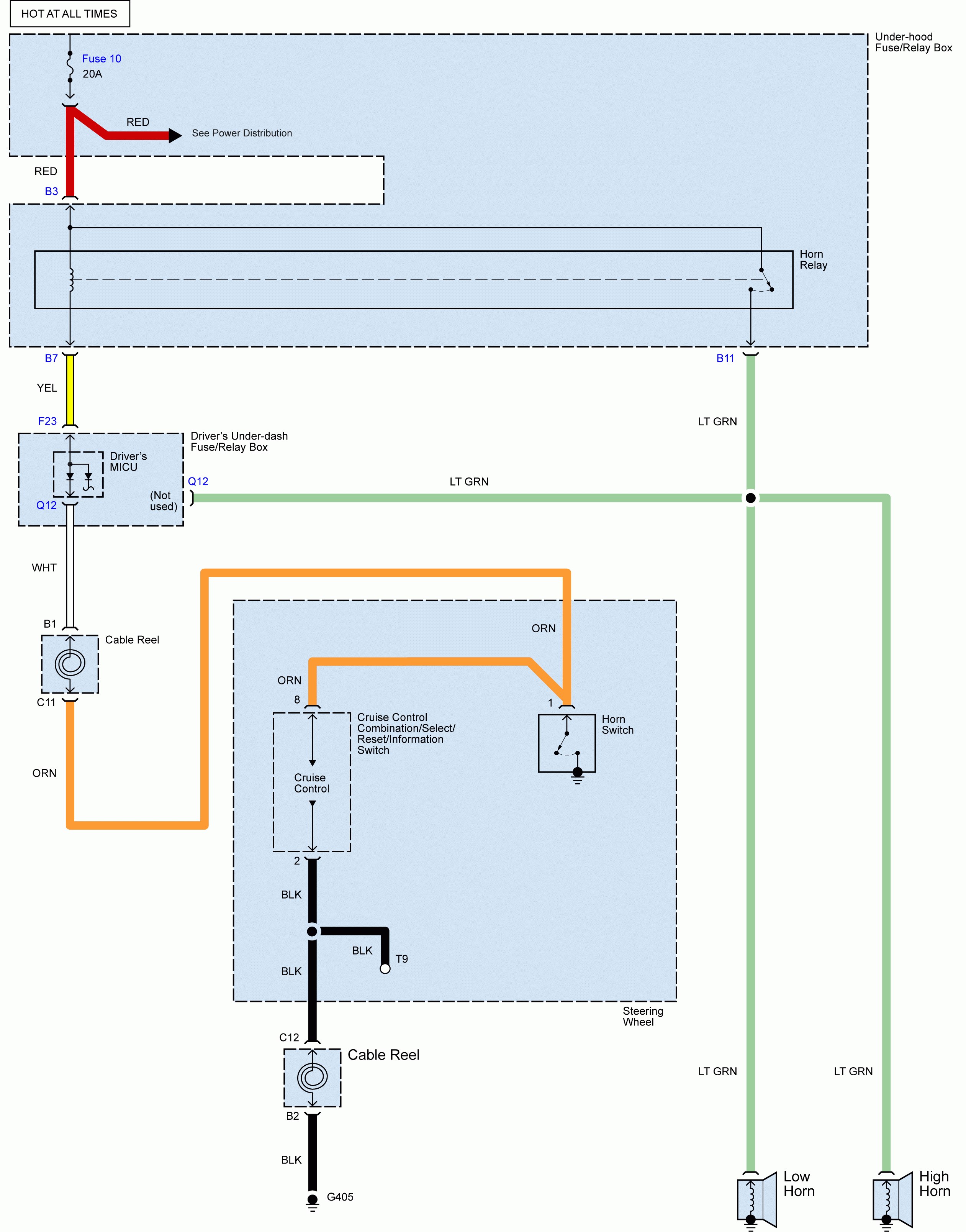

Acura TL - wiring diagram - horn
Acura TL – wiring diagram – horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
