Acura TL (2009 – 2010) – wiring diagrams – electronic stability control

Acura TL (2009 – 2010) – wiring diagrams – electronic stability control

Year of productions:  2009, 2010

Electronic stability control

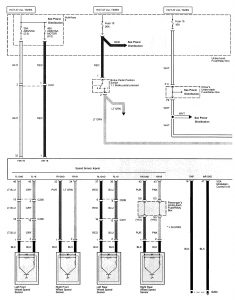

Acura TL - wiring diagram - electronic stability control (part 1)
Acura TL – wiring diagram – electronic stability control (part 1)

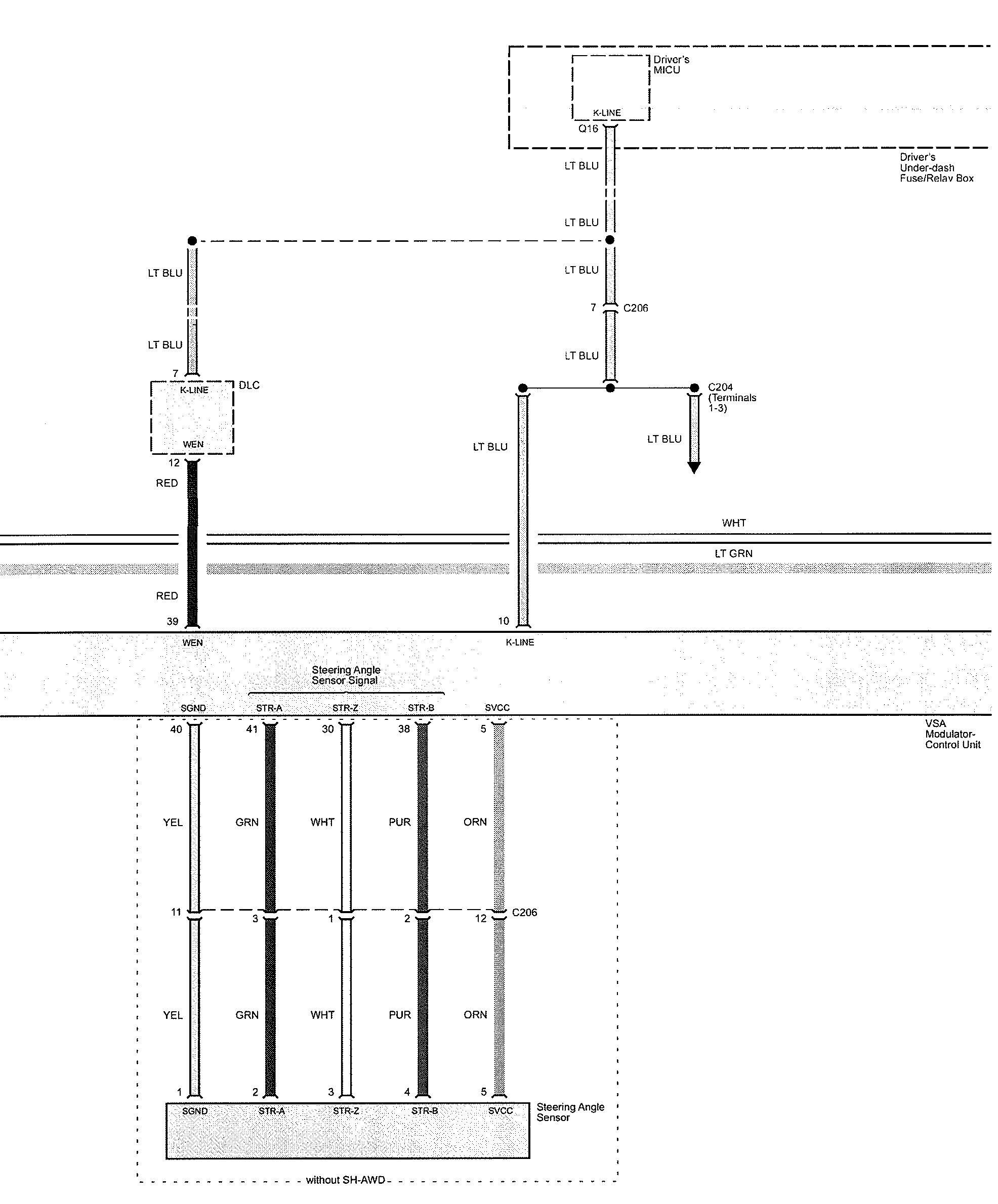

Acura TL - wiring diagram - electronic stability control (part 2)
Acura TL – wiring diagram – electronic stability control (part 2)

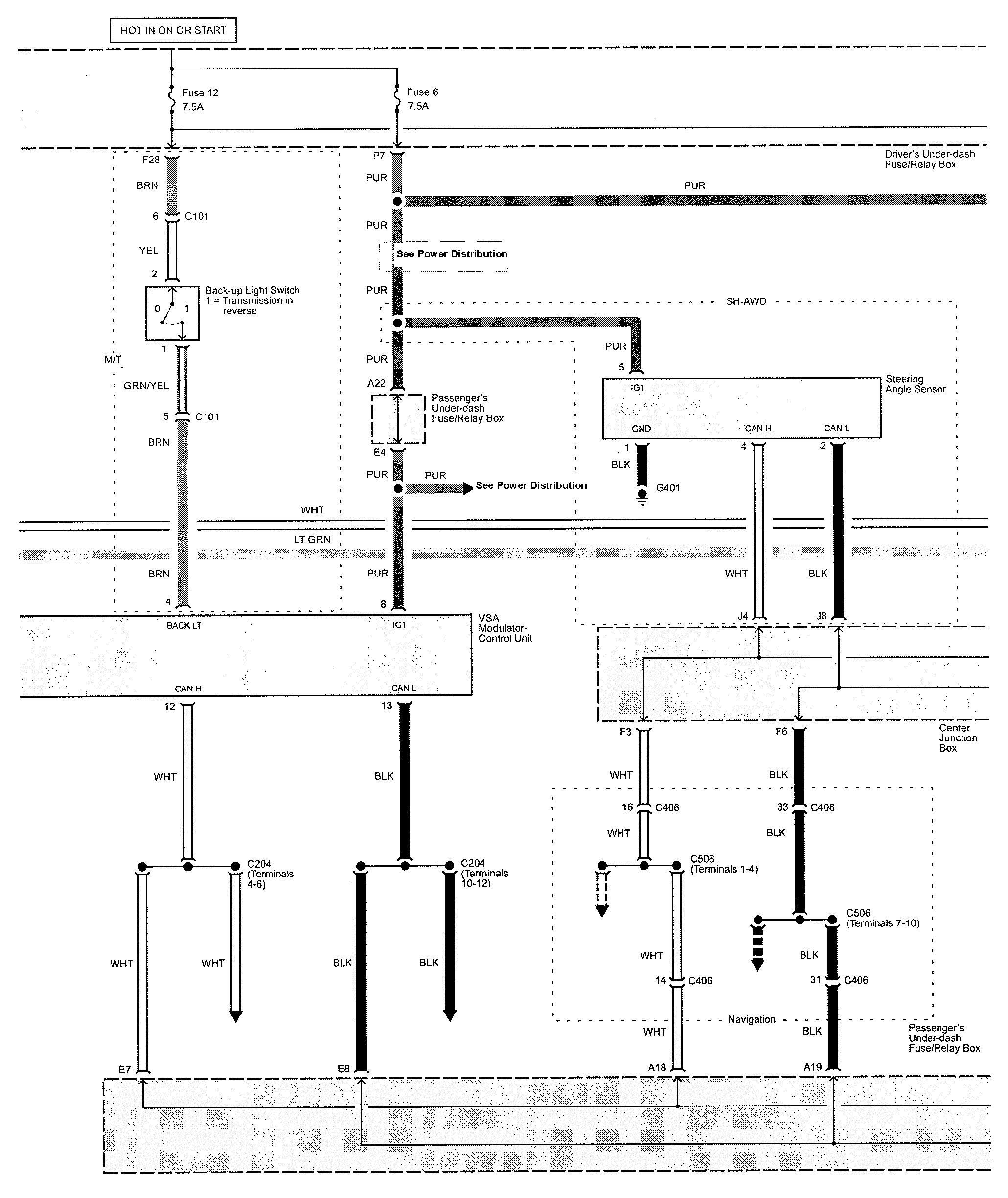

Acura TL - wiring diagram - electronic stability control (part 3)
Acura TL – wiring diagram – electronic stability control (part 3)

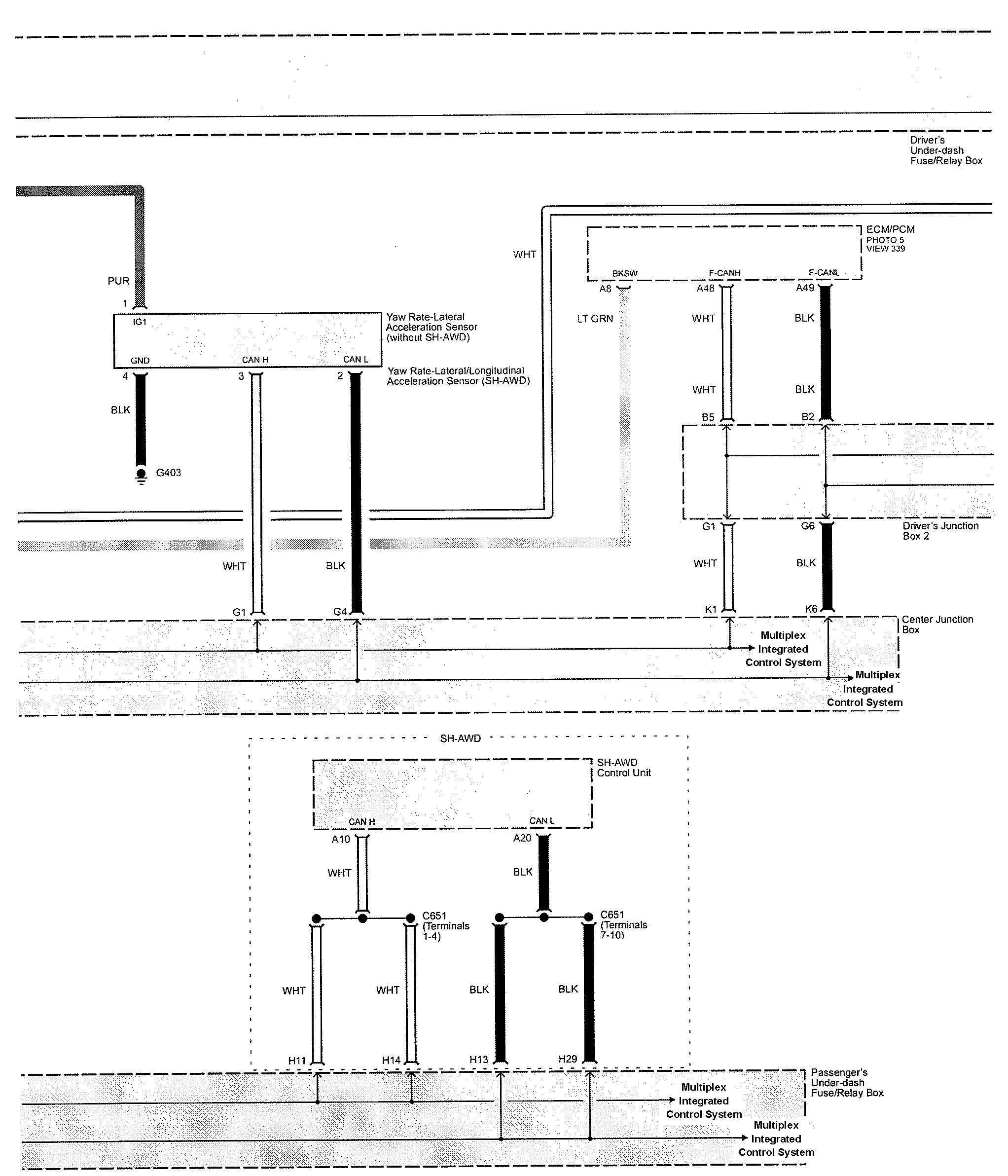

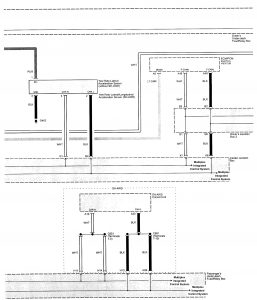

Acura TL - wiring diagram - electronic stability control (part 4)
Acura TL – wiring diagram – electronic stability control (part 4)

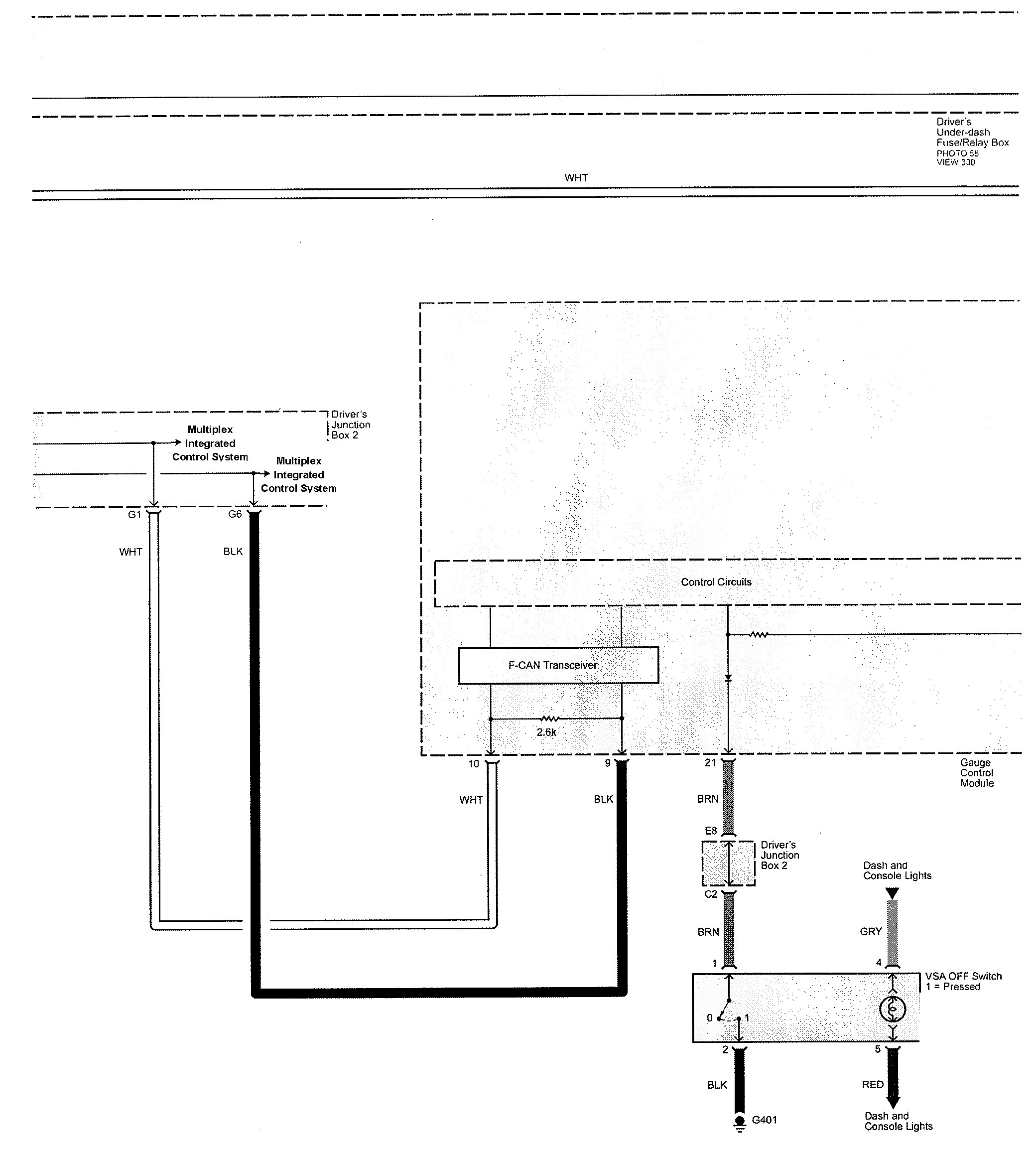

Acura TL - wiring diagram - electronic stability control (part 5)
Acura TL – wiring diagram – electronic stability control (part 5)

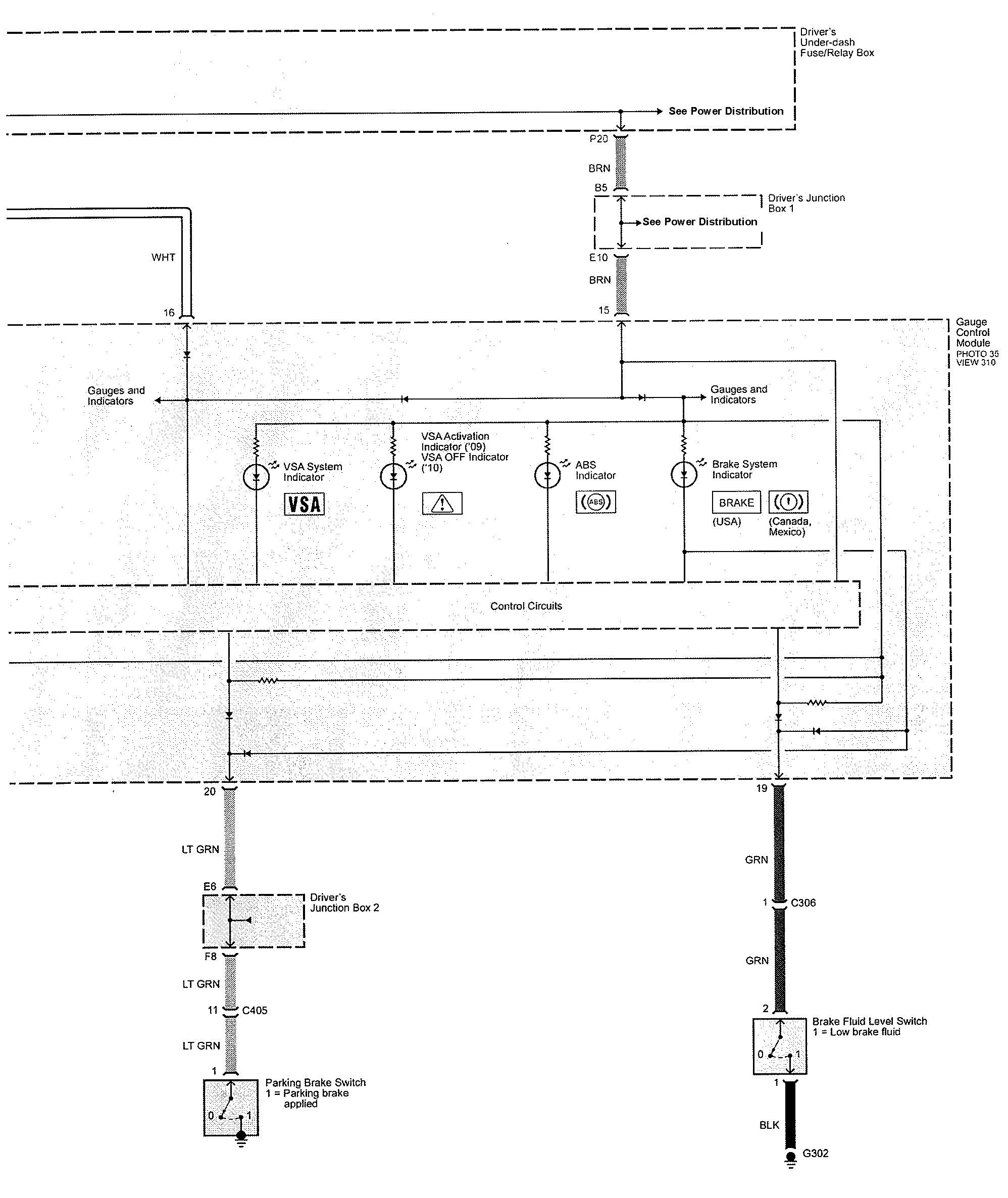

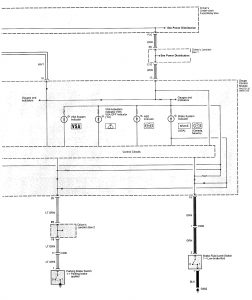

Acura TL - wiring diagram - electronic stability control (part 6)
Acura TL – wiring diagram – electronic stability control (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
