Acura TL (2006) – wiring diagrams – brake controls

Acura TL (2006) – wiring diagrams – brake controls

Year of productions:  2006

Brake controls

Version 1

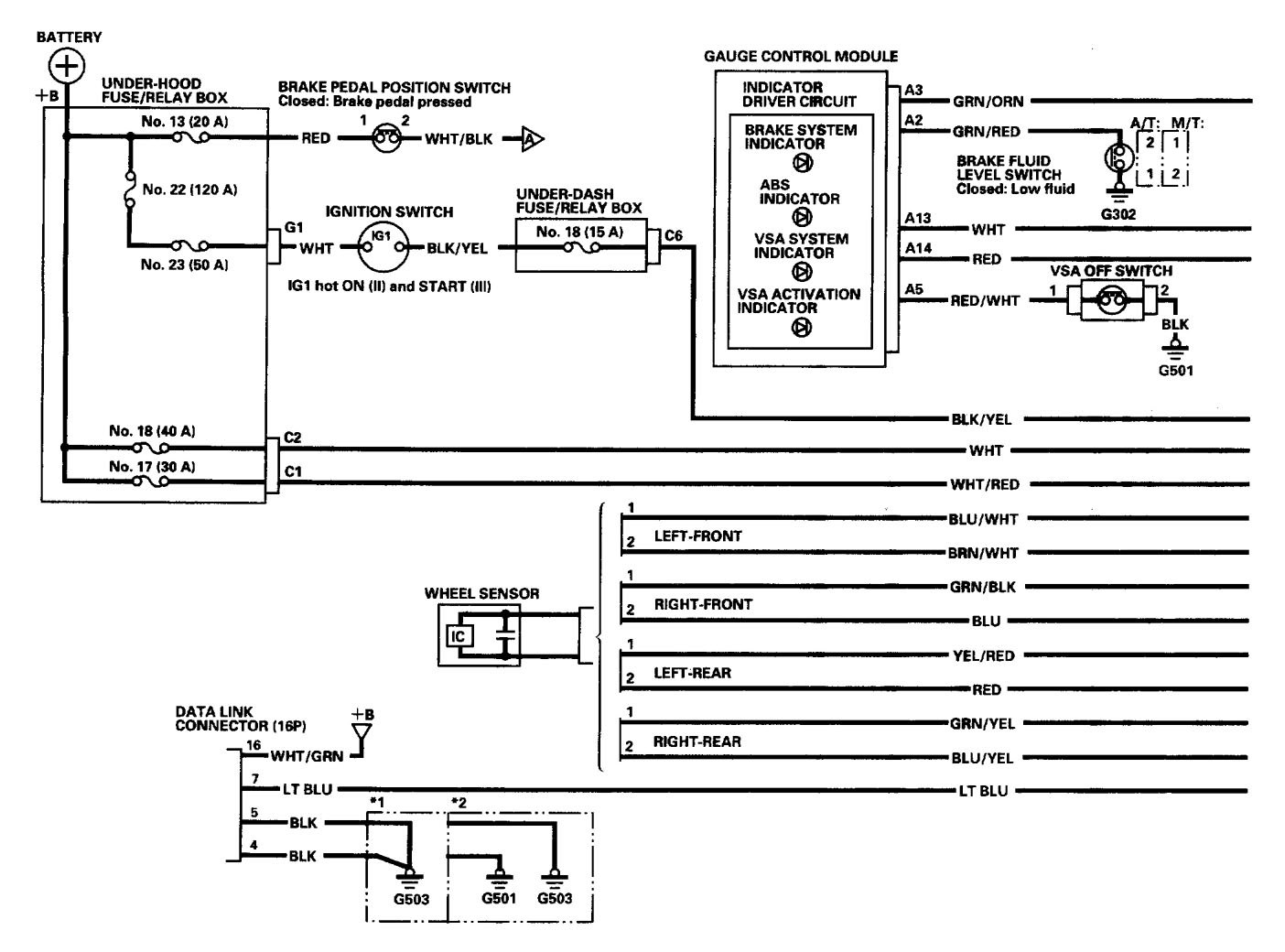

Acura TL - wiring diagram - brake controls (part 1)
Acura TL – wiring diagram – brake controls (part 1)

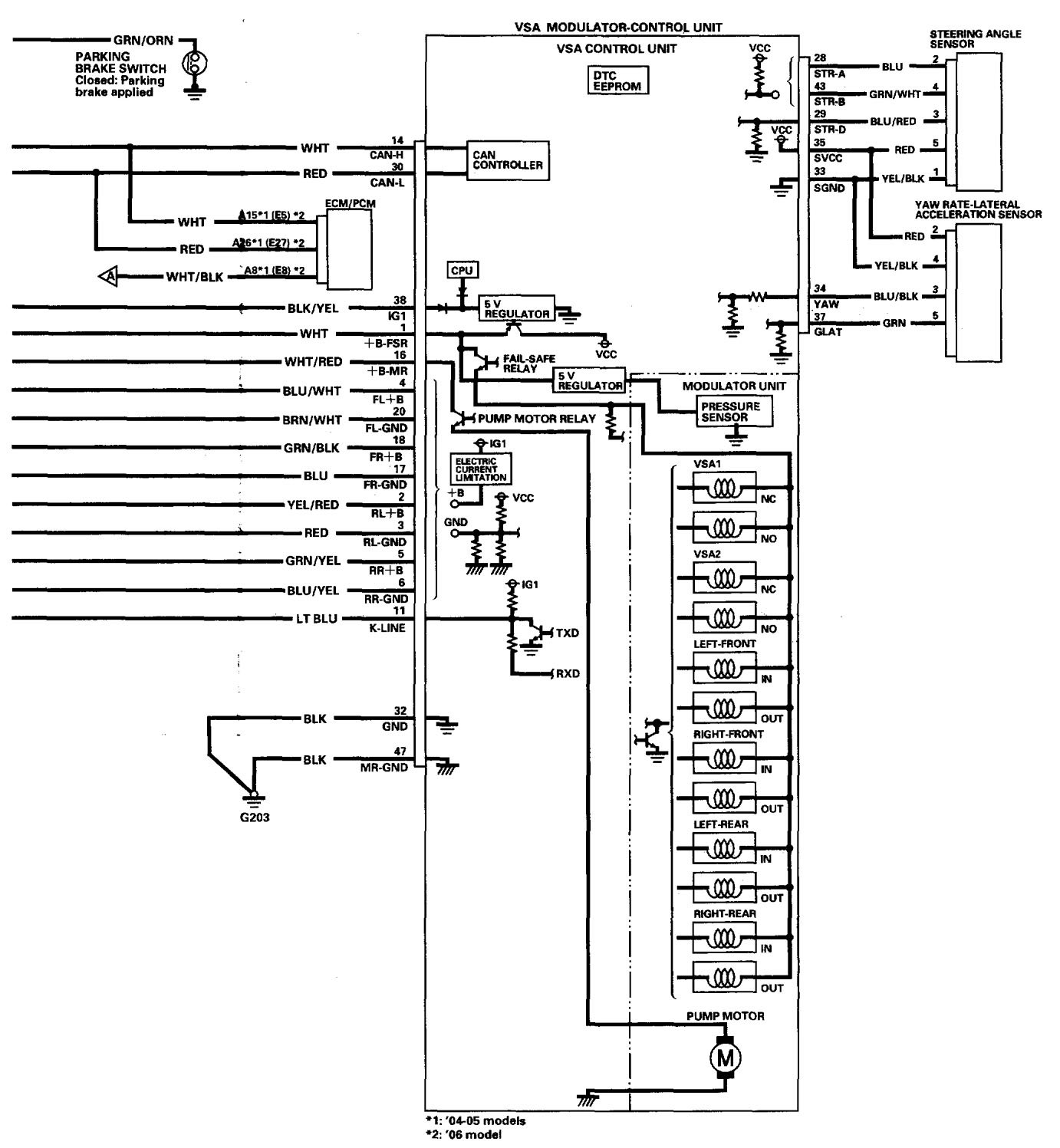

Acura TL - wiring diagram - brake controls (part 2)
Acura TL – wiring diagram – brake controls (part 2)
Acura TL - wiring diagram - brake controls (part 3)
Acura TL – wiring diagram – brake controls (part 3)



Acura TL - wiring diagram - brake controls (part 4)
Acura TL – wiring diagram – brake controls (part 4)
Acura TL - wiring diagram - brake controls (part 5)
Acura TL – wiring diagram – brake controls (part 5)

Version 2

Acura TL - wiring diagram - brake controls (part 1)
Acura TL – wiring diagram – brake controls (part 1)
Acura TL - wiring diagram - brake controls (part 2)
Acura TL – wiring diagram – brake controls (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
