Acura TL (2003 – 2004) – wiring diagrams – power distribution

Acura TL (2003 – 2004) – wiring diagrams – power distribution

Year of productions:  2003, 2004

Power distribution

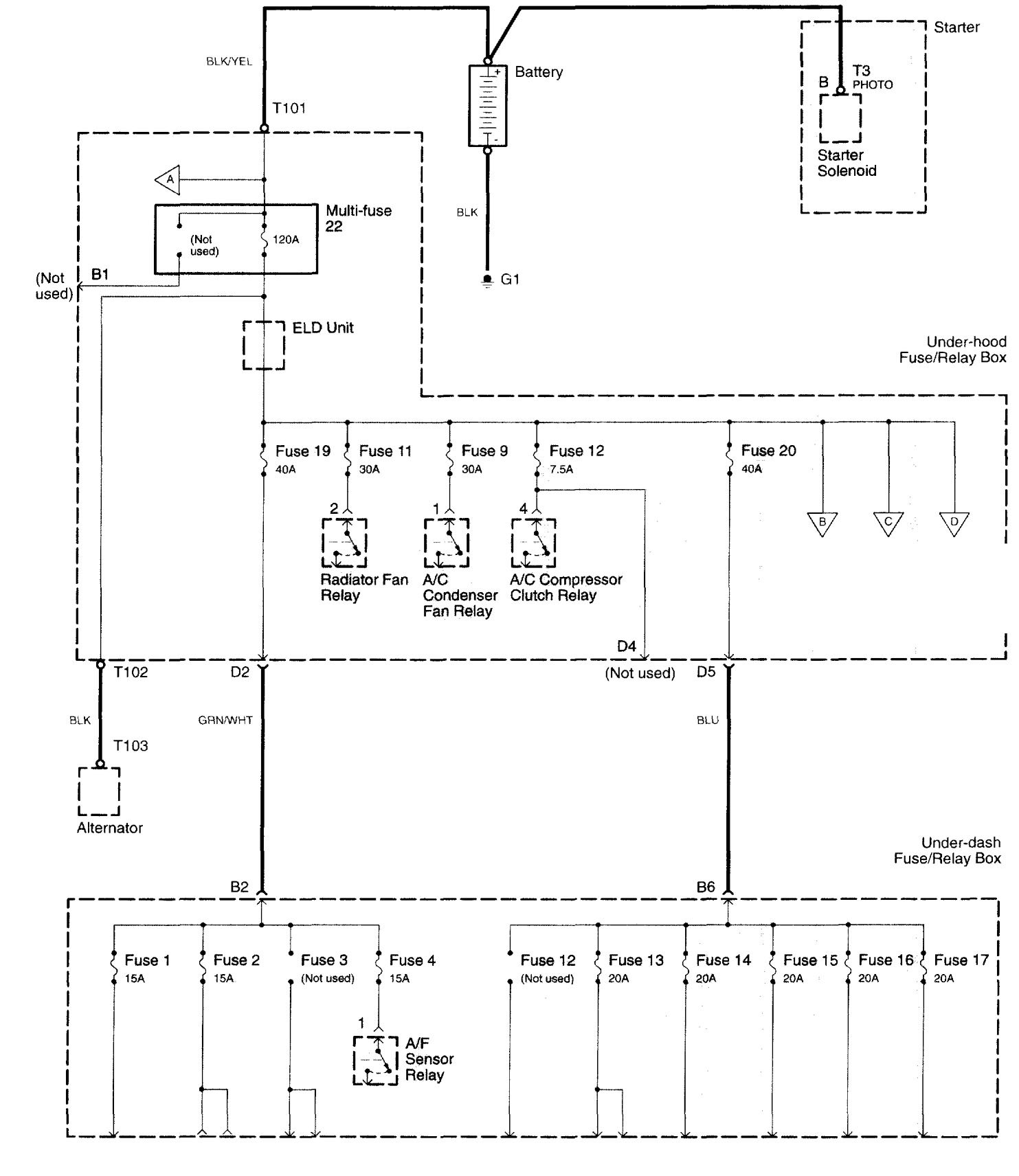

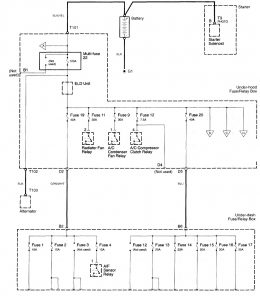

Acura TL – wiring diagram – power distribution (part 1)

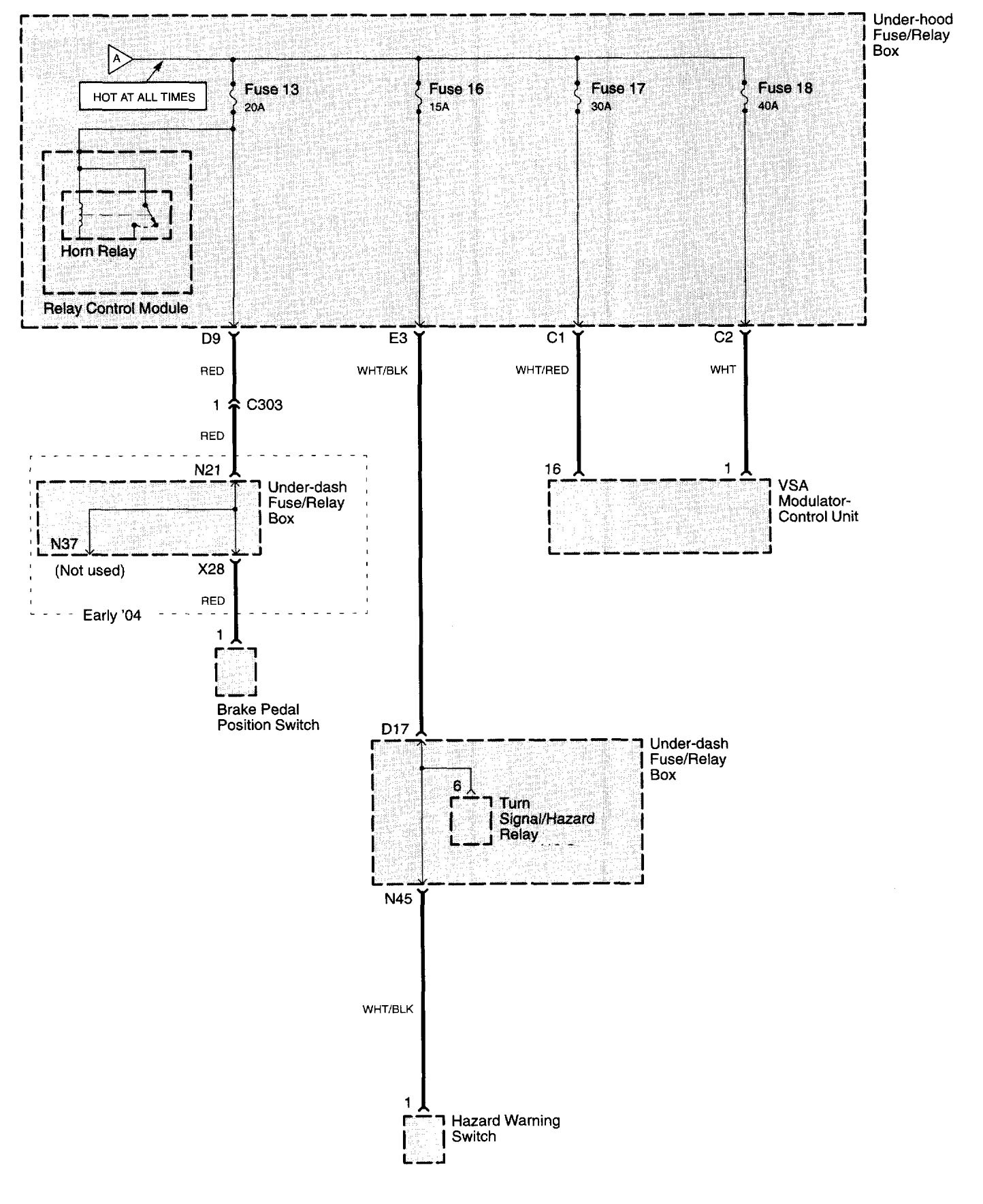

Acura TL – wiring diagram – power distribution (part 2)

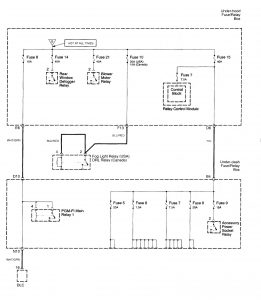

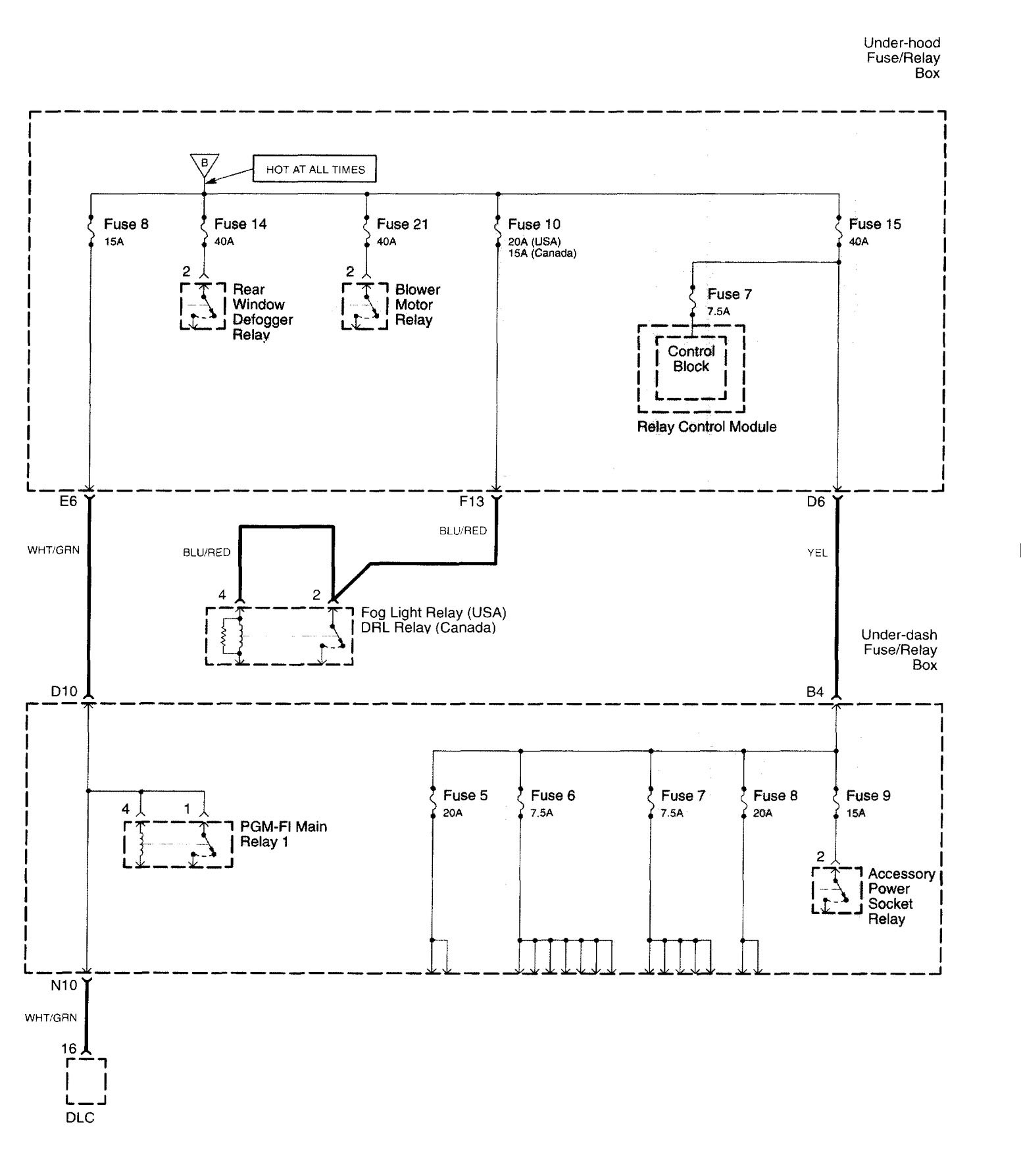

Acura TL – wiring diagram – power distribution (part 3)

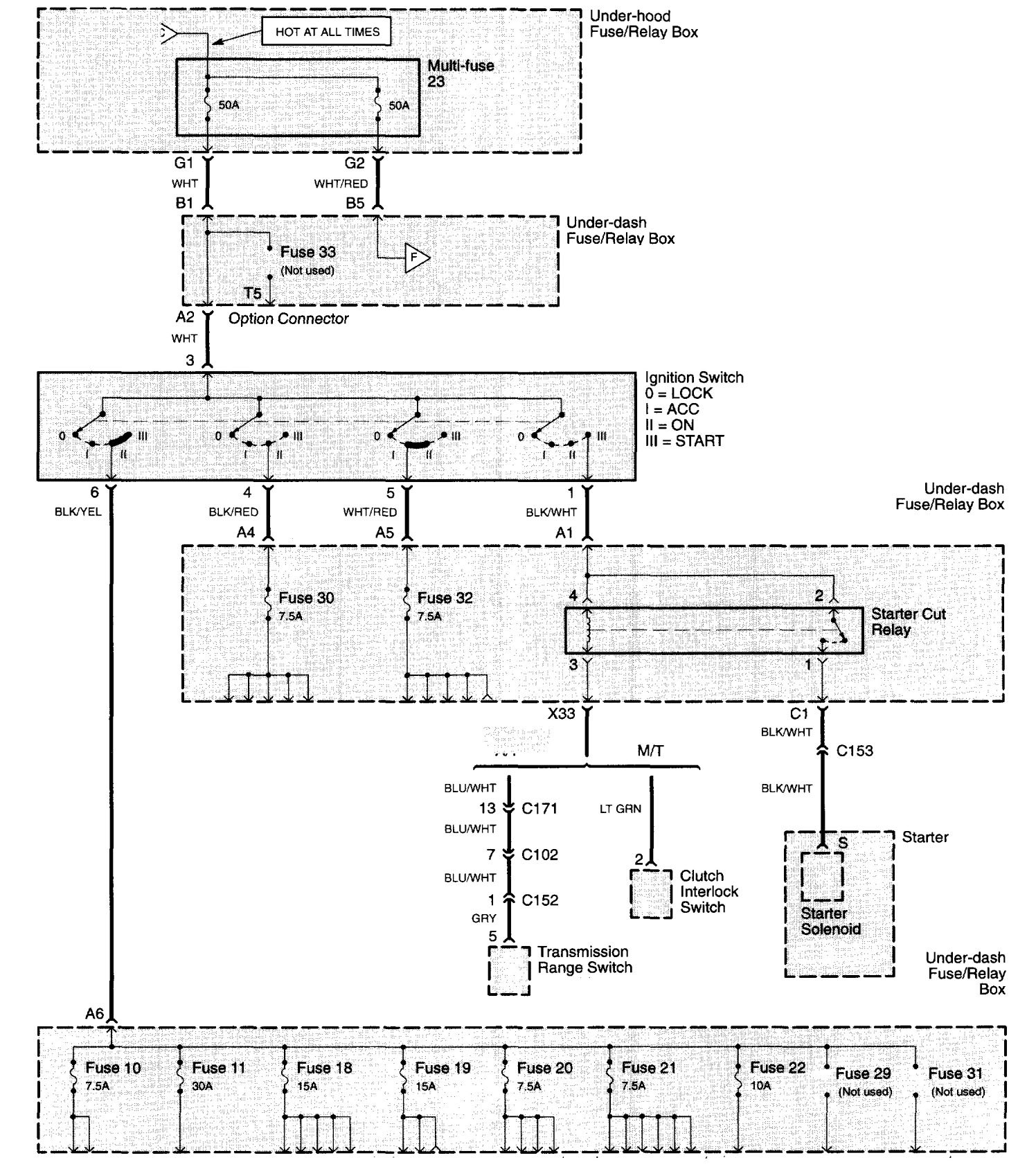

Acura TL – wiring diagram – power distribution (part 4)

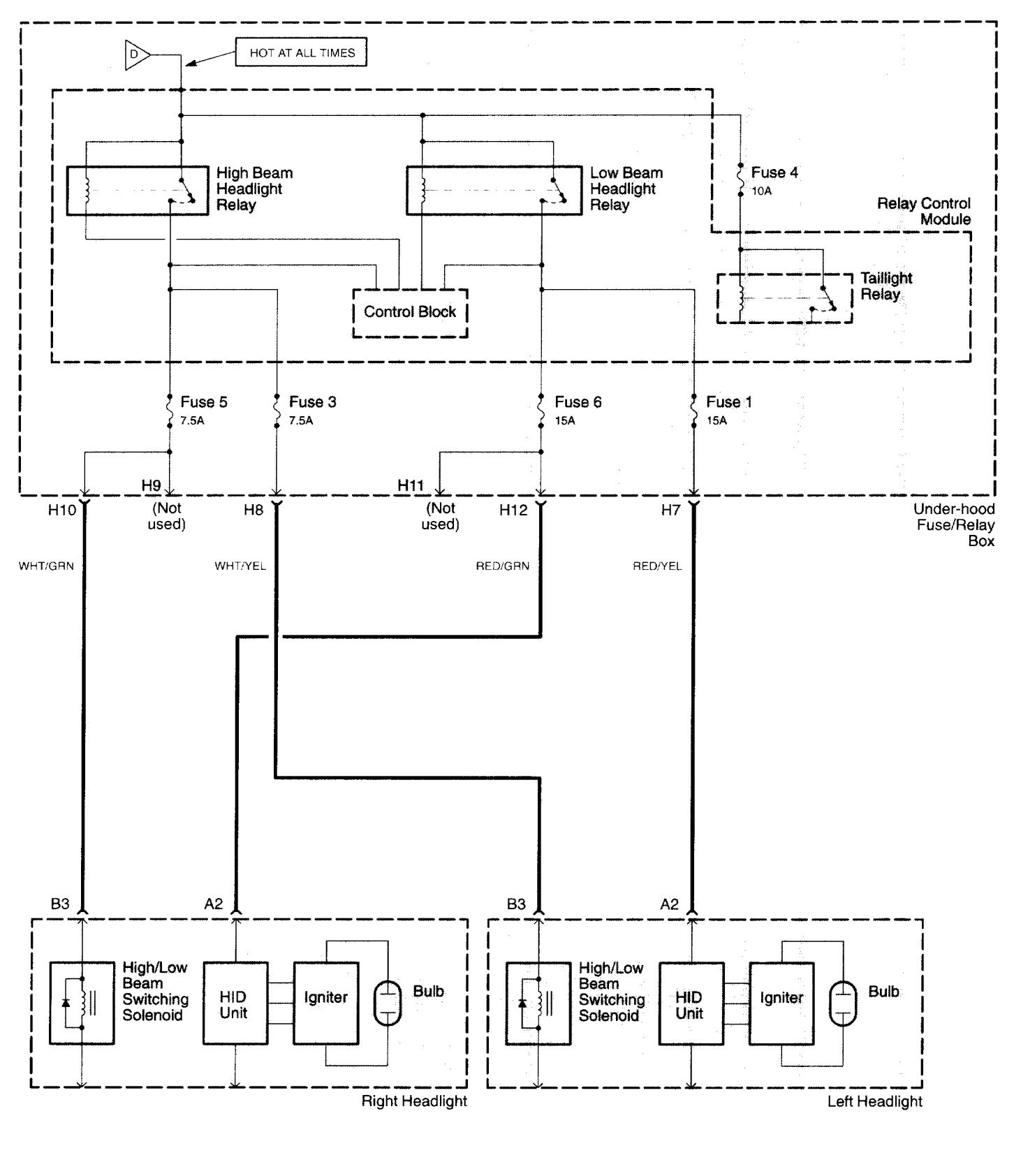

Acura TL – wiring diagram – power distribution (part 5)

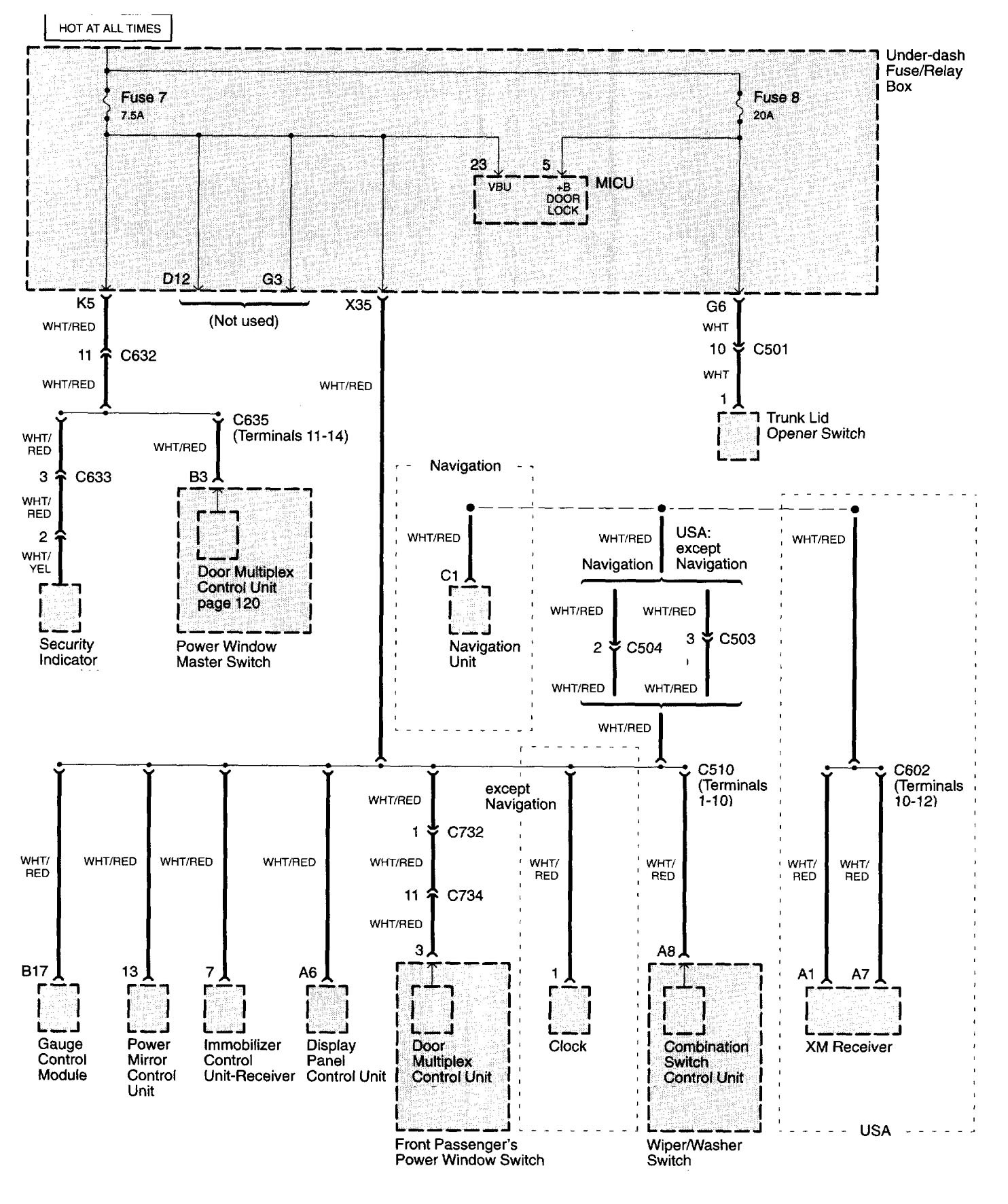

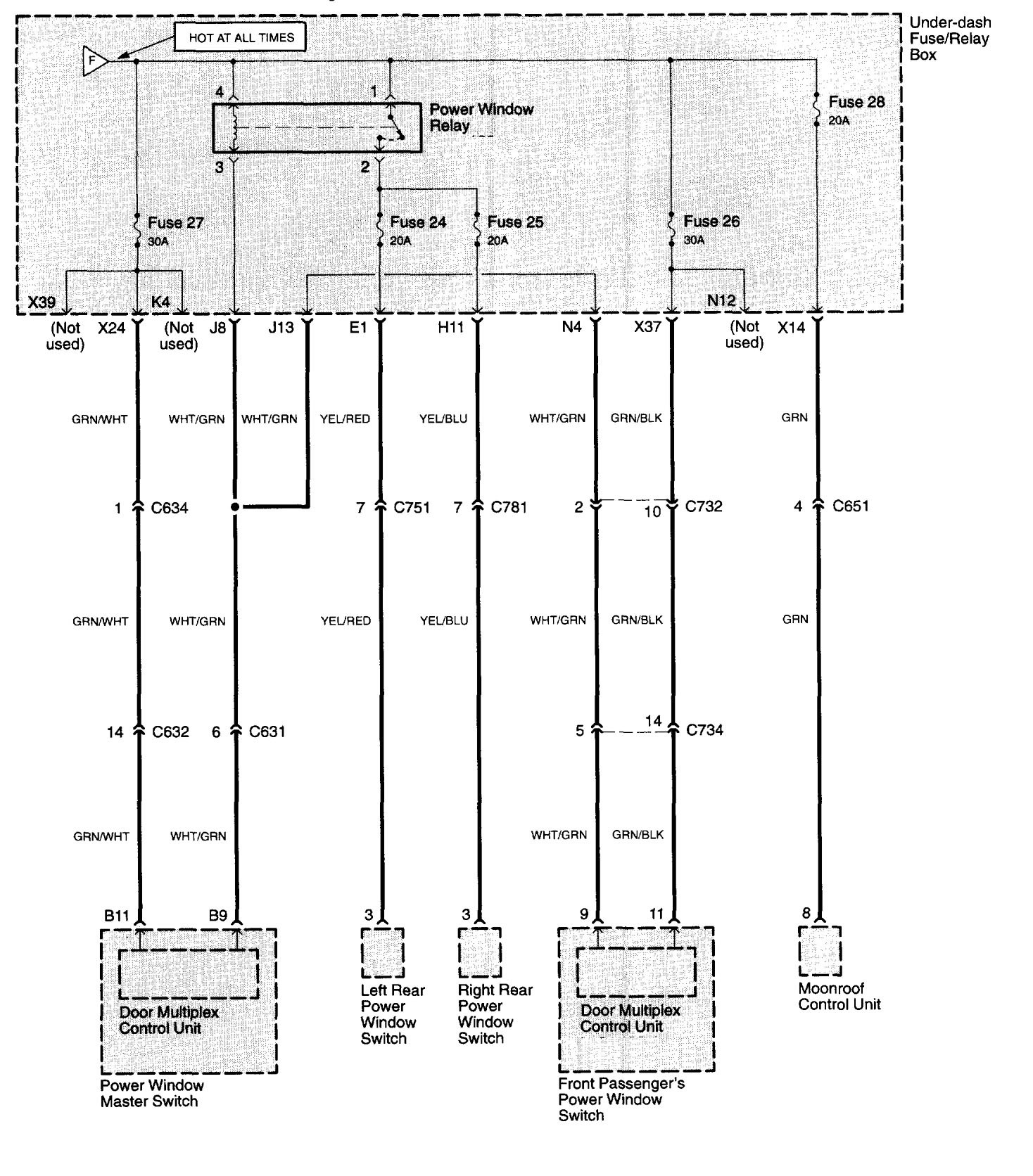

Acura TL – wiring diagram – power distribution (part 6)

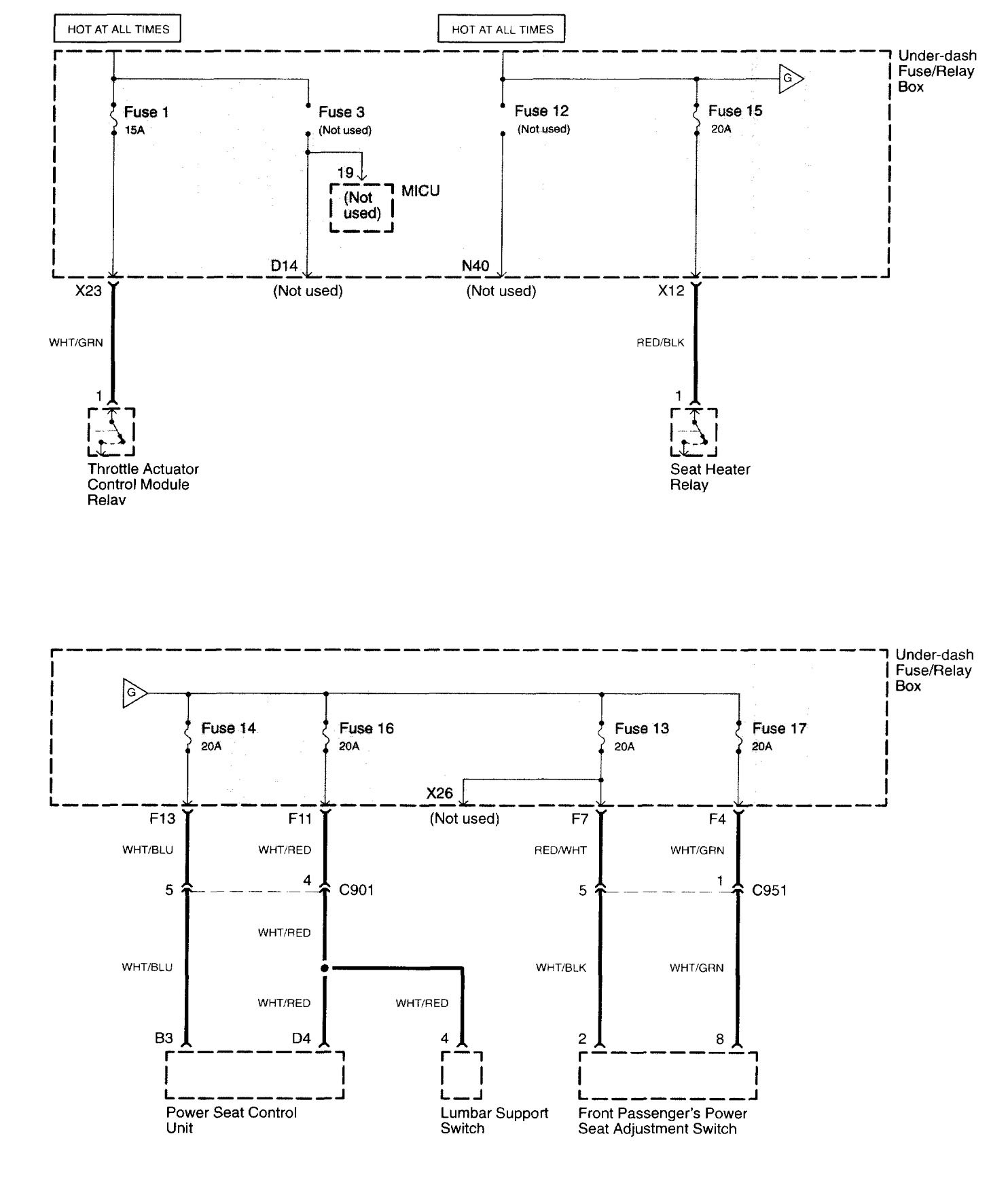

Acura TL – wiring diagram – power distribution (part 7)

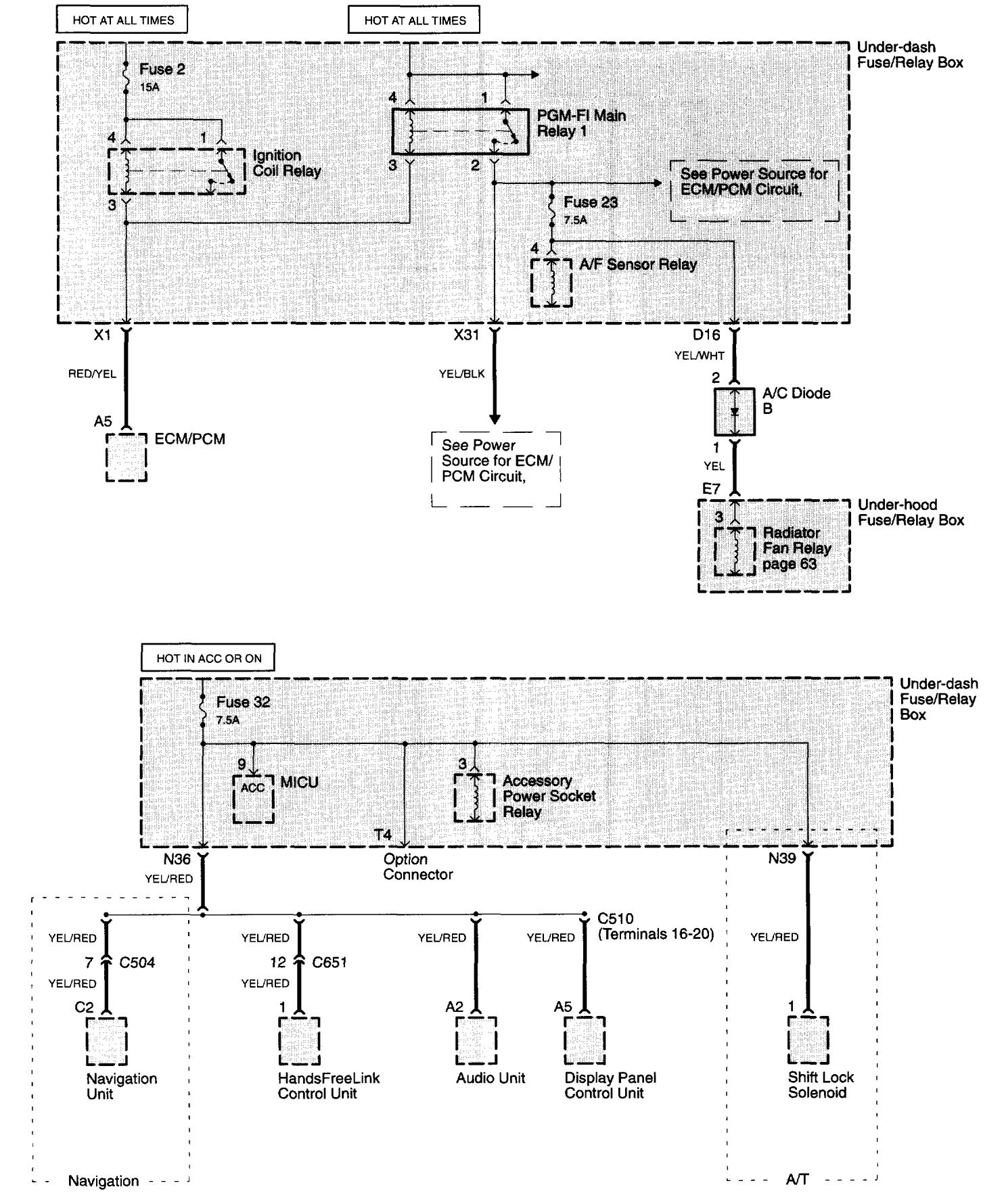

Acura TL – wiring diagram – power distribution (part 8)

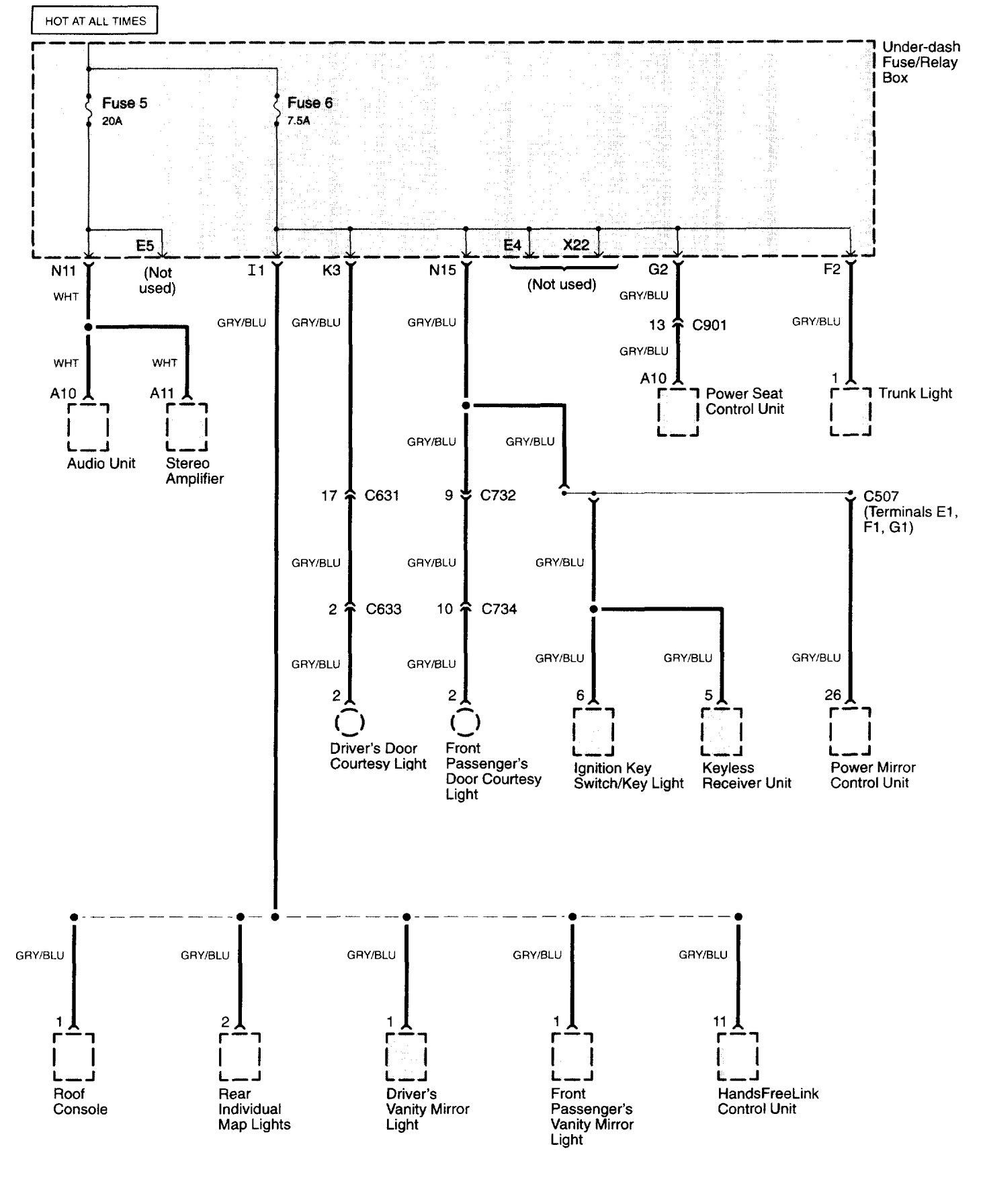

Acura TL – wiring diagram – power distribution (part 9)
Acura TL – wiring diagram – power distribution (part 10)

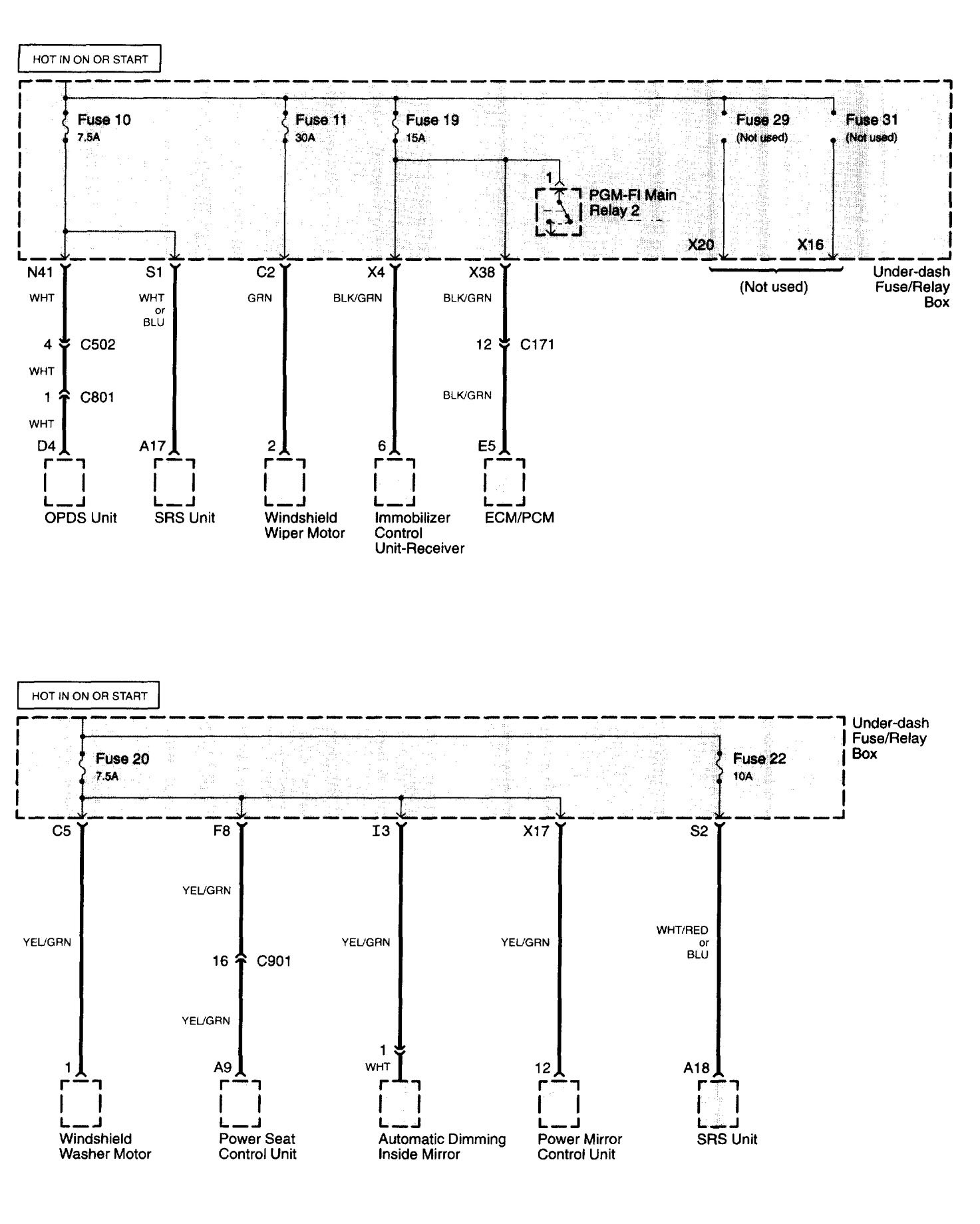

Acura TL – wiring diagram – power distribution (part 11)

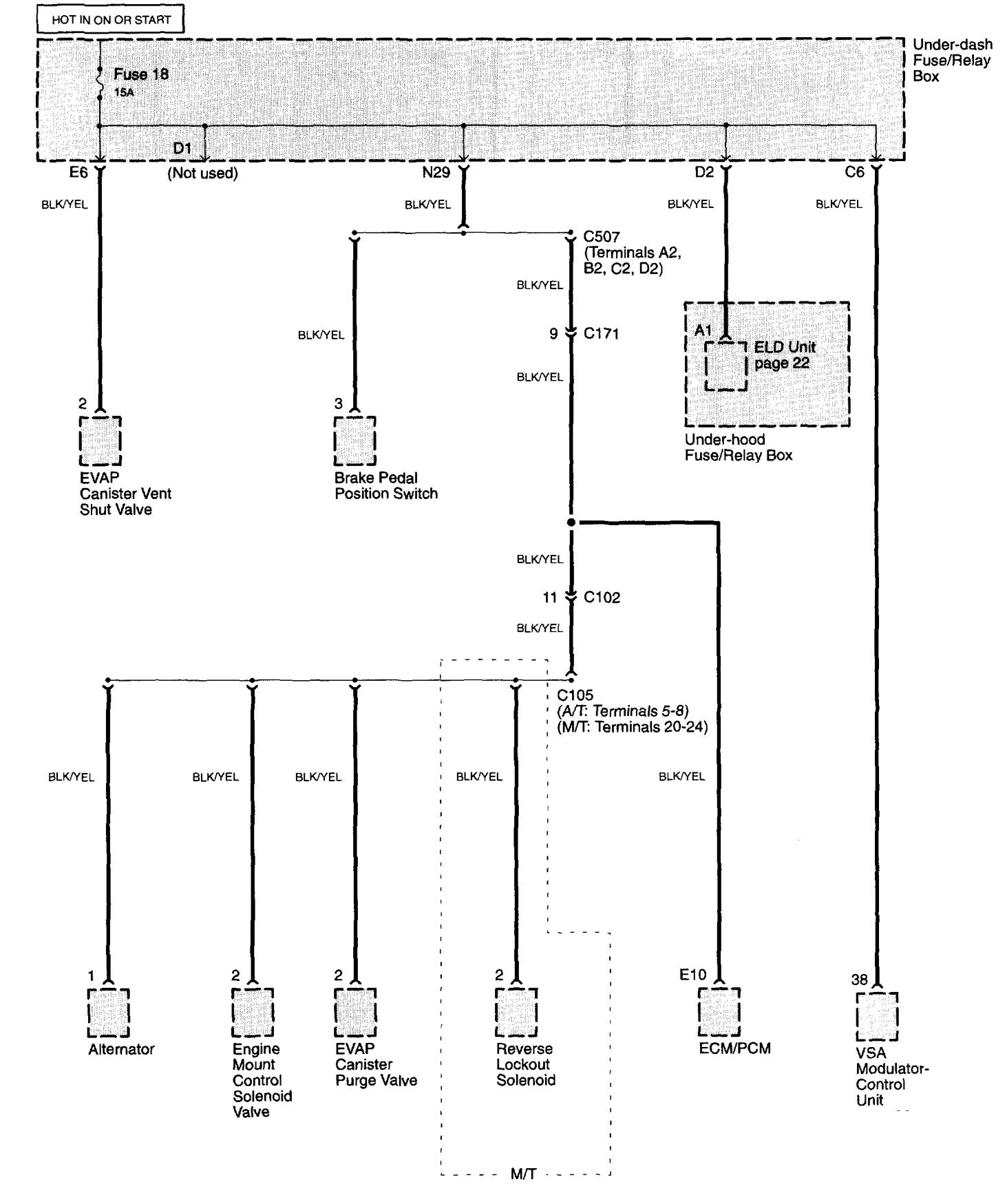

Acura TL – wiring diagram – power distribution (part 12)

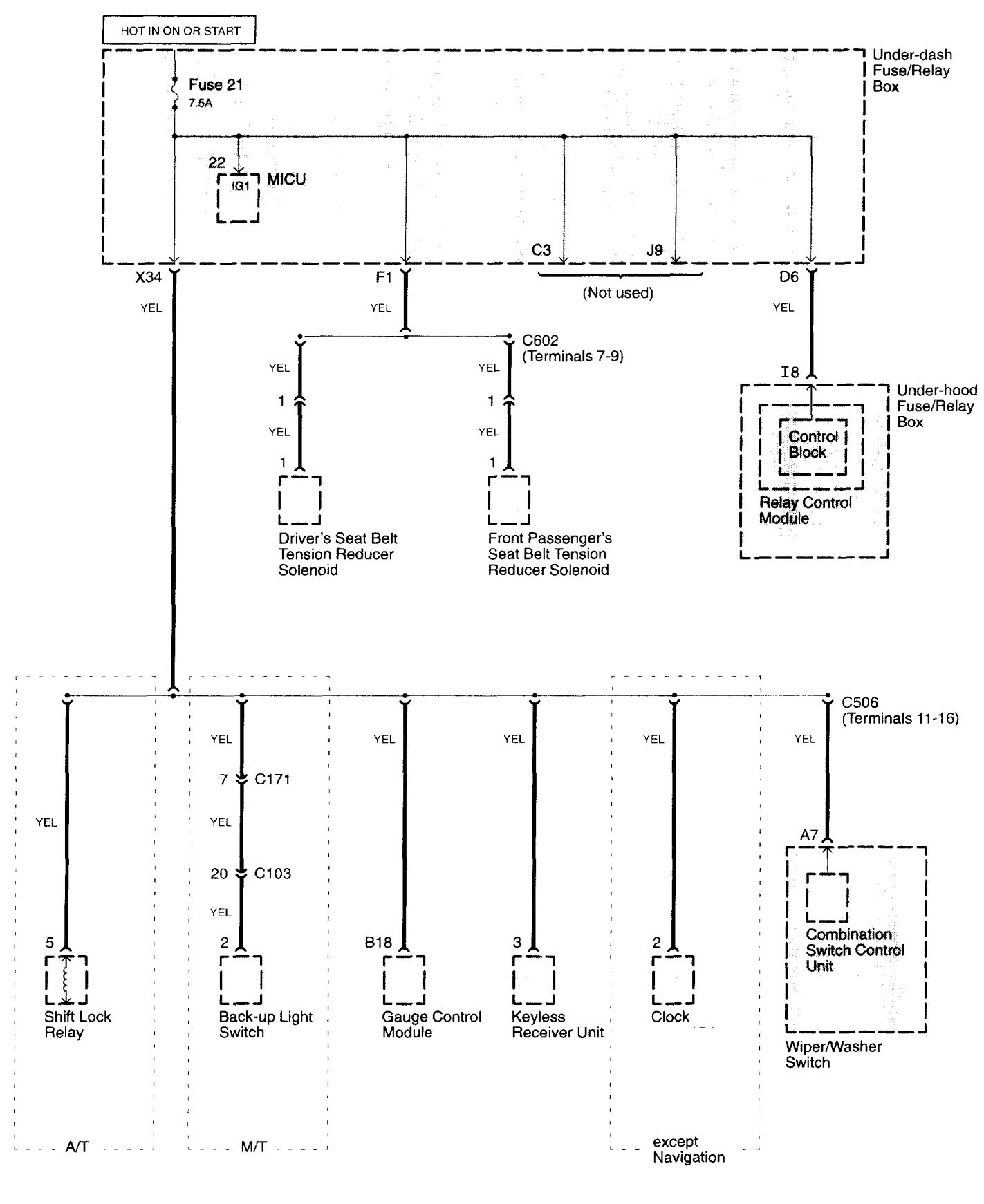

Acura TL – wiring diagram – power distribution (part 13)

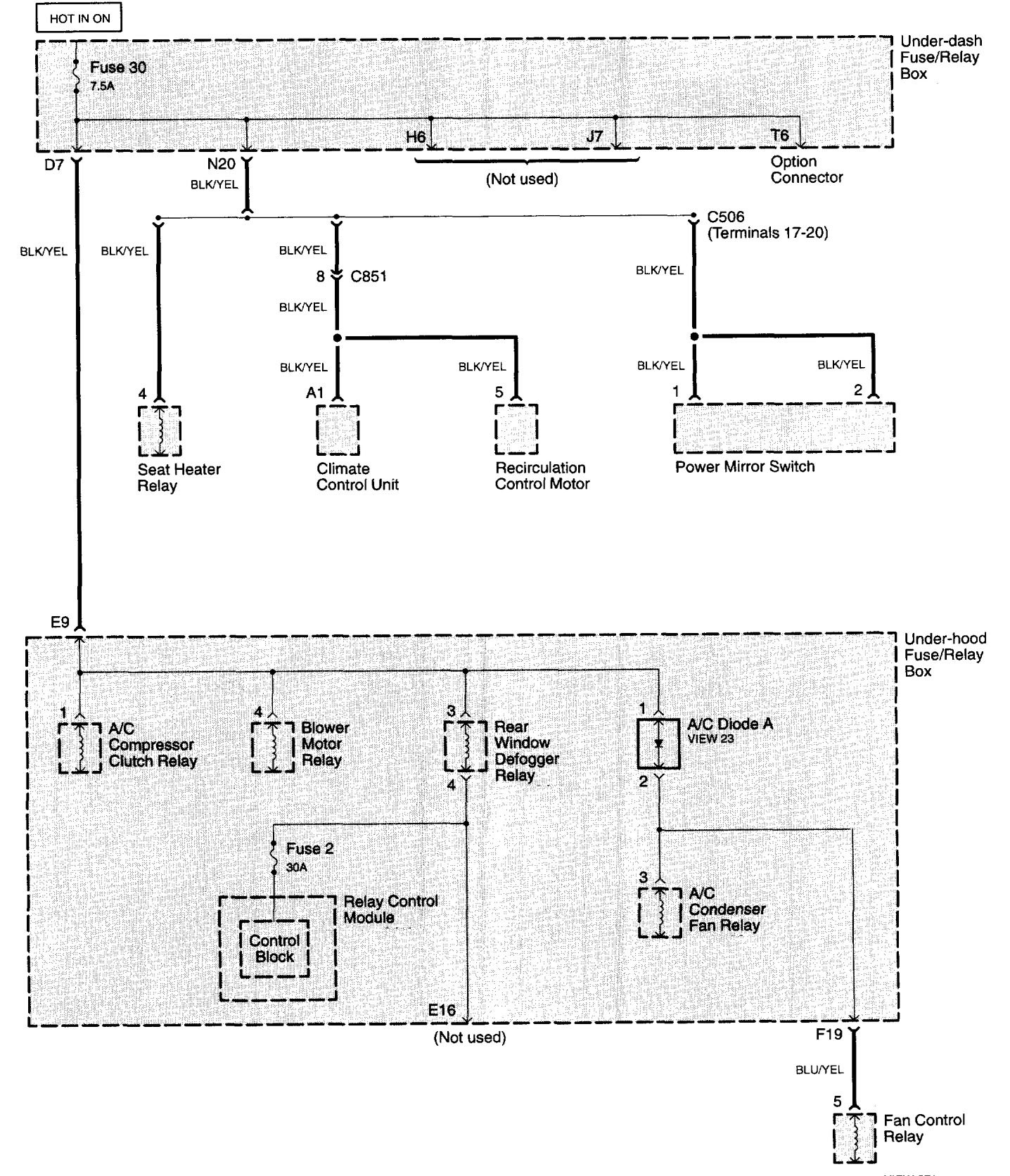

Acura TL – wiring diagram – power distribution (part 14)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
