Acura TL (1999) – wiring diagrams – headlamps

Acura TL (1999) – wiring diagrams – headlamps

Year of productions:  1999

Headlamps

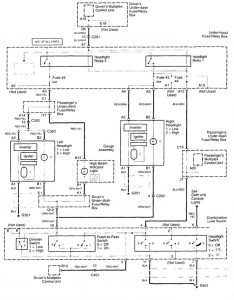

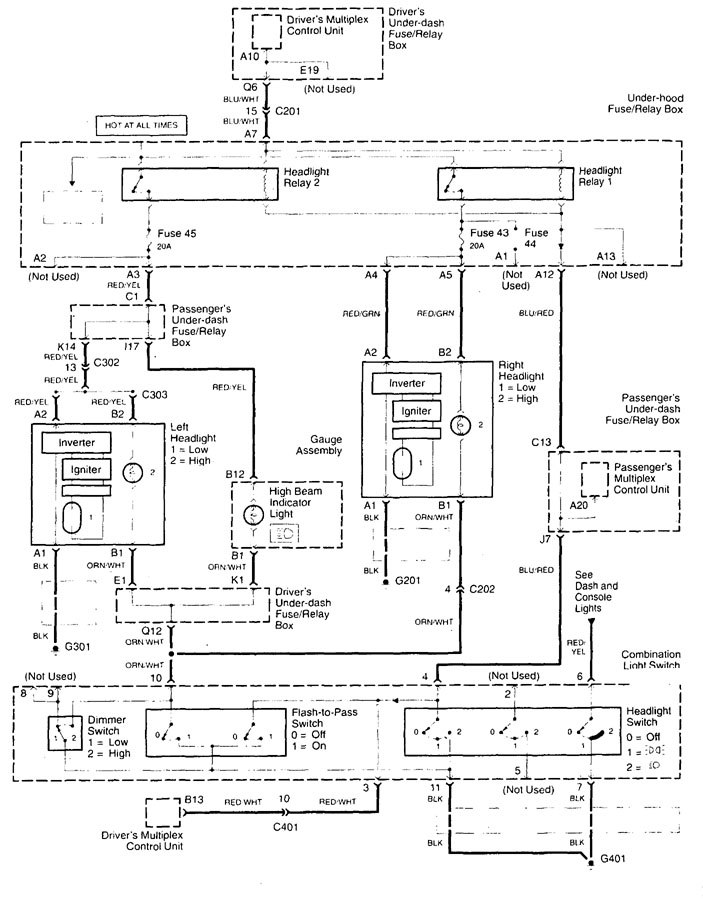

Acura TL – wiring diagram – headlamps (part 1)
Acura TL – wiring diagram – headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
