Acura TL (1996 – 1997) – wiring diagrams – starting

Acura TL (1996 – 1997) – wiring diagrams – starting

Year of productions:  1996, 1997

Starting

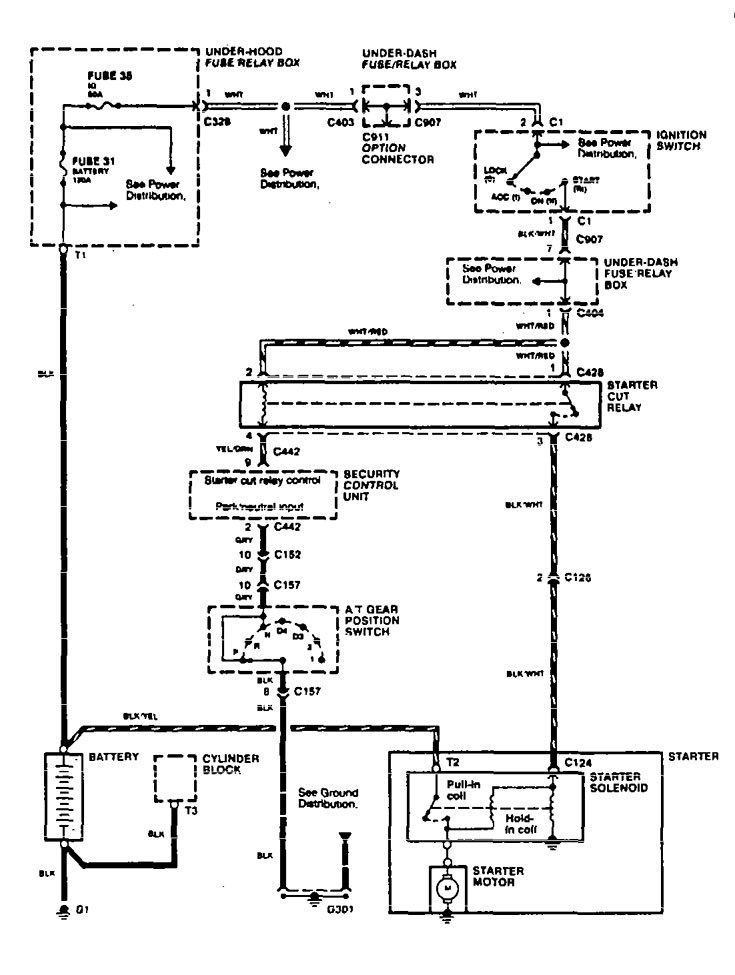

Acura TL – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
