Acura SLX (1998 – 1999) – wiring diagrams – brake controls

Acura SLX (1998 – 1999) – wiring diagrams – brake controls

Year of productions:  1998, 1999

Brake controls

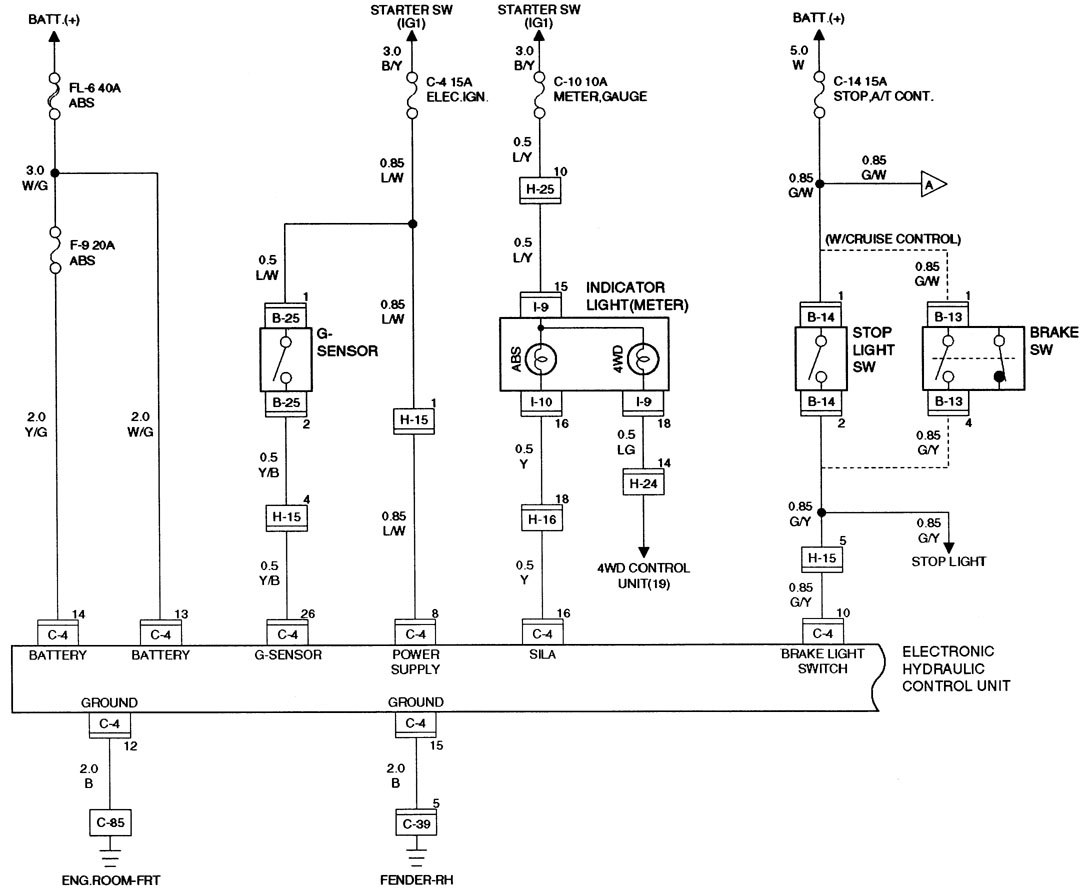

Acura SLX - wiring diagram - brake controls (part 1)
Acura SLX – wiring diagram – brake controls (part 1)

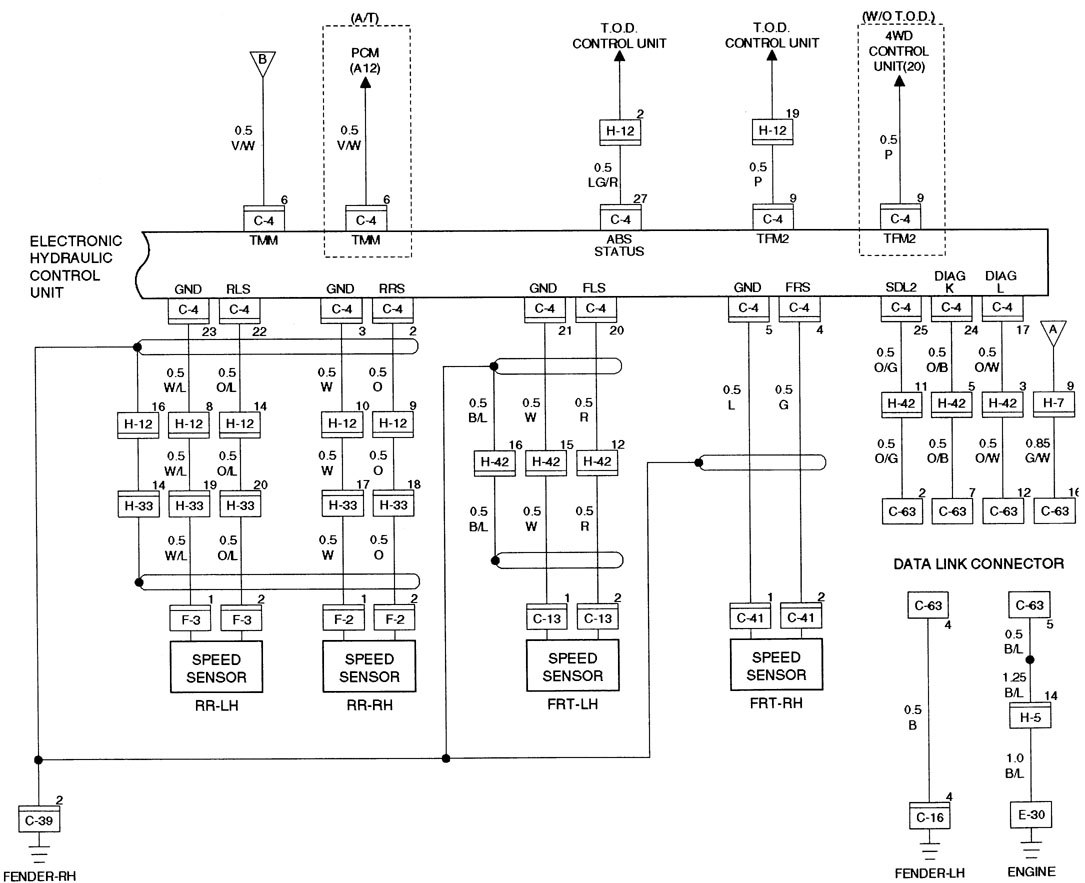

Acura SLX - wiring diagram - brake controls (part 2)
Acura SLX – wiring diagram – brake controls (part 2)

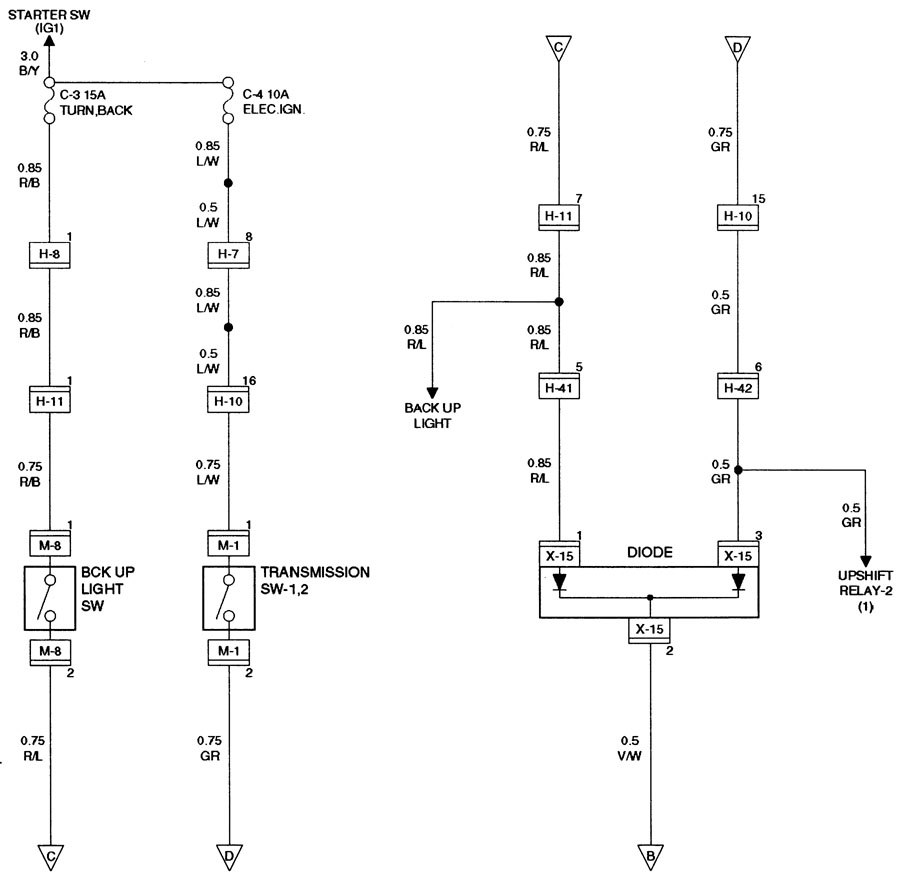

Acura SLX - wiring diagram - brake controls (part 3)
Acura SLX – wiring diagram – brake controls (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
