Year of productions:  1997

Brake controls

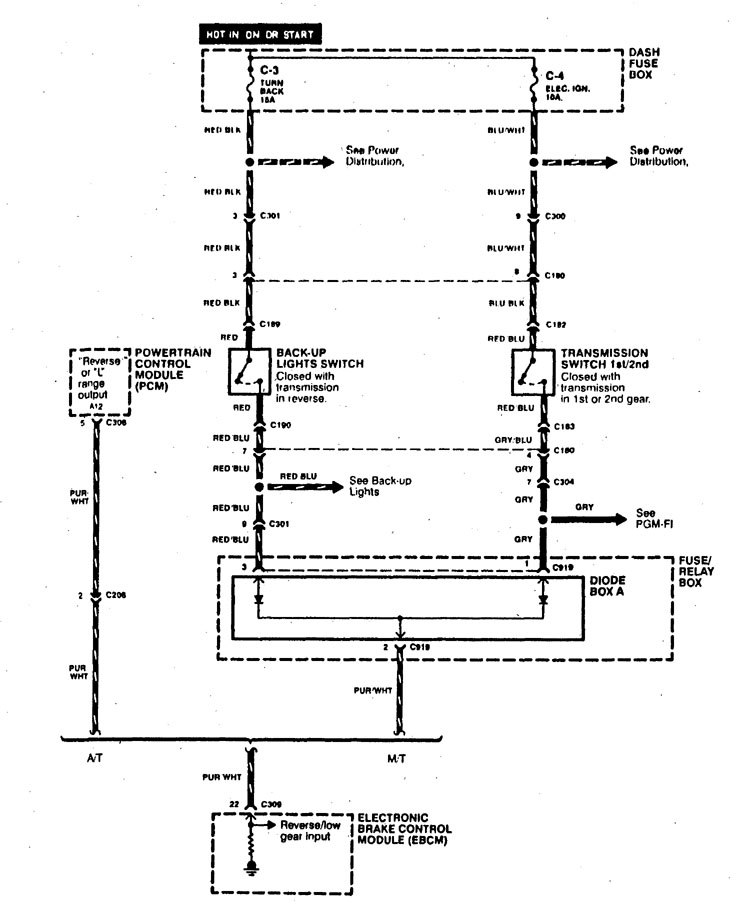

Acura SLX - wiring diagram - brake controls (part 1)
Acura SLX – wiring diagram – brake controls (part 1)

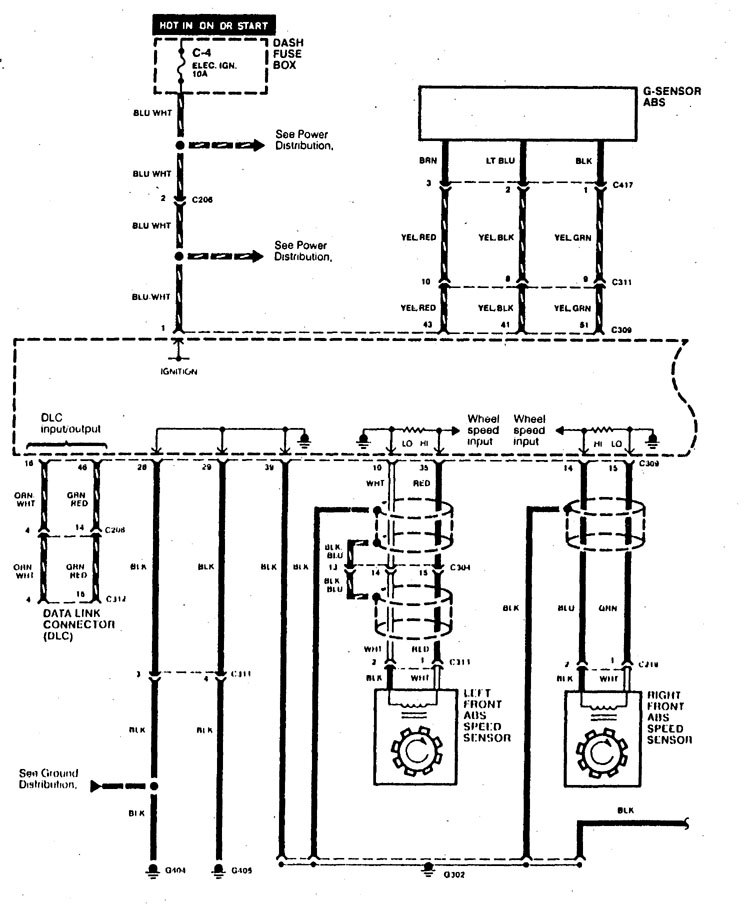

Acura SLX - wiring diagram - brake controls (part 2)
Acura SLX – wiring diagram – brake controls (part 2)

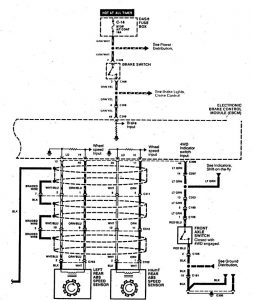

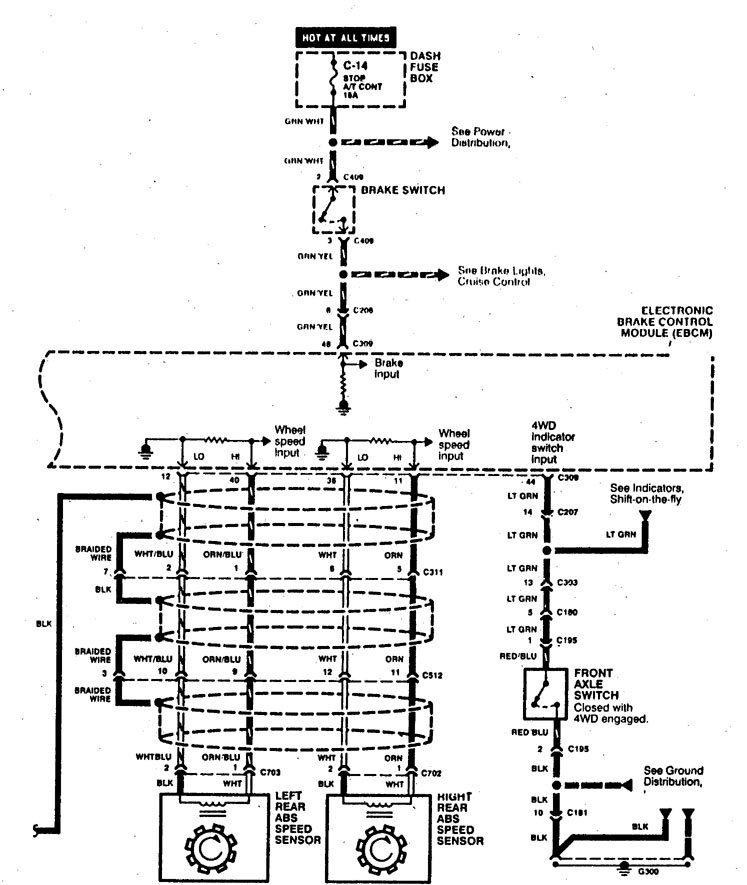

Acura SLX - wiring diagram - brake controls (part 3)
Acura SLX – wiring diagram – brake controls (part 3)

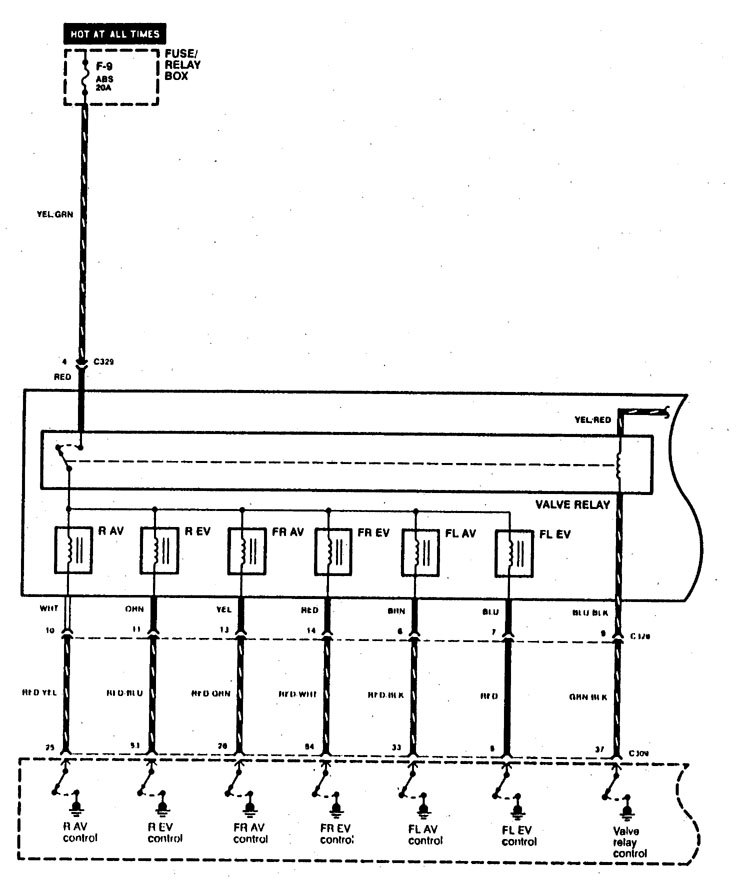

Acura SLX - wiring diagram - brake controls (part 4)
Acura SLX – wiring diagram – brake controls (part 4)

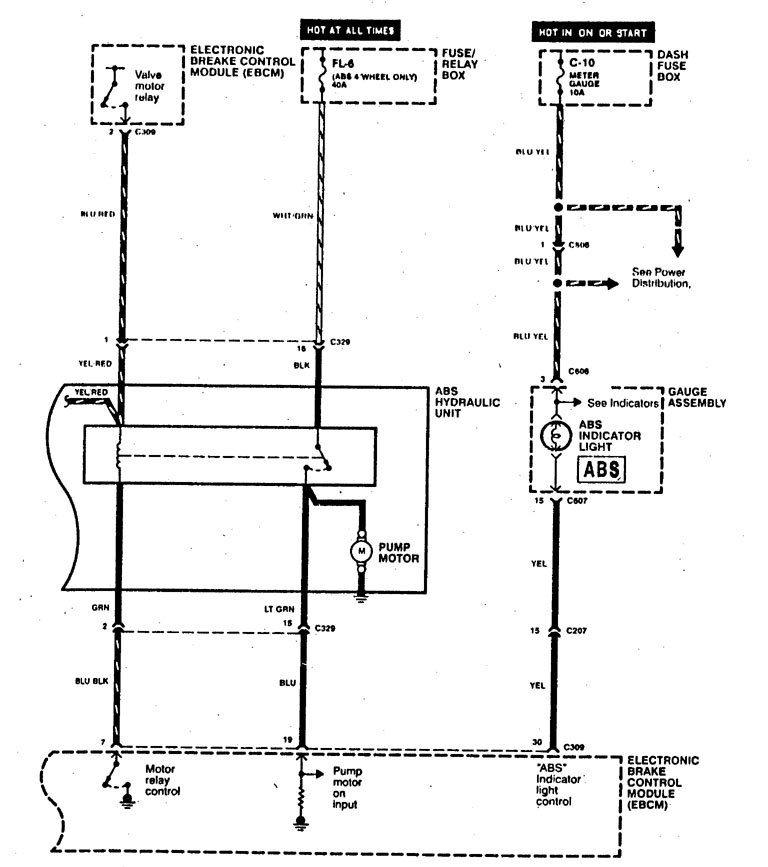

Acura SLX - wiring diagram - brake controls (part 5)
Acura SLX – wiring diagram – brake controls (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
