Acura SLX (1997) – wiring diagrams – audio

Acura SLX (1997) – wiring diagrams – audio

Year of productions:  1997

Audio

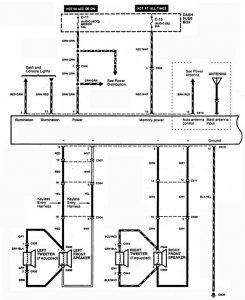

Acura SLX - wiring diagram - audio (part 1)
Acura SLX – wiring diagram – audio (part 1)

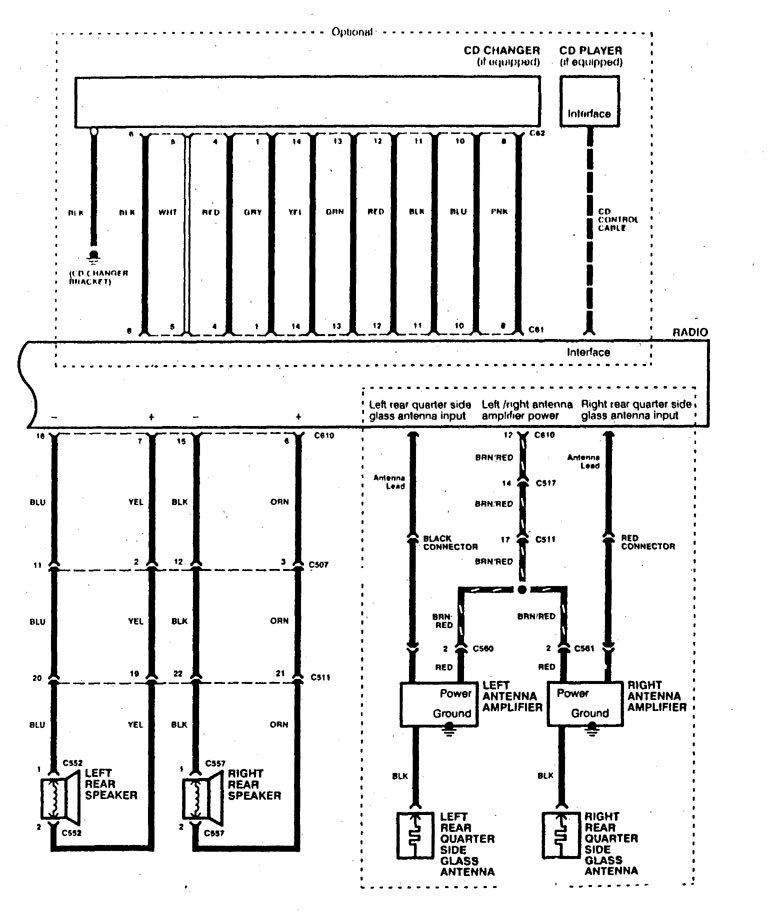

Acura SLX - wiring diagram - audio (part 2)
Acura SLX – wiring diagram – audio (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
