Acura SLX (1996) – wiring diagrams – transmission controls

Acura SLX (1996) – wiring diagrams – transmission controls

Year of productions:  1996

Transmission controls

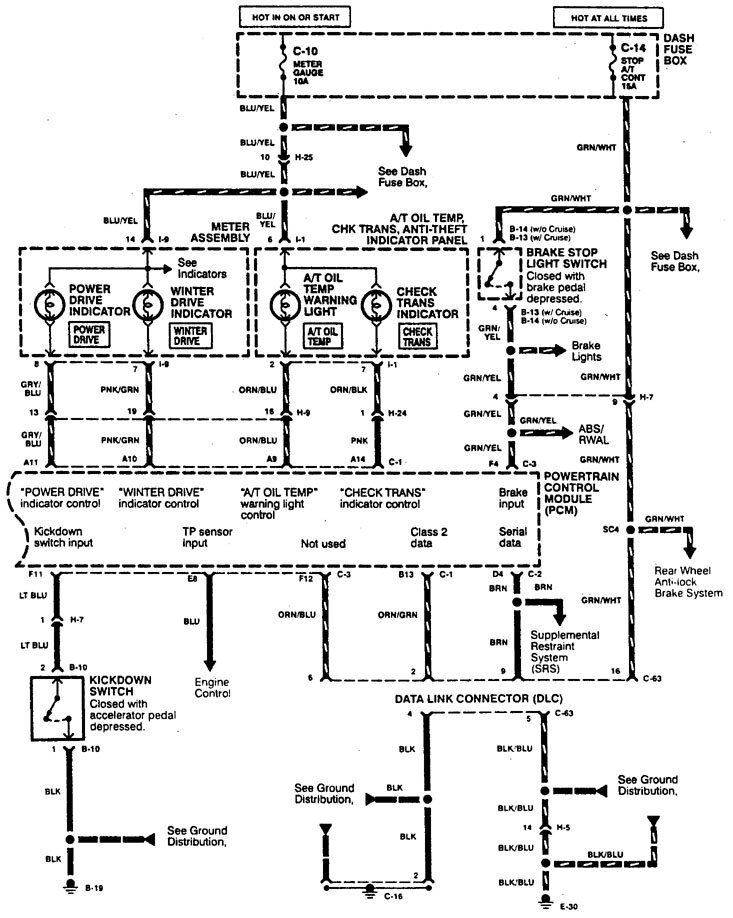

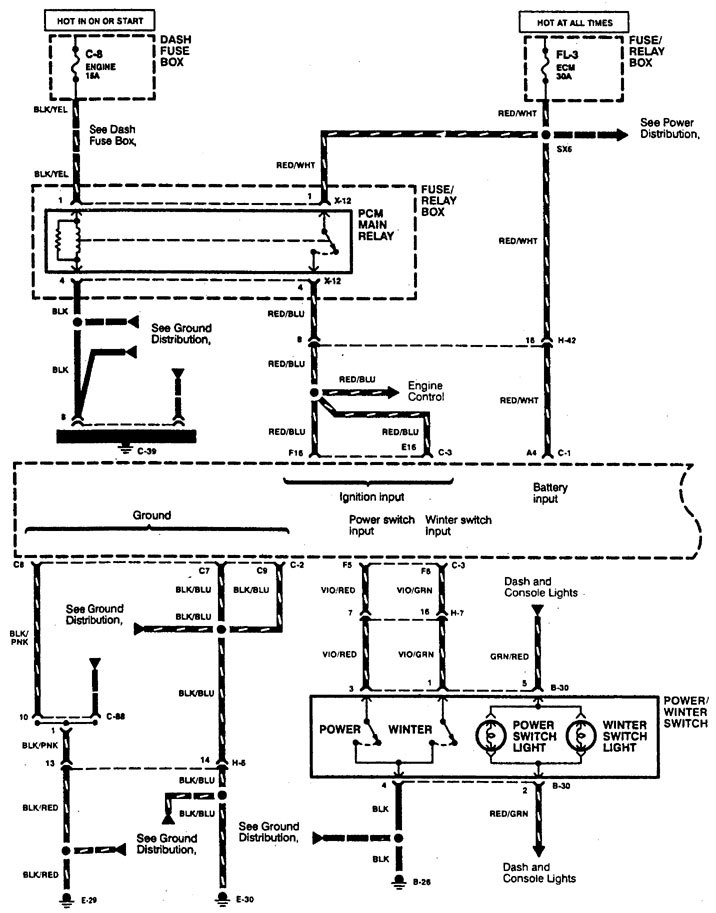

Acura SLX - wiring diagram - transmission control (part 1)
Acura SLX – wiring diagram – transmission control (part 1)

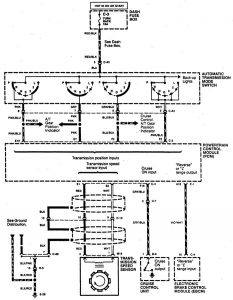

Acura SLX - wiring diagram - transmission control (part 2)
Acura SLX – wiring diagram – transmission control (part 2)

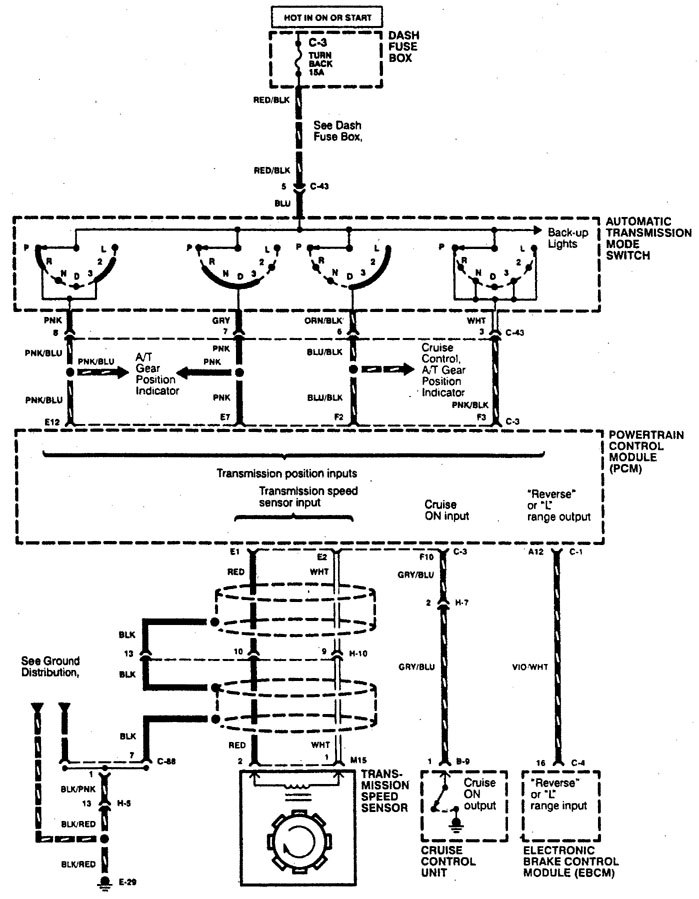

Acura SLX - wiring diagram - transmission control (part 3)
Acura SLX – wiring diagram – transmission control (part 3)

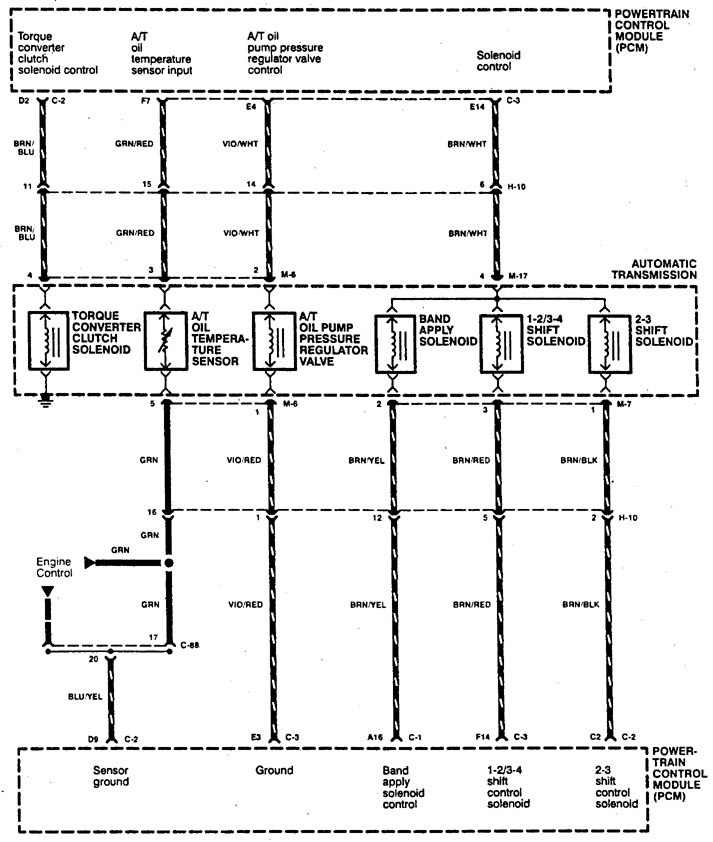

Acura SLX - wiring diagram - transmission control (part 4)
Acura SLX – wiring diagram – transmission control (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
