Acura SLX (1996) – wiring diagrams – power distribution

Acura SLX (1996) – wiring diagrams – power distribution

Year of productions:  1996

Power distribution

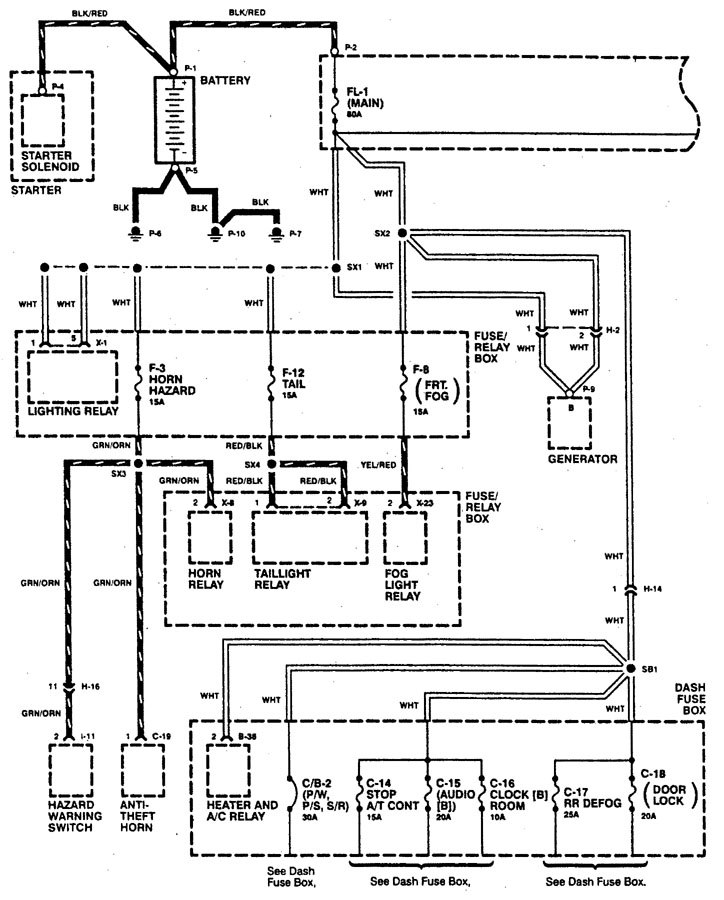

Acura SLX - wiring diagram - power distribution (part 1)
Acura SLX – wiring diagram – power distribution (part 1)

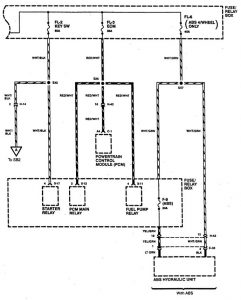

Acura SLX - wiring diagram - power distribution (part 2)
Acura SLX – wiring diagram – power distribution (part 2)

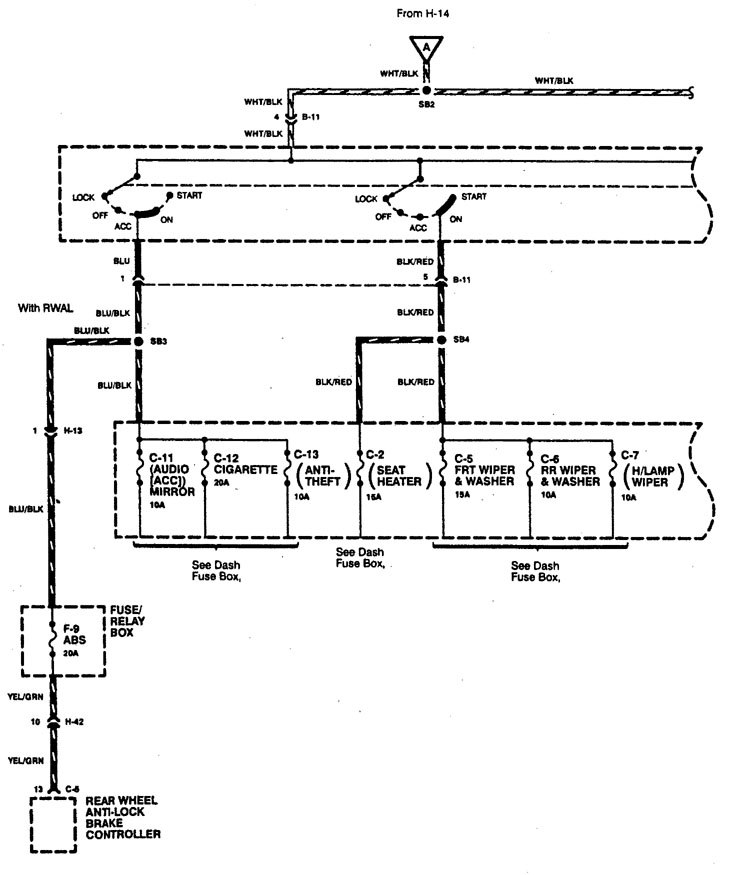

Acura SLX - wiring diagram - power distribution (part 3)
Acura SLX – wiring diagram – power distribution (part 3)

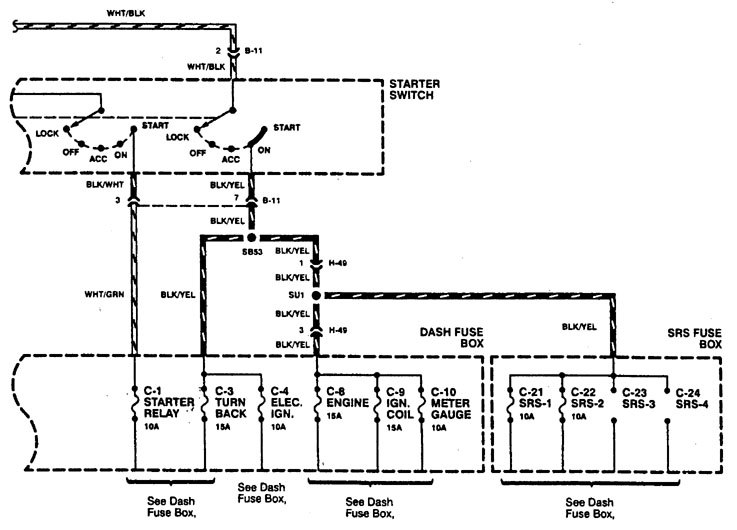

Acura SLX - wiring diagram - power distribution (part 4)
Acura SLX – wiring diagram – power distribution (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
