Acura SLX (1996) – wiring diagrams – parking lamp

Acura SLX (1996) – wiring diagrams – parking lamp

Year of productions:  1996

Parking lamp

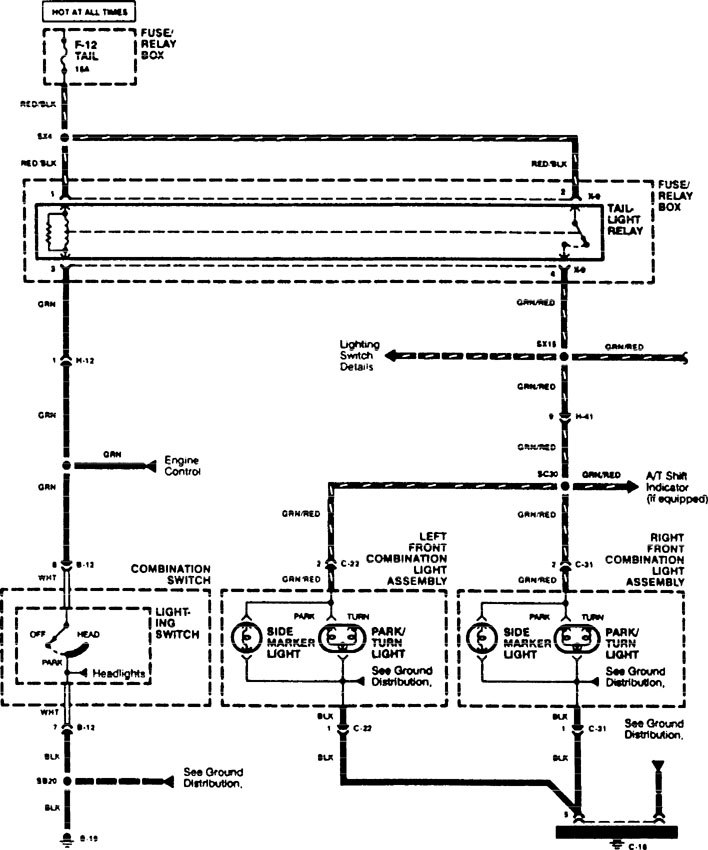

Acura SLX - wiring diagram - parking lamp (part 1)
Acura SLX – wiring diagram – parking lamp (part 1)

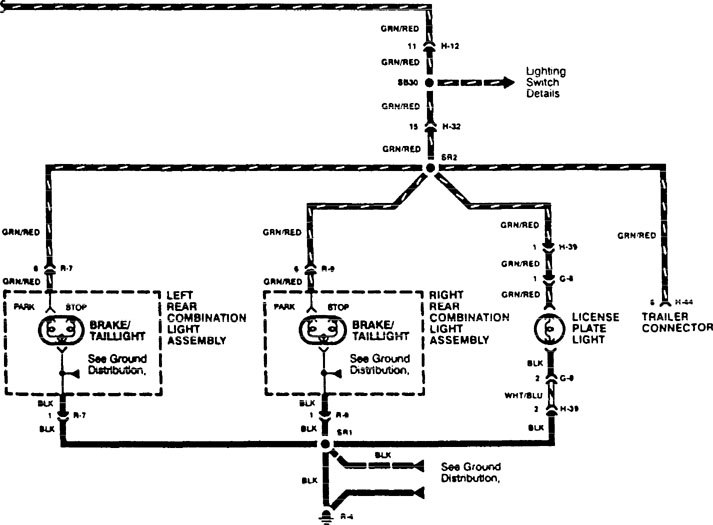

Acura SLX - wiring diagram - parking lamp (part 2)
Acura SLX – wiring diagram – parking lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
