Acura SLX (1996) – wiring diagrams – indicator lamp

Acura SLX (1996) – wiring diagrams – indicator lamp

Year of productions:  1996

Indicator lamp

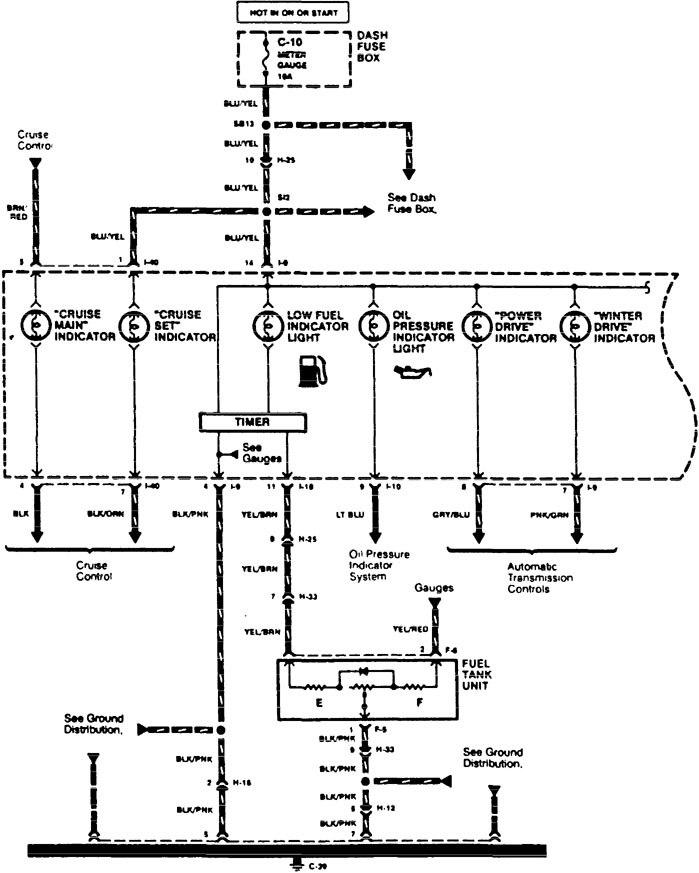

Acura SLX - wiring diagram - indicato -lamps (part 1)
Acura SLX – wiring diagram – indicato -lamps (part 1)

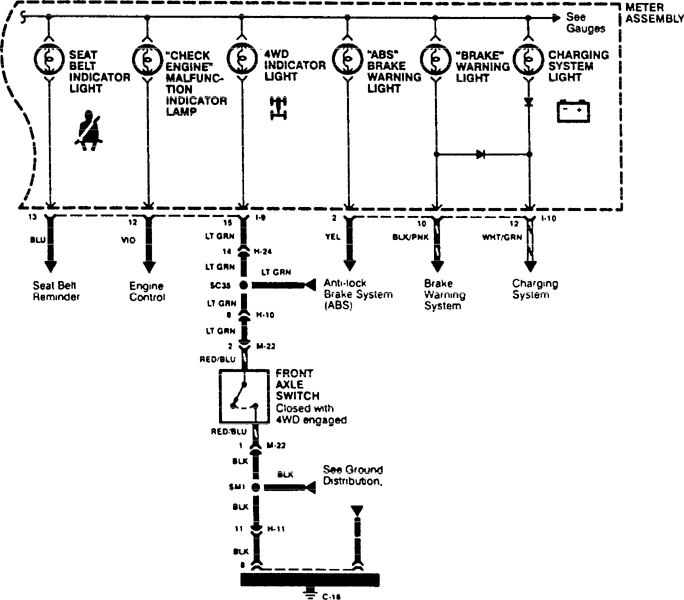

Acura SLX - wiring diagram - indicato -lamps (part 2)
Acura SLX – wiring diagram – indicato -lamps (part 2)

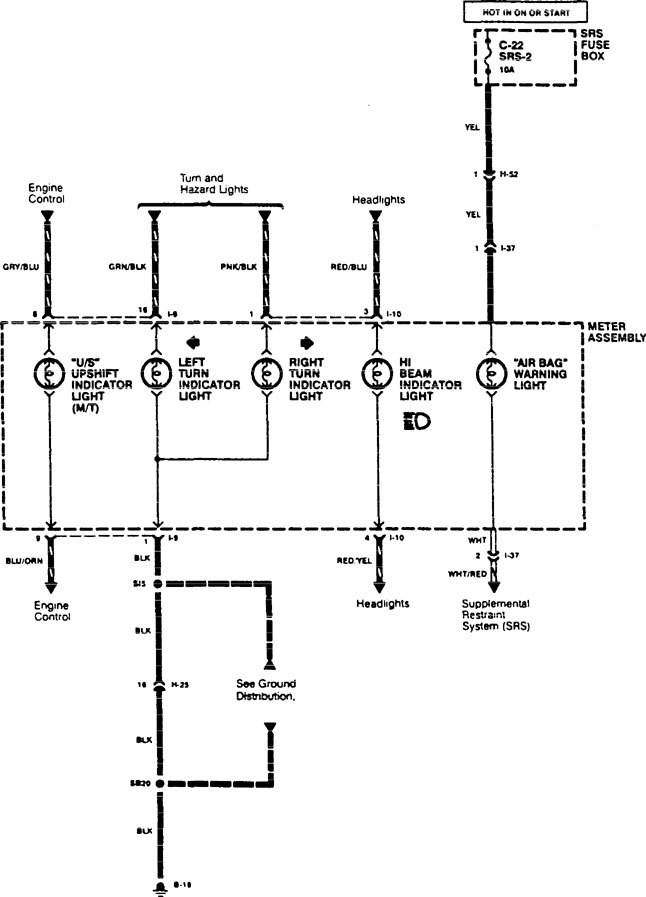

Acura SLX - wiring diagram - indicato -lamps (part 3)
Acura SLX – wiring diagram – indicato -lamps (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
