Acura SLX (1996) – wiring diagrams – HVAC controls

Acura SLX (1996) – wiring diagrams – HVAC controls

Year of productions:  1996

HVAC controls

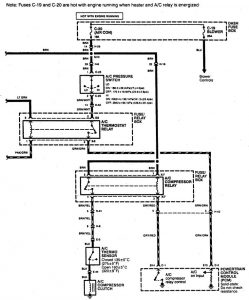

Acura SLX - wiring diagram - HVAC controls (part 1)
Acura SLX – wiring diagram – HVAC controls (part 1)

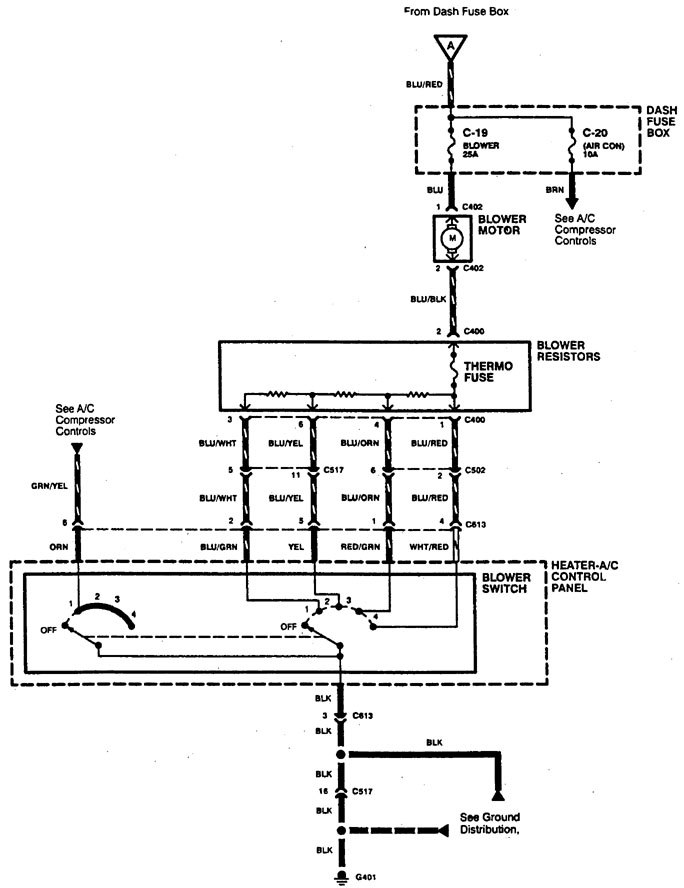

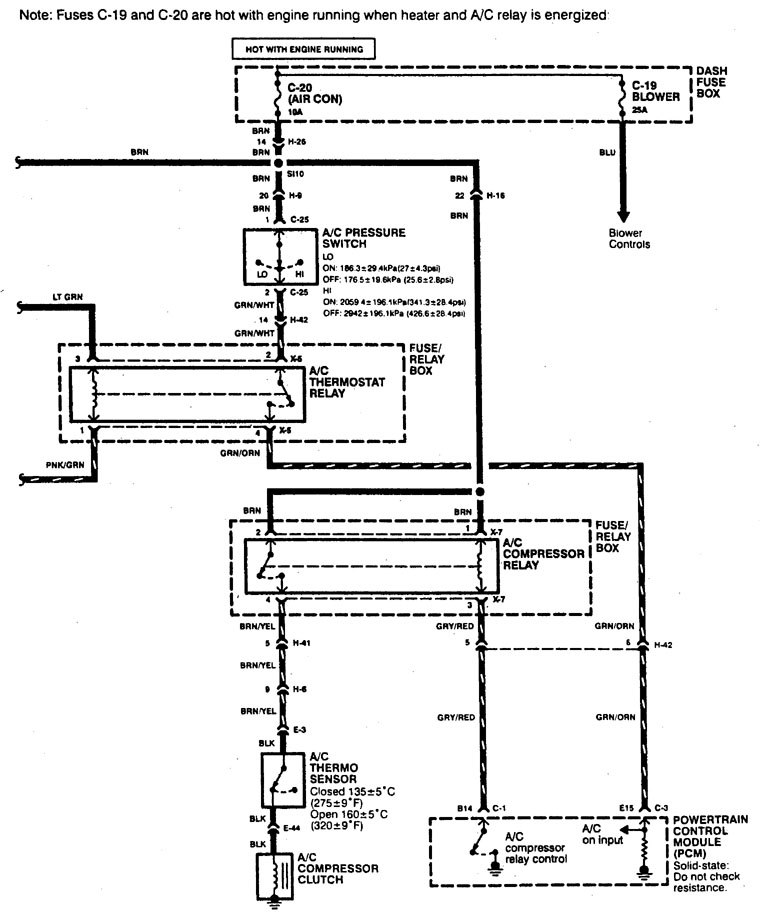

Acura SLX - wiring diagram - HVAC controls (part 2)
Acura SLX – wiring diagram – HVAC controls (part 2)

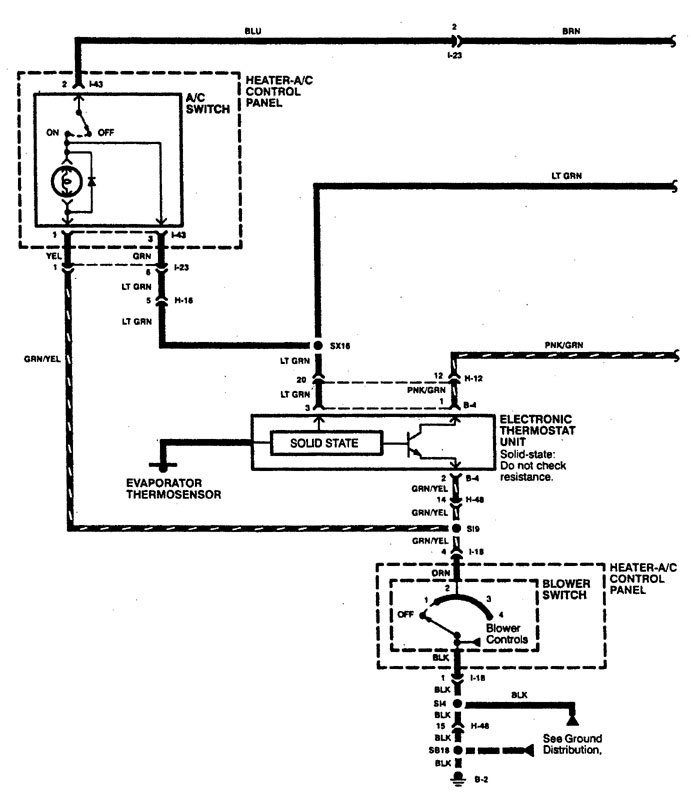

Acura SLX - wiring diagram - HVAC controls (part 3)
Acura SLX – wiring diagram – HVAC controls (part 3)

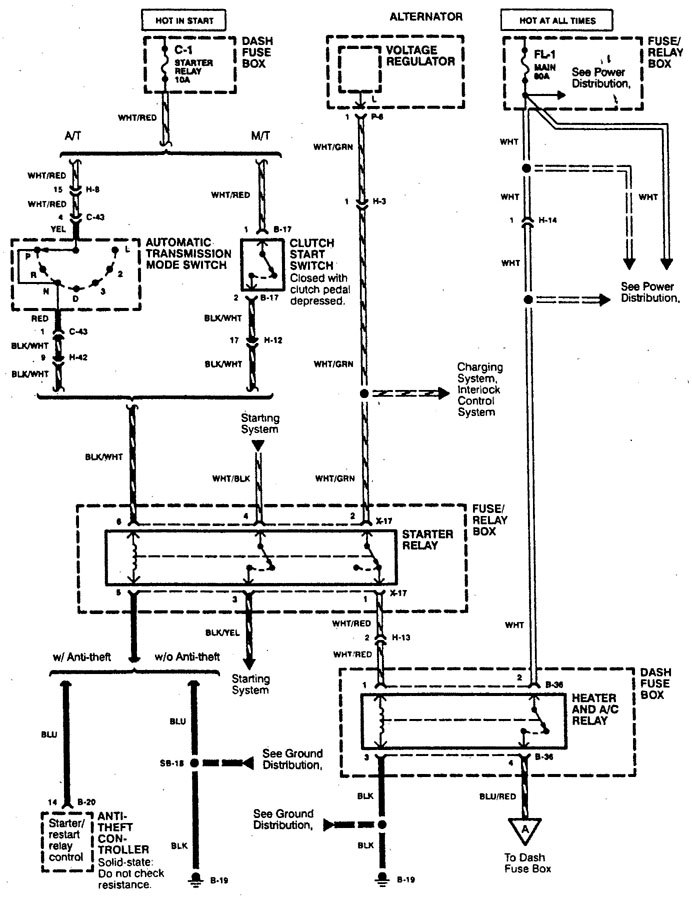

Acura SLX - wiring diagram - HVAC controls (part 4)
Acura SLX – wiring diagram – HVAC controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
