Acura SLX (1996) – wiring diagrams – heated seats

Acura SLX (1996) – wiring diagrams – heated seats

Year of productions:  1996

Heated seats

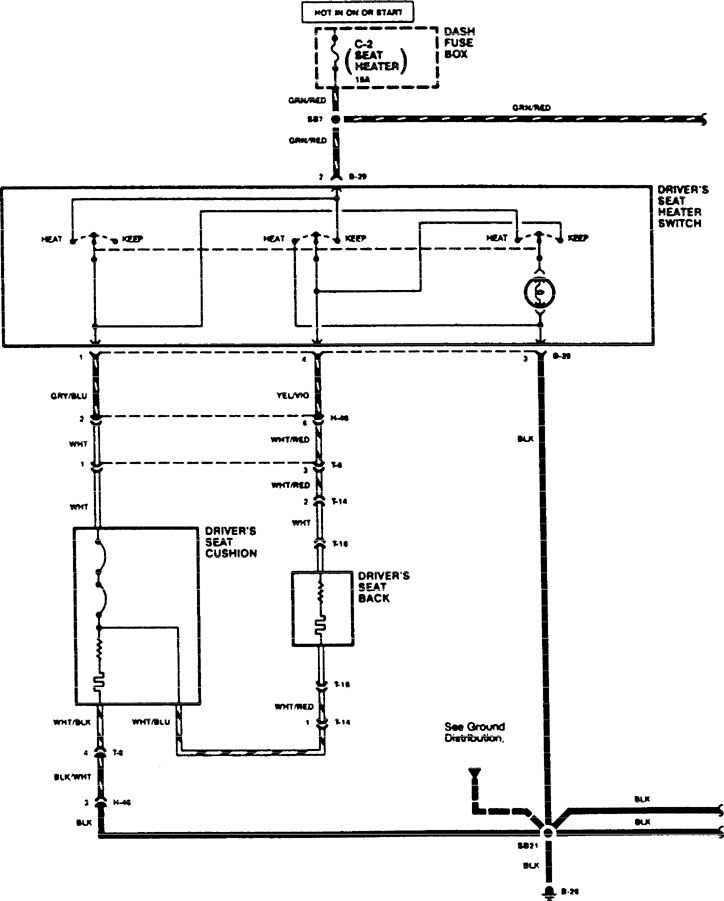

Acura SLX - wiring diagram - heated seats (part 1)
Acura SLX – wiring diagram – heated seats (part 1)

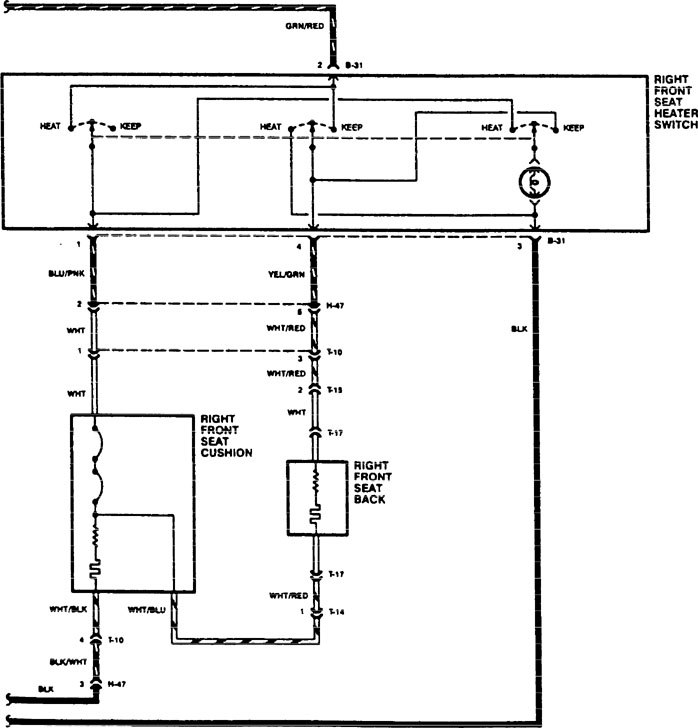

Acura SLX - wiring diagram - heated seats (part 2)
Acura SLX – wiring diagram – heated seats (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
