Acura RL (2011) – wiring diagrams – warning indicators

Acura RL (2011) – wiring diagrams – warning indicators

Year of productions:  2011

Warning indicators

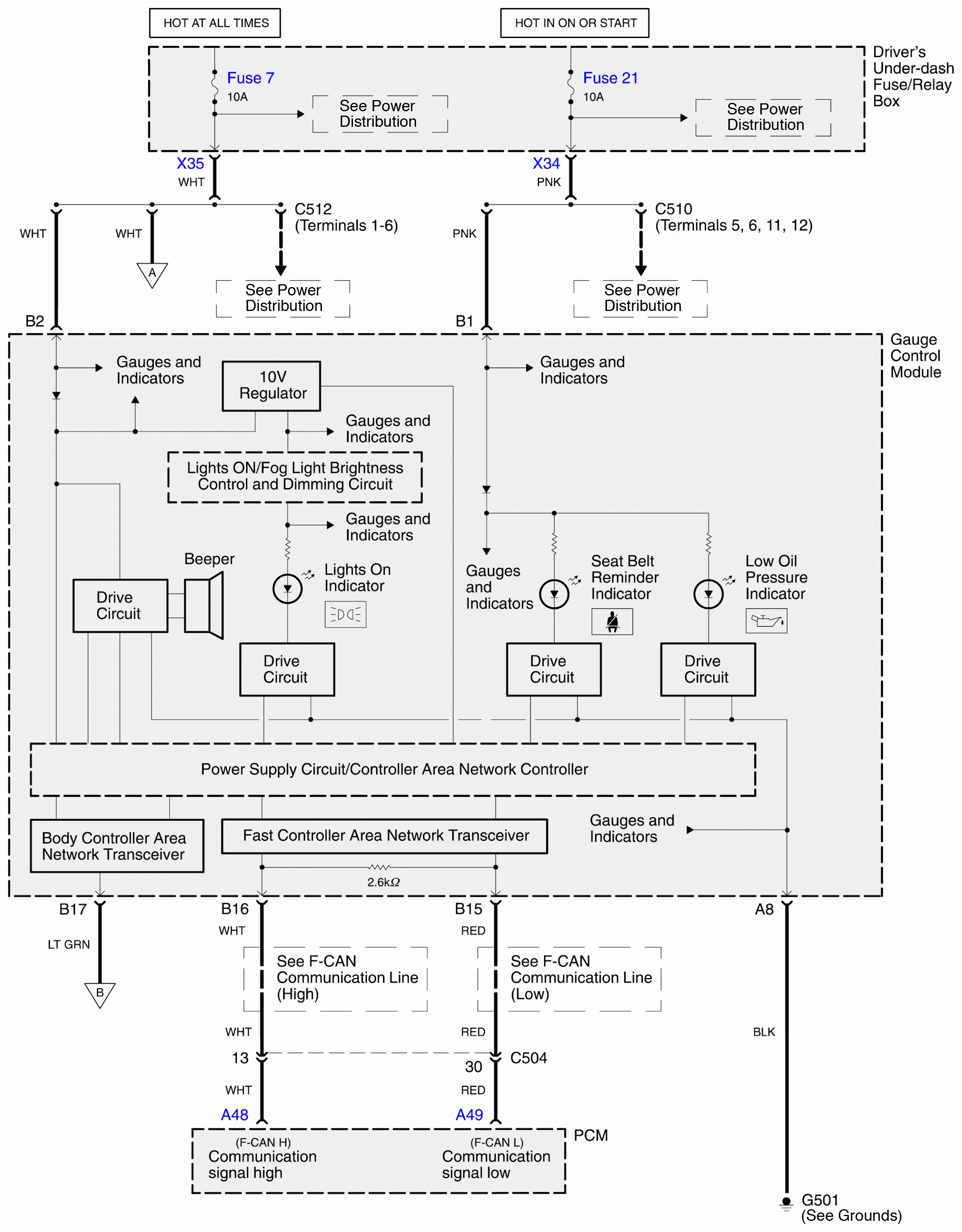

Acura RL - wiring diagram - warning indicators (part 1)

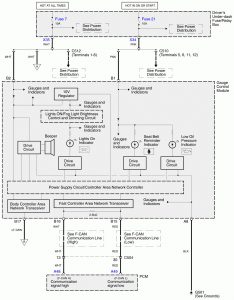

Acura RL – wiring diagram – warning indicators (part 1)

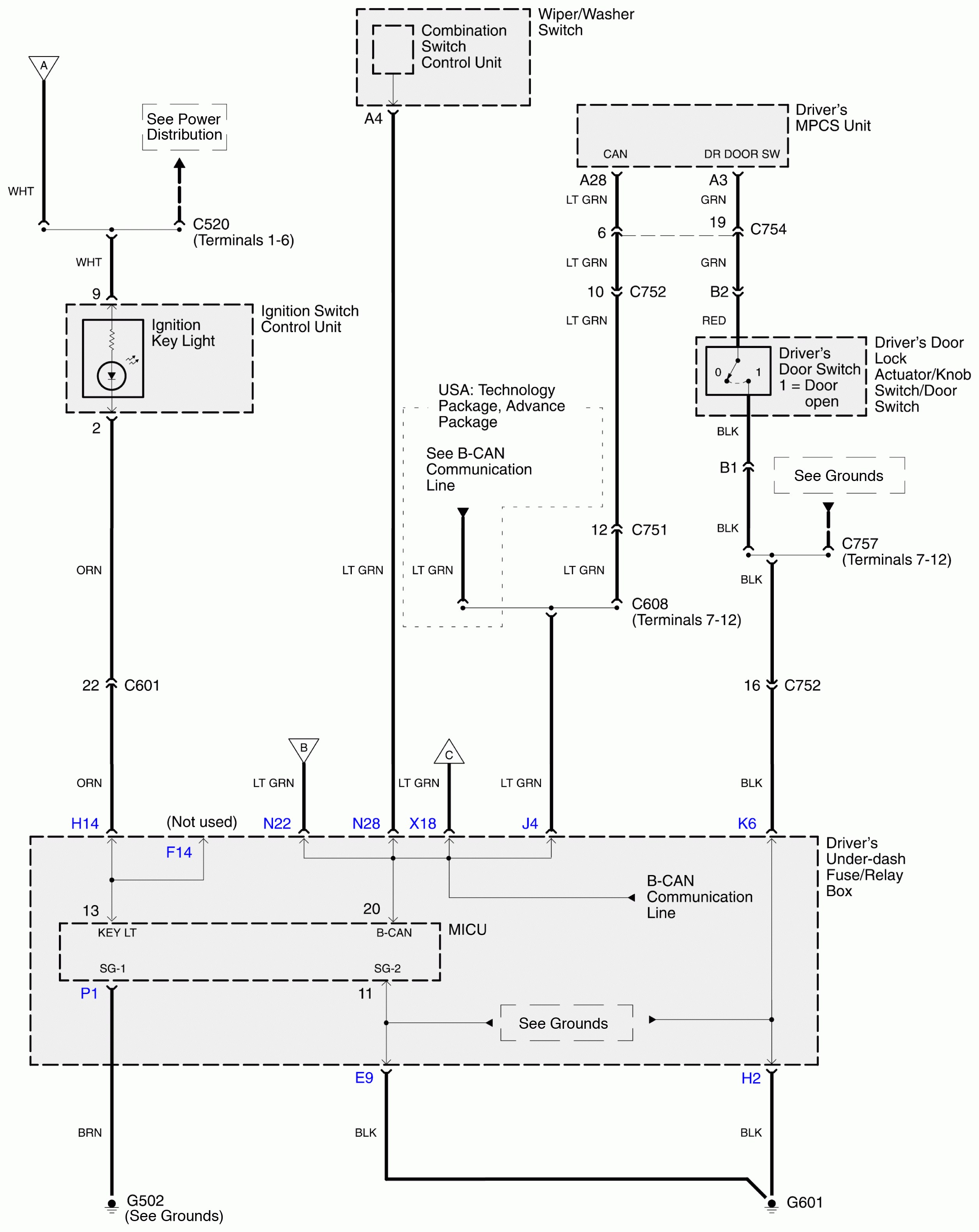

Acura RL - wiring diagram - warning indicators (part 2)

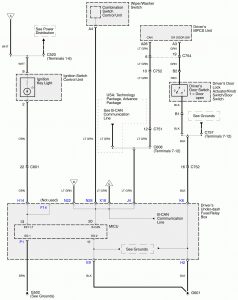

Acura RL – wiring diagram – warning indicators (part 2)

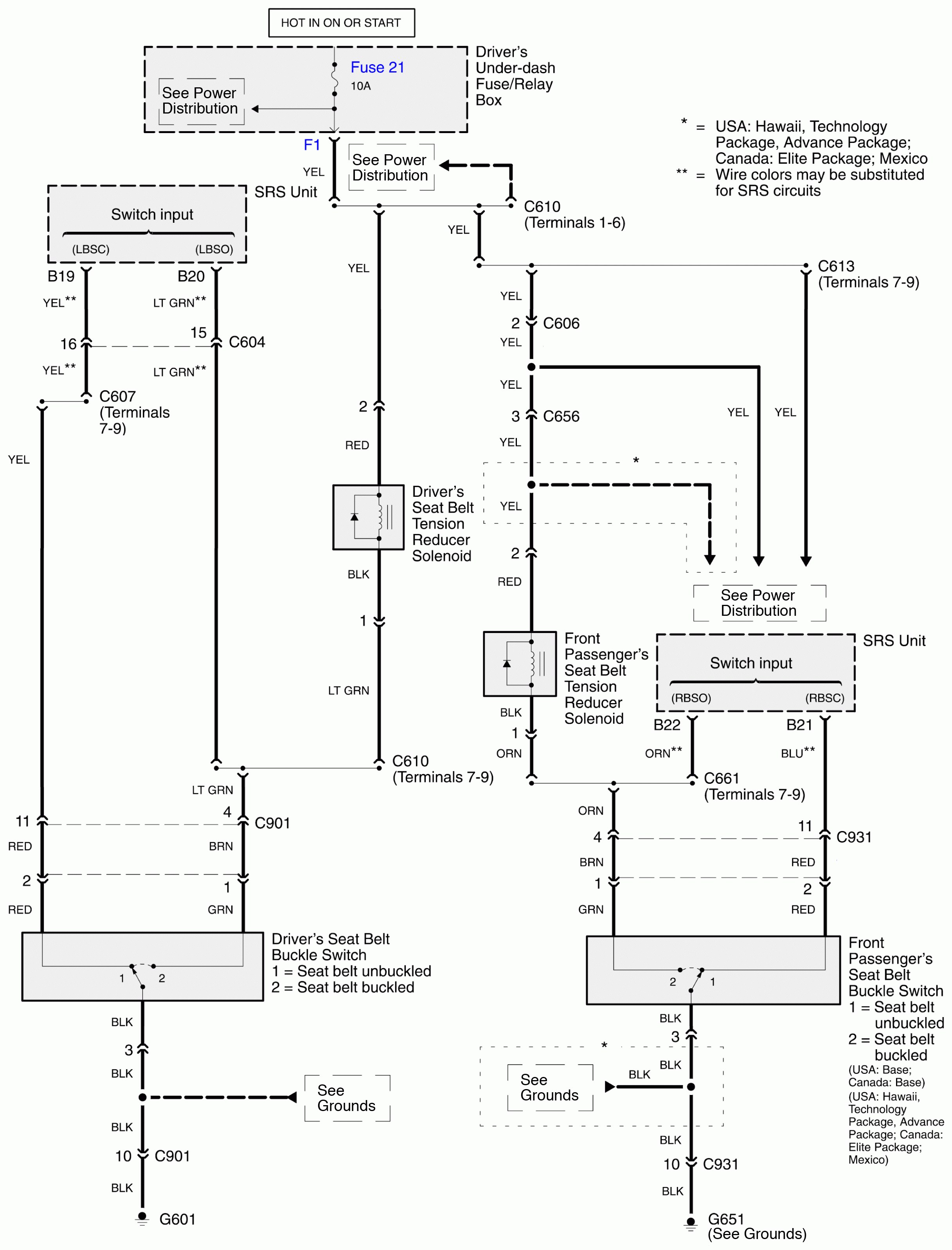

Acura RL - wiring diagram - warning indicators (part 3)
Acura RL – wiring diagram – warning indicators (part 3)

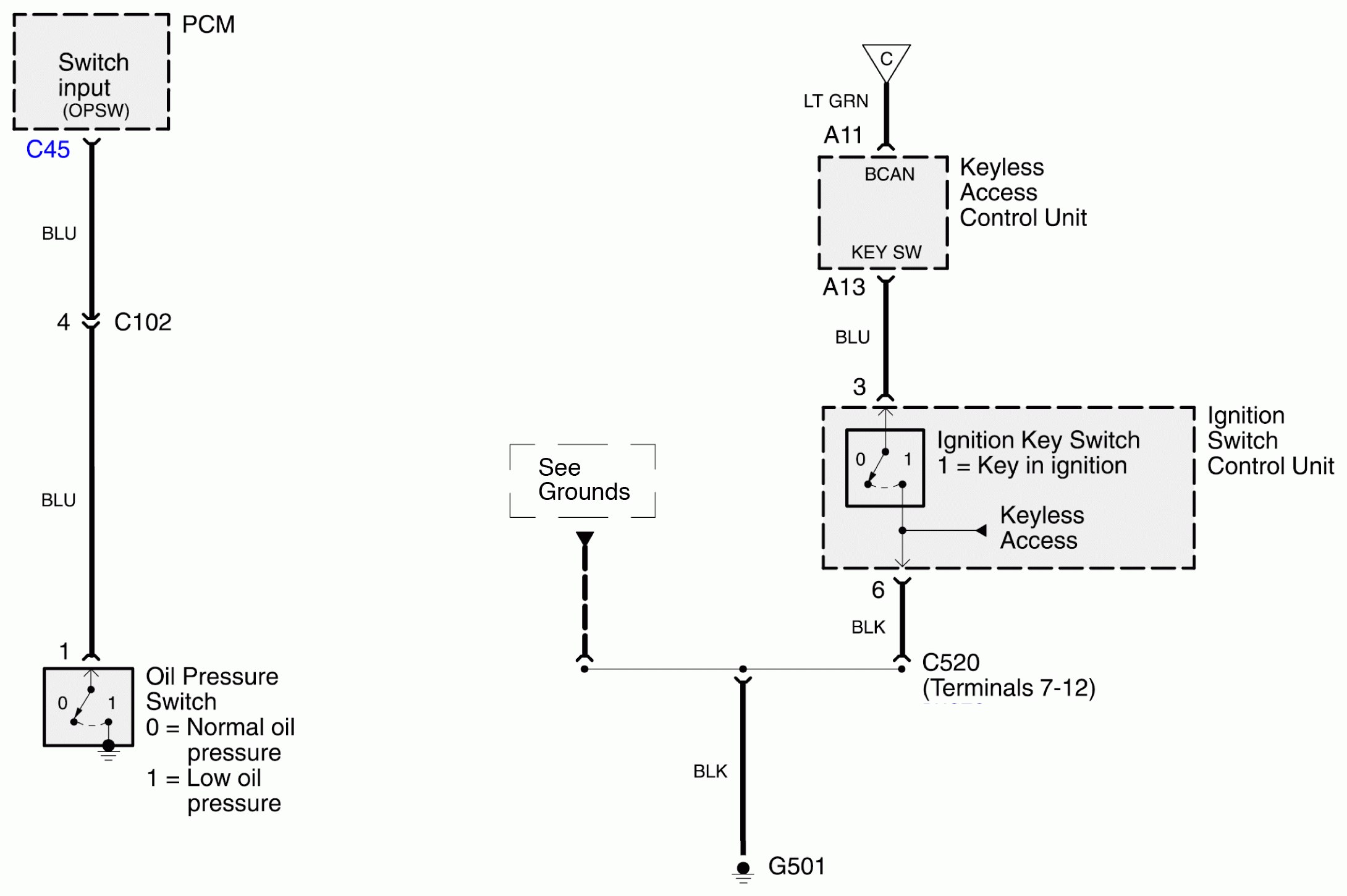

Acura RL - wiring diagram - warning indicators (part 4)
Acura RL – wiring diagram – warning indicators (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
