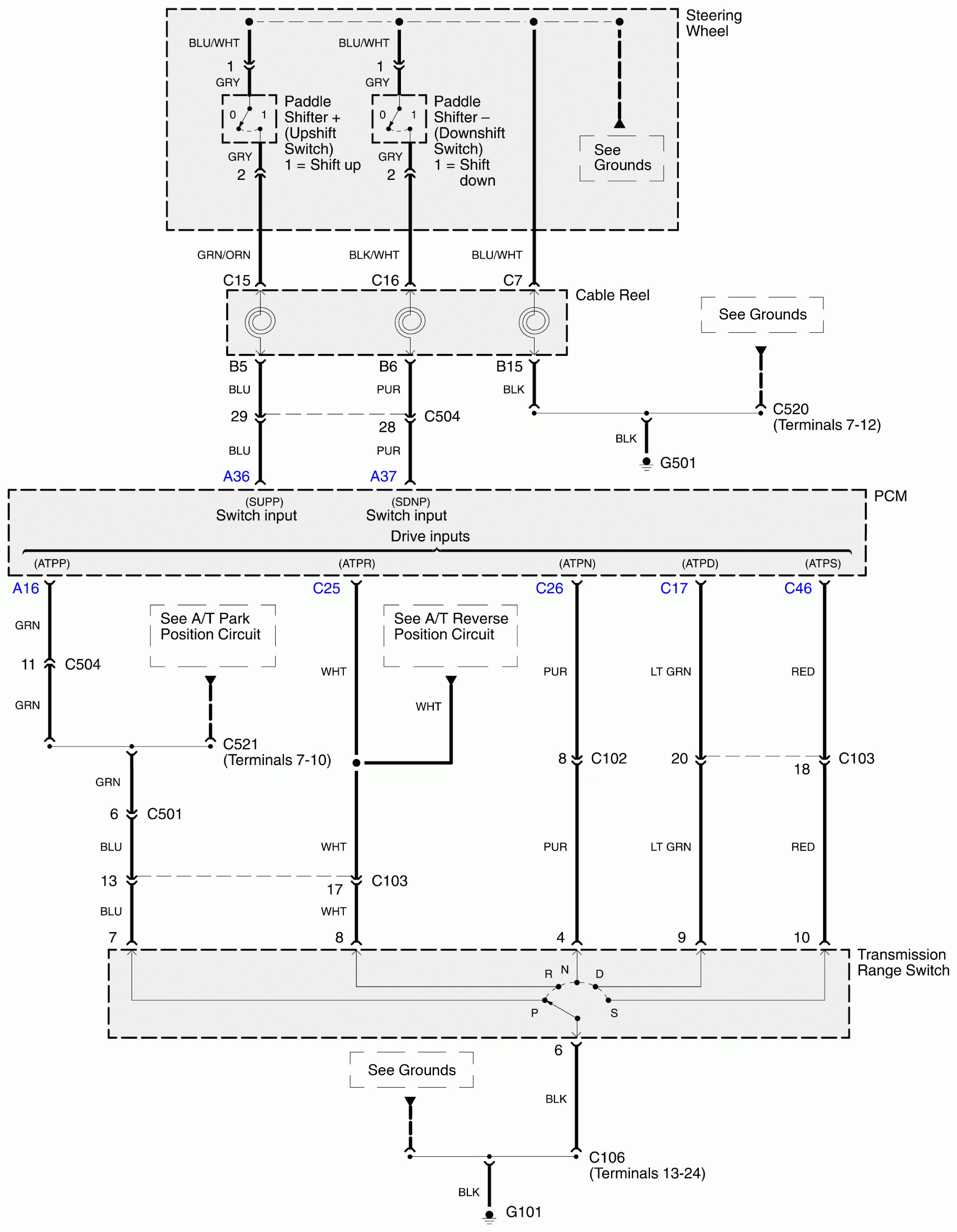

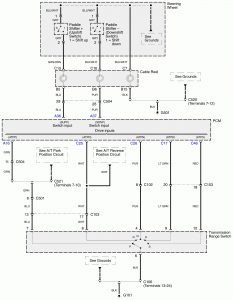

Acura RL (2011) – wiring diagrams – transmission range switch

Acura Legend (1993) – wiring diagram – tail lamps Year of productions:  1993 Tail lamps WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura TL (1998) – wiring diagrams – fog lamps Year of productions:  1996, 1997, 1998 Fog lamps WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Vigor (1992 – 1993) – wiring diagrams – power seats Year of productions:  1992, 1993 Power seats WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
