Acura RL (2011) – wiring diagrams – oil warning

Acura RL (2011) – wiring diagrams – oil warning

Year of production:  2011

Oil warning

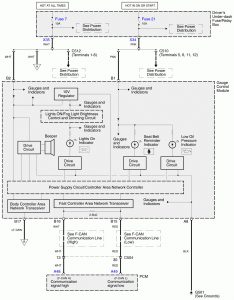

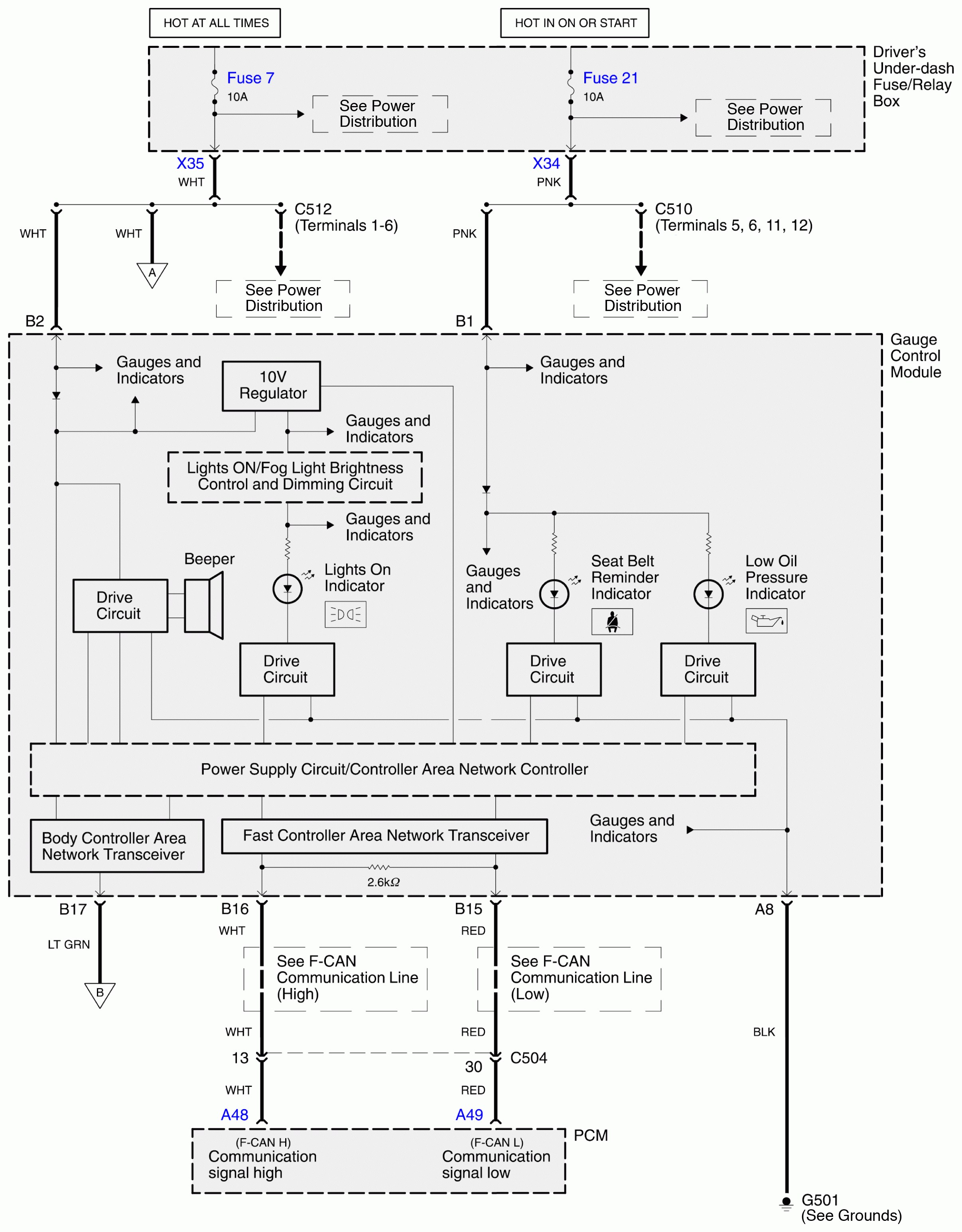

Acura RL - wiring diagram - oil warning (part 1)
Acura RL – wiring diagram – oil warning (part 1)

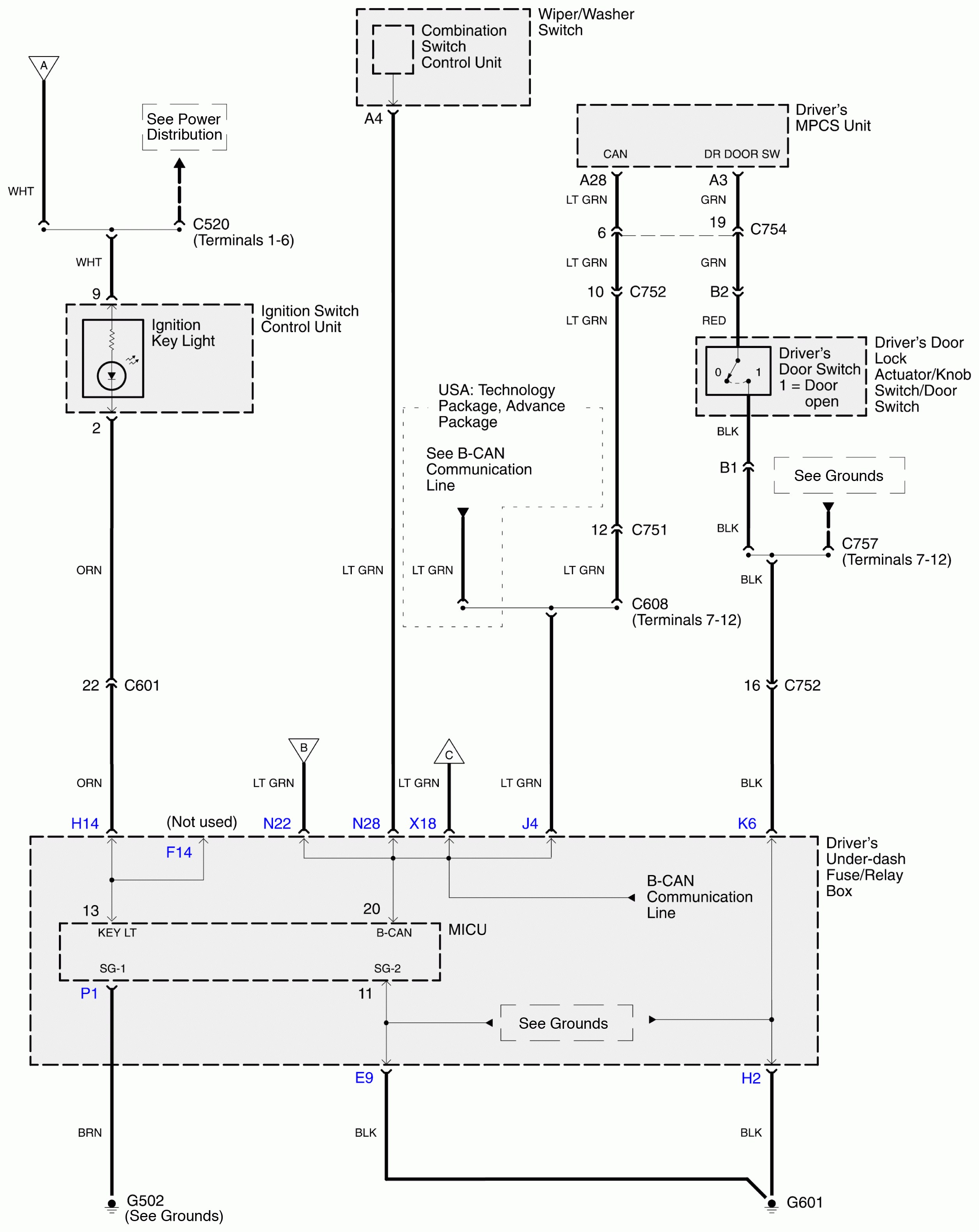

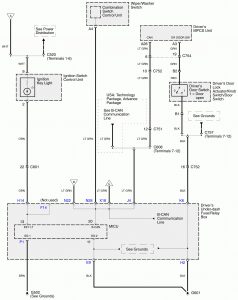

Acura RL - wiring diagram - oil warning (part 2)
Acura RL – wiring diagram – oil warning (part 2)

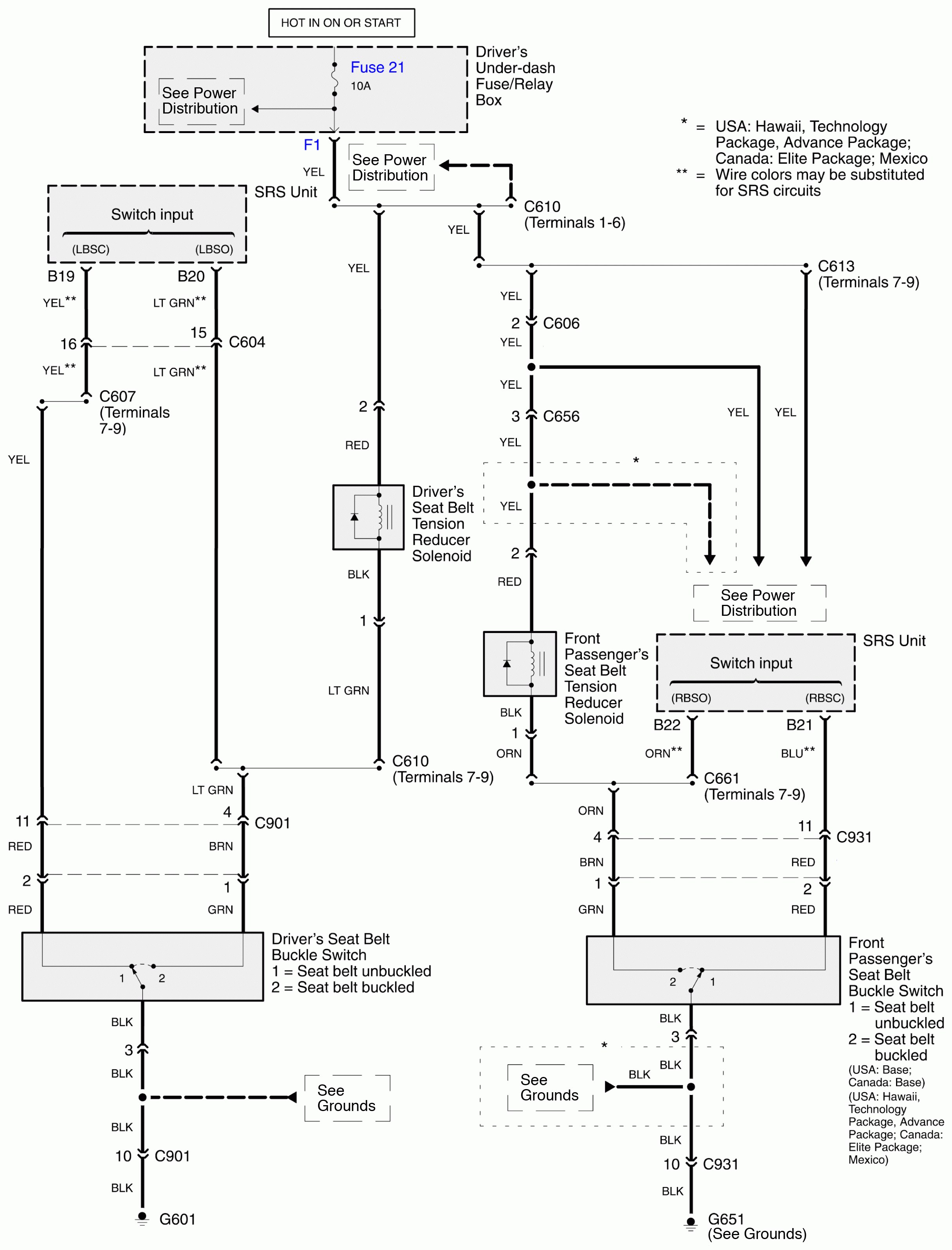

Acura RL - wiring diagram - oil warning (part 3)
Acura RL – wiring diagram – oil warning (part 3)

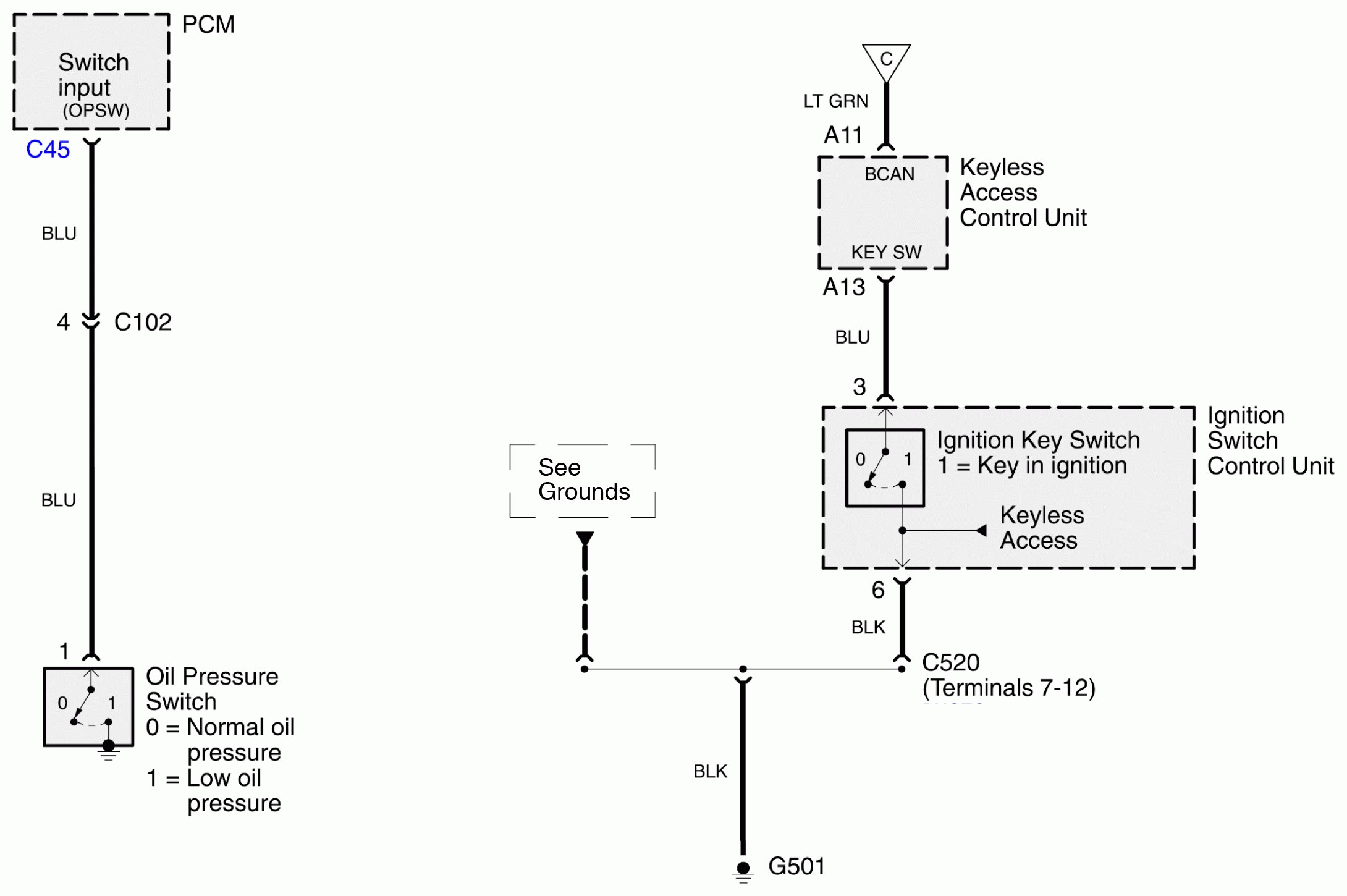

Acura RL - wiring diagram - oil warning (part 4)
Acura RL – wiring diagram – oil warning (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
