Acura RL (2011) – wiring diagrams – integrated power module

4 November 2017 admin Acura, RL 0

Acura RL (2011) – wiring diagrams – integrated power module

Year of productions:  2011

Integrated power module

Version 1

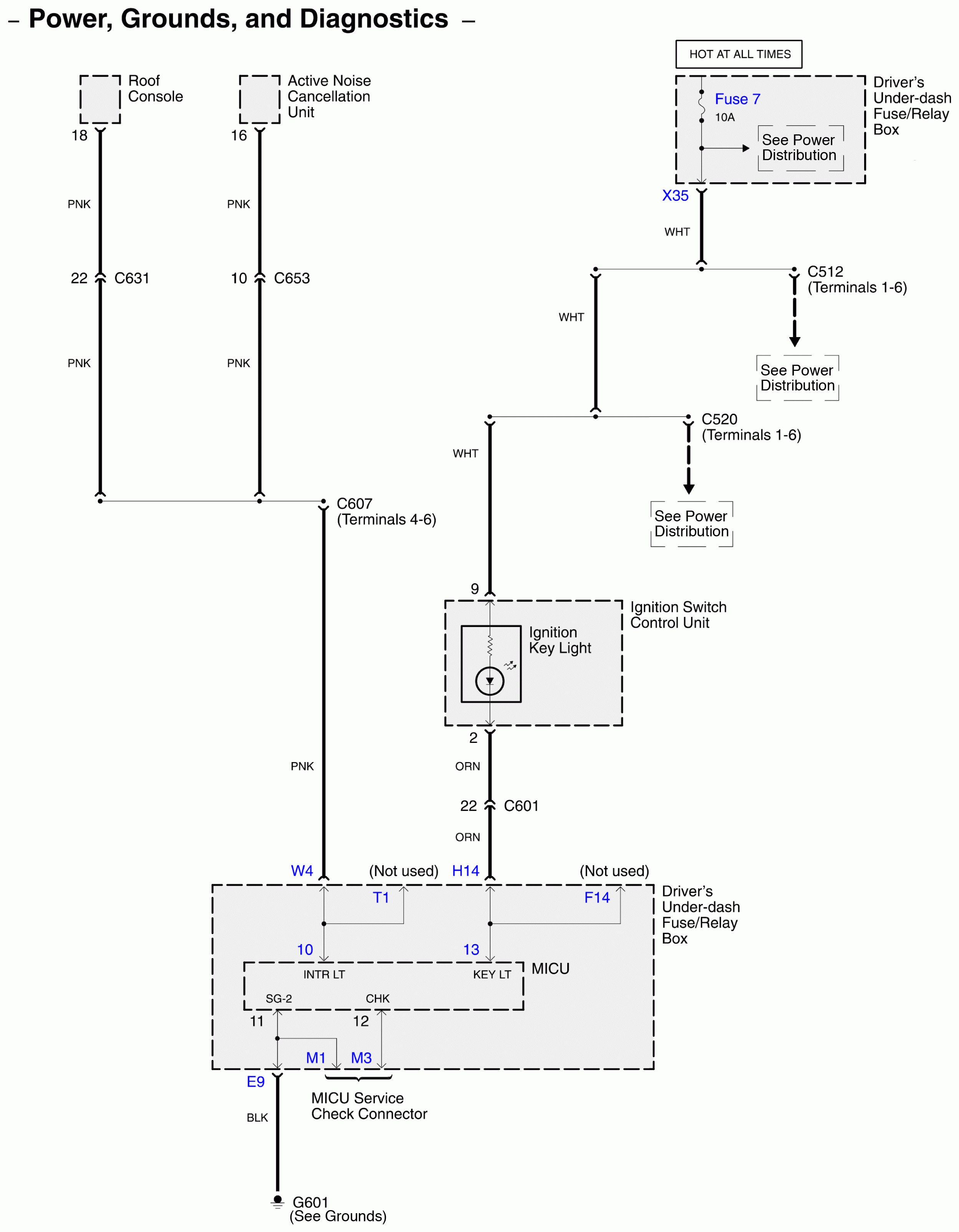

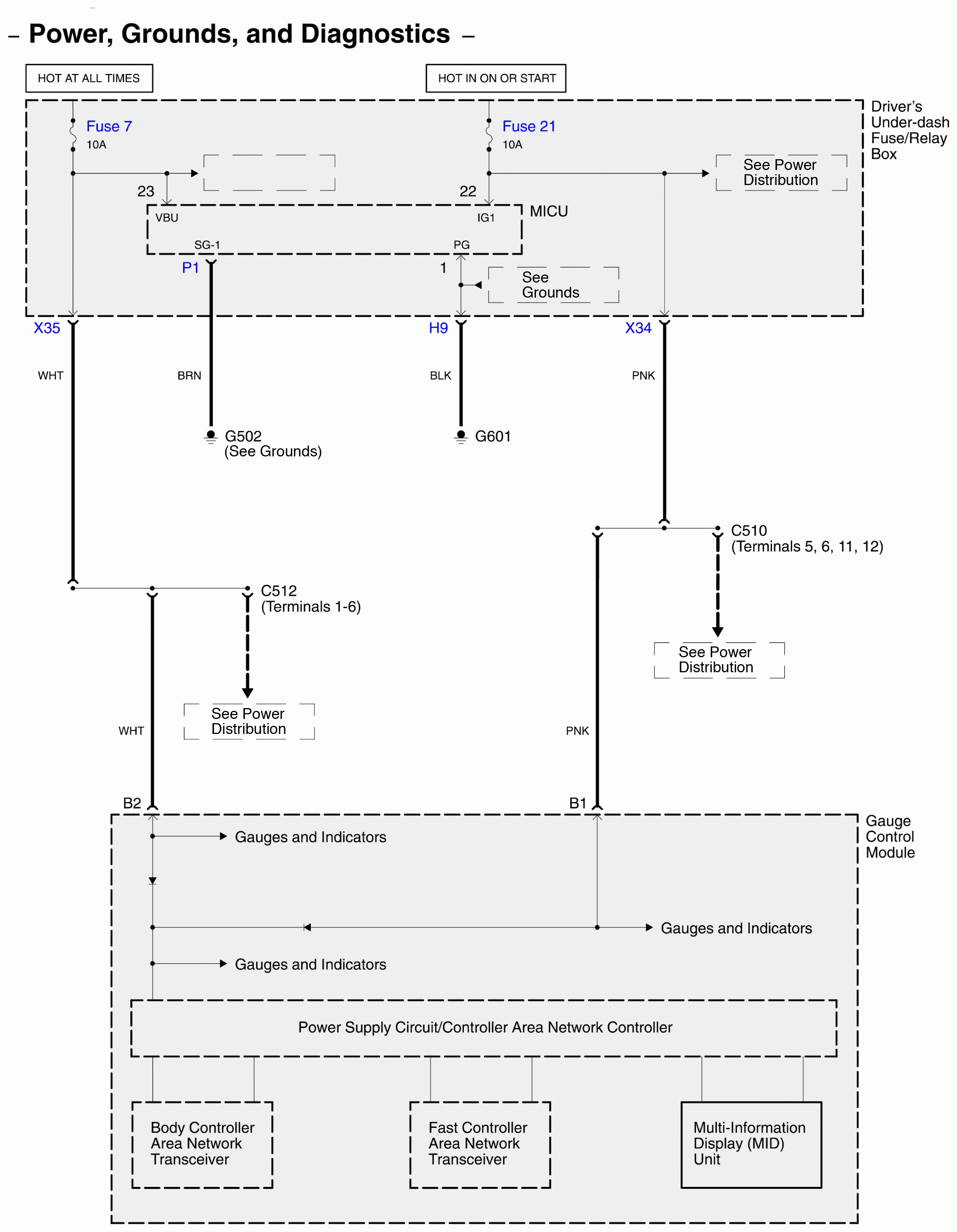

Acura RL - wiring diagram - integrated power module (part 1)
Acura RL – wiring diagram – integrated power module (part 1)
Acura RL - wiring diagram - integrated power module (part )

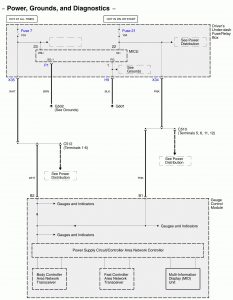

Acura RL – wiring diagram – integrated power module (part 2)

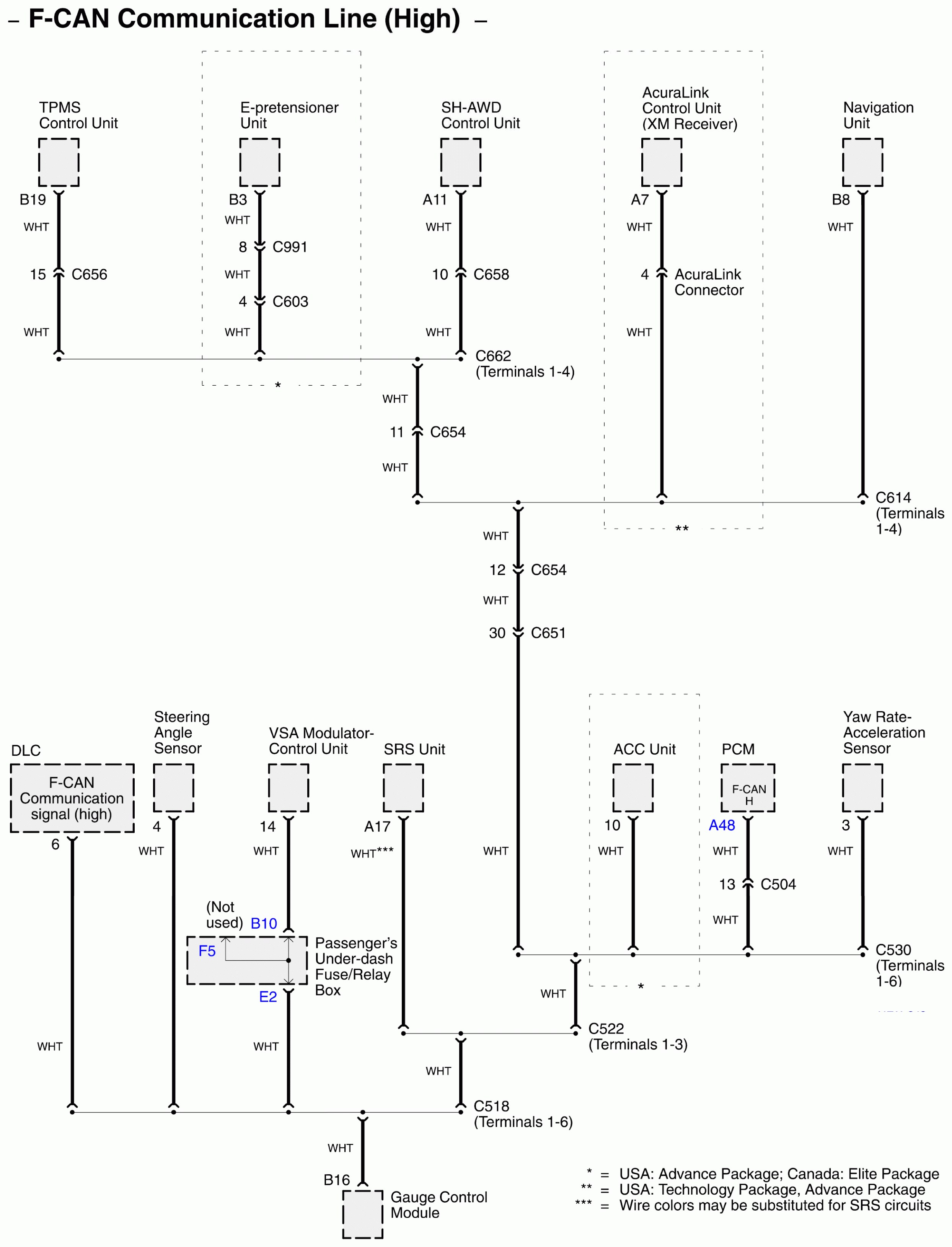

Version 2

Acura RL - wiring diagram - integrated power module
Acura RL – wiring diagram – integrated power module

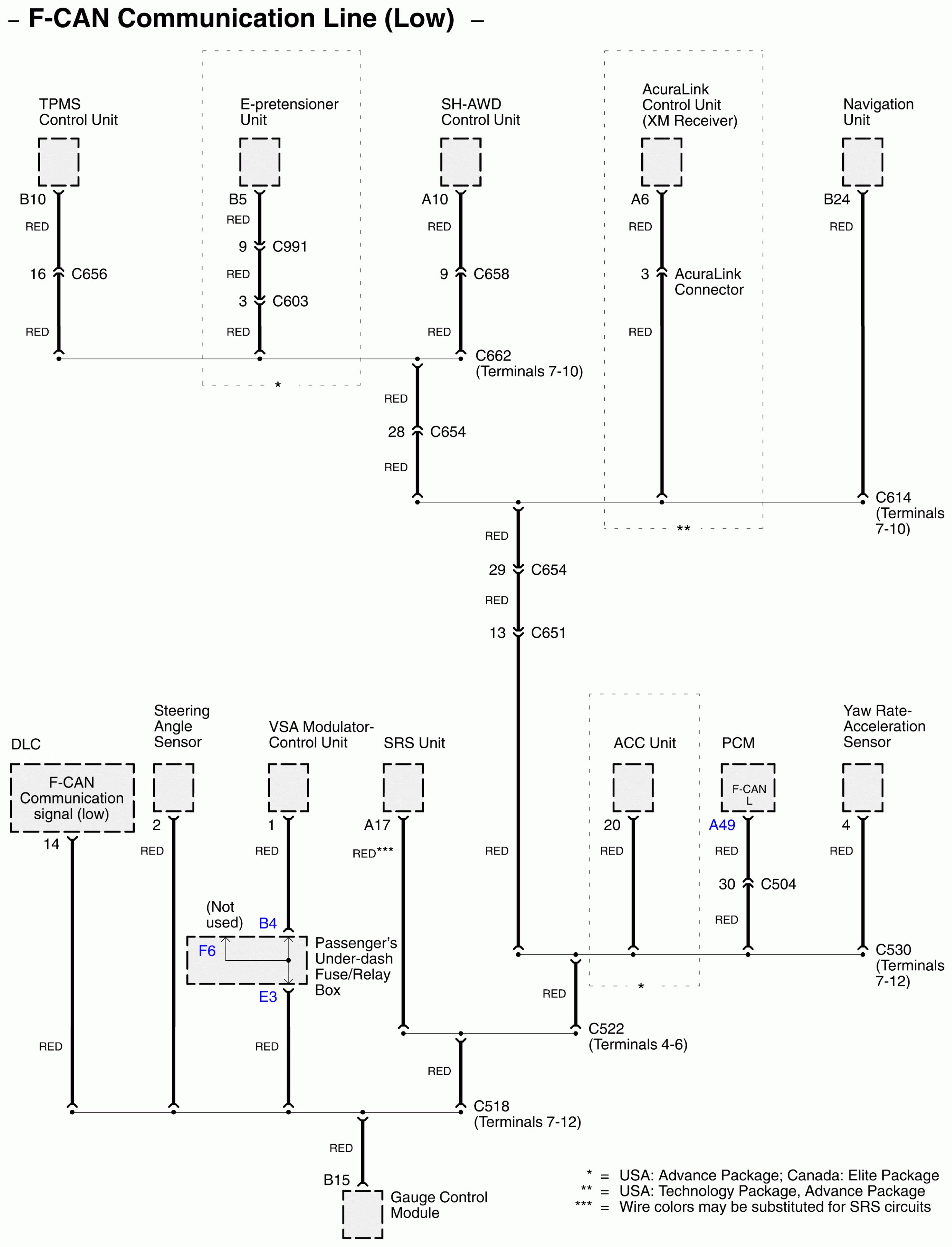

Version 3

Acura RL - wiring diagram - integrated power module
Acura RL – wiring diagram – integrated power module

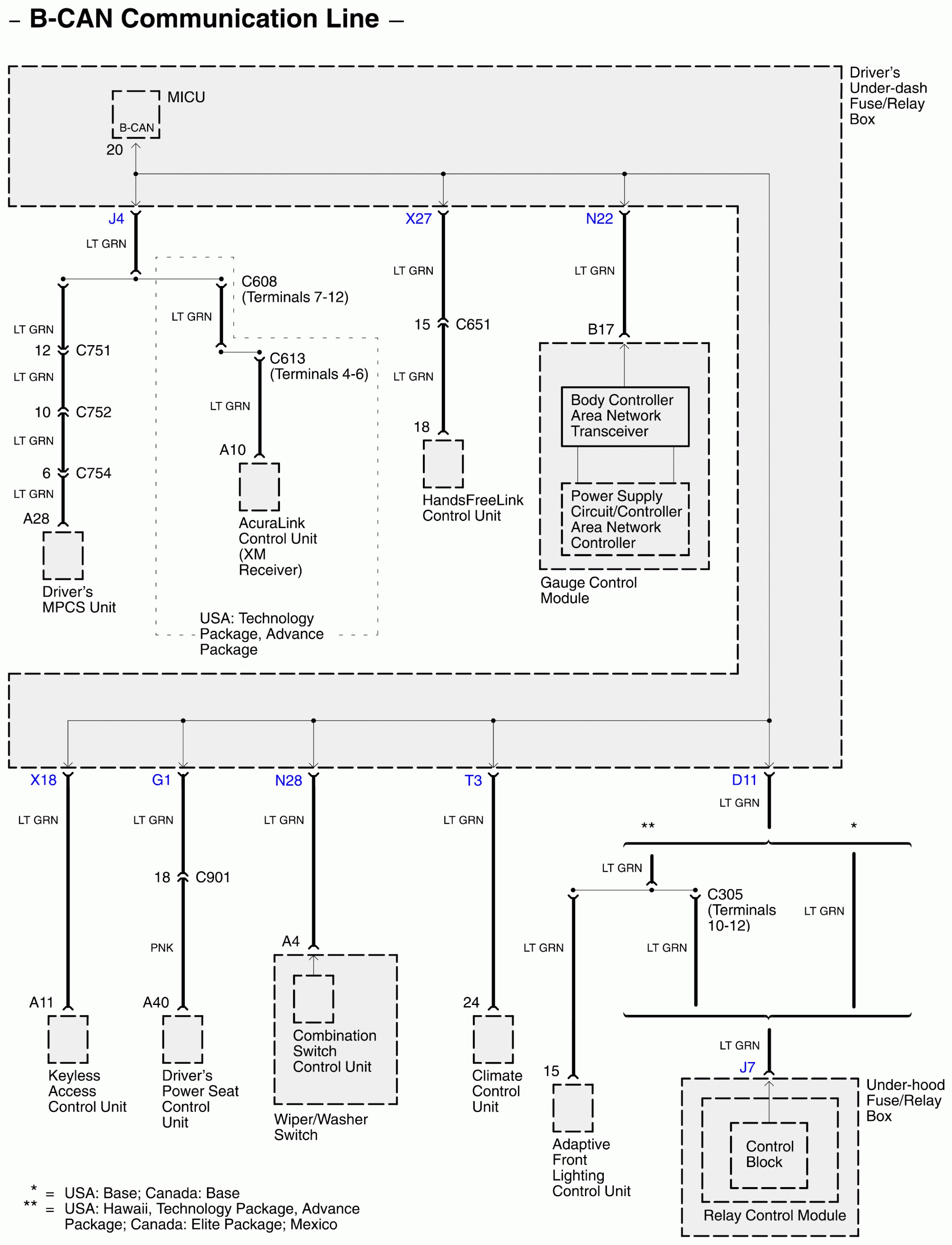

Version 4

Acura RL - wiring diagram - integrated power module
Acura RL – wiring diagram – integrated power module

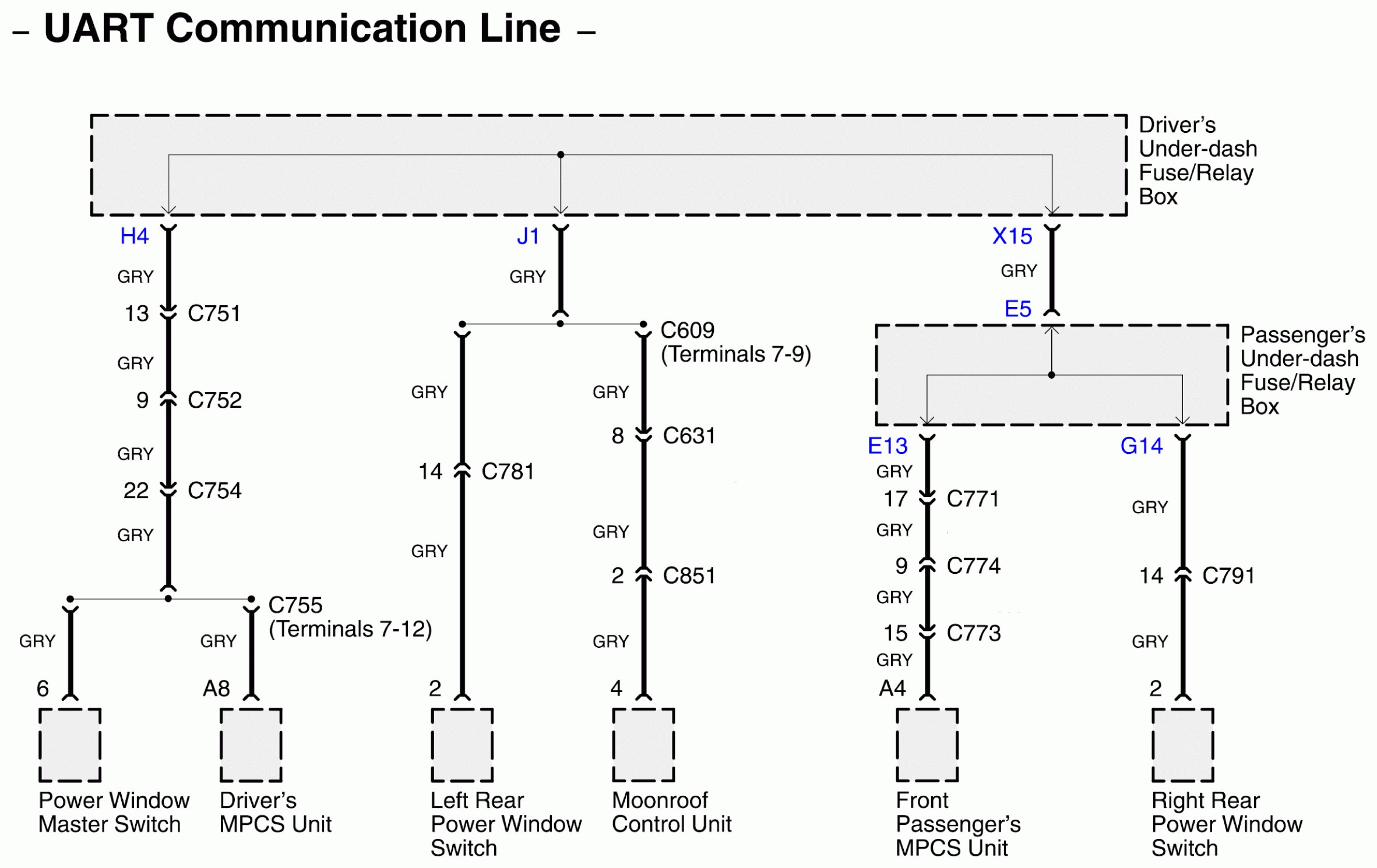

Version 5

Acura RL - wiring diagram - integrated power module
Acura RL – wiring diagram – integrated power module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
