Year of productions:  2011

Fuse panel

Passenger compartment

Driver’s under-dash fuse/relay box

Acura RL - wiring diagram - fuse panel - driver's side
Acura RL – wiring diagram – fuse panel – driver’s side
Fuse number Fuse name Ampere rating [A] circuit protected
1 DBW 15 ETCS Control Relay
2 IGN COIL 15 Ignition Coil Relay
3 DAY LIGHT 10 DRL Control Unit (USA, Mexico), DRL Relay (Canada) in Auxiliary Under-hood Relay Box. MICU
4 LAF 15 A/F Sensor Relay
5 RADIO 7,5 Active Noise Cancellation Unit, AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package), AcuraLink Connector (USA: Technology Package, Advance Package), Audio Unit, HandsFreeLink Control Unit, Navigation Unit
6 INTR LIGHT 7,5 Driver’s Footwell Light, Driver’sVanity Mirror Light, Front Passenger’s Footwell Light, Front Passenger’sVanity Mirror Light, Keyless Access Control Unit, Left Rear Door Courtesy Light, Left Rear Door Inner Handle Light, Left Rear Power Window Switch, Rear Individual Map Lights, Right Rear Door Courtesy Light, Right Rear Door Inner Handle Light, Right Rear Power Window Switch, Roof Console, Trunk Light A, Trunk Light B
7 BACK UP 10 ACC Unit (USA: Advance Package; Canada: El ite Package), DLC, Driver’s Door Outer Handle Light/Touch Sensor, Driver’sMPCS Unit, Driver’s Power Seat Control Unit, Fog Light Relay, Front
Passenger’s Door Outer Handle Light/Touch Sensor, Front Passenger’s MPCS Unit, Fuel Fill Door Opener Relay, Gauge Control Module, Ignition Switch Control Unit, Immobilizer Control Unit-Receiver, lmoes Unit, Keyless Access Control Unit, MICU, Navigation Display Unit, Power Tilt/Telescopic Steering Control Unit, Wiper/Washer Switch
8 DOOR LOCK 20 MICU
9 ACC SOCKET 20 Accessory Power Socket Relay
10 OPDS 7,5 Hazard Warning Switch/Front Passenger’s Airbag Cut-off Indicator, ODS Unit, SRS Unit
11 WIPER 15 Adaptive Front Lighting Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Power Rear Window Sunshade Control Unit, Windshield Washer Motor, Windshield Wiper Motor Relay
12 RR H/SEAT 15 Rear Seat Heater Relay (Canada) in Passenger’s Auxiliary Under-dash Relay Box
13 AS P/SEAT (REC) 20 Front Passenger’s Power Seat Adjustment Switch
14 DR P/SEAT (SLIDE) 20 Driver’s Lumbar Support Switch, Driver’s Power Seal Control Unit
15 TPMS 7,5 TPMS Control Unit
16 DR P/SEAT (REC) 20 Driver’s Power Seat Control Unit
17 AS P/SEAT (SLIDE) 20 Front Passenger’s Lumbar Support Switch, Front Passenger’s Power Seat Adjustment Switch
18 ACG 15 Alternator, Brake Pedal Position Switch, ELD Unit, Engine Mount Control Solenoid Valve, EVAP Canister Purge Valve, PCM, Steering Angle Sensor, VSA Modulator Control Unit, Yaw Rate-Acceleration Sensor
19 FUEL PUMP 20 lmoes Unit, Keyless Access Control Unit, PCM, PGM-FI Main Relay 2
20 IGN SOL 15 MAF/IAT Sensor, PCM
21 METER 10 Acuralink ControiUnit(XMReceiver) (USA:Technology Package, Advance Package), AutomaticDimming Inside Mirror, Control Block, Driver’s MPCS Unit, Driver’s Power Seat Control Unit, Driver’s Seat Belt Tension Reducer Solenoid, Driver’s Seat Ventilation Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Driver’s Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package;
Mexico), DRL Control Unit (USA,  Mexico), ECPS Control Unit, Front Passenger’s Seat Belt Tension Reducer Solenoid, Front Passenger’s Seat Ventilation Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Front Passenger’s Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Gauge Control Module, MICU, Power lilt/Telescopic Steering Control Unit,
Relay Control Module, ShittLock Solenoid, TPMS Control Unit, Wiper/Washer Switch
22 SRS 10 SRS Unit
23 IGP 7,5 A/F Sensor Relay, RFC Unit Relay in Auxiliary Under-hood Relay Box
24 P/W RR-L 20 Left Rear Power Window Switch
25 ETS (TELESCOPIC) 20 Power Tilt/Telescopic Steering Control Unit
26 ETS (TILT) 20 Power Tilt/Telescopic Steering Control Unit
27 P/WDR 30 Driver’s MPCS Unit
28 SUN ROOF 20 Moonroof Control Unit
29 AFS 7,5 ACC Relay (USA: Advance Package; Canada: Elite Package) in Auxiliary Under-hood Relay Box, ACC Unit (USA: Advance Package; Canada: Elite Package), Adaptive Front Lighting Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Headlight Leveling Control Unit
(USA: Base; Canada: Base), Millimeter Wave Radar Unit (USA: Advance Package; Canada: Elite Package), SH-AWD Control Unit
30 A/C 7,5 A/C Compressor Clutch Relay, Blower Motor Relay, Climate Control Unit, Front Seat Heater Relay, In-car Temperature Sensor, MICU, Rear Seat Heater Relay (Canada) in Passenger’s Auxiliary Under-dash Relay Box, Rear Window Defogger Relay
31 E-PT 7,5 E-pretensioner Unit (USA: CMBS/PAX Package; Canada: Premium Package)
32 ACC 10 ACC Cut Relay in Driver’s Auxiliary Under-dash Relay Box, Accessory Power Socket Relay, Active Noise Cancellation Front Microphone, Active Noise Cancellation Rear Microphone, Acuralink Control Unit (XM Receiver) (USA: Technology Package, Advance Package), Audio Unit, HandsFreelink Control Unit, Ignition Switch Control Unit, Interface Dial, Keyless Access Control Unit, MICU, Navigation Display Unit, Navigation Unit, Roof Console
33

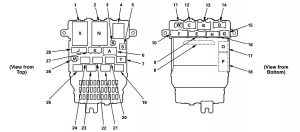

Acura RL - wiring diagram -  fuse box - connector to fuse/relay box index
Acura RL – wiring diagram – fuse box – connector to fuse/relay box index
Ref Socket Cavities Connects to
1 X 39 Dashboard Wire Harness (Left Branch)
2 N 45 Dashboard Wire Harness (Left Branch)
3 R (MES Connector) 2 (Not used)
4 Turn Signal/Hazard Relay 6
5 S 2 Dashboard Wire Harness (Left Branch)
6 A 6 Dashboard Wire Harness (Left Branch)
7 T 6 Dashboard Wire Harness (Left Branch)
8 MICU 25 (Plugs directly into the fuse/relay box)
9 E 16 Left Side Wire Harness (Front Branch)
10 F 14 Left Side Wire Harness (Front Branch)
11 W 5 Left Side Wire Harness (Front Branch)
12 C 12 Engine Compartment Wire Harness (Dash Branch)
13 B 6 Engine Compartment Wire Harness (Dash Branch)
14 D 17 Engine Compartment Wire Harness (Dash Branch)
15 G 6 Left Side Wire Harness (Front Branch)
16 H 14 Left Side Wire Harness (Front Branch)
17 Q (MICU) 14 Left Side Wire Harness (Front Branch)
18 P (MICU) 30 Dashboard Wire Harness (left branch)
19 Starter Cut Relay 2 4
20 Accessory Power Socket Relay 4
21 AJF Sensor Relay 4
22 PGM-Fl Main Relay 1 4
23
24 Ignition Coil Relay 4
25 PGM-FI Main Relay 2 4
26 M 3
27 K 12 Driver’s Door Sub-harness
28 J 21 Left Side Wire Harness (Front Branch)



Passenger’s under-dash fuse/relay box

Acura RL - wiring diagram - fuse panel - passenger's side
Acura RL – wiring diagram – fuse panel – passenger’s side
Fuse number Fuse name Ampere rating [A] Component or Circuit protected
1 SH-AWD 30 SH-AWD Relay
2 PREMIUM AMP 30 Stereo Amplifier
3 PIW AS 30 Front Passenger’s MPCS Unit
4 E-PT L 30 E-pretensioner Unit (USA: Advance Package; Canada: Elite Package)
5 PIW RR-R 20 Right Rear Power Window Switch
6 H/SEAT 20 Front Seat Heater Relay
7 ILLUMI 7,5 A/T Gear Position Indicator Panel Light, AFS OFF/VSA OFF Switch (USA: Hawaii, Technology Package; Mexico), AFS OFF/VSA OFF/CMBS OFF Switch (USA: Advance Package; Canada: Elite Package), Audio Remote Switch, Audio Unit, Cable Reel, Cigarette Lighter Light (Mexico), Climate Control Unit, Coin Pocket Light, Console Box Light, Cruise Control Combination Switch, Dash Lights Brightness Controller, Distance Switch (USA: Advance Package; Canada: Elite Package), Driver’s Seat Heater Switch (USA: Base; Canada: Base), Driver’s Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Front Passenger’s Seat Heater Switch (USA: Base; Hawaii; Canada: Base), Front Passenger’s Seat Ventilation Switch (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico), Glove Box Light, Hazard Warning Switch/Front Passenger’s Airbag Cut-off
Indicator, Headlight Washer Switch (Canada, Mexico), HFL Switch, Left Rear Seat Heater Switch (Canada), Navigation Display Unit, Paddle Shifter – (Downshift Switch), Paddle Shifter +(Upshift Switch), Power Mirror Switch, Right Rear Seat Heater Switch (Canada), Selec/Rese/Information Switch, Voice Control Switch, VSA OFF Switch (USA: Base; Canada: Base)
8 E-PT R 30 E-pretensioner Unit (USA: CMBS/PAX Package; Canada: Premium Package)
9 A/C 7,5 HVAC Control Motor Relay



Acura RL - wiring diagram - fuse panel - under dash - passenger's side
Acura RL – wiring diagram – fuse panel –
under dash –
passenger’s side
Ref Socket Cavities Connects to
1 A 1 Engine Compartment Wire Harness (Right Branch)
2 B 10 Engine Compartment Wire Harness (Right Branch)
3 J 13 Engine Compartment Wire Harness (Right Branch)
4 Seat Heater Relay 4
5 Fuel Fill Door Opener Relay 4
6 D 17 Dashboard Wire Harness (Right Branch)
7 F 8 Right Side Wire Harness (Front Branch)
8 G 14 Right Side Wire Harness (Front Branch)
9 C 5 Right Side Wire Harness (Front Branch)
10 H 3 Dashboard Wire Harness (Right Branch)
11 E 14 Dashboard Wire Harness (Right Branch)
12 Headlight Washer Relay (Canada, Mexico)
13 Throttle Actuator Control Module Relay 4

Engine compartment

Under-hood fuse/relay box

Acura RL - wiring diagram - fuse panel - under hood fuse/relay box
Acura RL – wiring diagram – fuse panel –
under hood fuse/relay box
Fuse number Fuse name Ampere rating [A] Component or Circuit protected
1 L-H/L LO 15 Left Headlight (HID Unit)
2 RR DEFROSTER COIL 30 Control Block, Relay Control Module
3 L-H/L HI 10 Left Headlight (High Beam)
4 SMALL LIGHT 15 Taillight Relay
5 R-H/L HI 10 DRL Control Unit (USA. Mexico), Right Headlight (High Beam)
6 R-H/L LO 15 Right Headlight (HID Unit)
7 BACK UP 7,5 Control Block, Relay Control Module
8 Fl ECU 15 PGM-FI Main Relay 1
9 WIPER 30 Windshield Wiper Motor Relay
10 H/LWASHER 30 Headlight Washer Relay (Canada, Mexico)
11 FR FOG LIGHT 20 Fog Light Relay
12 MG. CLUTCH 7,5 A/C Compressor Clutch Relay
13 HORN, STOP 15 ACC Relay (USA: CMBS/PAX Package; Canada: Premium Package) in Auxiliary Under-hood Relay Box, Brake Pedal Position Switch, Horn Relay, Relay Control Module
14 RR DEFROSTER 40 Rear Window Defogger Relay
15 BACK UP, ACC 40 (Fuse 7 in Under-hood Fuse/Relay Box, Fuses 5, 6, 7, 8 and 9 in Driver’s Under-dash Fuse/Relay Box
16 HAZARD 15 Hazard Warning Switch/Front Passenger’s Airbag Cut-off Indicator, Turn Signal/Hazard Relay 1
17 VSA MOTOR 30 VSA Modulator-Control Unit
18 VSA 40 VSA Modulator-Control Unit
19 OPTION 40 Fuses 1, 2, 3 and 4 in Driver’s Under-dash Fuse/Relay Box
20 OPTION 10 Fuses 12, 13, 14, 15, 16, and 17 in Driver’s Under-dash Fuse/Relay Box
21 HEATER MOTOR 40 Blower Motor Relay
22 +B AS F/B 70 Fuses 1, 2, 3, 4, 5, 6, 8 and 9 in Passenger’s Under-dash Fuse/Relay Box
BATTERY 120 Alternator, Battery, Battery Terminal Fuse Box, Power Distribution, Starter Solenoid
23 +B IG1 MAIN 50 Fuse 33 in Driver’s Under-dash Fuse/Relay Box, Ignition Switch, Starter Cut Relay 1 in Auxiliary Under-dash Fuse/Relay Box
POWER WINDOW 50 Fuses 24, 25, 26, 27 and 28 in Driver’s Under-dash Fuse/Relay Box

Connector to fuse/relay box index

Acura RL - wiring diagram - fuse panel - under hood fuse/relay box (connector-to-fuse/relay box index)
Acura RL – wiring diagram – fuse panel –
under hood fuse/relay box (connector-to-fuse/relay box index)
Ref Socket Cavities Connects to
1 Blower Motor Relay 4
2 AJC Compressor Clutch Relay 4
3 Rear Window Defogger Relay 4
4 D 9 Engine Compartment Wire Harness (Left Branch)
5 A (ELD Unit) 3 Engine Compartment Wire Harness (Left Branch)
6 G 2 Engine Compartment Wire Harness (Left Branch)
7 B 1 Engine Compartment Wire Harness (Left Branch)
8 C 2 Engine Compartment Wire Harness (Left Branch)
9 E 16 Engine Compartment Wire Harness (Left Branch)
10 F 20 Engine Compartment Wire Harness (Left Branch)
11 H 14 Engine Compartment Wire Harness (Left Branch)
12 K 5 Engine Compartment Wire Harness (Left Branch)
13 J 10 Engine Compartment Wire Harness (Left Branch)
14 Fog Light Relay 4
15 Windshield Wiper Motor Relay 4
16 T1 Starter Cable
17 T101 Engine Wire Harness (Front Branch)

Battery Terminal Fuse Box

Acura RL - wiring diagram - fuse panel - battery terminal fuse box
Acura RL – wiring diagram – fuse panel –
battery terminal fuse box
Fuse number Fuse name Ampere ratting Component or circuit protected
34 RADIATOR FAN 50 RFC Unit Relay in Auxiliary Under – hood Relay Box
35 Not Used

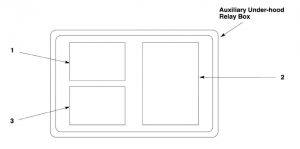

Auxiliary under – hood relay box

Acura RL - wiring diagram - fuse panel - auxiliary under hood relay box
Acura RL – wiring
diagram – fuse panel –
auxiliary under hood relay box
Ref Socket Cavities Connects to
1 ACC Relay (USA: CMBS/PAX Package; Canada: Premium Package) 5 Engine Compartment Wire Harness (Left Branch)
2 RFC Unit R.elay 4 Engine Compartment Wire Harness (Left Branch)
3 DRL Relay (Canada) 5 Engine Compartment Wire Harness (Left Branch)

Battery terminal fuse box

Acura RL - wiring diagram - fuse box - battery
Acura RL – wiring diagram – fuse box – battery



Fuse number Fuse name Amps Component or circuit protected
34 RADIATOR FAN 50 RFC United Relay in Auxiliary Under-hood Relay Box
35 Not Used

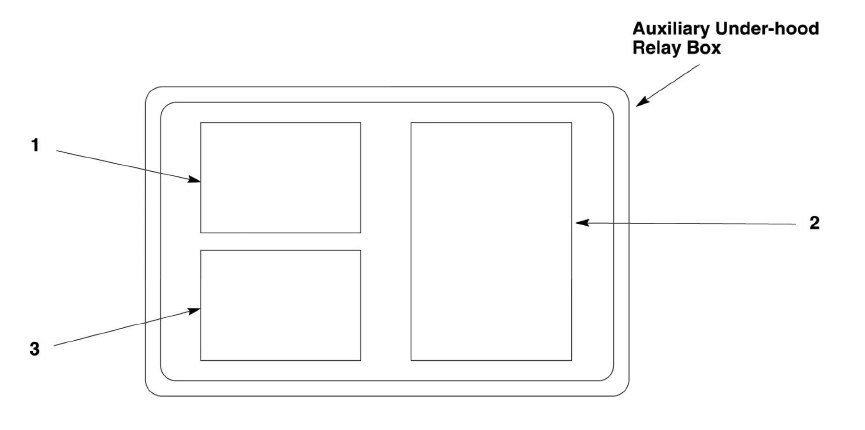

Auxiliary under-hood relay box

Acura RL - wiring diagram -  fuse box - auxiliary under-hood- relay box
Acura RL – wiring diagram –
fuse box – auxiliary under-hood- relay box
Ref Socket Cavities Connects to
1 ACC Relay (USA: Advance Package; Canada: Elite Package) 5 Engine Compartment Wire Harness (Left Branch)
2 RFC Unit Relay 4 Engine Compartment Wire Harness (Left Branch)
3 DRL Relay (Canada) 5 Engine Compartment Wire Harness (Left Branch)

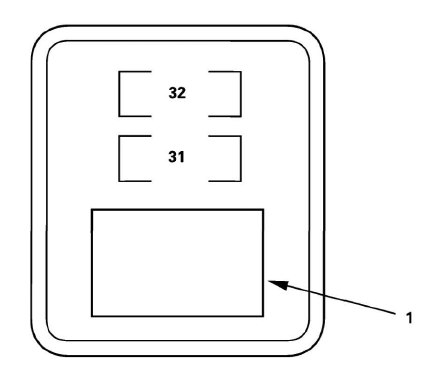

Auxiliary Under-dash Fuse/Relay Box

Acura RL - wiring diagram - fuse box -auxiliary under-dash-fuse/relay box
Acura RL – wiring diagram – fuse box -auxiliary under-dash-fuse/relay box
Fuse number Fuse name Amps Component or Circuit protected
31 STS 7,5 PCM
32 STARTER 7,5 PCM



Ref Socket Cavities Connects to
1 Starter Cut Relay 1 4 Engine Compartment Wire Harness (Dash Branch)

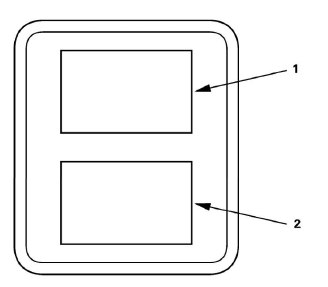

Driver’s Auxiliary Under-dash Relay Box

Acura RL - wiring diagram - fuse box -  driver's auxiliary under-dash relay/box
Acura RL – wiring diagram – fuse box –
driver’s auxiliary under-dash relay/box
Ref Socket Cavities Connects to
1 ACC Cut Relay 5 Dashboard Wire Harness (Around the Steering Column)
2 IG2 Cut Relay 5 Dashboard Wire Harness (Around the Steering Column)

Passenger’s Auxiliary Under-dash Relay Box (Canada)

Acura RL - wiring diagram - fuse box -  passenger's auxiliary under-dash relay/box (Canada)
Acura RL – wiring diagram – fuse box –
passenger’s auxiliary under-dash relay/box (Canada)



Ref Socket Cavities Connects to
1 Rear Seat Heater Relay 4 Dashboard Wire Harness (Right Branch)
2 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
