Acura RL (2011) – wiring diagrams – door ajar warning

Acura RL (2011) – wiring diagrams – door ajar warning

Year of production:  2011

Door ajar warning

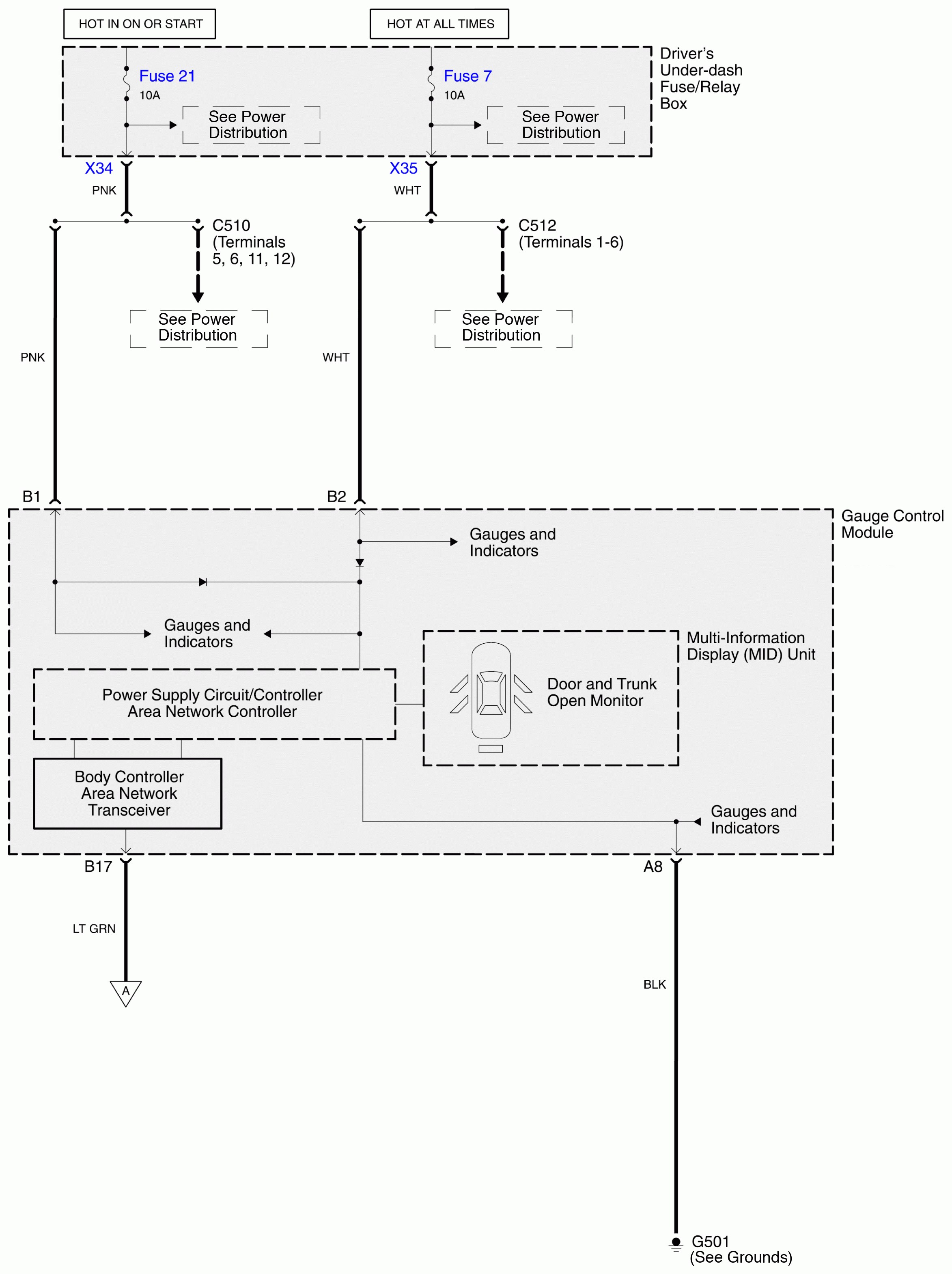

Acura RL - wiring diagram - door ajar warning (part 1)
Acura RL – wiring diagram – door ajar warning (part 1)

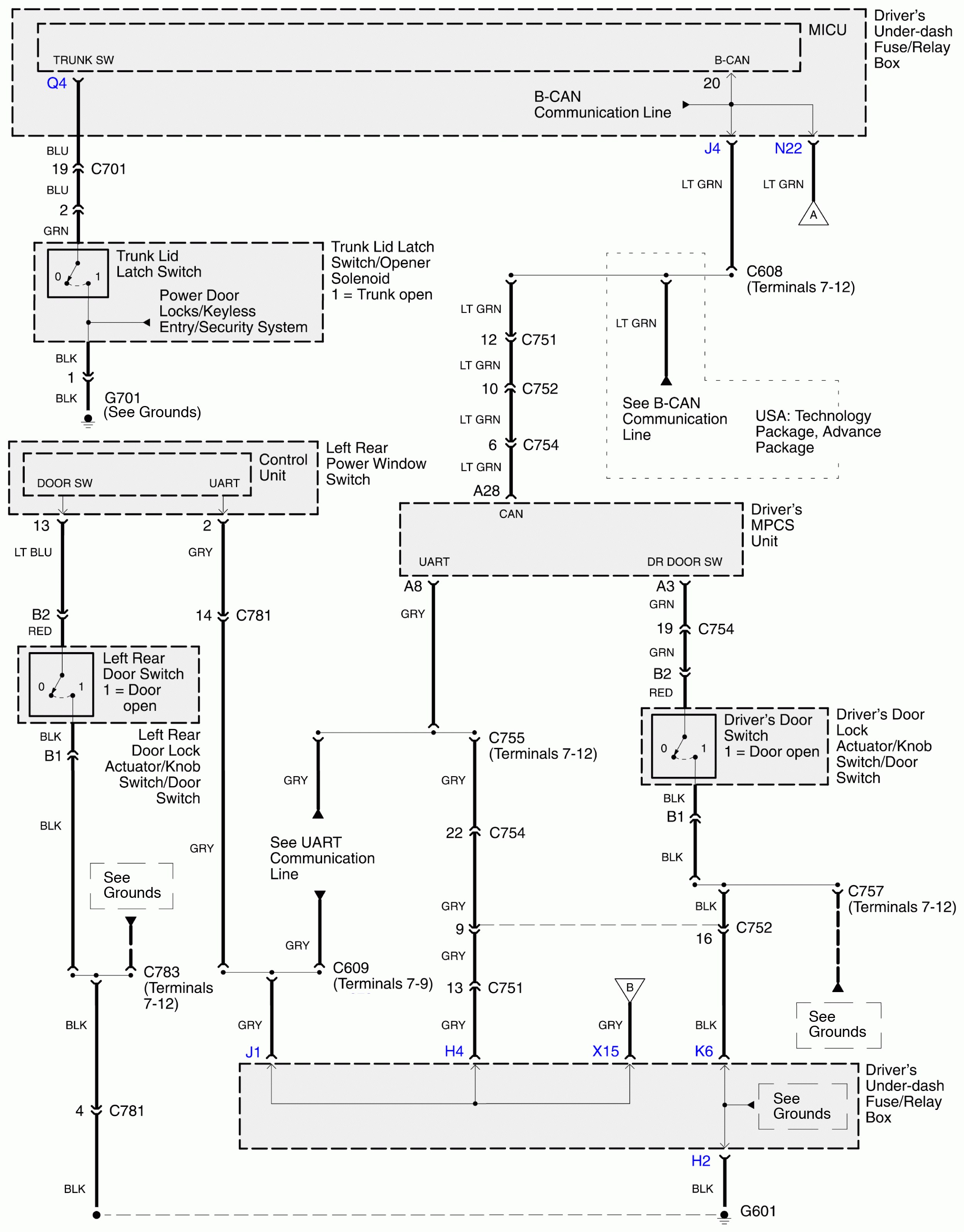

Acura RL - wiring diagram - door ajar warning (part 2)
Acura RL – wiring diagram – door ajar warning (part 2)

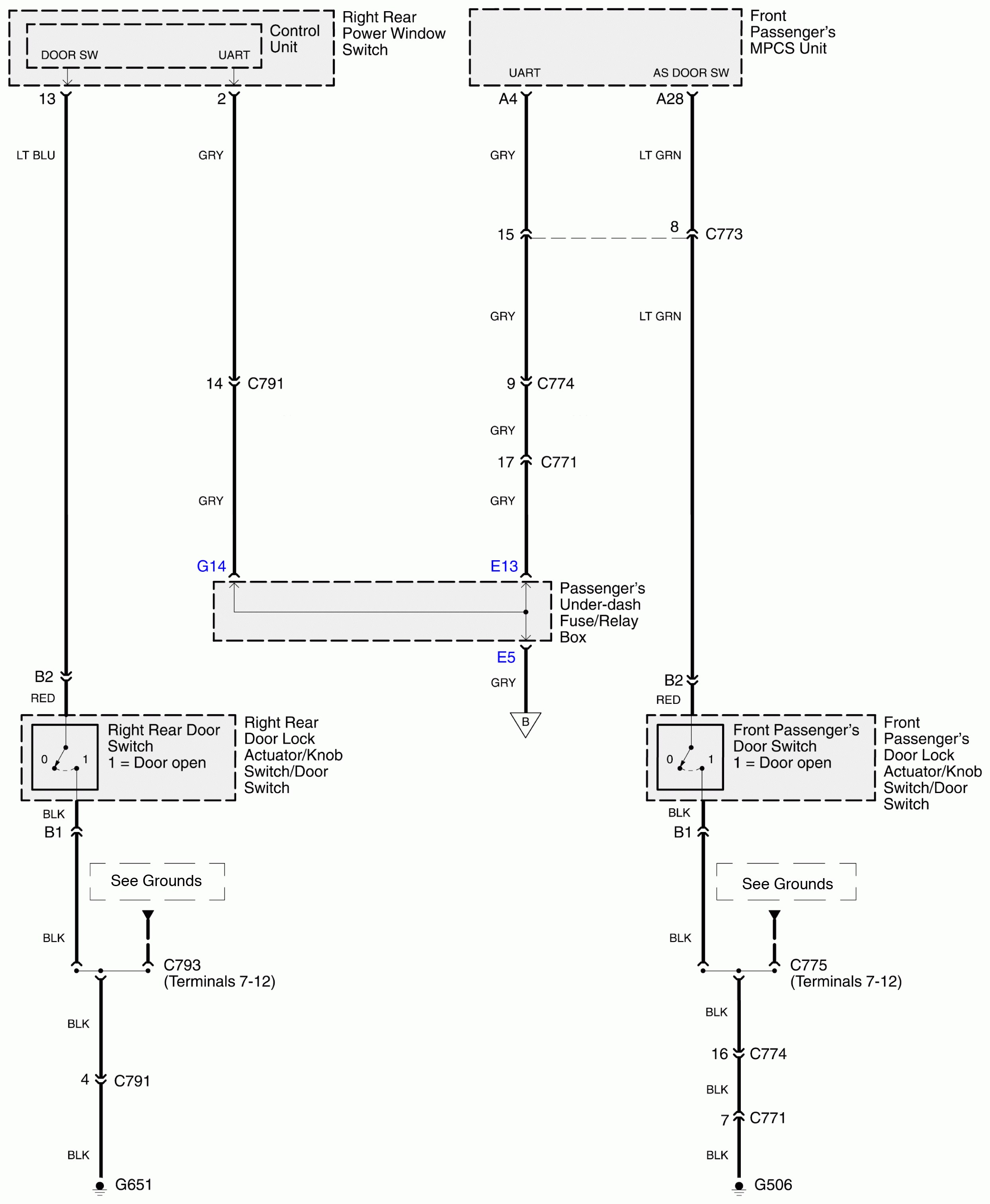

Acura RL - wiring diagram - door ajar warning (part 3)
Acura RL – wiring diagram – door ajar warning (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
