Acura RL (2011) – wiring diagrams – adaptive front lighting system

Acura RL (2011) – wiring diagrams – adaptive front lighting system

Year of productions:  2011

Adaptive front lighting system

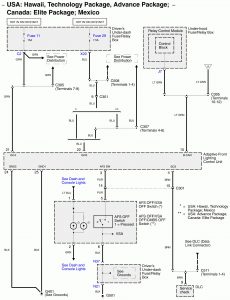

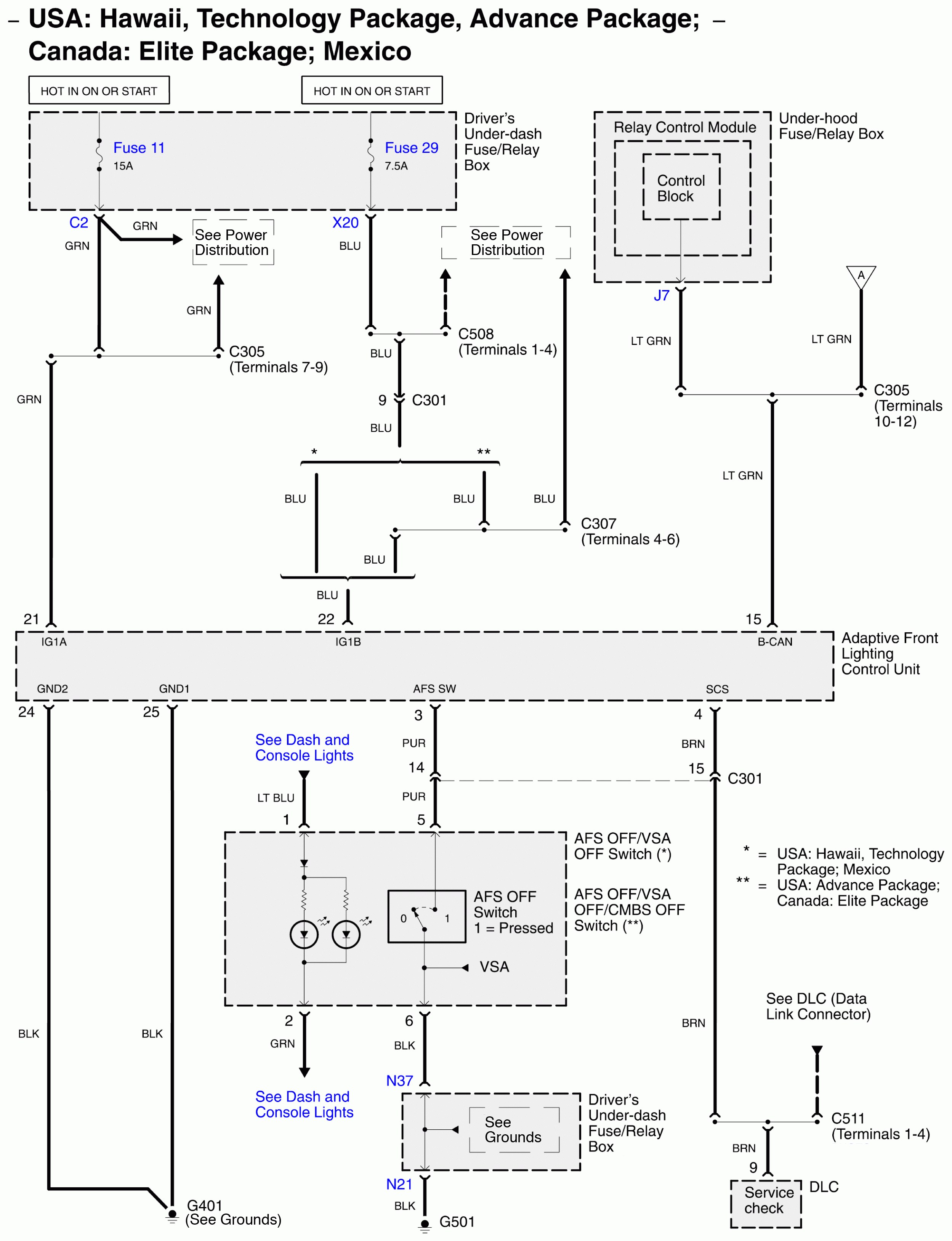

Acura RL - wiring diagram - adaptive front lighting system (part 1)
Acura RL – wiring diagram – adaptive front lighting system (part 1)

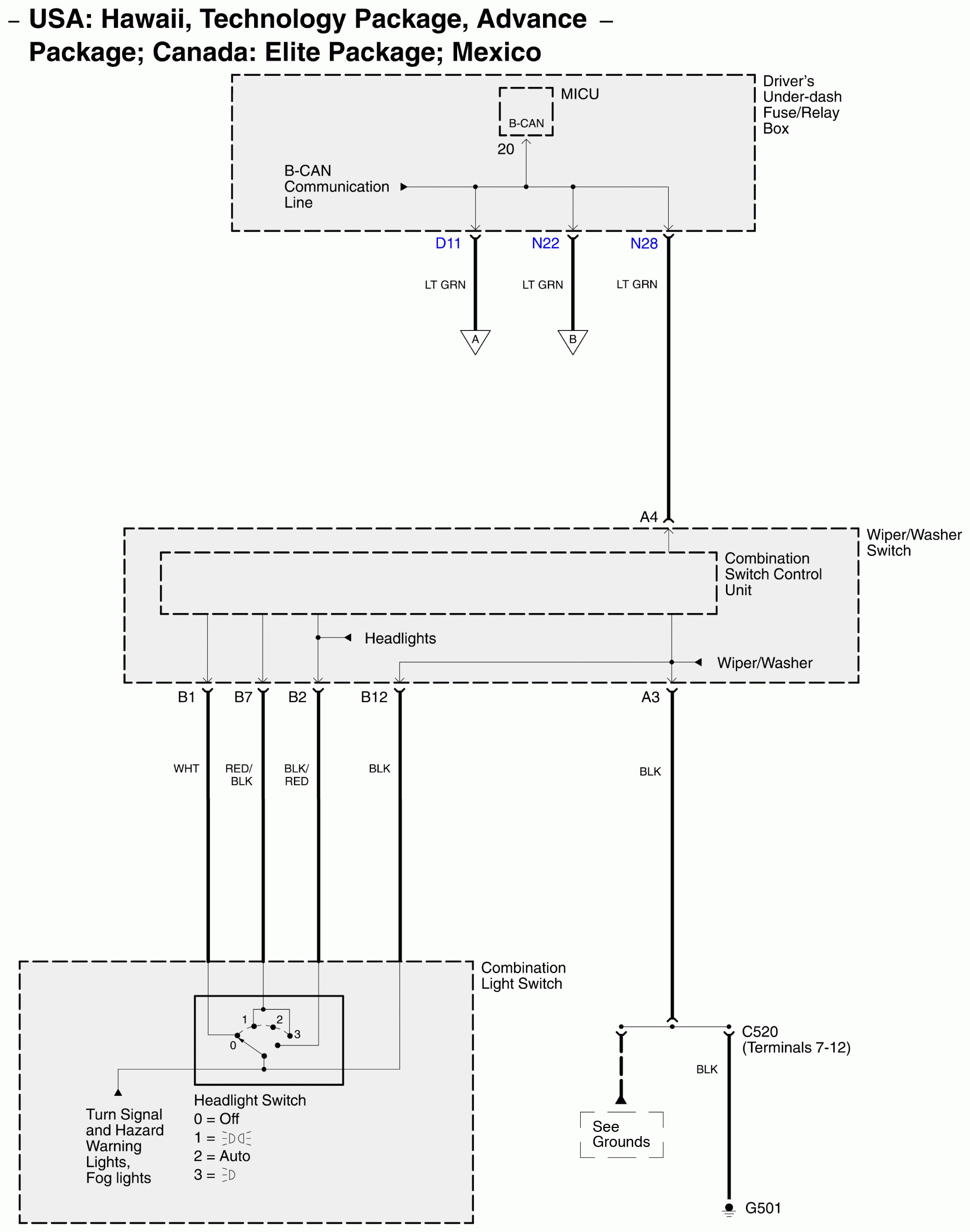

Acura RL - wiring diagram - adaptive front lighting system (part 2)
Acura RL – wiring diagram – adaptive front lighting system (part 2)

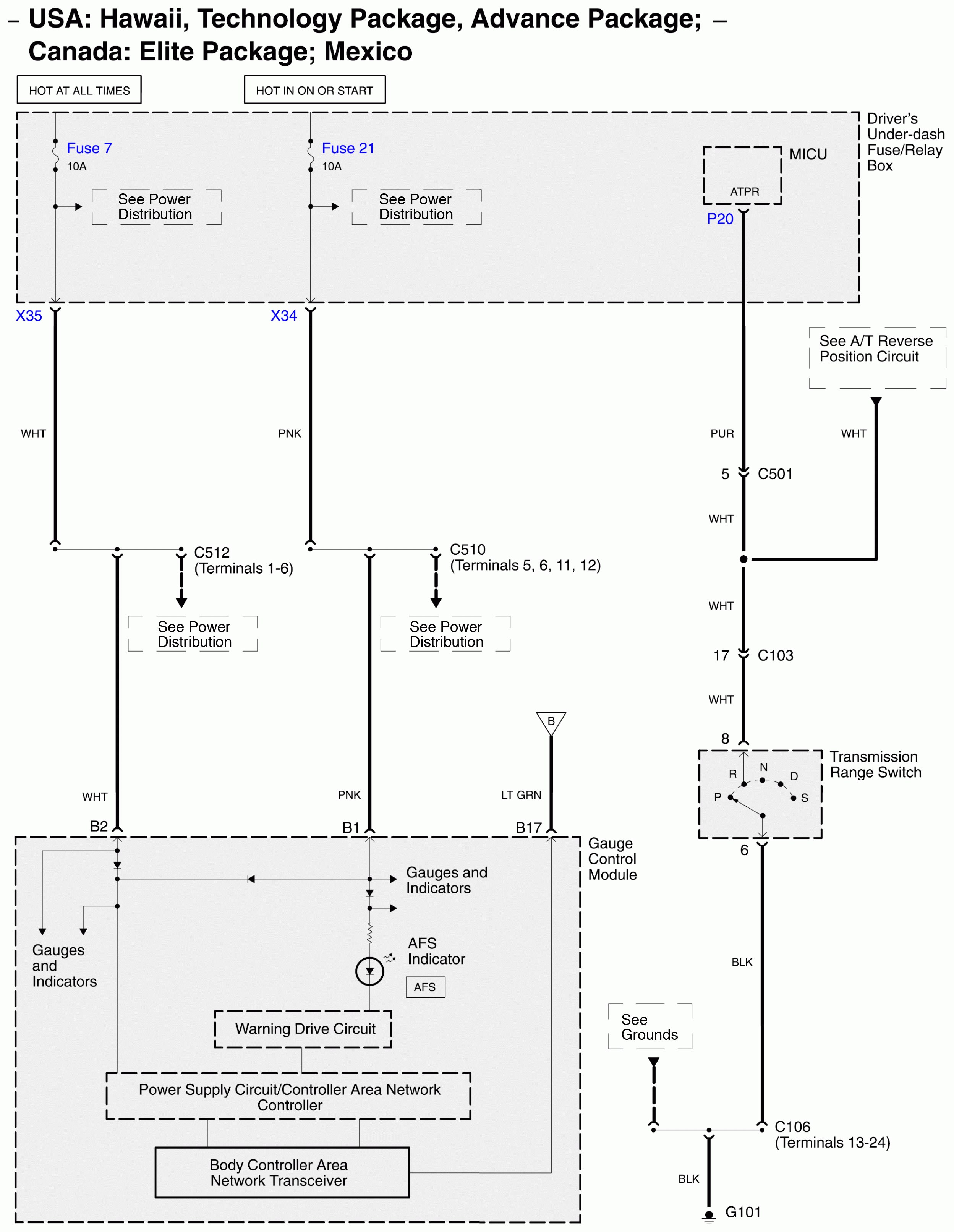

Acura RL - wiring diagram - adaptive front lighting system (part 3)
Acura RL – wiring diagram – adaptive front lighting system (part 3)

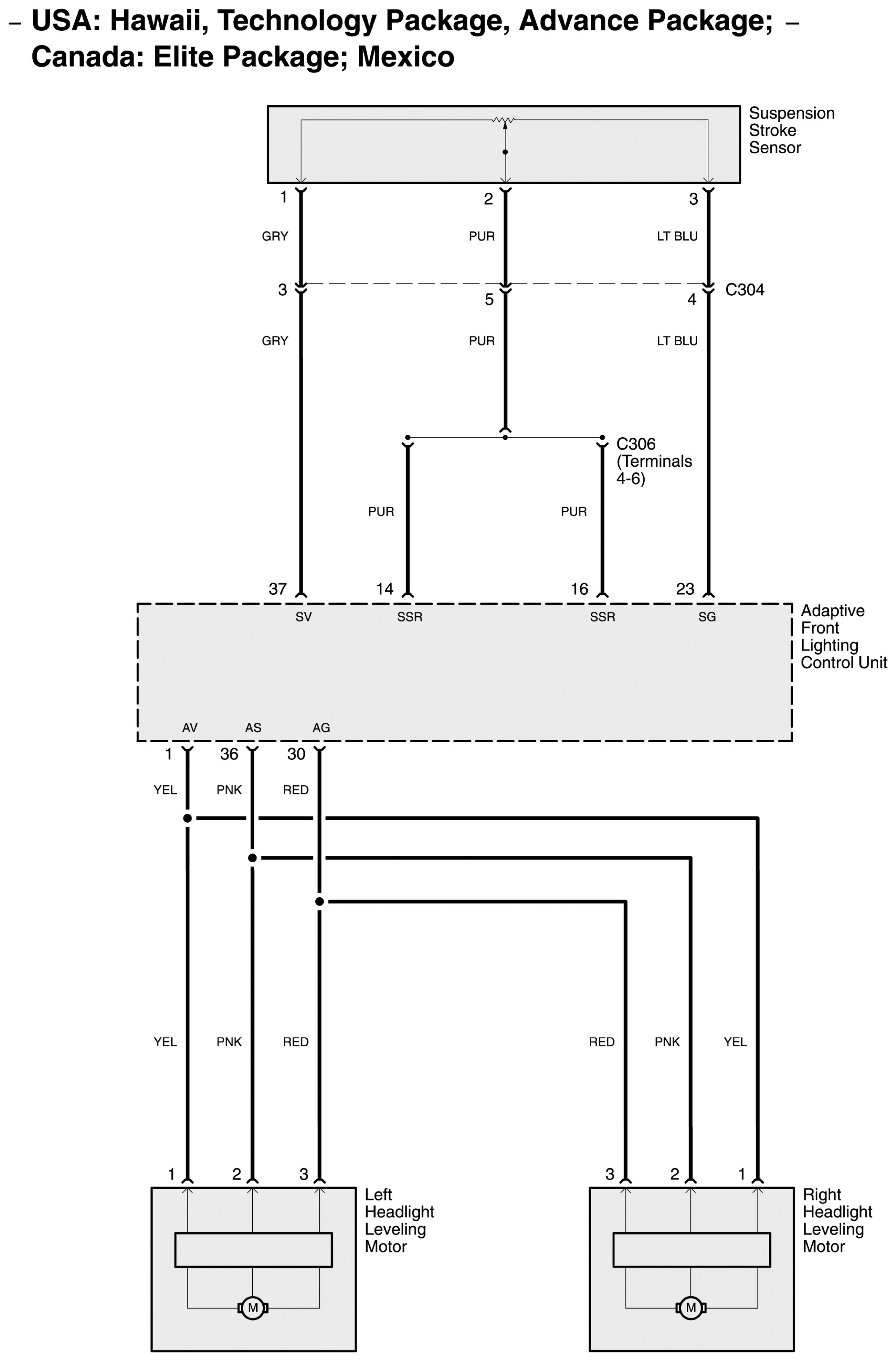

Acura RL - wiring diagram - adaptive front lighting system (part 4)
Acura RL – wiring diagram – adaptive front lighting system (part 4)

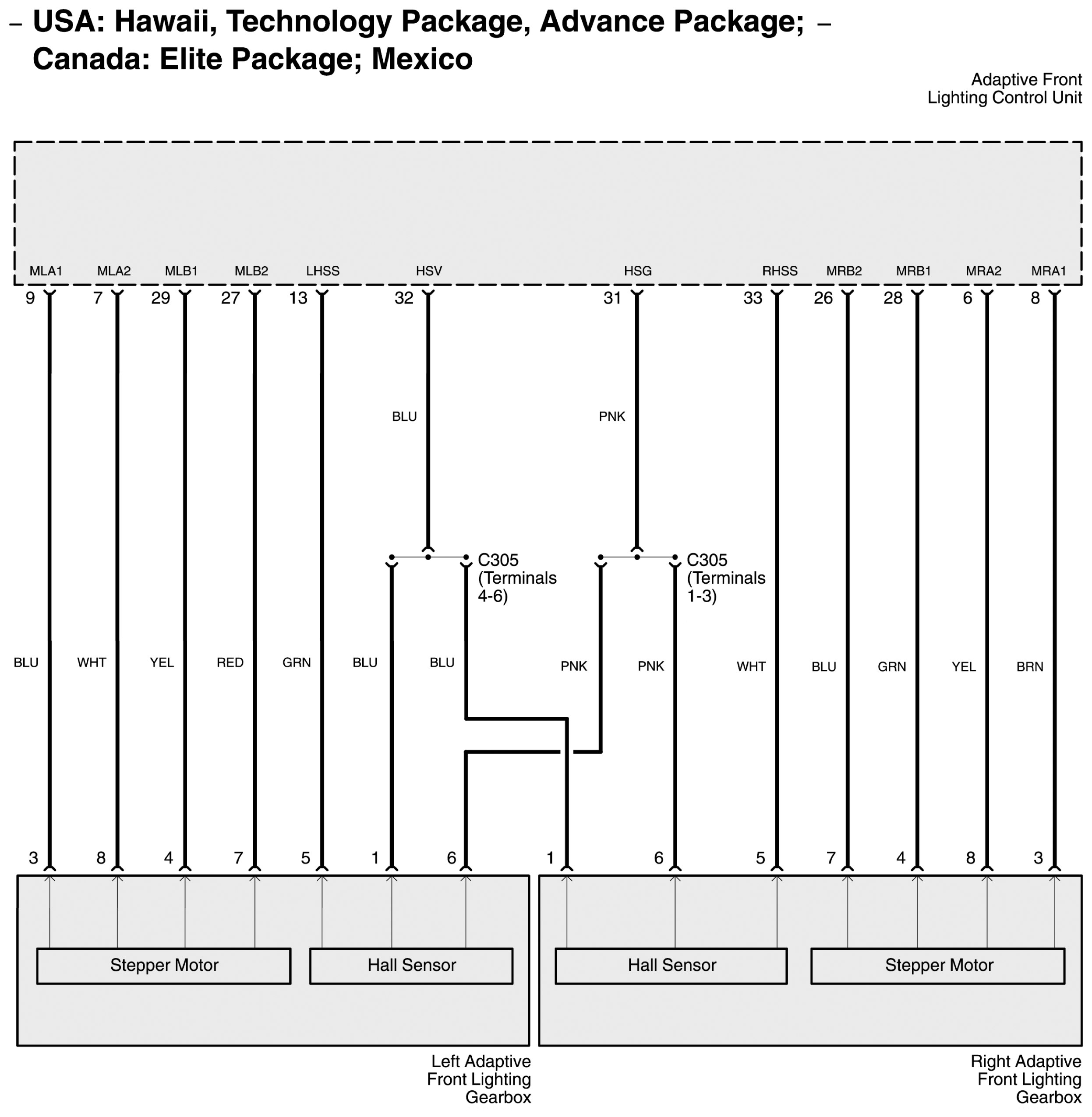

Acura RL - wiring diagram - adaptive front lighting system (part 5)
Acura RL – wiring diagram – adaptive front lighting system (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
