Acura RL (2010) – wiring diagrams – instrumentation

Acura RL (2010) – wiring diagrams – instrumentation

Year of production:  2010

Instrumentation

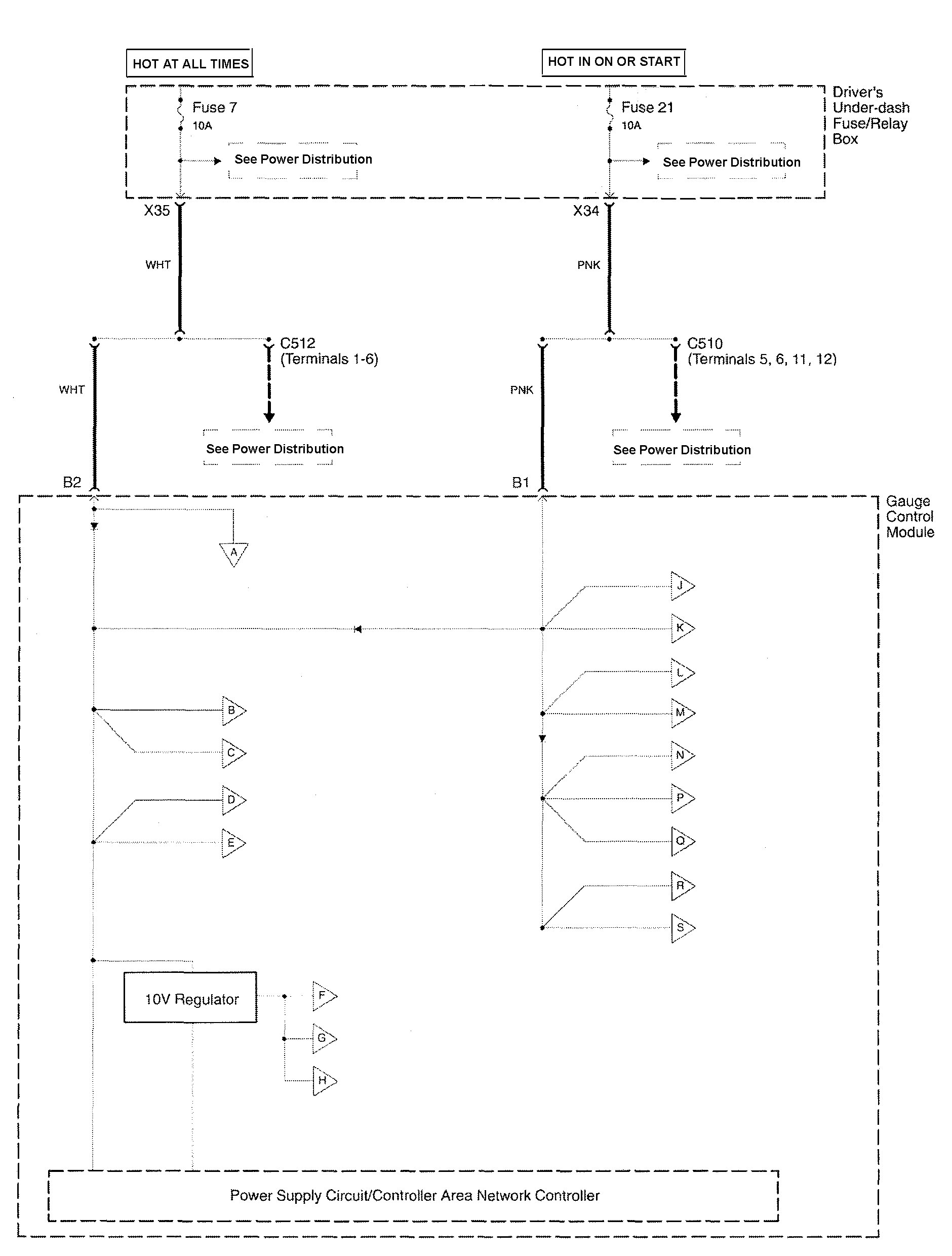

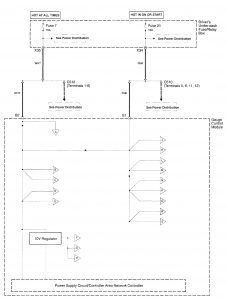

Acura RL - wiring diagram - instrumentation (part 1)
Acura RL – wiring diagram – instrumentation (part 1)

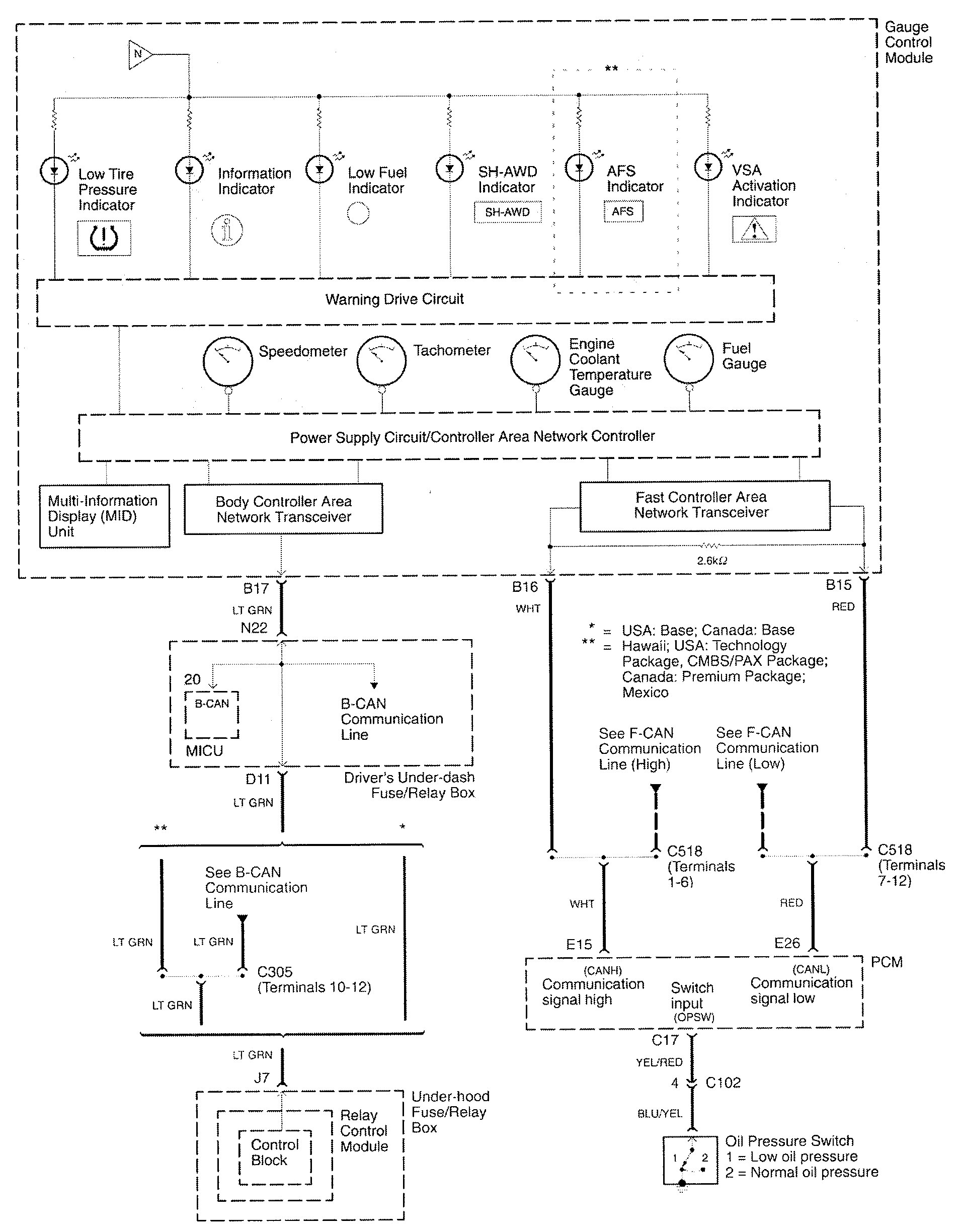

Acura RL - wiring diagram - instrumentation (part 2)
Acura RL – wiring diagram – instrumentation (part 2)

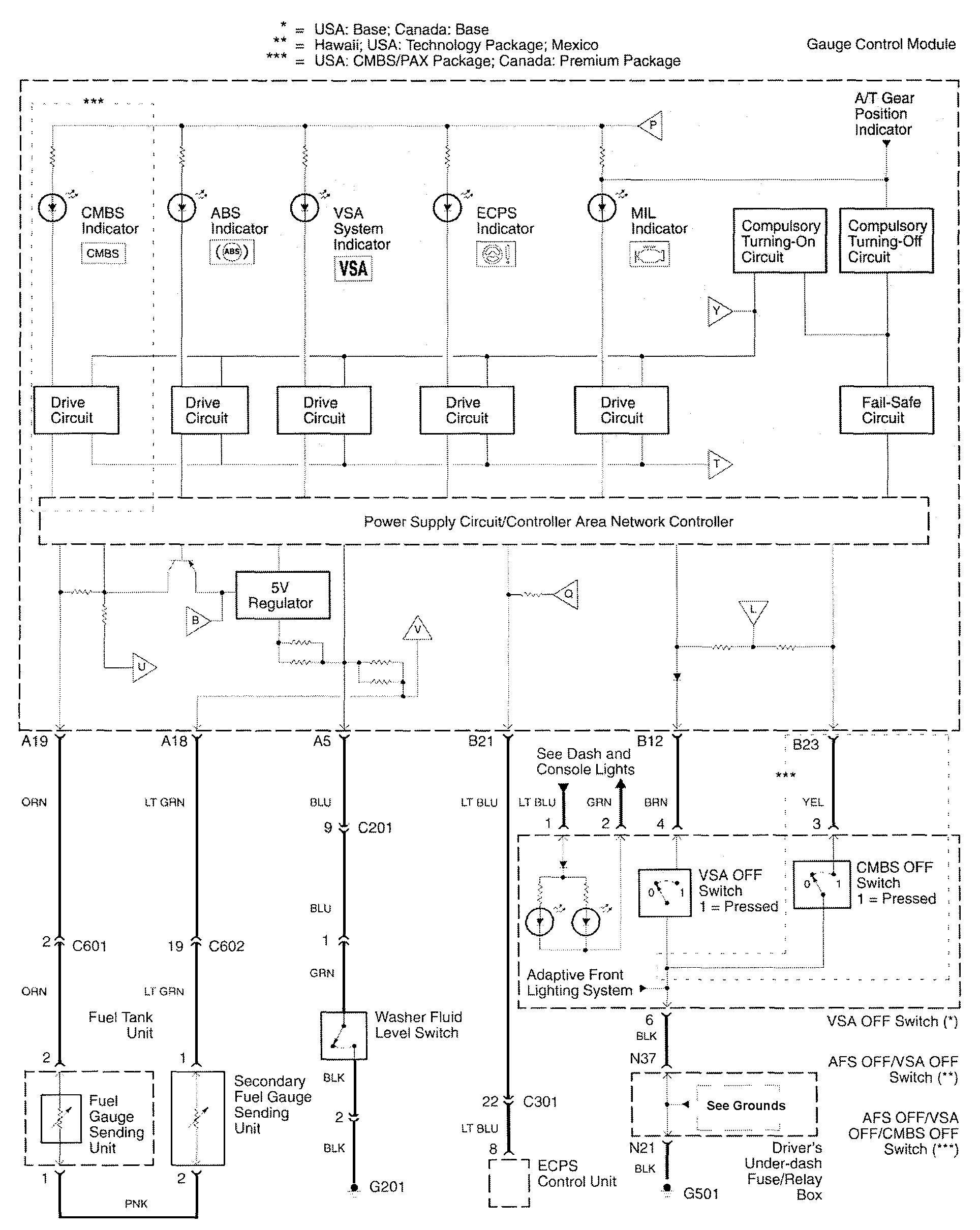

Acura RL - wiring diagram - instrumentation (part 3)
Acura RL – wiring diagram – instrumentation (part 3)

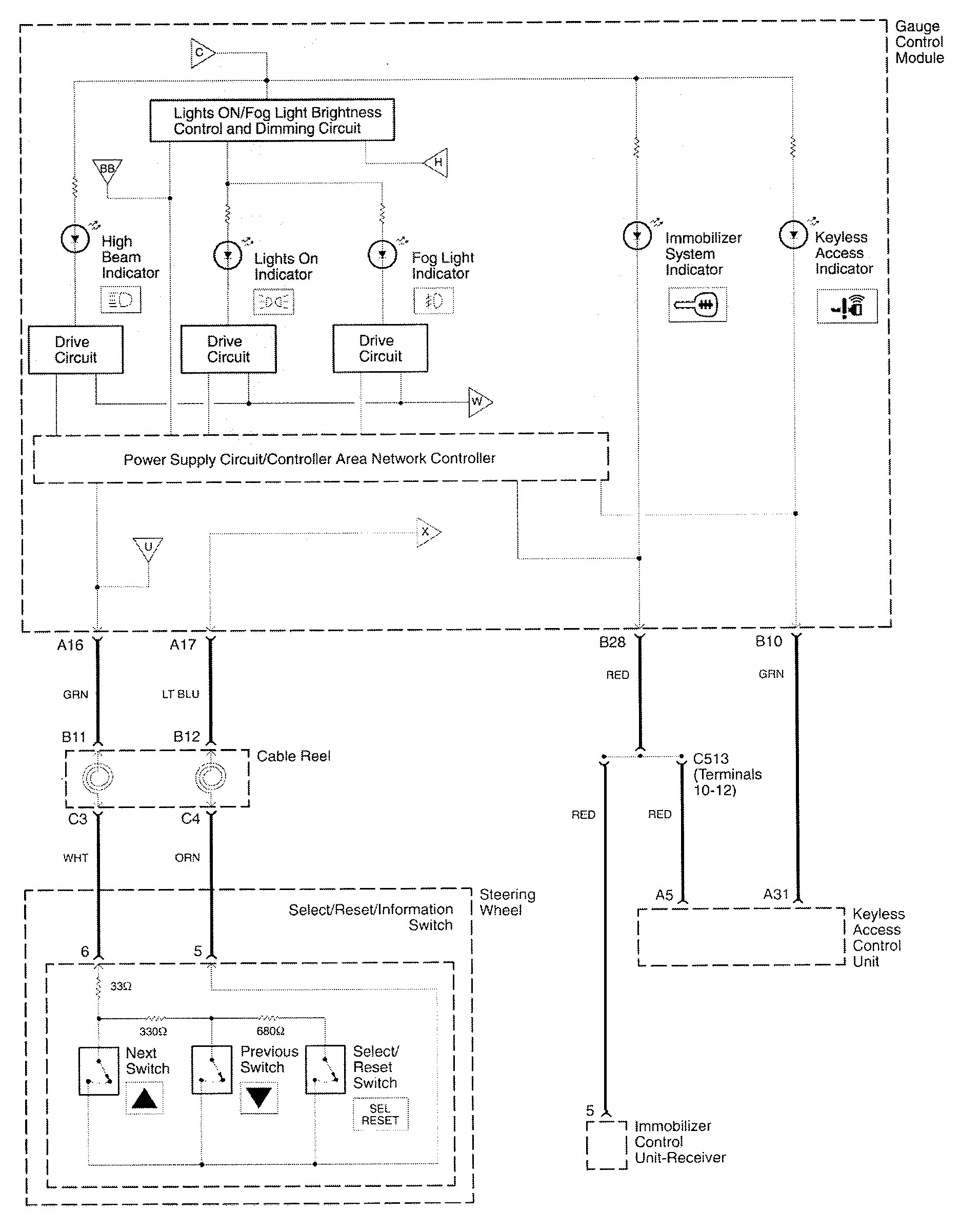

Acura RL - wiring diagram - instrumentation (part 4)
Acura RL – wiring diagram – instrumentation (part 4)

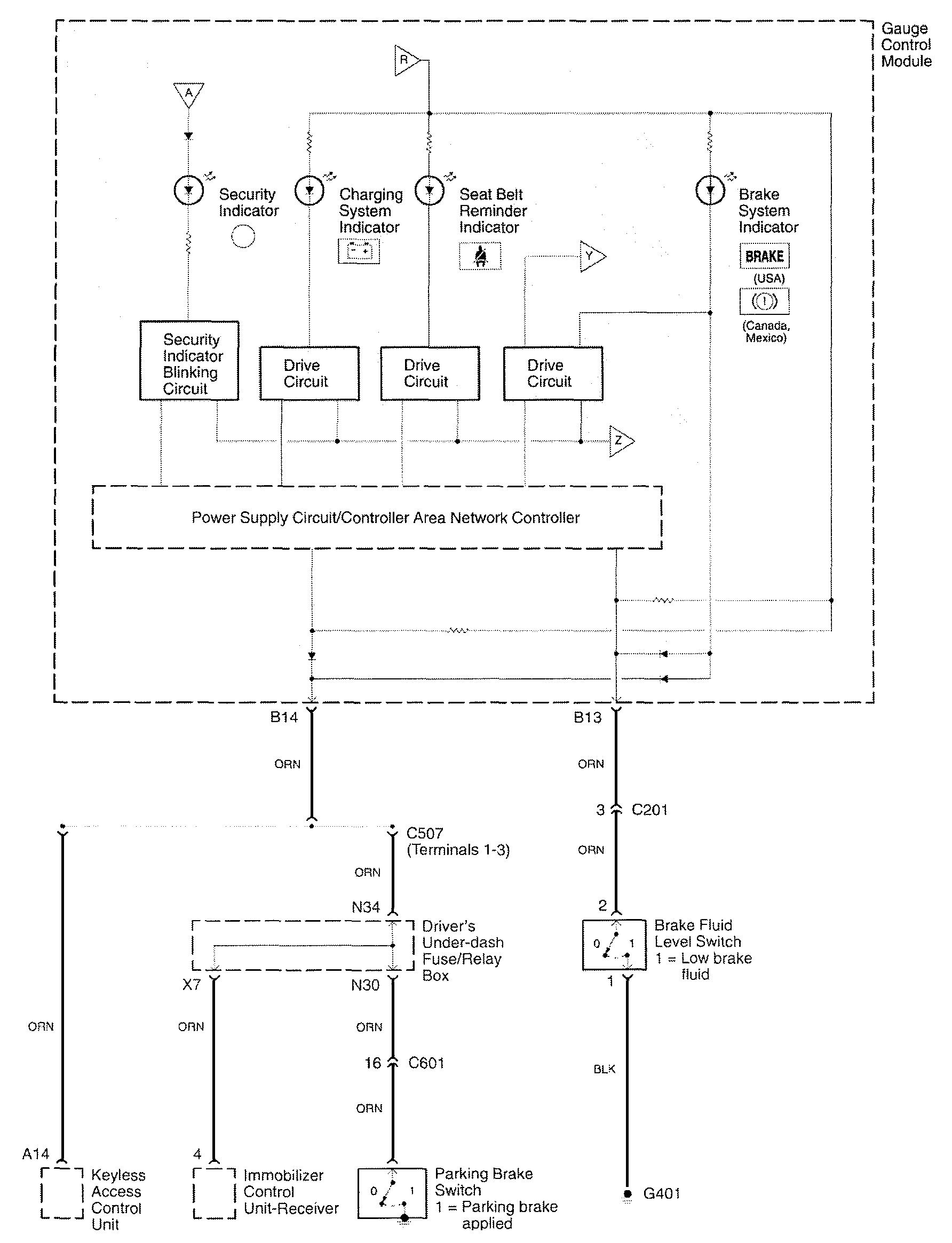

Acura RL - wiring diagram - instrumentation (part 5)
Acura RL – wiring diagram – instrumentation (part 5)

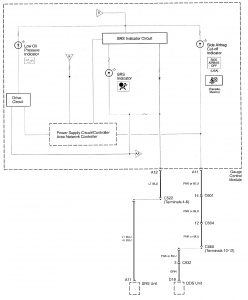

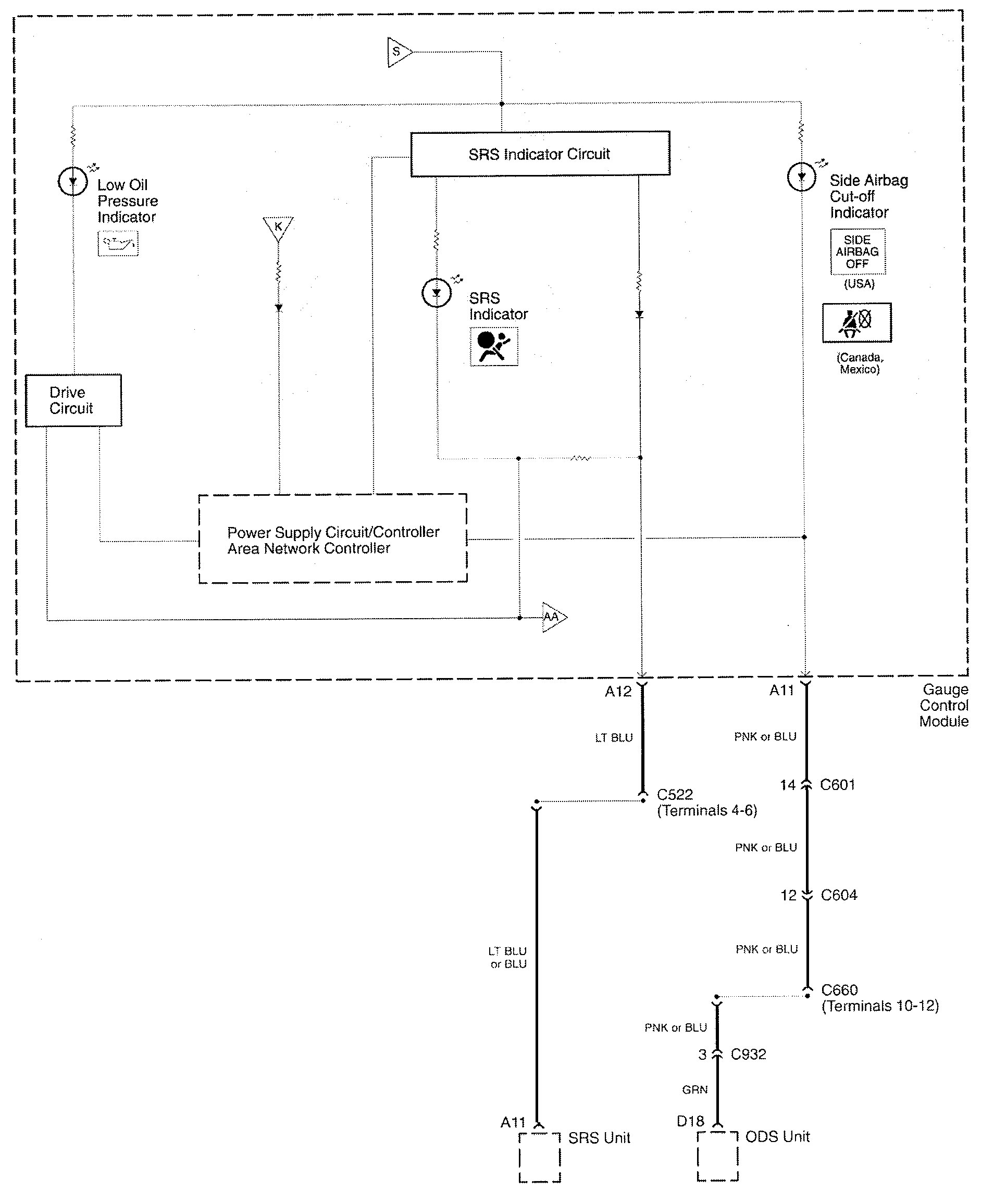

Acura RL - wiring diagram - instrumentation (part 6)
Acura RL – wiring diagram – instrumentation (part 6)

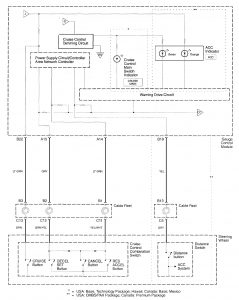

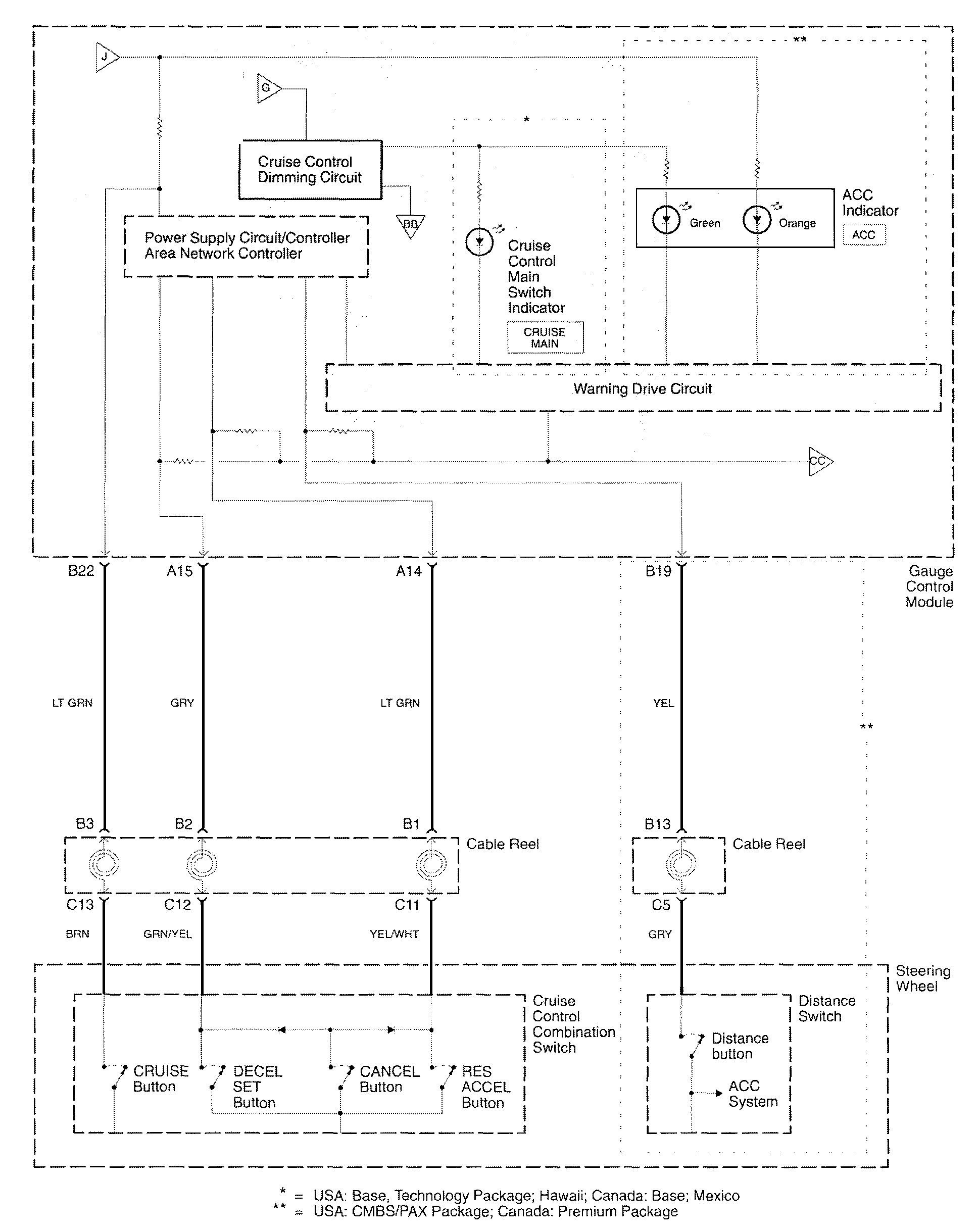

Acura RL - wiring diagram - instrumentation (part 7)
Acura RL – wiring diagram – instrumentation (part 7)

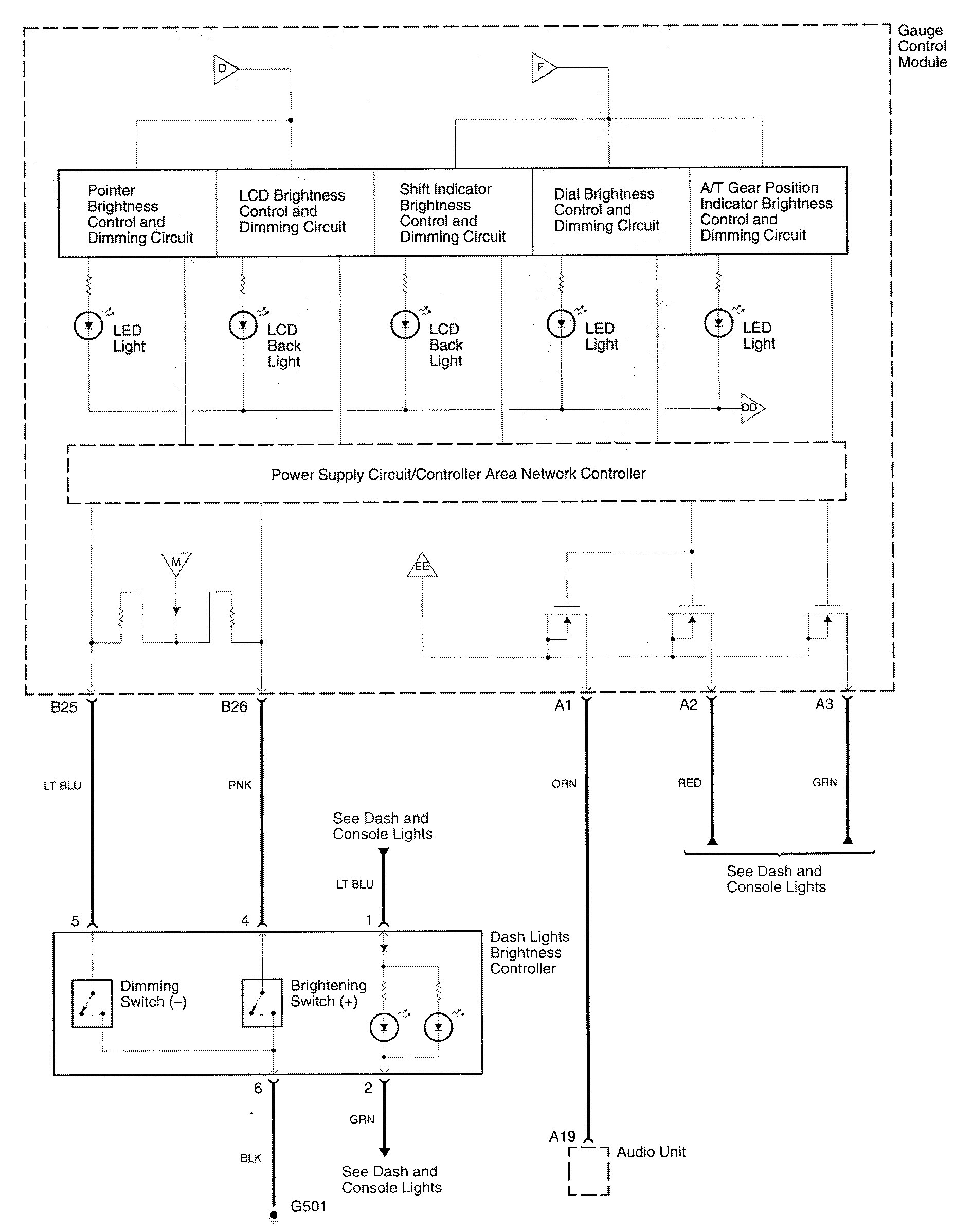

Acura RL - wiring diagram - instrumentation (part 8)
Acura RL – wiring diagram – instrumentation (part 8)

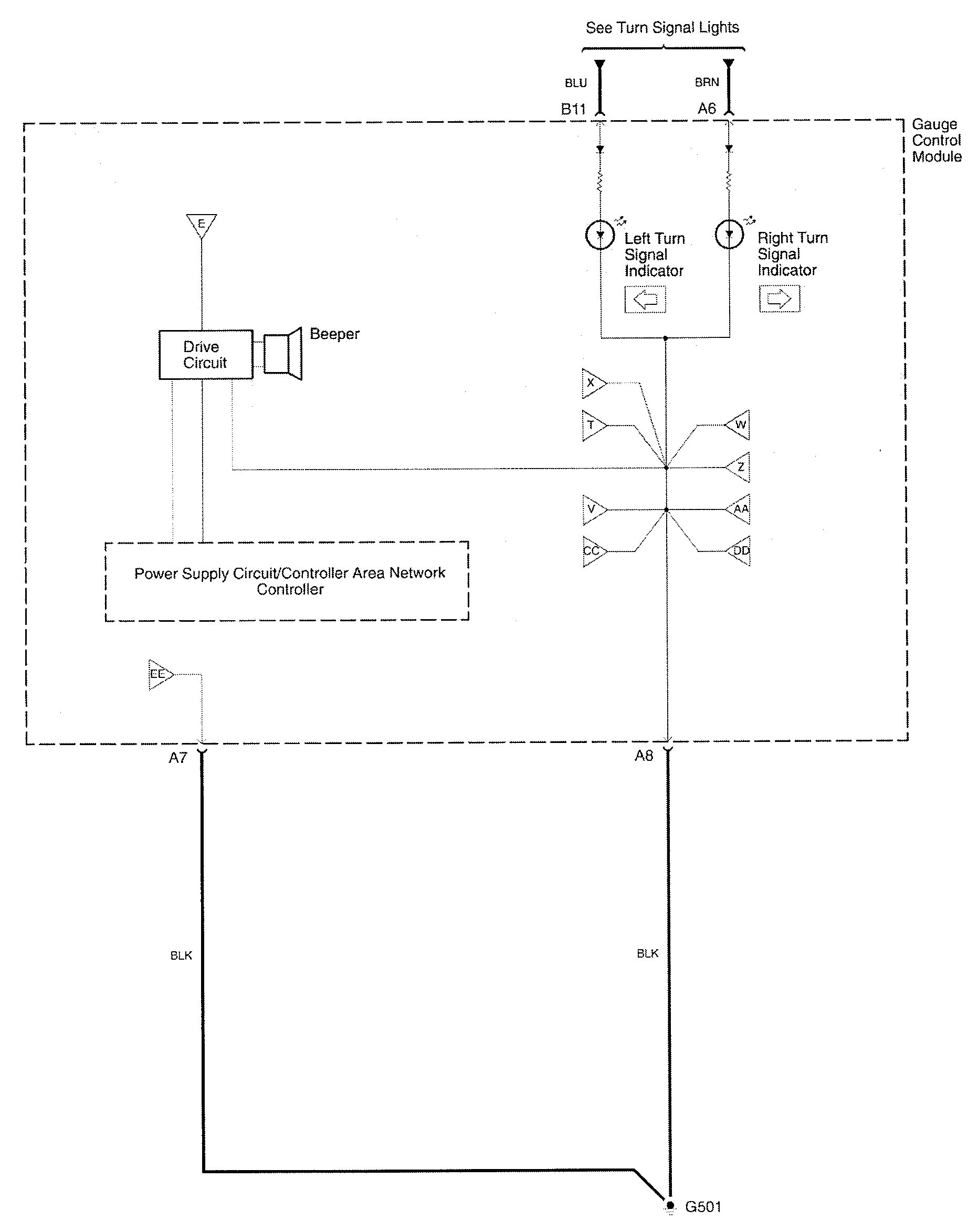

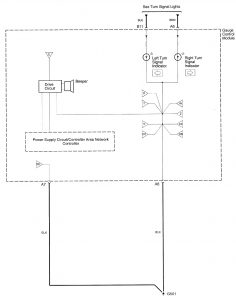

Acura RL - wiring diagram - instrumentation (part 9)
Acura RL – wiring diagram – instrumentation (part 9)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
