Acura RL (2009) – wiring diagrams – power seats

Acura RL (2009) – wiring diagrams – power seats

Year of productions:  2009

Power seats

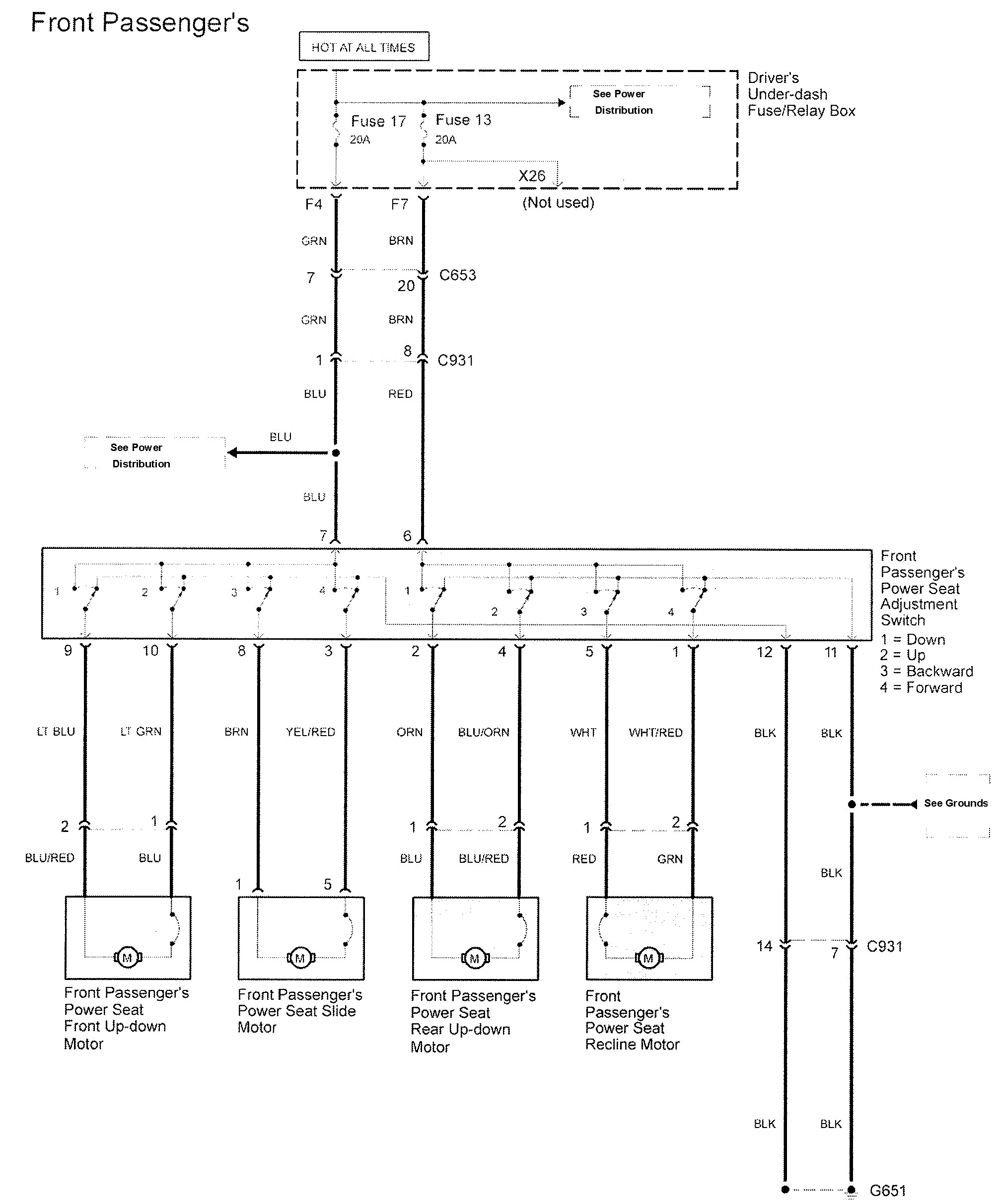

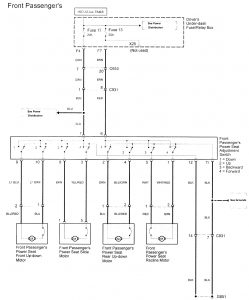

Acura RL - wiring diagram - power seats (part 1)
Acura RL – wiring diagram – power seats (part 1)

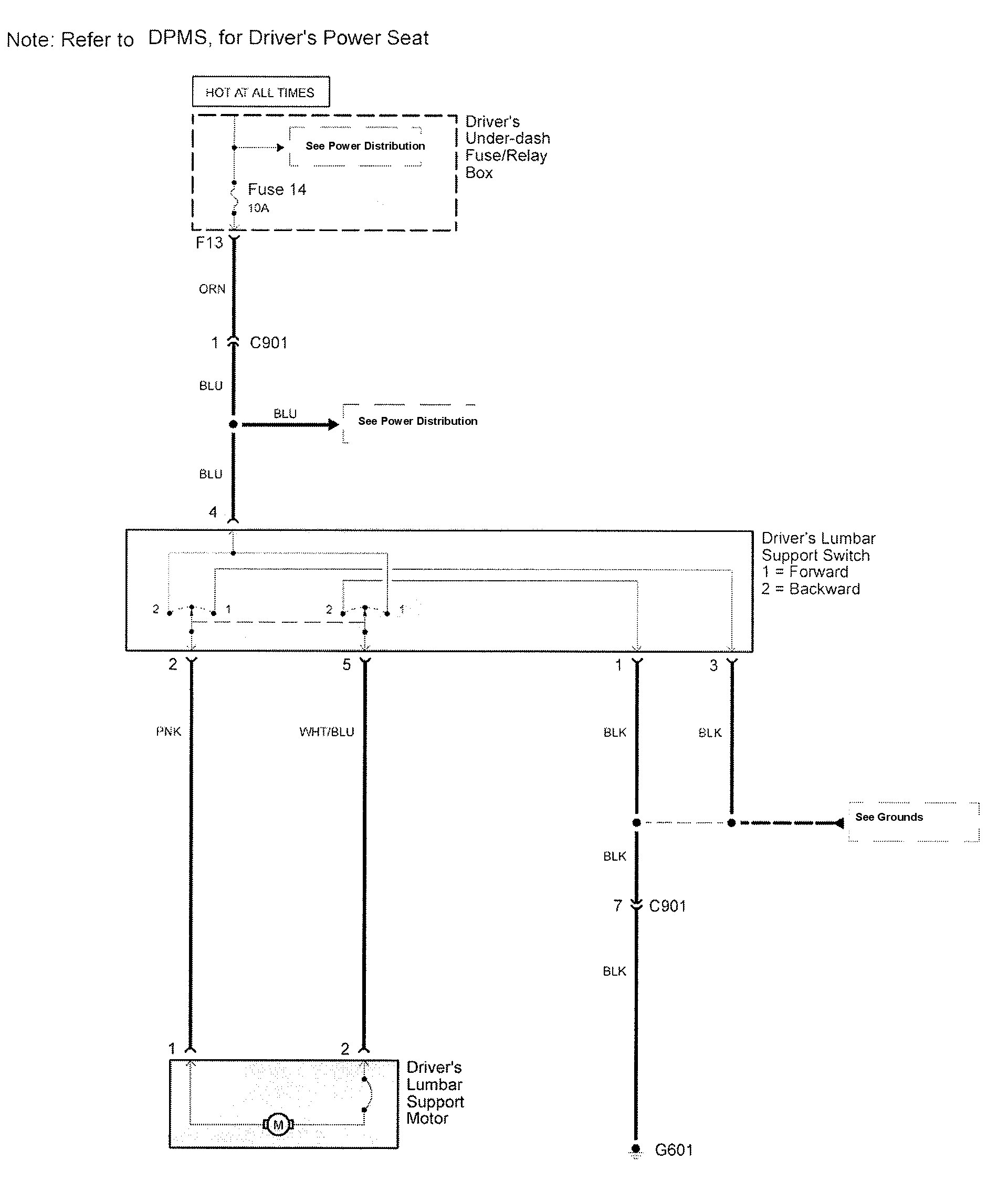

Acura RL - wiring diagram - power seats (part 2)
Acura RL – wiring diagram – power seats (part 2)

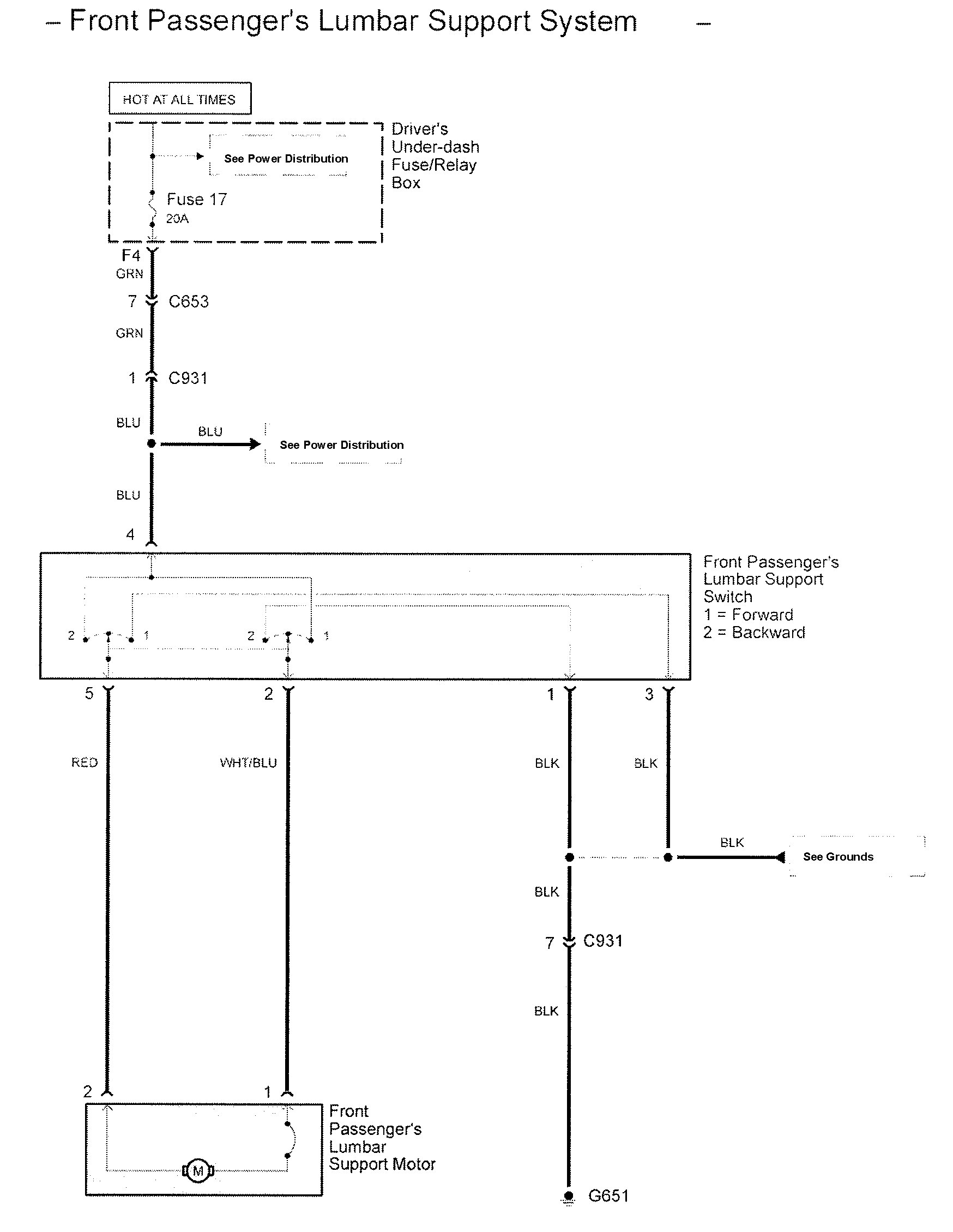

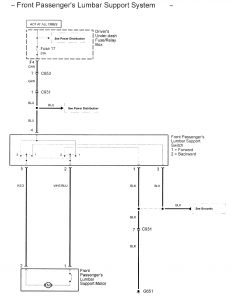

Acura RL - wiring diagram - power seats (part 3)
Acura RL – wiring diagram – power seats (part 3)

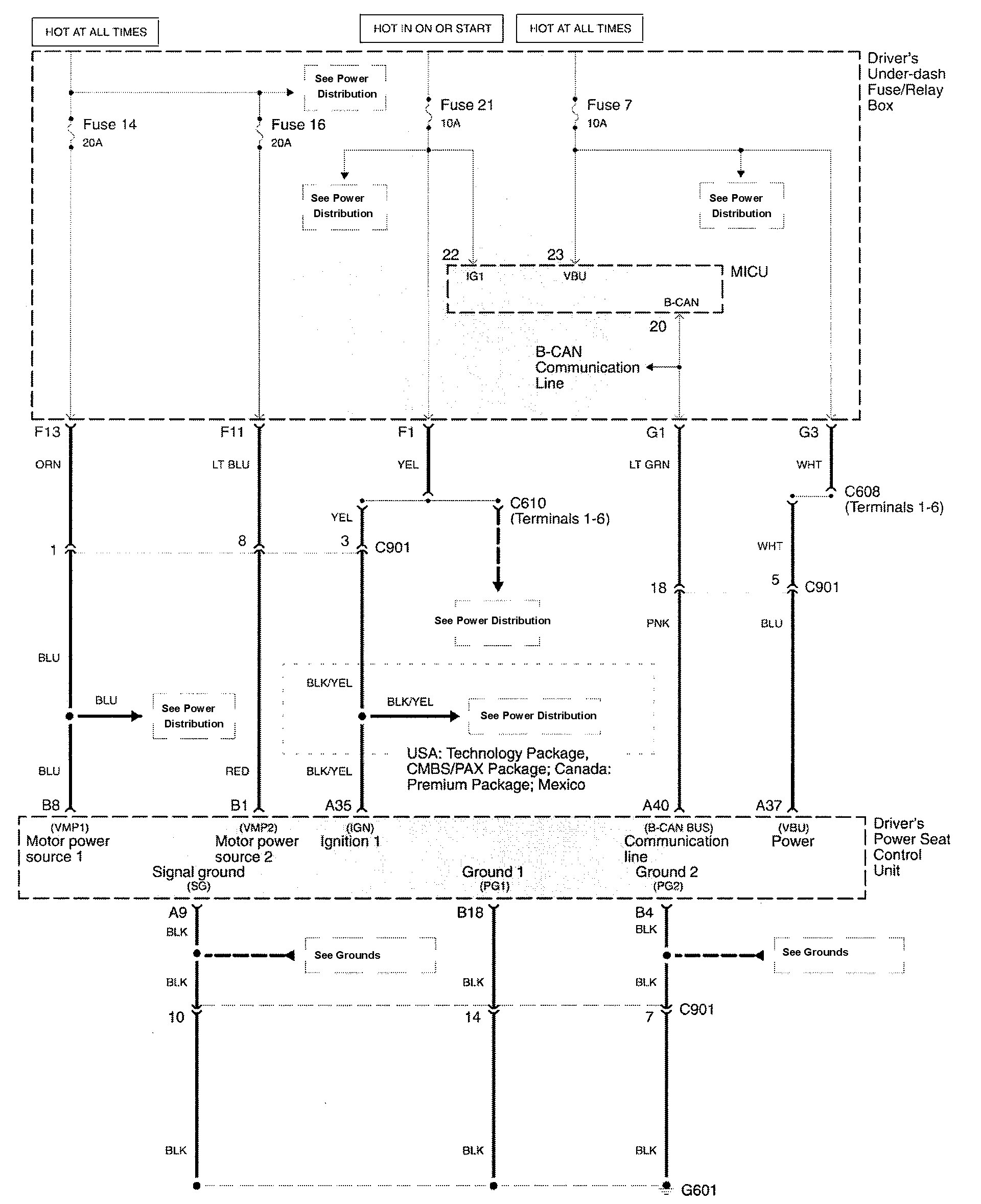

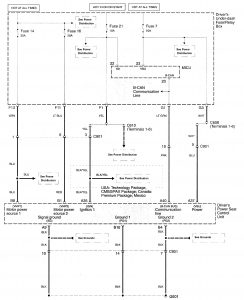

Acura RL - wiring diagram - power seats (part 4)
Acura RL – wiring diagram – power seats (part 4)

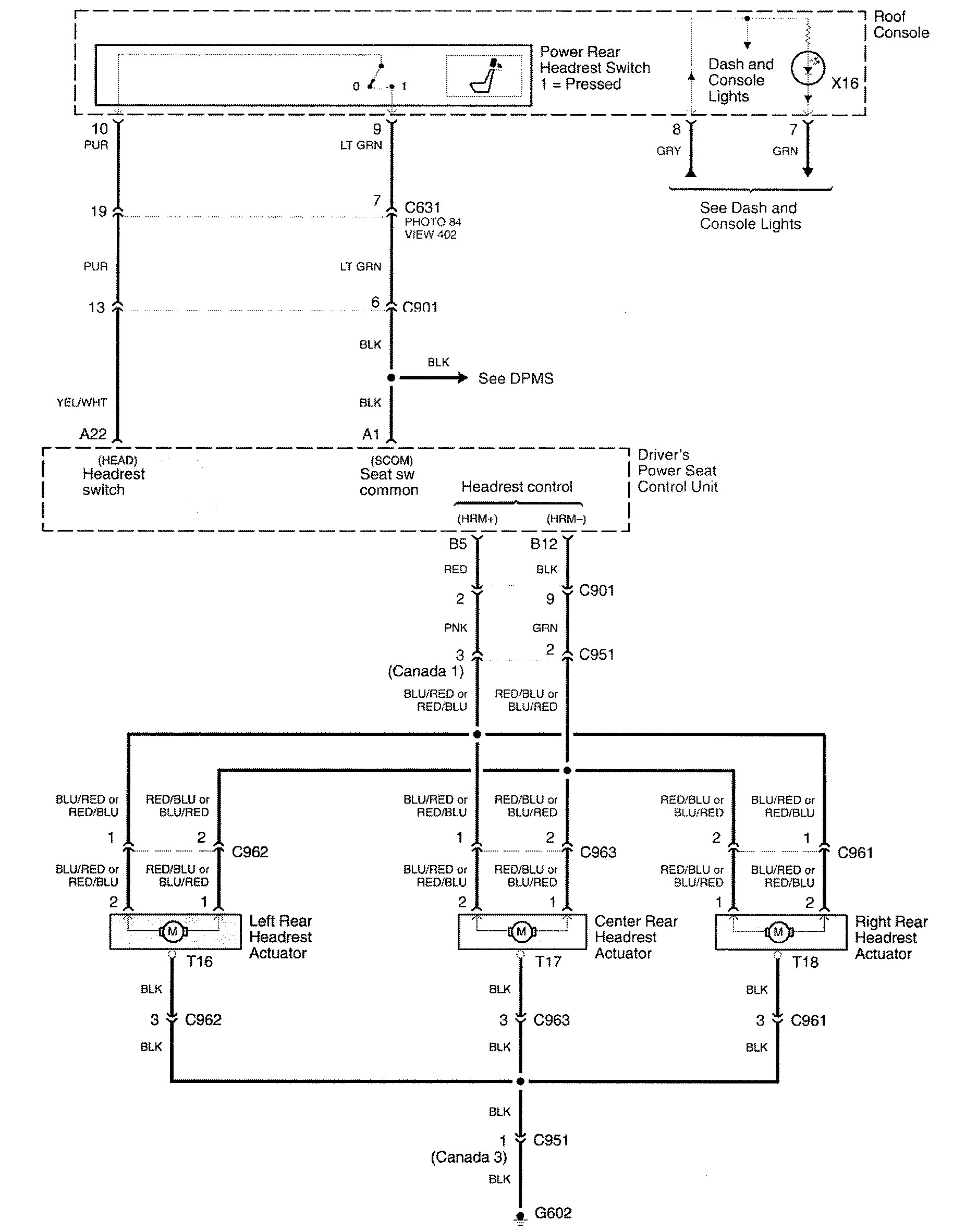

Acura RL - wiring diagram - power seats (part 5)
Acura RL – wiring diagram – power seats (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
