Acura RL (2008) – wiring diagrams – wiper/washer

Acura RL (2008) – wiring diagrams – wiper/washer

Year of productions:  2008

Wiper/washer

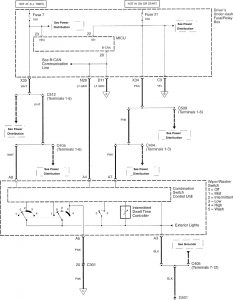

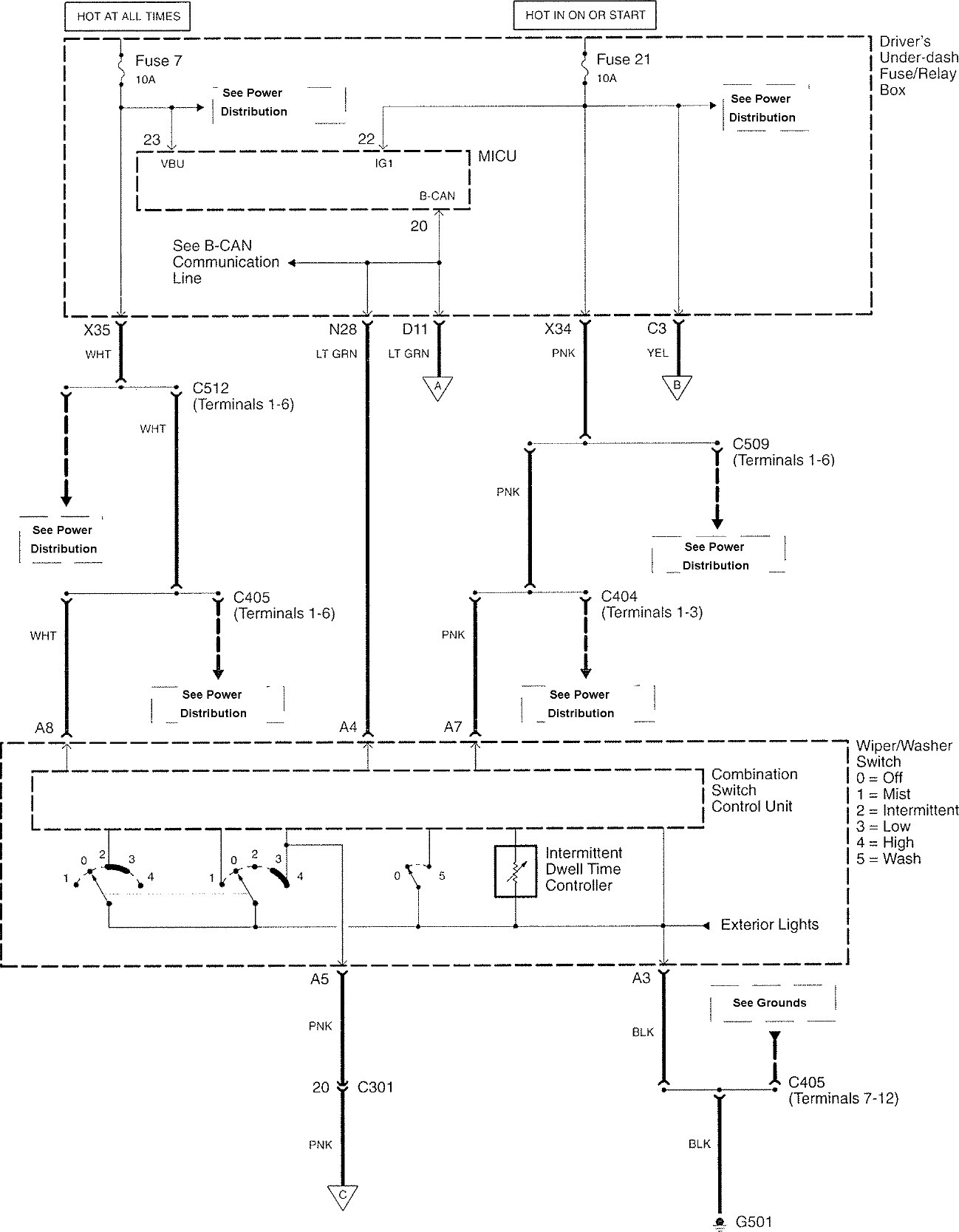

Acura RL - wiring diagram - wiper/washer (part 1)
Acura RL – wiring diagram – wiper/washer (part 1)

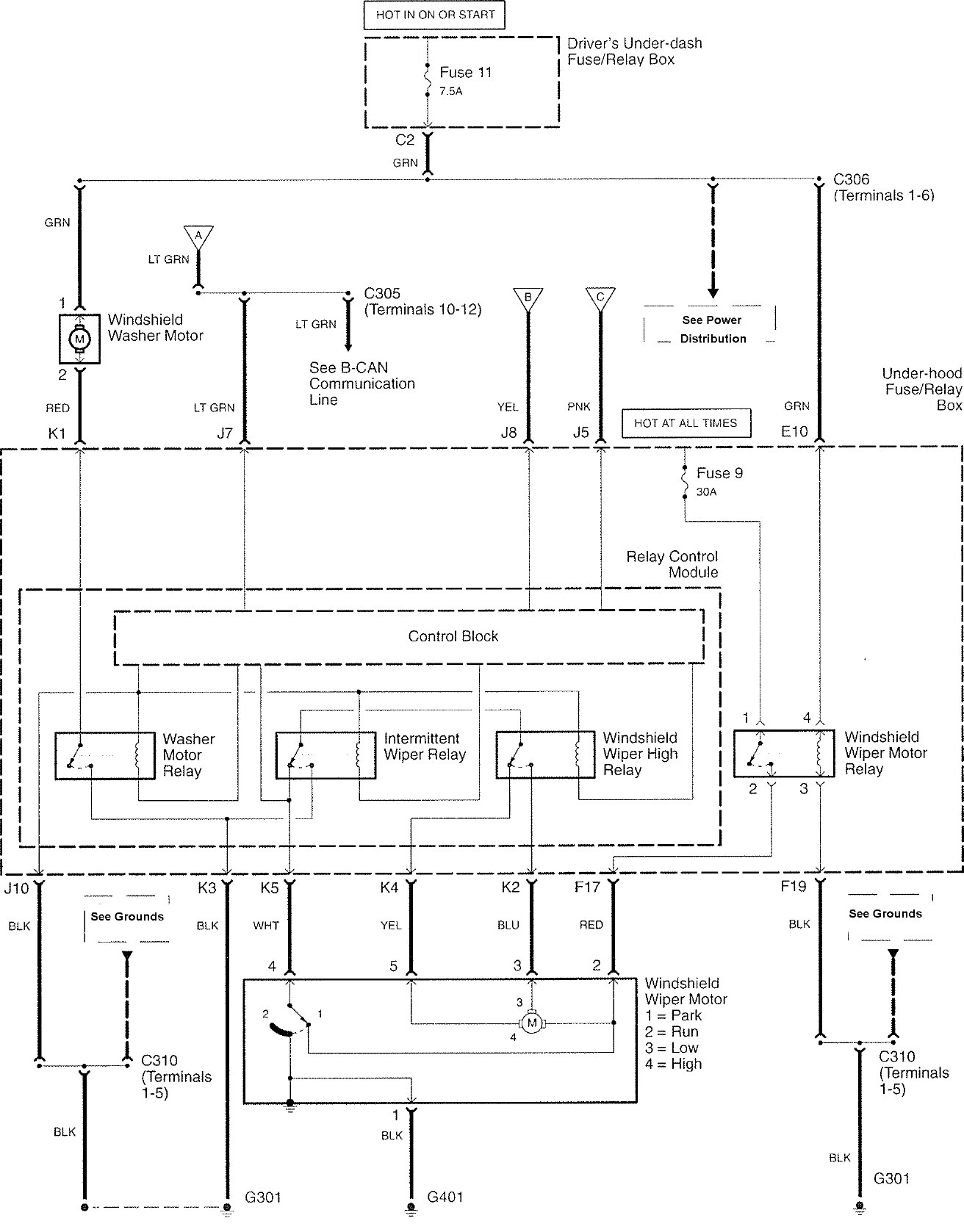

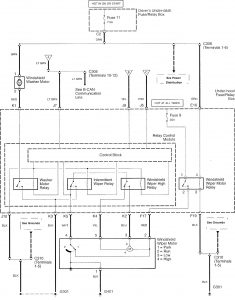

Acura RL - wiring diagram - wiper/washer (part 2)
Acura RL – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
