Acura RL (2008) – wiring diagrams – warning indicators

Acura RL (2008) – wiring diagrams – warning indicators

Year of productions:  2008

Warning indicators

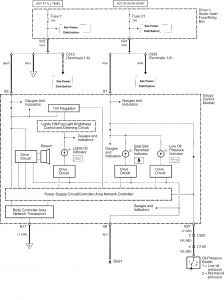

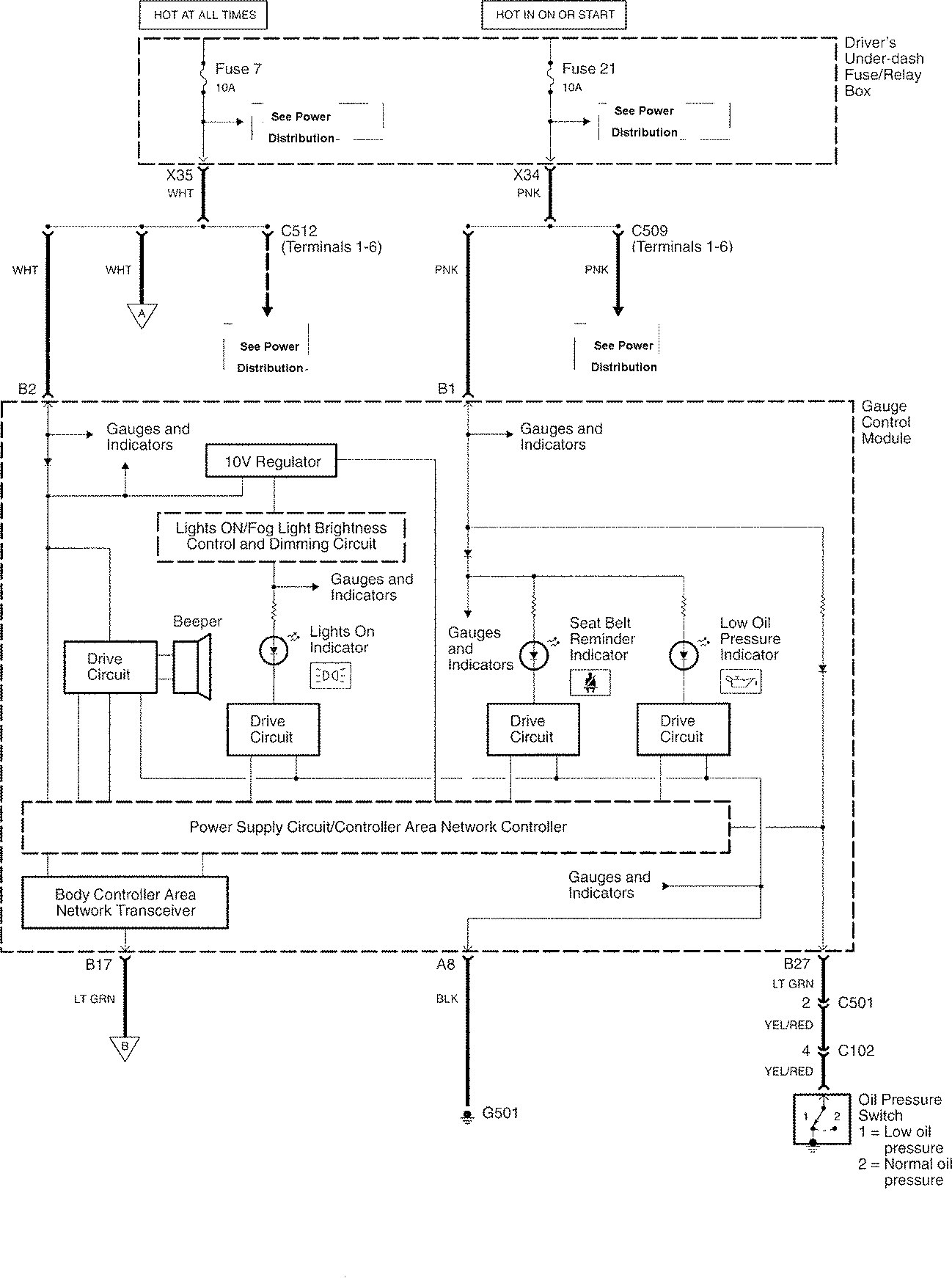

Acura RL - wiring diagram - warning indicators (part 1)
Acura RL – wiring diagram – warning indicators (part 1)

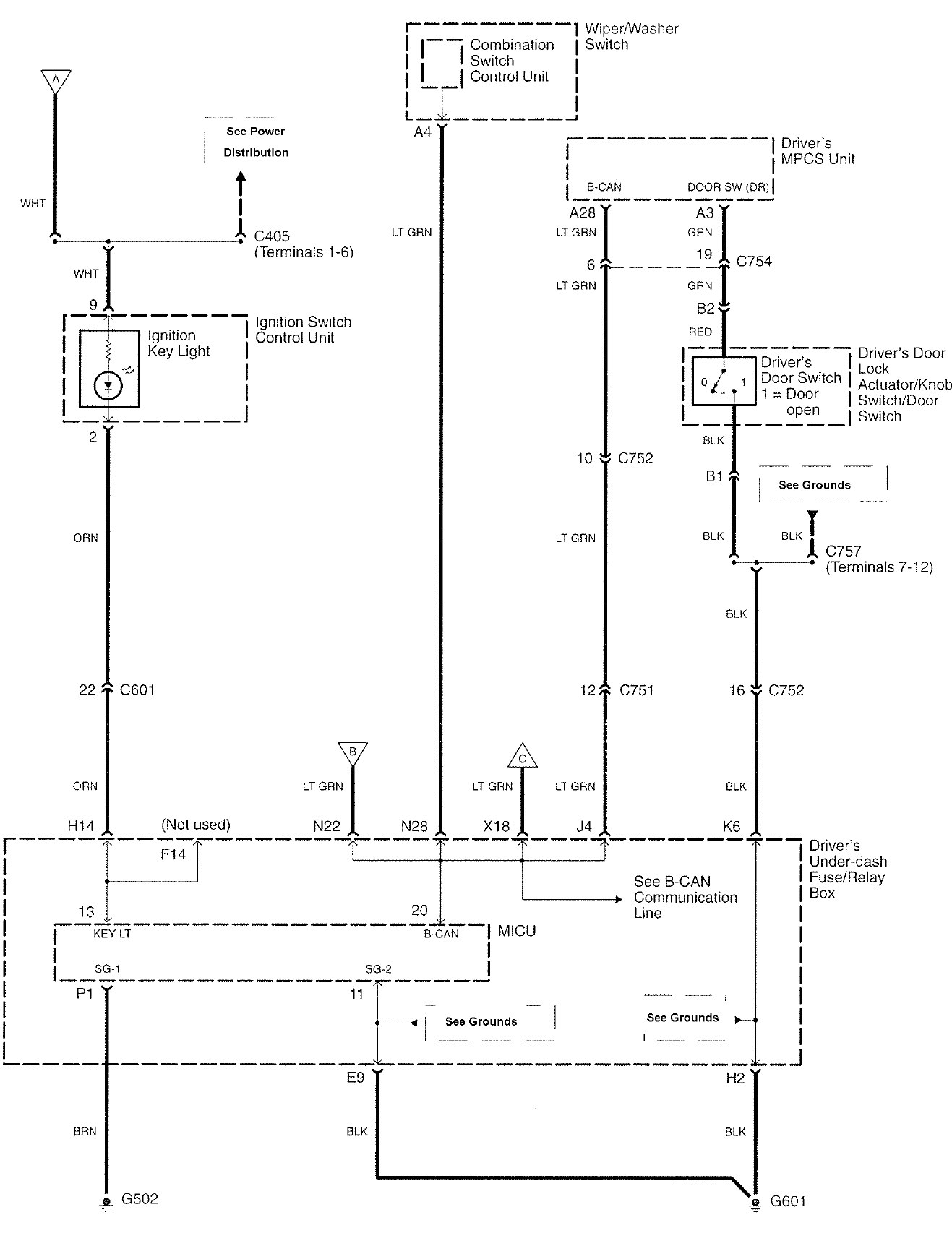

Acura RL - wiring diagram - warning indicators (part 2)
Acura RL – wiring diagram – warning indicators (part 2)

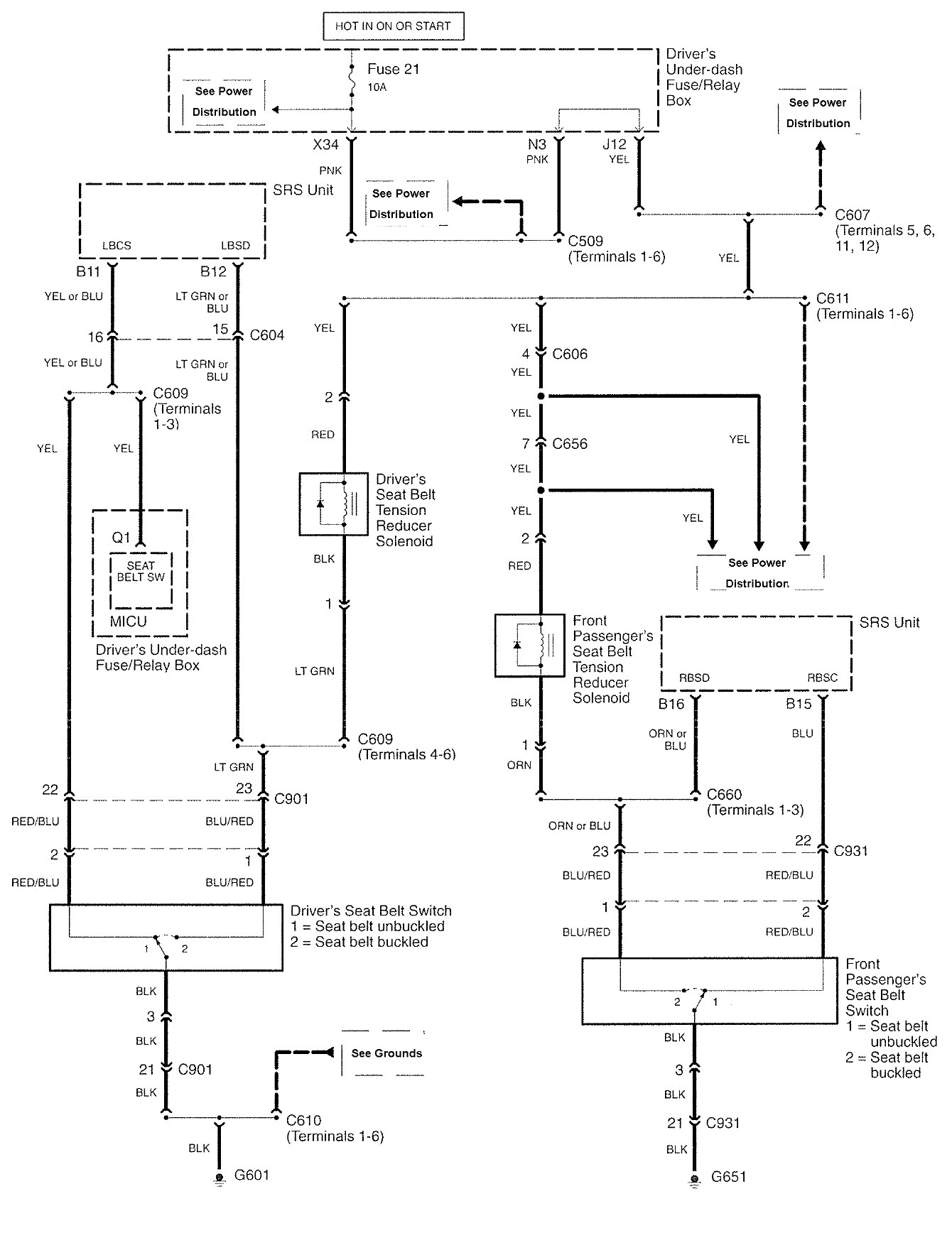

Acura RL - wiring diagram - warning indicators (part 3)
Acura RL – wiring diagram – warning indicators (part 3)

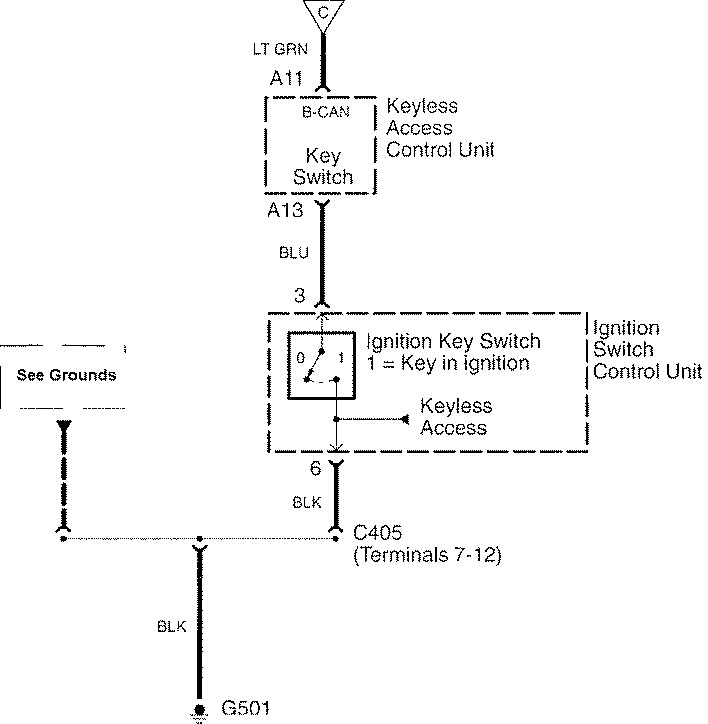

Acura RL - wiring diagram - warning indicators (part 4)
Acura RL – wiring diagram – warning indicators (part 4)

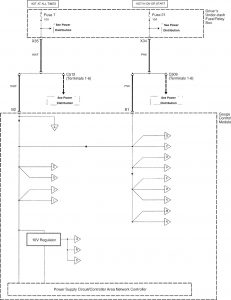

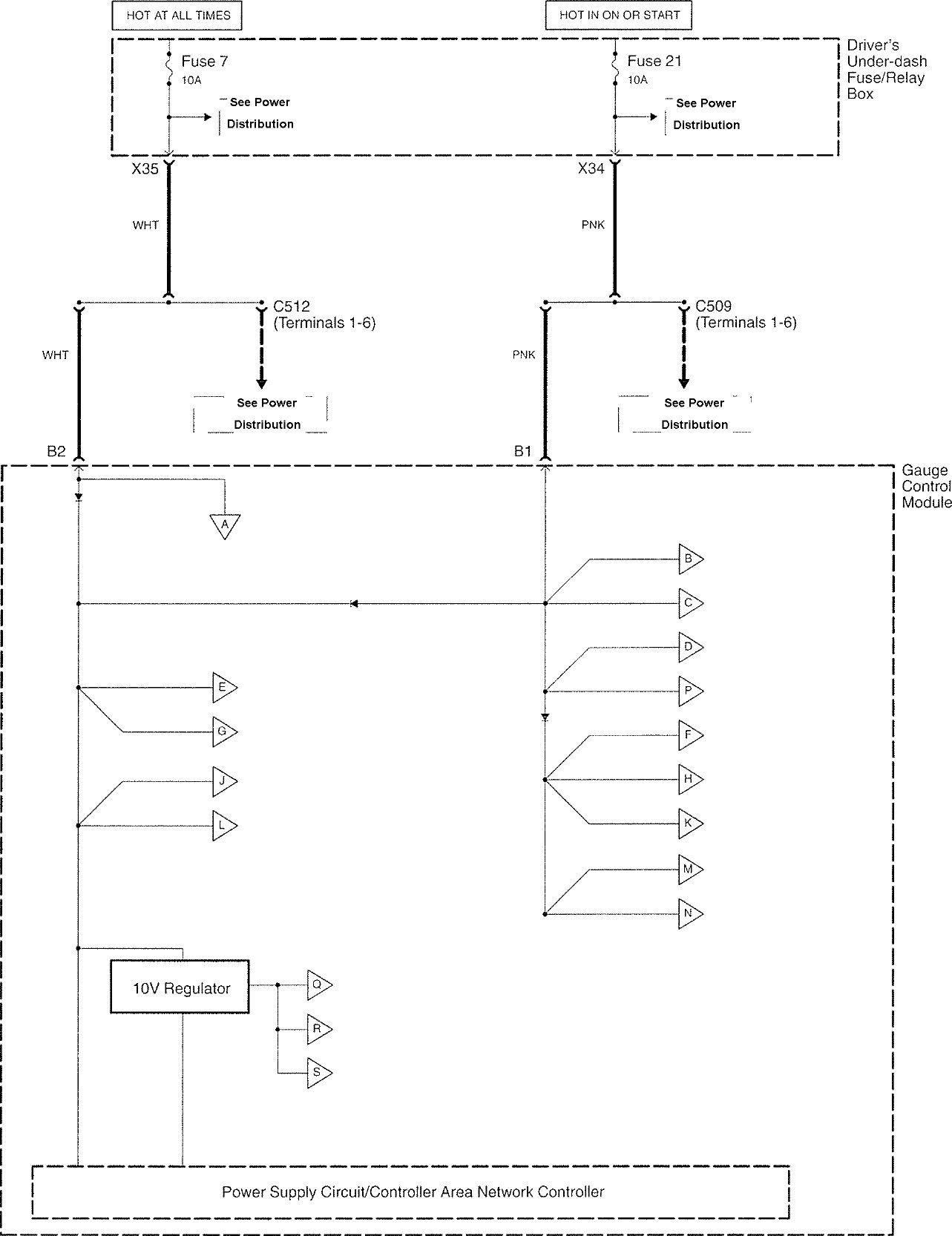

Acura RL - wiring diagram - warning indicators (part 5)
Acura RL – wiring diagram – warning indicators (part 5)

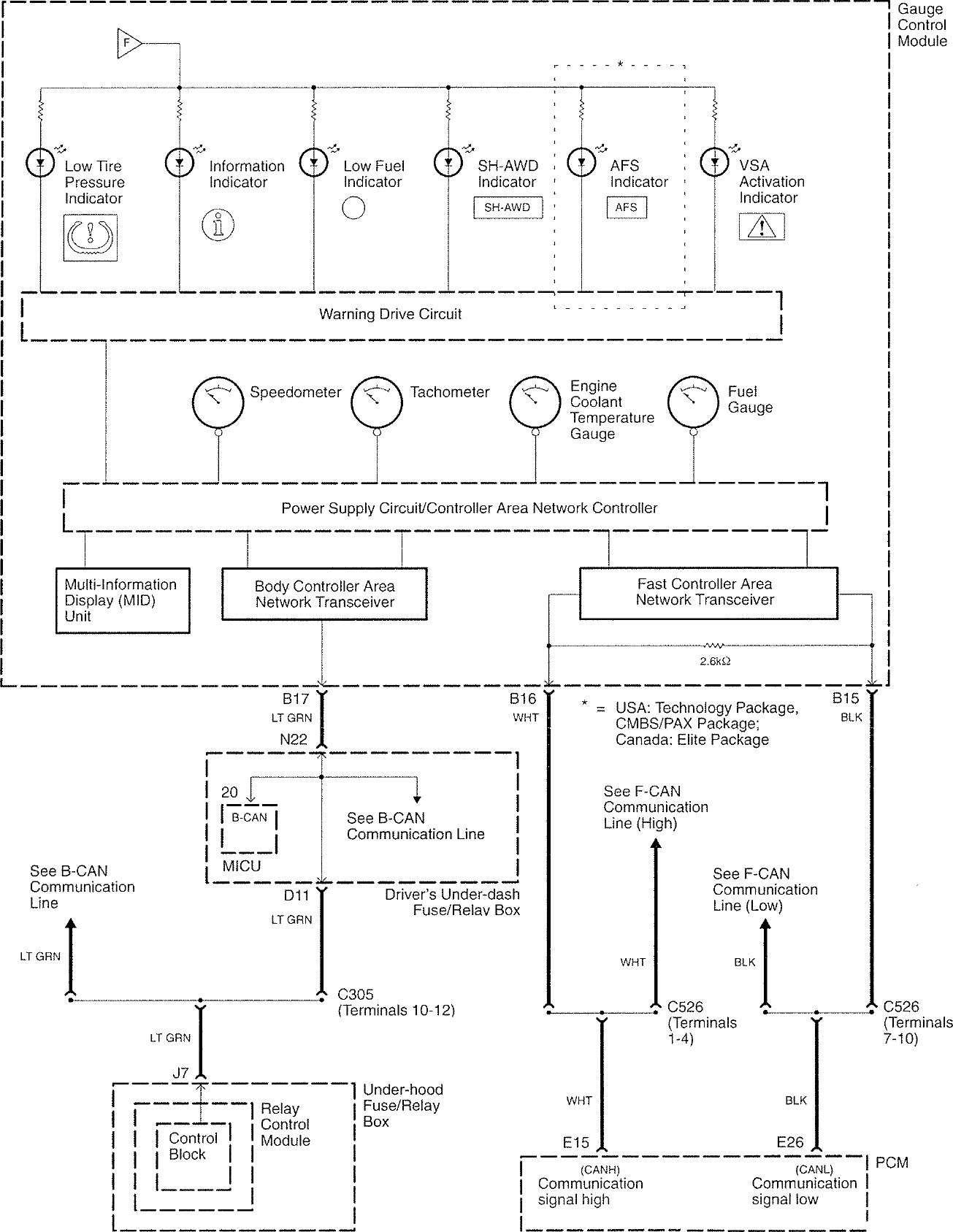

Acura RL - wiring diagram - warning indicators (part 6)
Acura RL – wiring diagram – warning indicators (part 6)

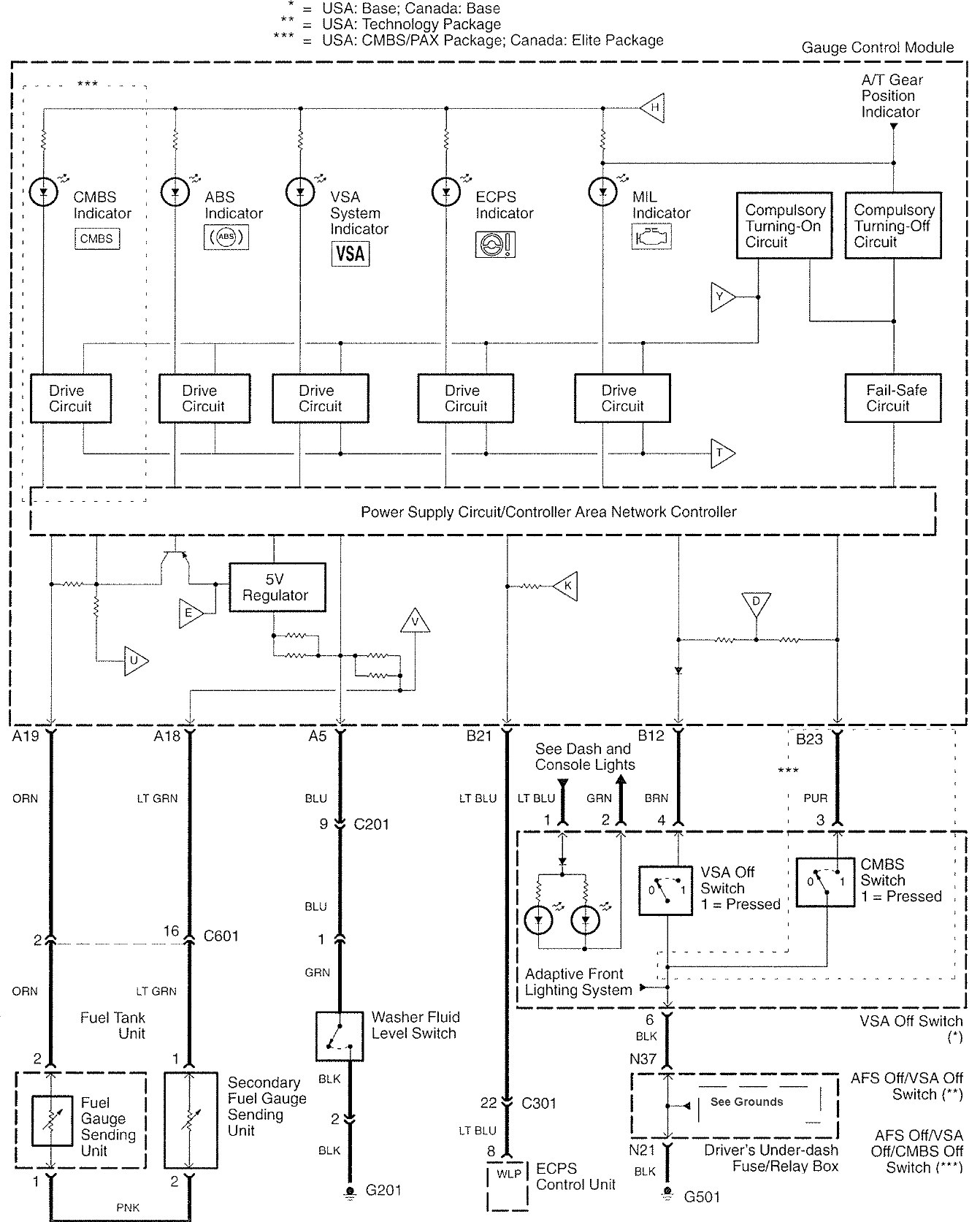

Acura RL - wiring diagram - warning indicators (part 7)
Acura RL – wiring diagram – warning indicators (part 7)

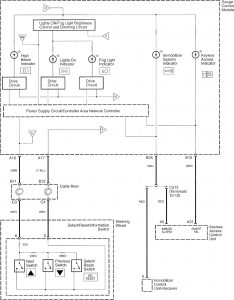

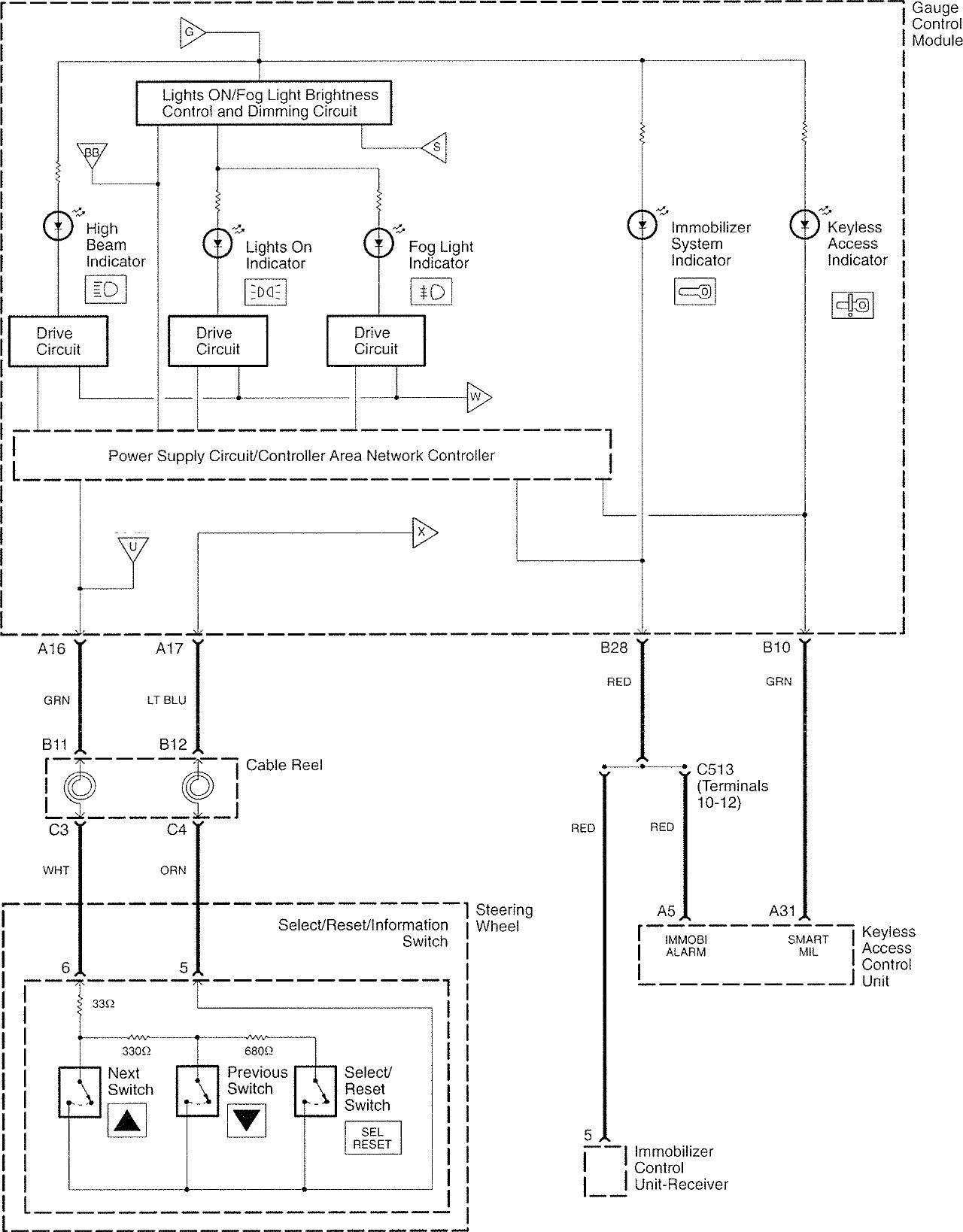

Acura RL - wiring diagram - warning indicators (part 8)
Acura RL – wiring diagram – warning indicators (part 8)

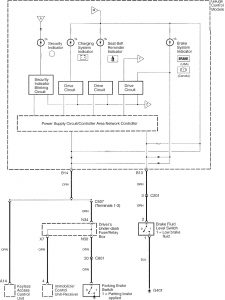

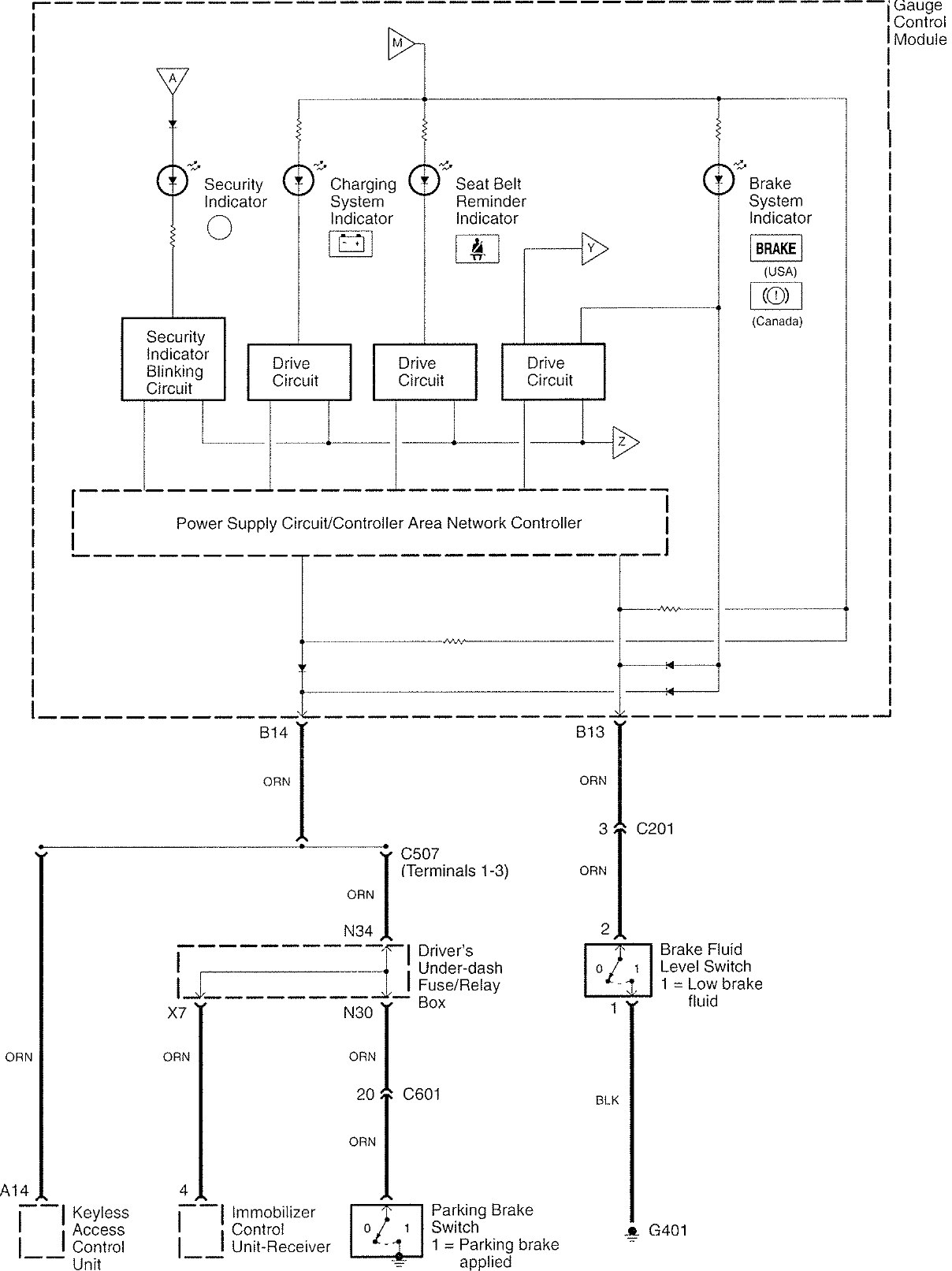

Acura RL - wiring diagram - warning indicators (part 9)
Acura RL – wiring diagram – warning indicators (part 9)

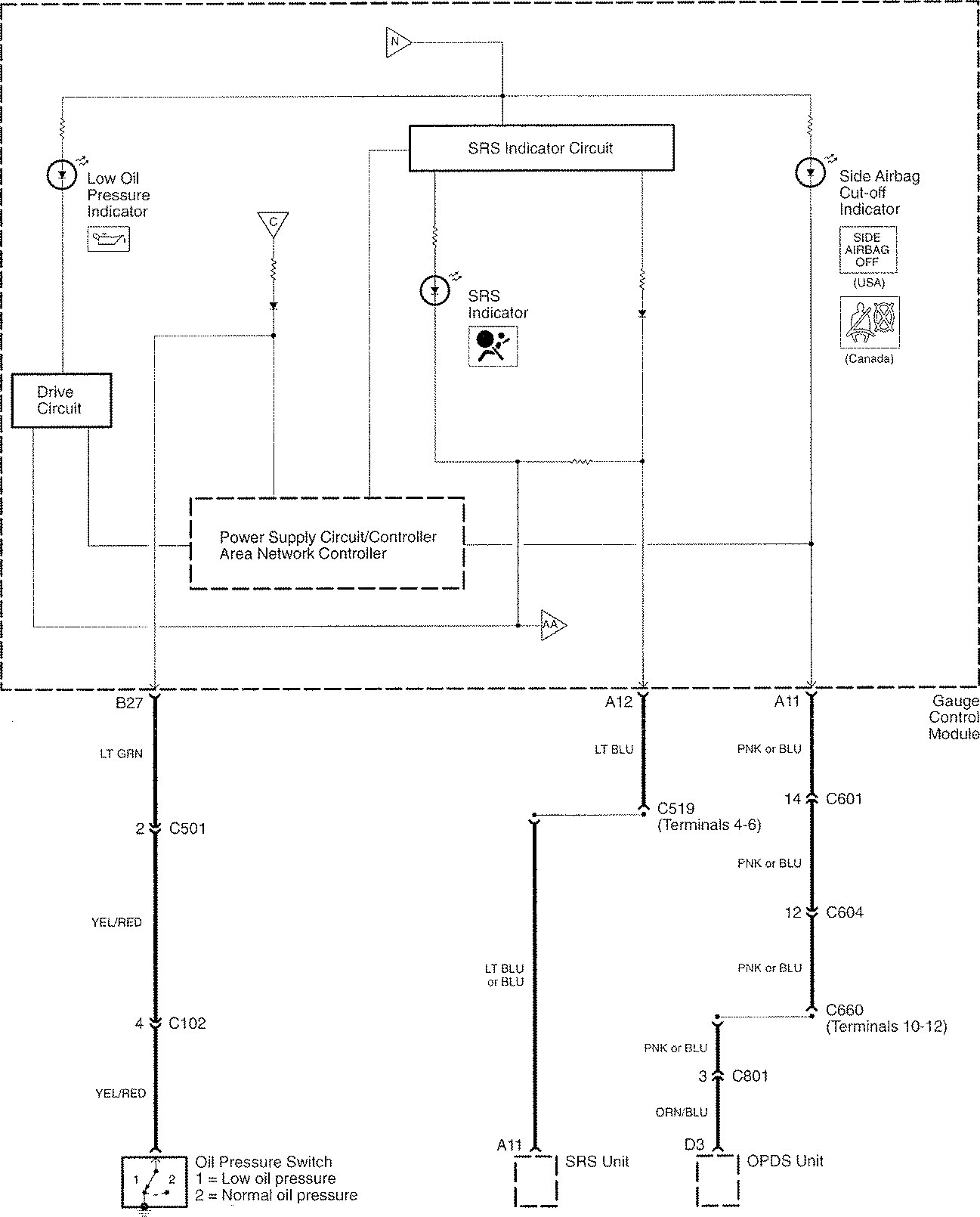

Acura RL - wiring diagram - warning indicators (part 10)
Acura RL – wiring diagram – warning indicators (part 10)

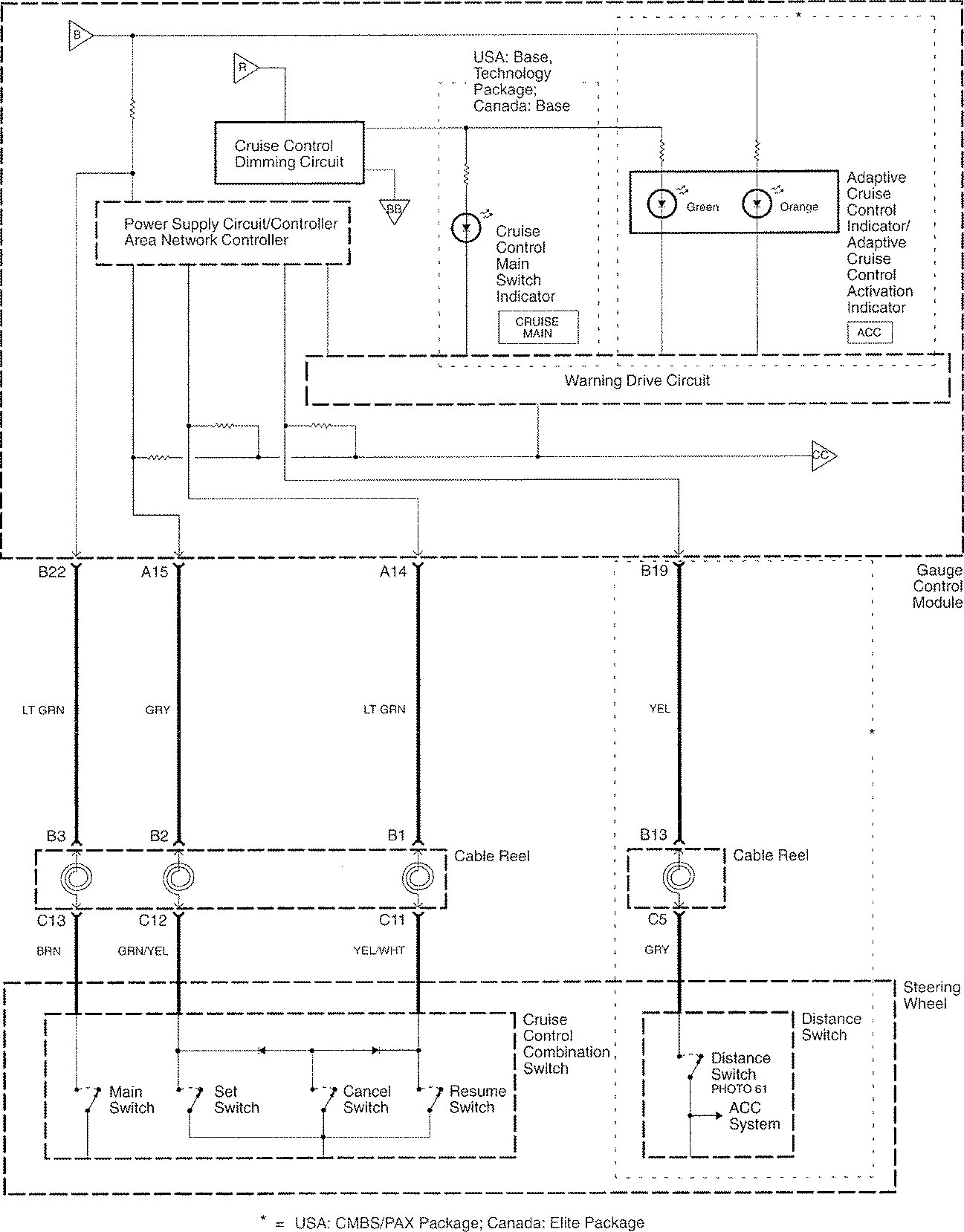

Acura RL - wiring diagram - warning indicators (part 11)
Acura RL – wiring diagram – warning indicators (part 11)

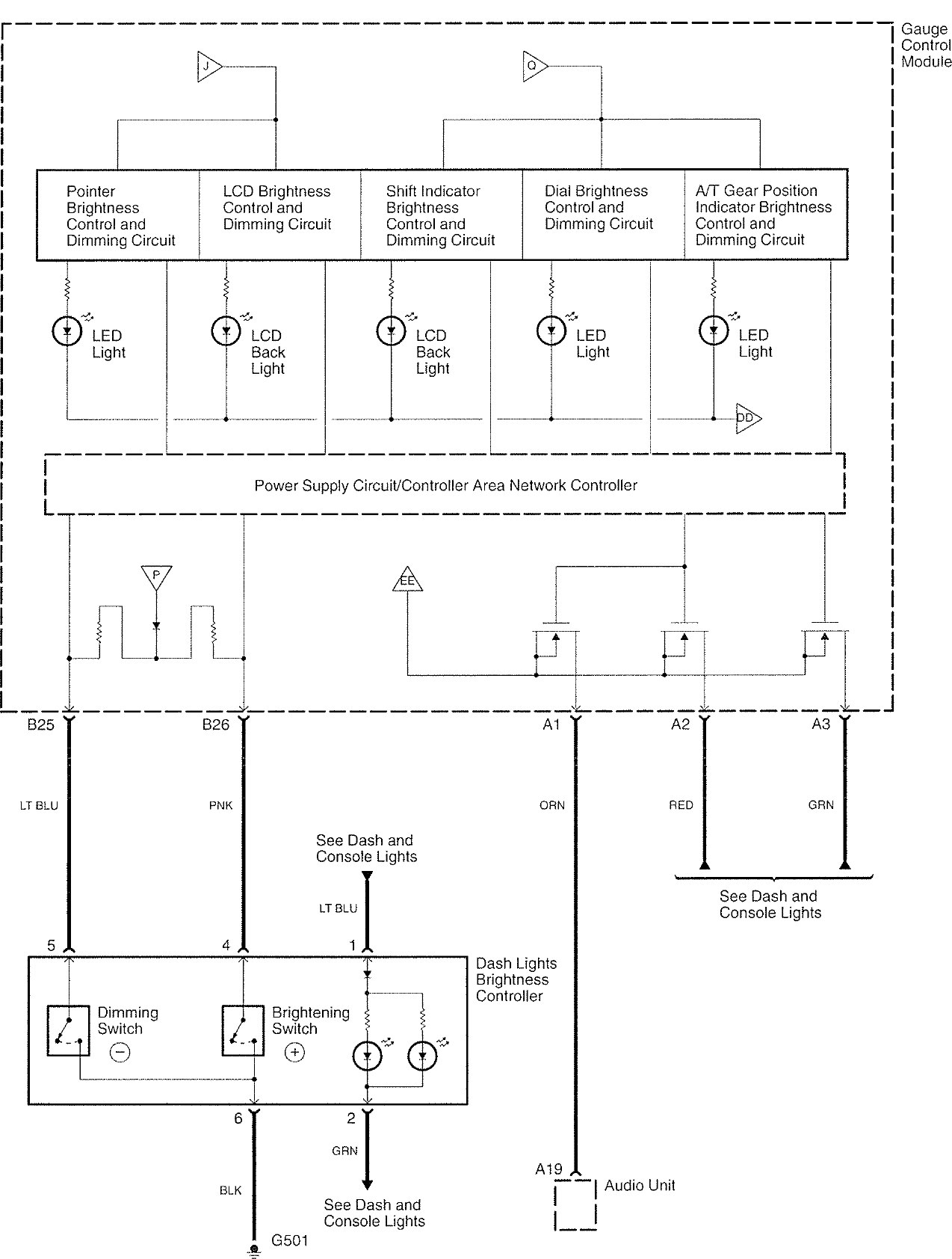

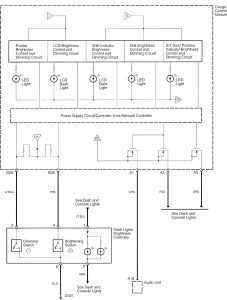

Acura RL - wiring diagram - warning indicators (part 12)
Acura RL – wiring diagram – warning indicators (part 12)

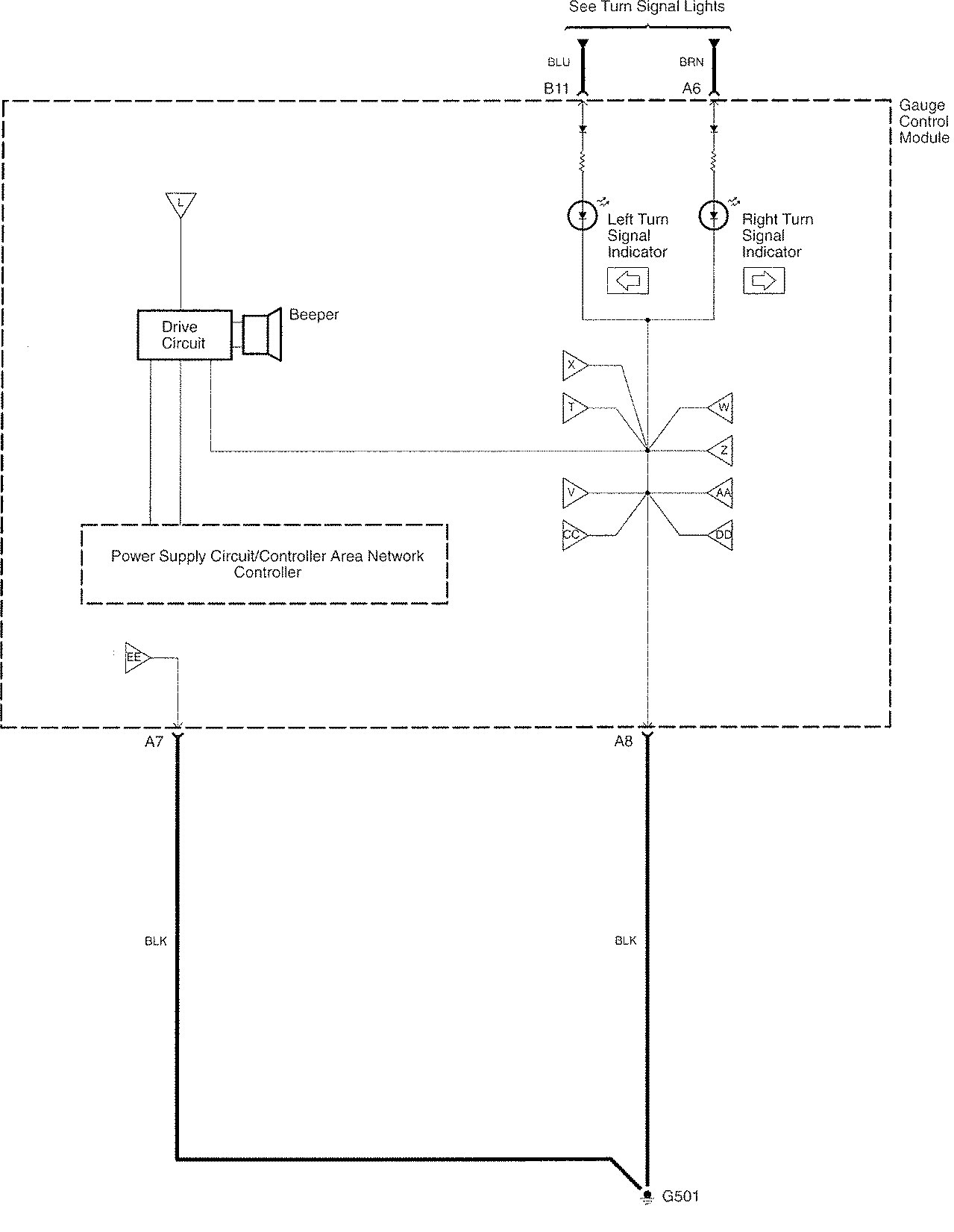

Acura RL - wiring diagram - warning indicators (part 13)
Acura RL – wiring diagram – warning indicators (part 13)

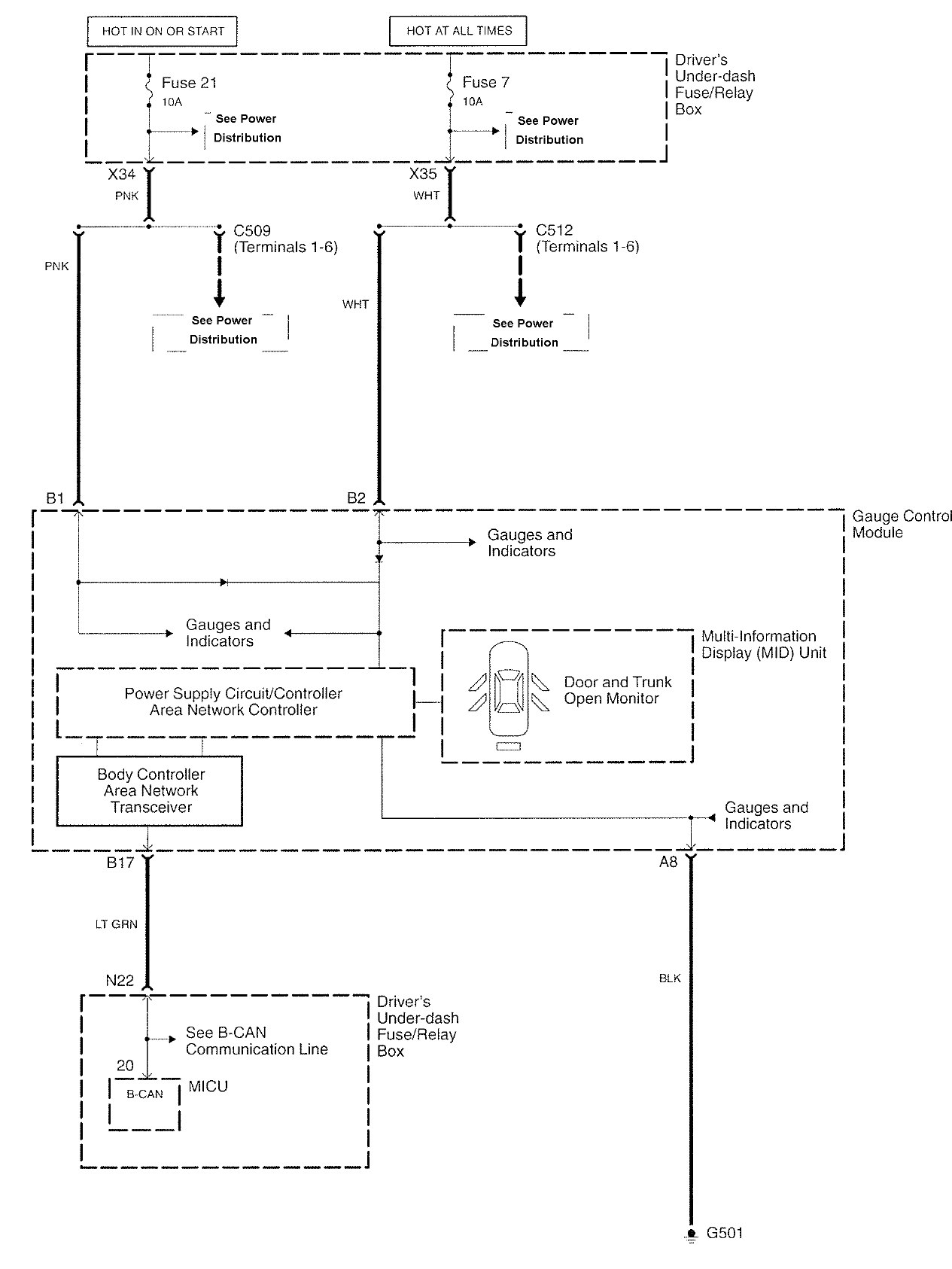

Acura RL - wiring diagram - warning indicators (part 14)
Acura RL – wiring diagram – warning indicators (part 14)

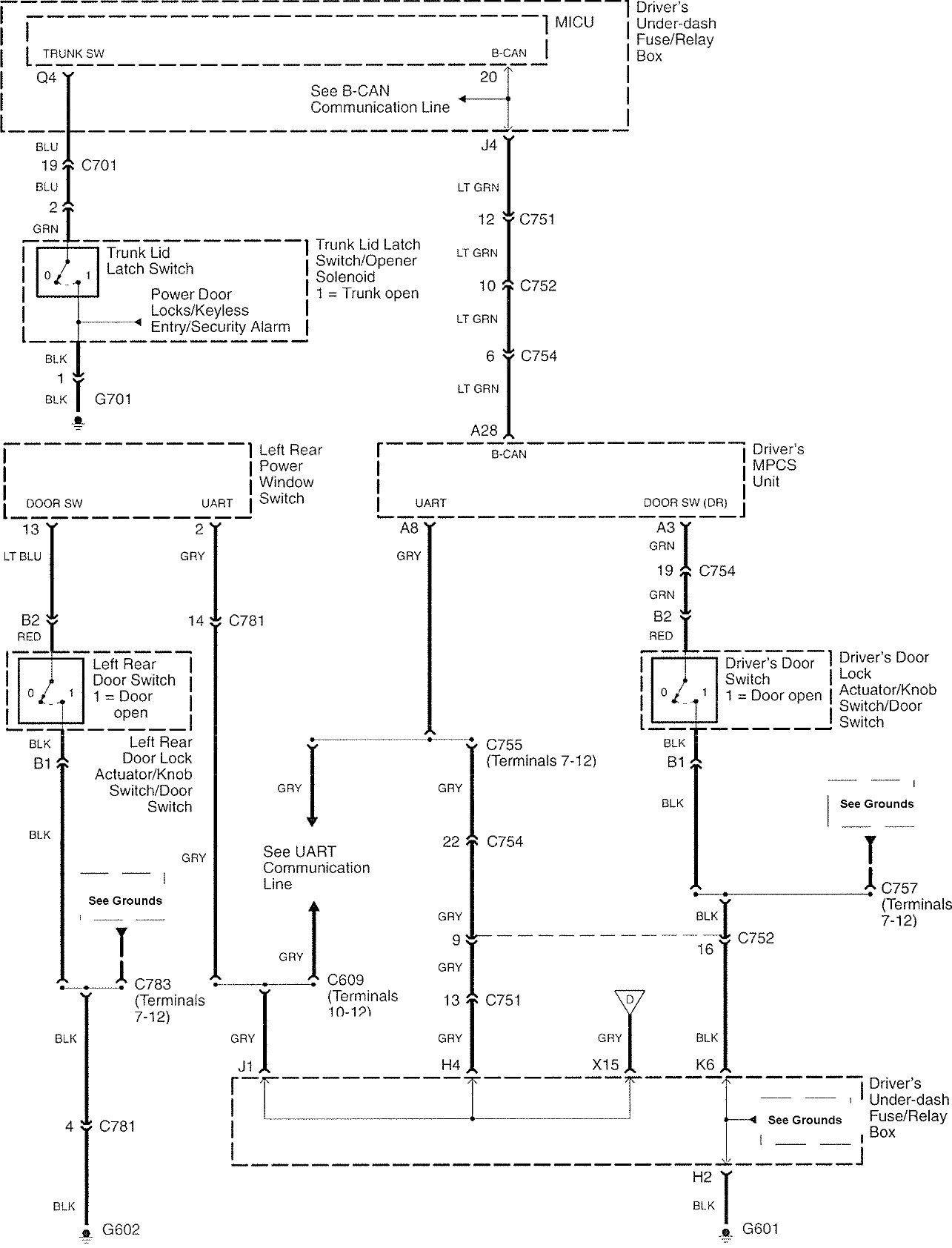

Acura RL - wiring diagram - warning indicators (part 15)
Acura RL – wiring diagram – warning indicators (part 15)

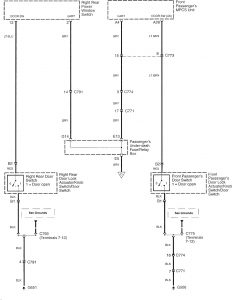

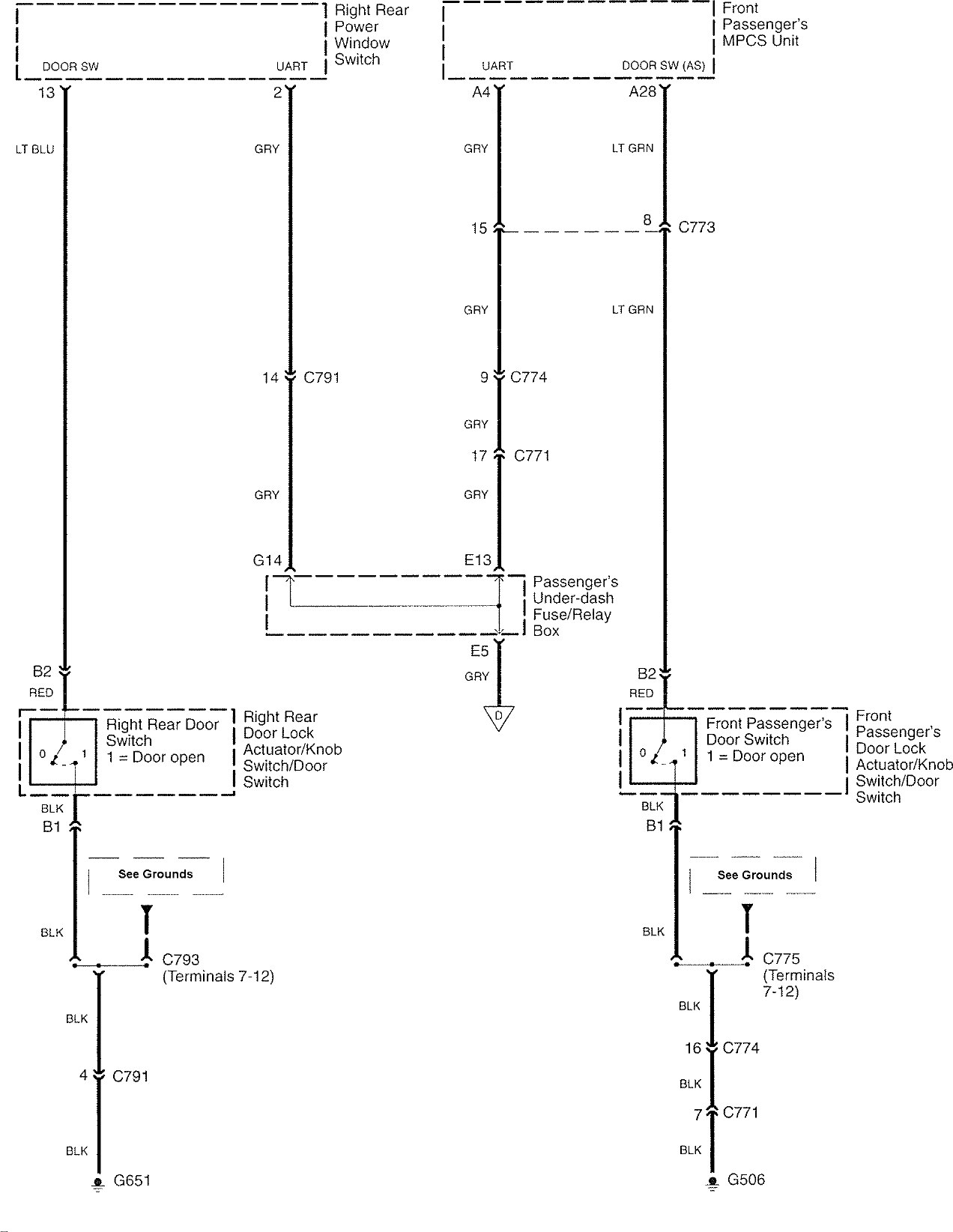

Acura RL - wiring diagram - warning indicators (part 16)
Acura RL – wiring diagram – warning indicators (part 16)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
