Acura RL (2008) – wiring diagrams – HVAC controls

15 October 2017 admin Acura, RL 0

Acura RL (2008) – wiring diagrams – HVAC controls

Year of productions:  2008

HVAC controls

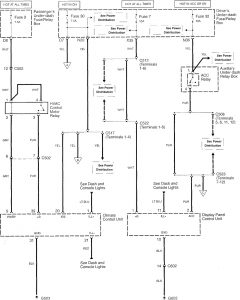

Acura RL - wiring diagram -HVAC controls (part 1)
Acura RL – wiring diagram -HVAC controls (part 1)
Acura RL - wiring diagram -HVAC controls (part 2)
Acura RL – wiring diagram -HVAC controls (part 2)

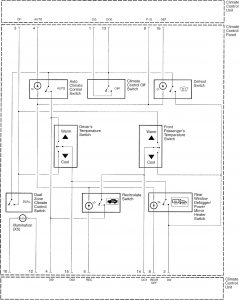

Acura RL - wiring diagram -HVAC controls (part 3)
Acura RL – wiring diagram -HVAC controls (part 3)
Acura RL - wiring diagram -HVAC controls (part 4)
Acura RL – wiring diagram -HVAC controls (part 4)

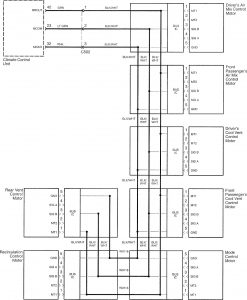

Acura RL - wiring diagram -HVAC controls (part 5)
Acura RL – wiring diagram -HVAC controls (part 5)

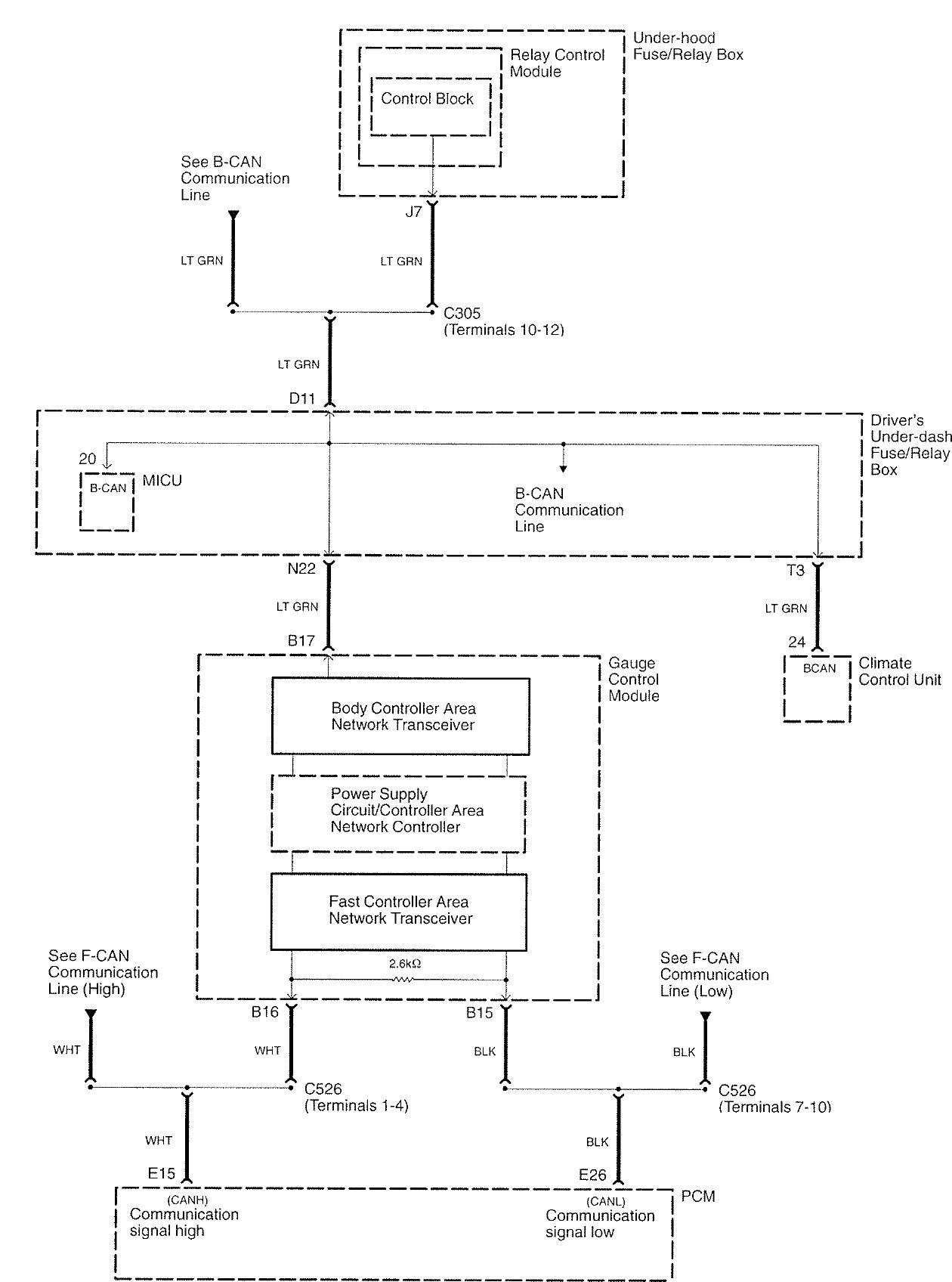

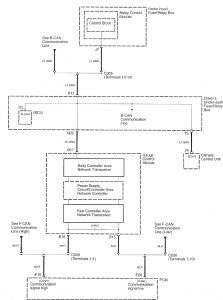

Acura RL - wiring diagram -HVAC controls (part 6)
Acura RL – wiring diagram -HVAC controls (part 6)

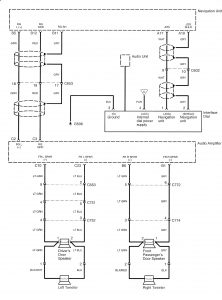

Acura RL - wiring diagram -HVAC controls (part 7)
Acura RL – wiring diagram -HVAC controls (part 7)

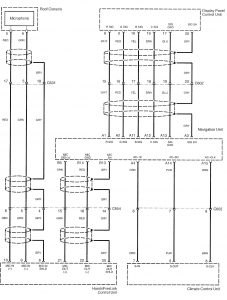

Acura RL - wiring diagram -HVAC controls (part 8)
Acura RL – wiring diagram -HVAC controls (part 8)

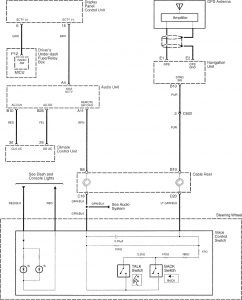

Acura RL - wiring diagram -HVAC controls (part 9)
Acura RL – wiring diagram -HVAC controls (part 9)
Acura RL - wiring diagram -HVAC controls (part 10)
Acura RL – wiring diagram -HVAC controls (part 10)

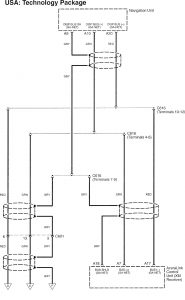

Acura RL - wiring diagram -HVAC controls (part 11)
Acura RL – wiring diagram -HVAC controls (part 11)

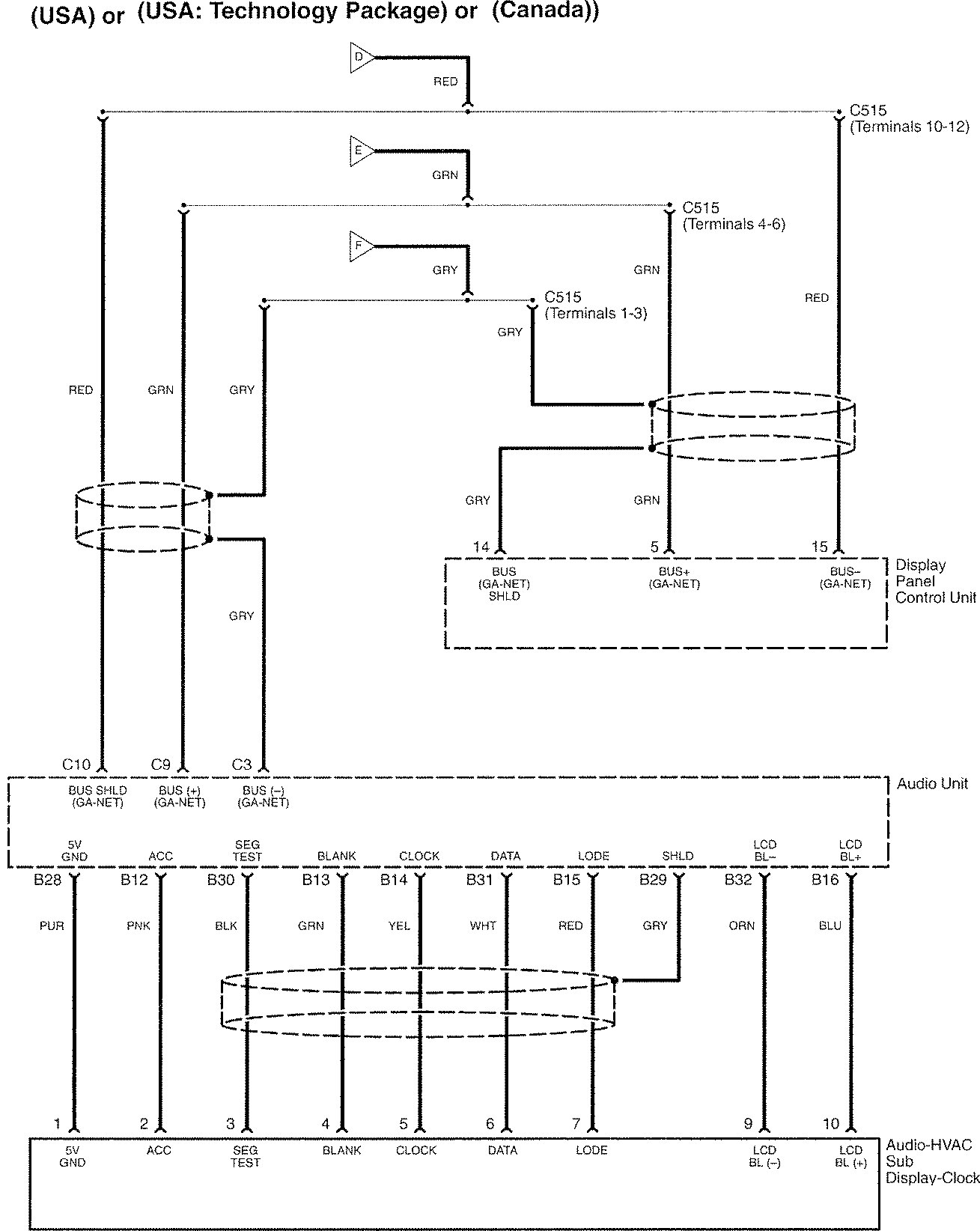

Acura RL - wiring diagram -HVAC controls (part 12)
Acura RL – wiring diagram -HVAC controls (part 12)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
