Acura RL (2007) – wiring diagrams – keyless entry

11 October 2017 admin Acura, RL 0

Acura RL (2007) – wiring diagrams – keyless entry

Year of productions:  2007

Keyless entry

Version 1

Acura RL - wiring diagram - keyless entry (part 1)
Acura RL – wiring diagram – keyless entry (part 1)
Acura RL - wiring diagram - keyless entry (part 2)
Acura RL – wiring diagram – keyless entry (part 2)
Acura RL - wiring diagram - keyless entry (part 3)
Acura RL – wiring diagram – keyless entry (part 3)
Acura RL - wiring diagram - keyless entry (part 4)
Acura RL – wiring diagram – keyless entry (part 4)
Acura RL - wiring diagram - keyless entry (part 5)
Acura RL – wiring diagram – keyless entry (part 5)
Acura RL - wiring diagram - keyless entry (part 6)
Acura RL – wiring diagram – keyless entry (part 6)
Acura RL - wiring diagram - keyless entry (part 7)
Acura RL – wiring diagram – keyless entry (part 7)
Acura RL - wiring diagram - keyless entry (part 8)
Acura RL – wiring diagram – keyless entry (part 8)
Acura RL - wiring diagram - keyless entry (part 9)
Acura RL – wiring diagram – keyless entry (part 9)
Acura RL - wiring diagram - keyless entry (part 10)
Acura RL – wiring diagram – keyless entry (part 10)
Acura RL - wiring diagram - keyless entry (part 11)
Acura RL – wiring diagram – keyless entry (part 11)

Version 2

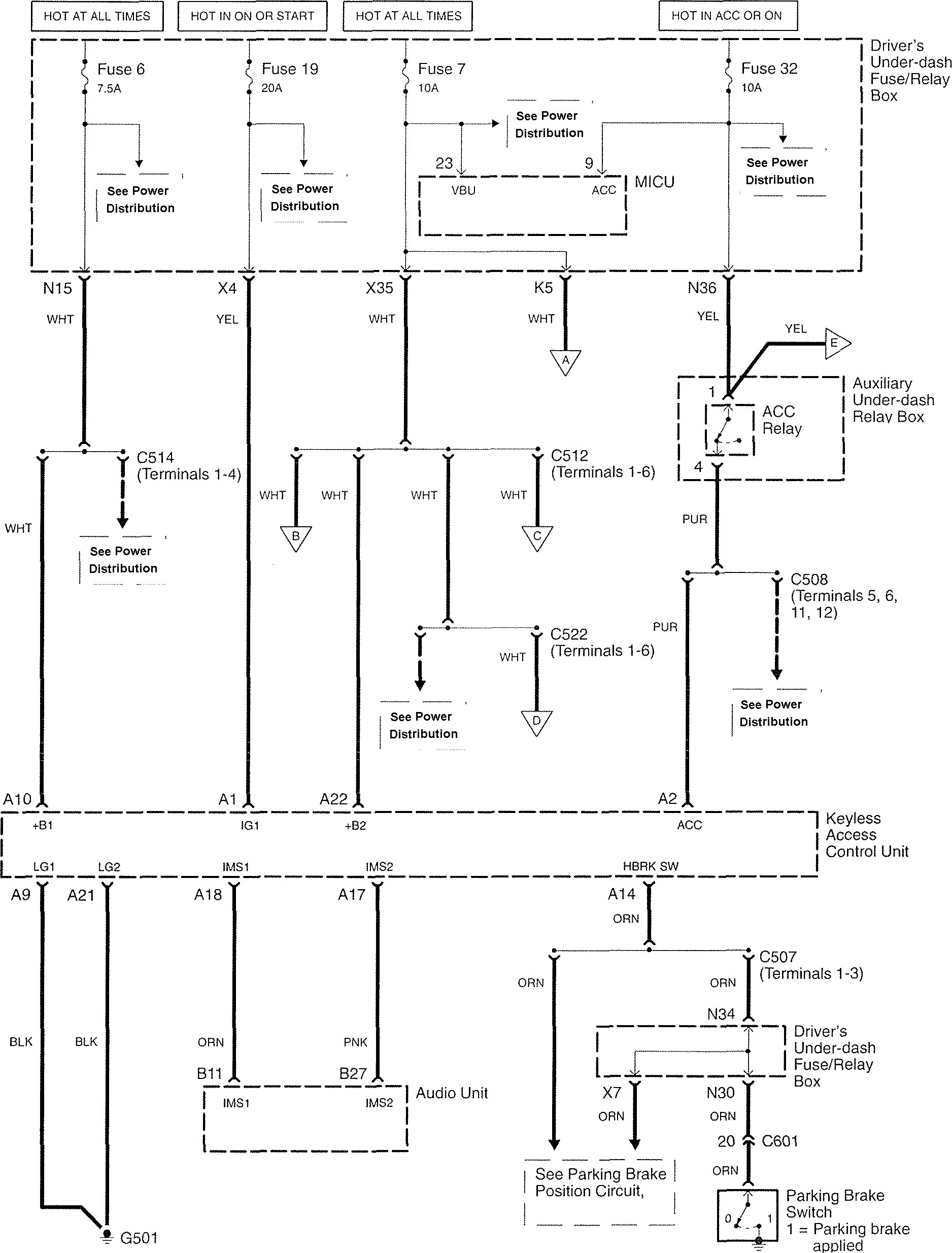

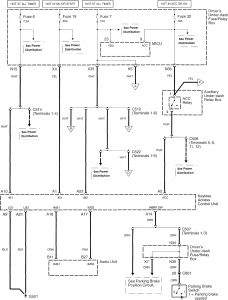

Acura RL - wiring diagram - keyless entry (part 1)
Acura RL – wiring diagram – keyless entry (part 1)

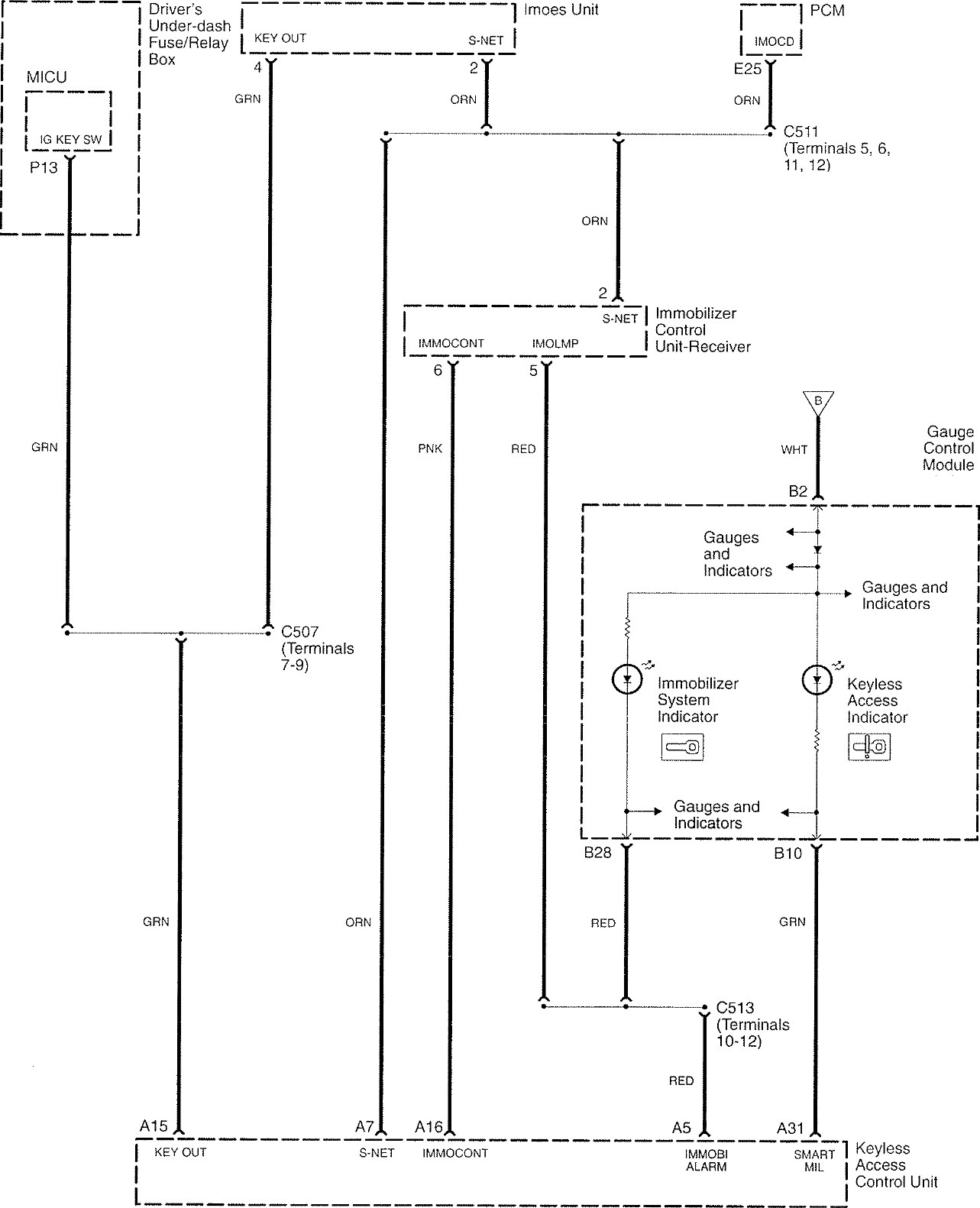

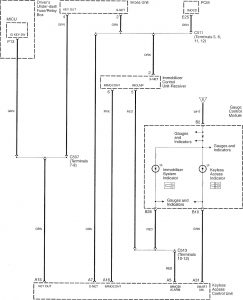

Acura RL - wiring diagram - keyless entry (part 2)
Acura RL – wiring diagram – keyless entry (part 2)

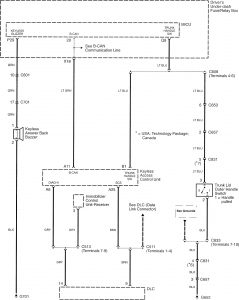

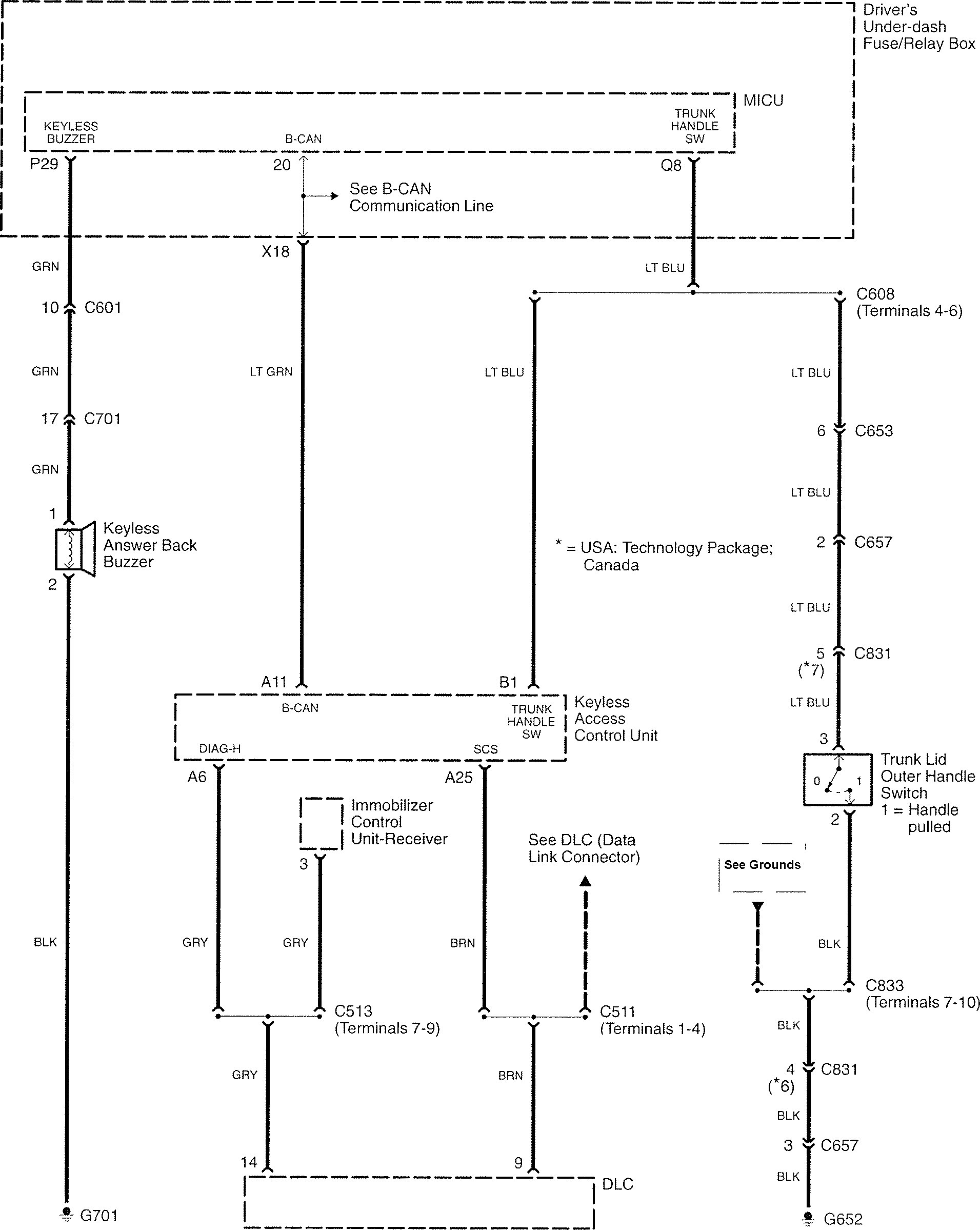

Acura RL - wiring diagram - keyless entry (part 3)
Acura RL – wiring diagram – keyless entry (part 3)

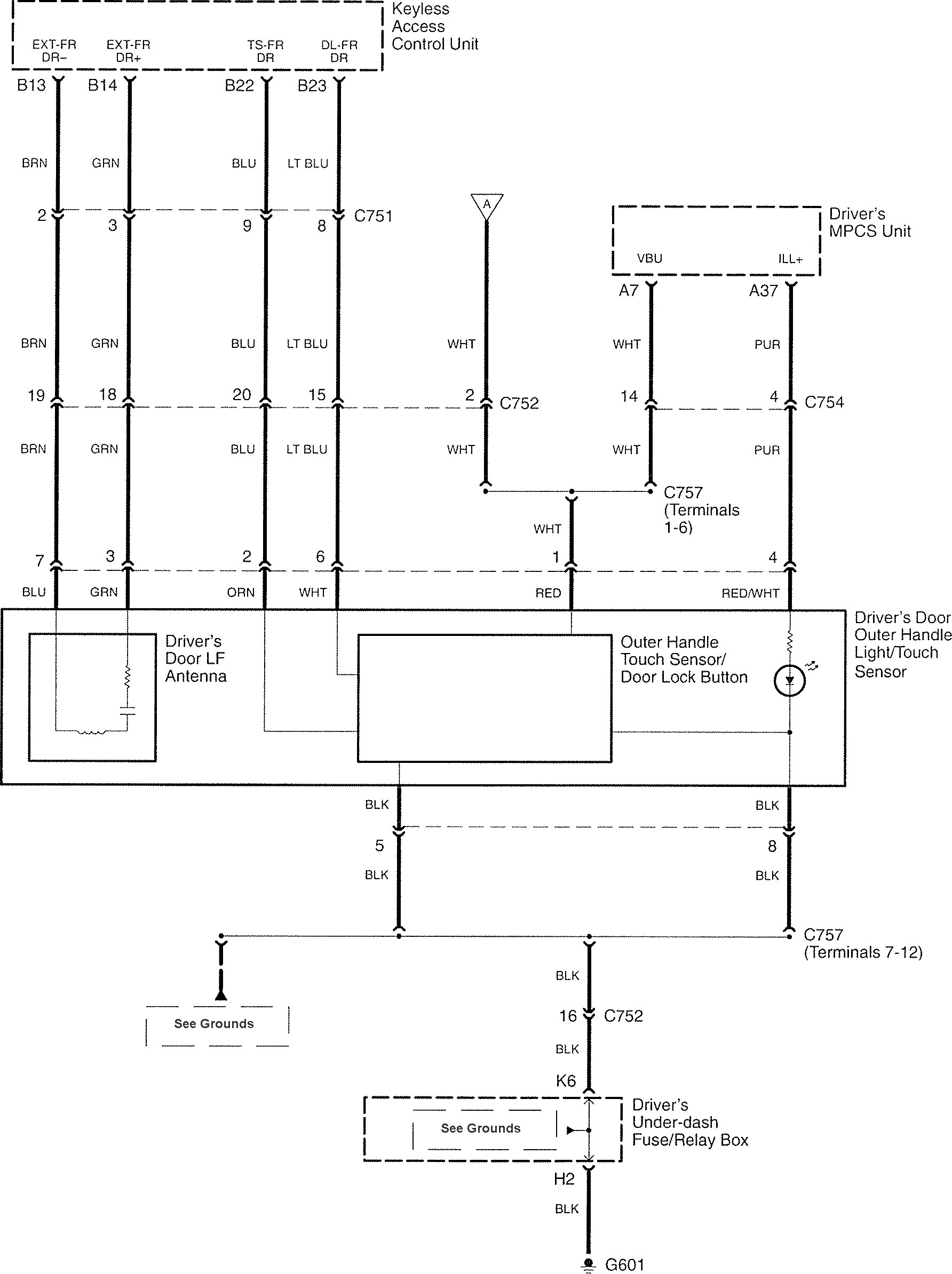

Acura RL - wiring diagram - keyless entry (part 4)
Acura RL – wiring diagram – keyless entry (part 4)

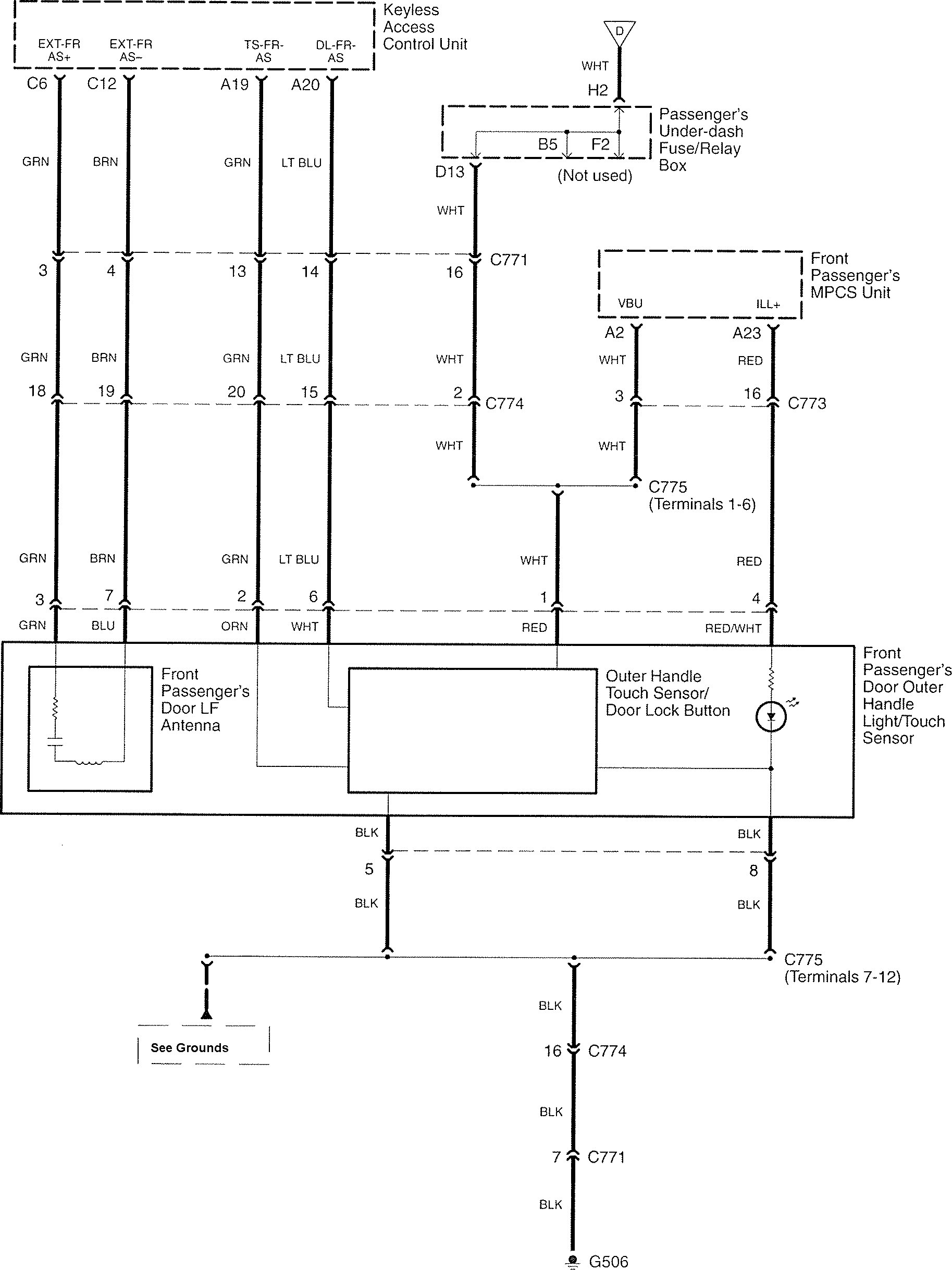

Acura RL - wiring diagram - keyless entry (part 5)
Acura RL – wiring diagram – keyless entry (part 5)

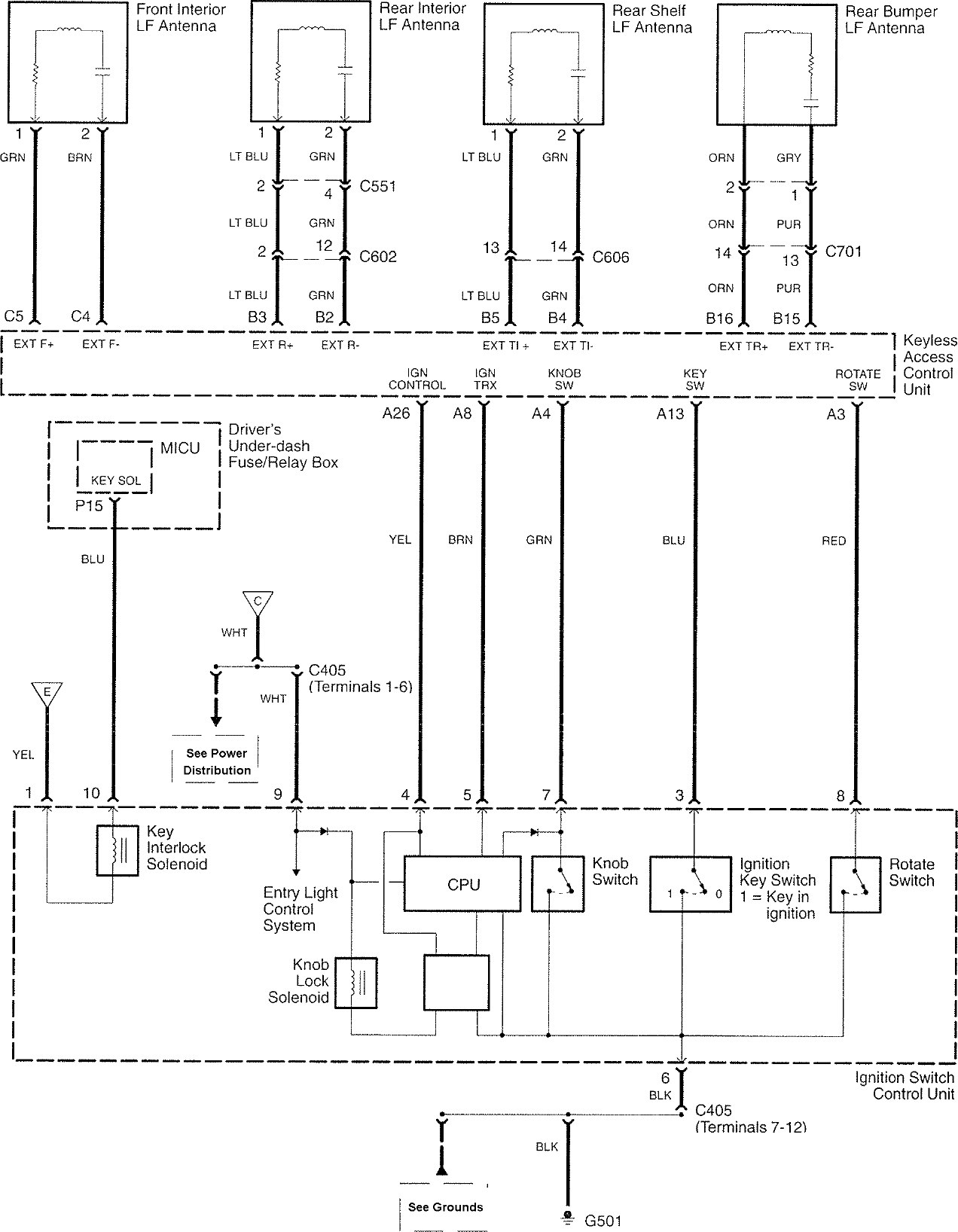

Acura RL - wiring diagram - keyless entry (part 6)
Acura RL – wiring diagram – keyless entry (part 6)

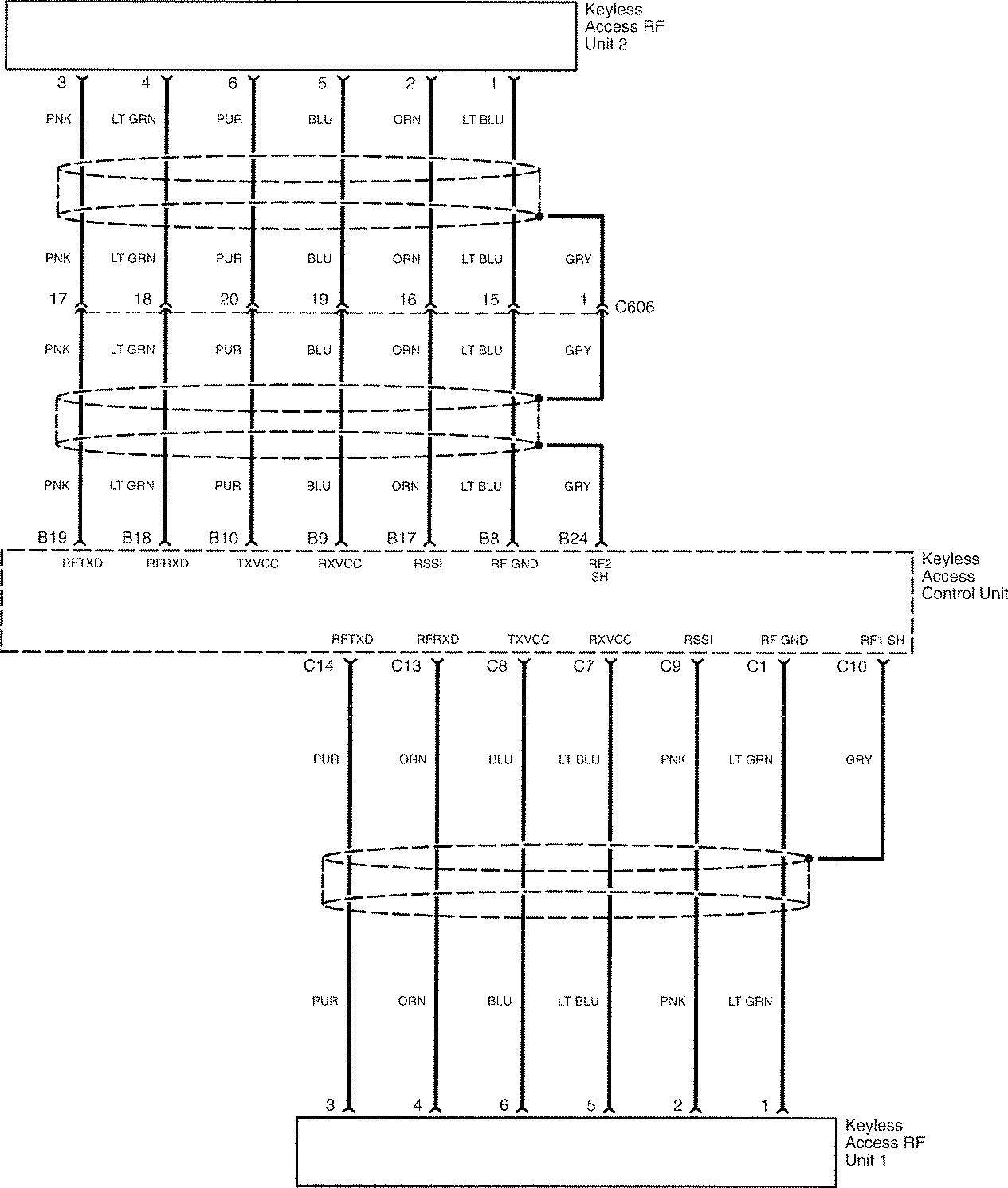

Acura RL - wiring diagram - keyless entry (part 7)
Acura RL – wiring diagram – keyless entry (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
