Acura RL (2006) – wiring diagrams – hands free link system

Acura RL (2006) – wiring diagrams – hands free link system

Year of productions:  2006

Hands free link system

Version 1

Acura RL - wiring diagram - hands free link system (part 1)
Acura RL – wiring diagram – hands free link system (part 1)
Acura RL - wiring diagram - hands free link system (part 2)
Acura RL – wiring diagram – hands free link system (part 2)
Acura RL - wiring diagram - hands free link system (part 3)
Acura RL – wiring diagram – hands free link system (part 3)
Acura RL - wiring diagram - hands free link system (part 4)
Acura RL – wiring diagram – hands free link system (part 4)
Acura RL - wiring diagram - hands free link system (part 5)
Acura RL – wiring diagram – hands free link system (part 5)

Version 2

Acura RL - wiring diagram - hands free link system (part 1)

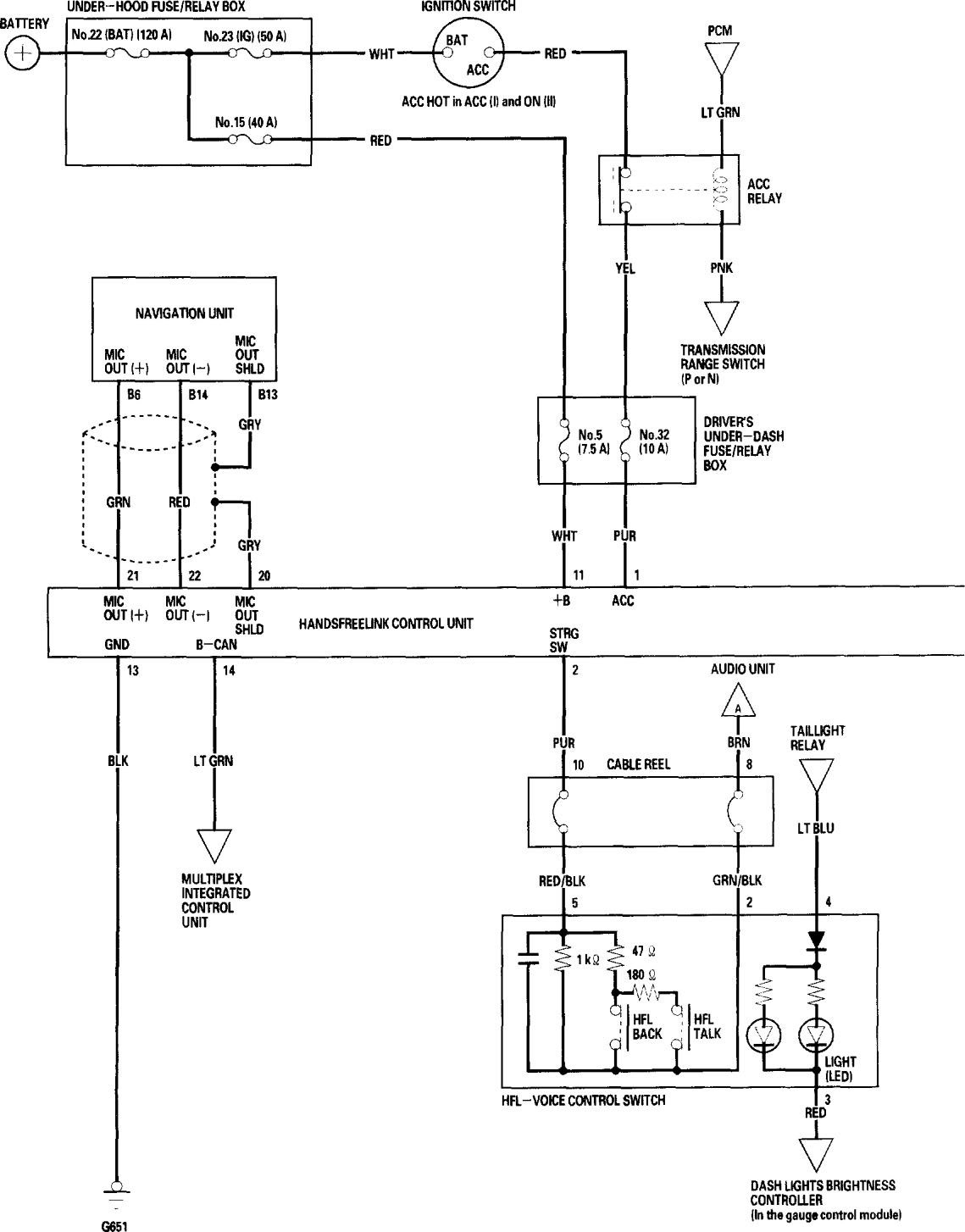

Acura RL – wiring diagram – hands free link system (part 1)
Acura RL - wiring diagram - hands free link system (part 2)

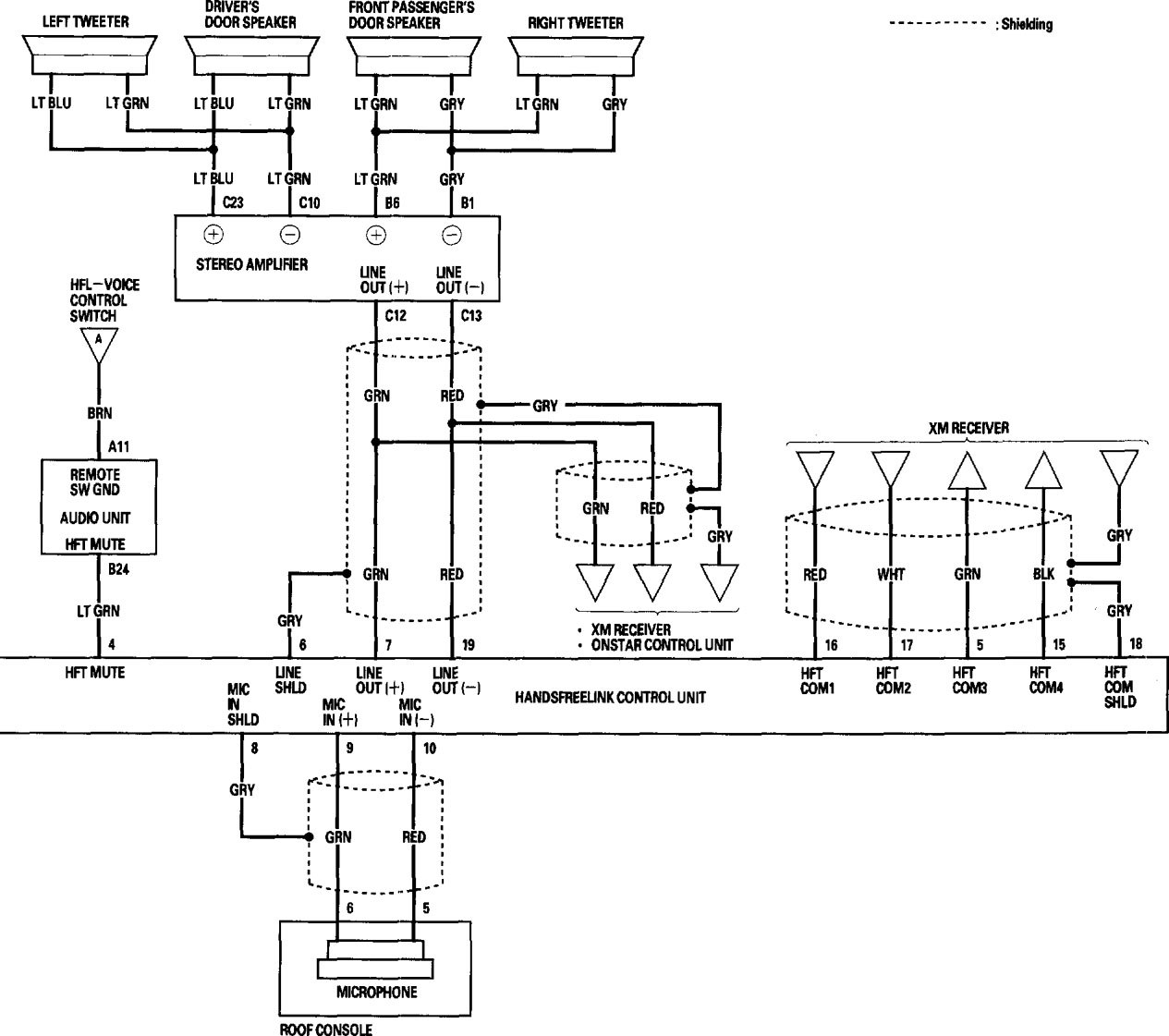

Acura RL – wiring diagram – hands free link system (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
