Acura RL (2006) – wiring diagrams – ground distribution

Year of productions:  2006

Ground distribution

Version 1

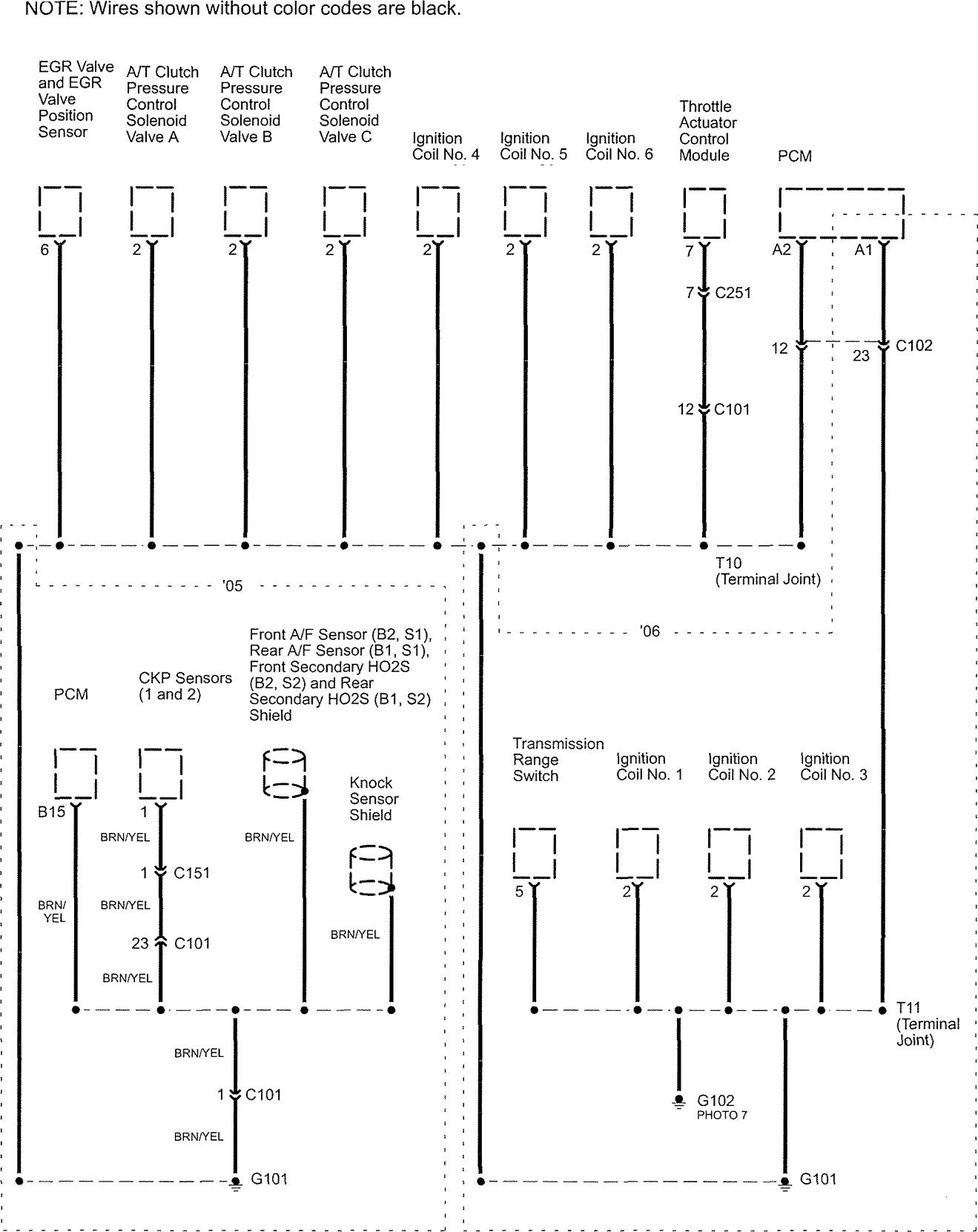

Acura RL - wiring diagram - ground distribution (part 1)
Acura RL – wiring diagram – ground distribution (part 1)

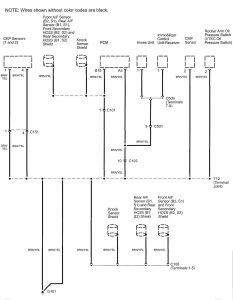

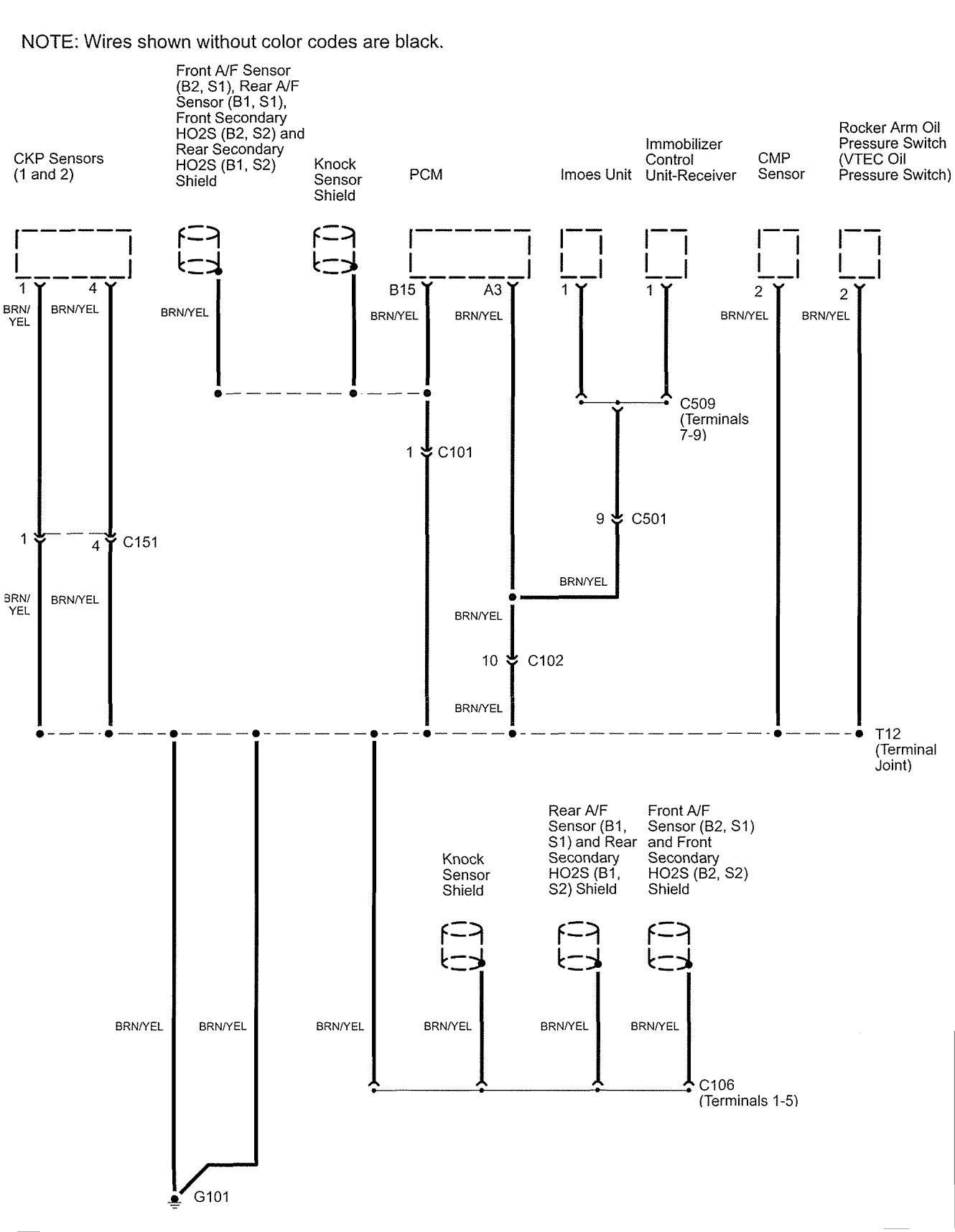

Acura RL - wiring diagram - ground distribution (part 2)
Acura RL – wiring diagram – ground distribution (part 2)

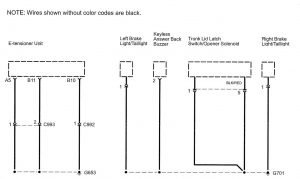

Acura RL - wiring diagram - ground distribution (part 3)
Acura RL – wiring diagram – ground distribution (part 3)

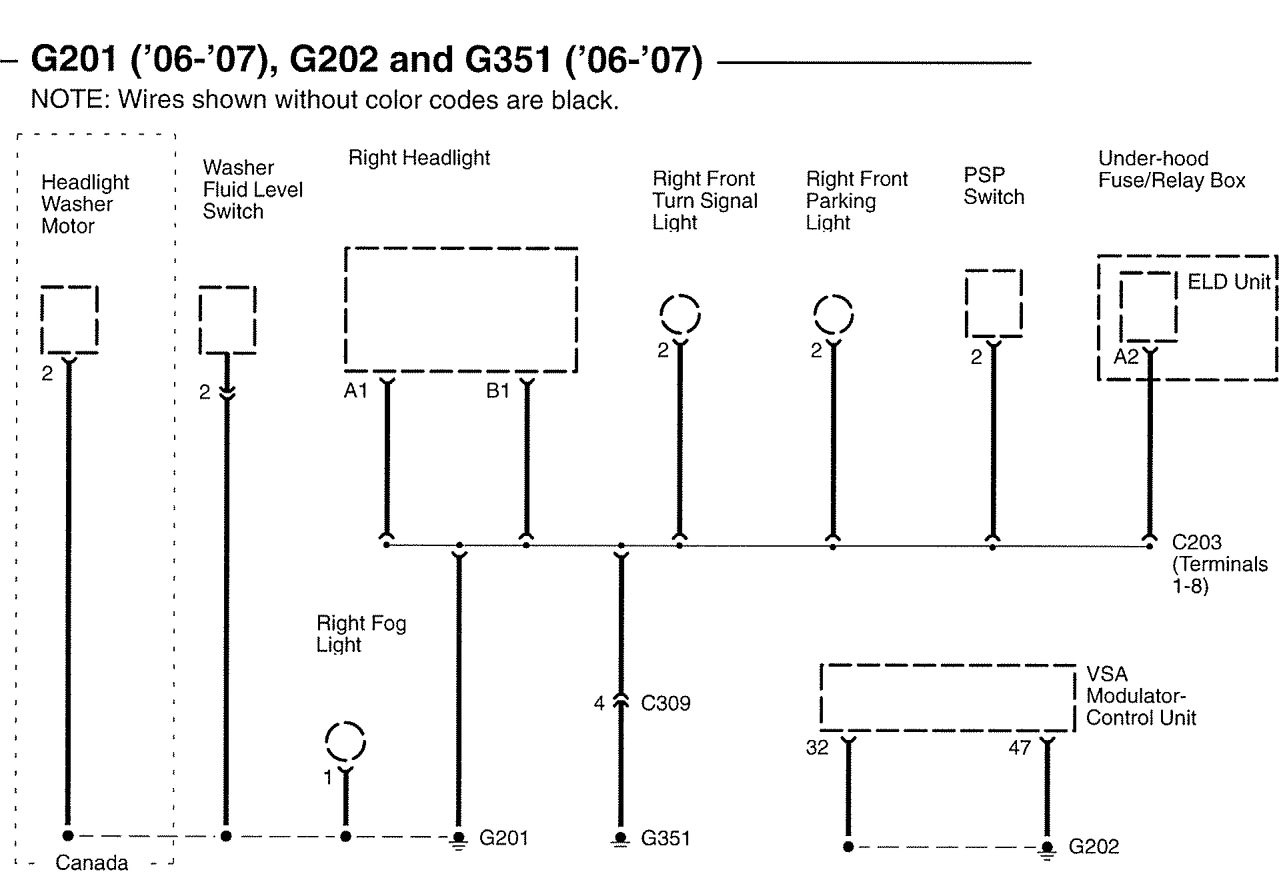

Acura RL - wiring diagram - ground distribution (part 4)
Acura RL – wiring diagram – ground distribution (part 4)

Version 2

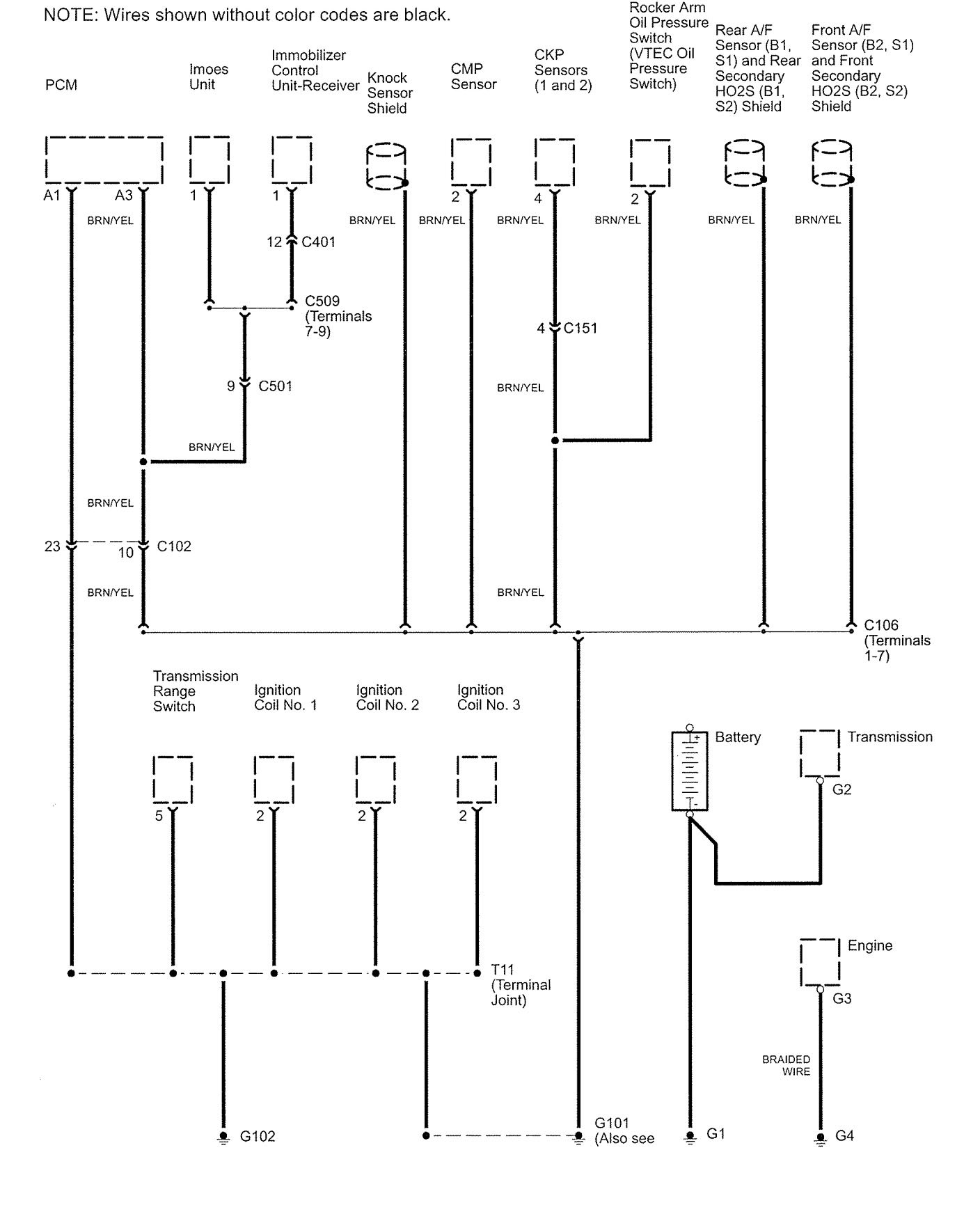

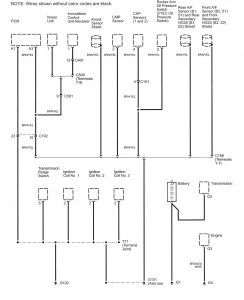

Acura RL - wiring diagram - ground distribution (part 1)
Acura RL – wiring diagram – ground distribution (part 1)

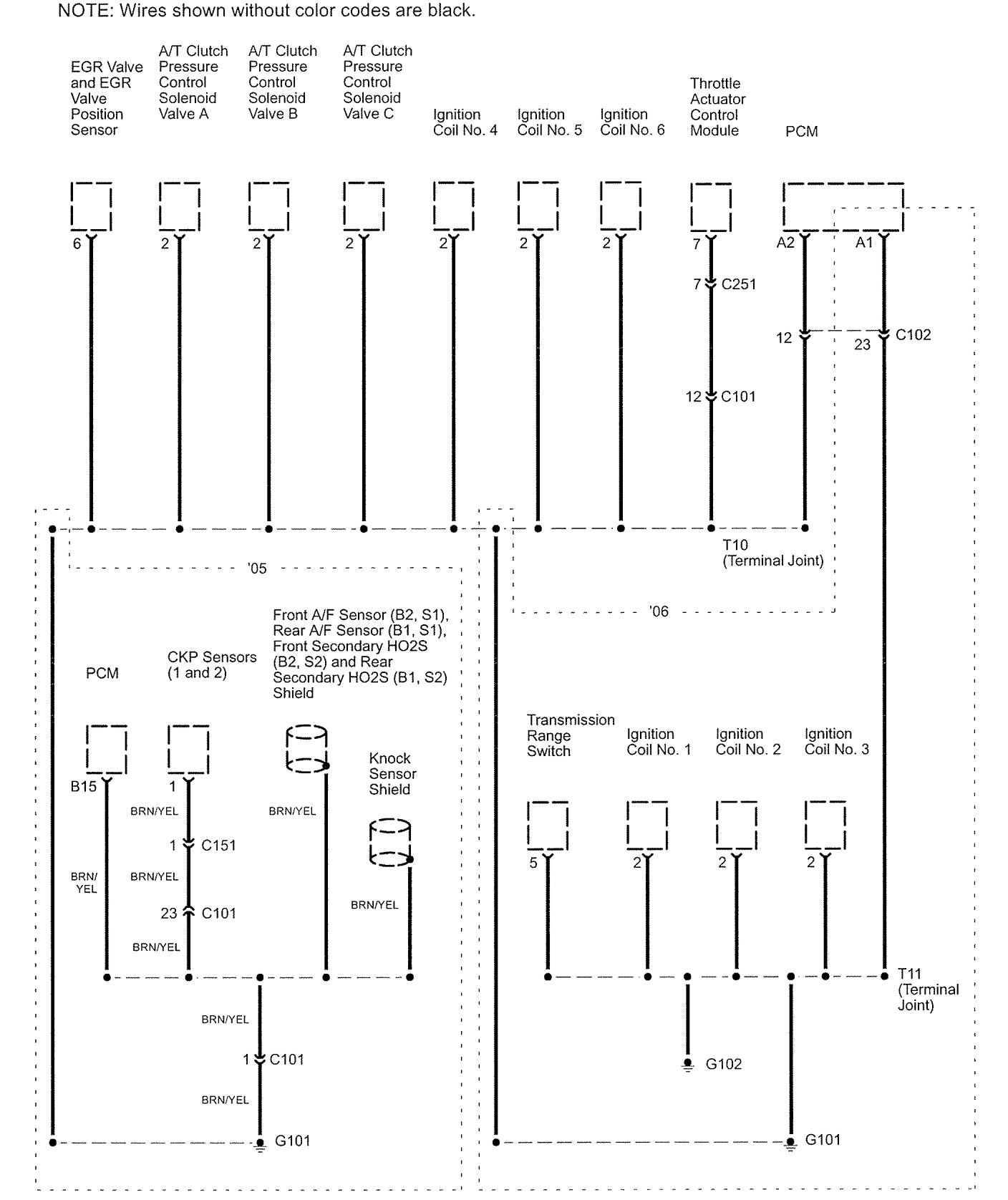

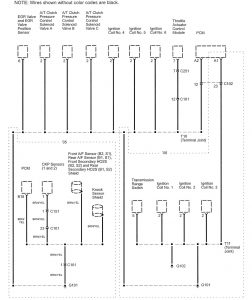

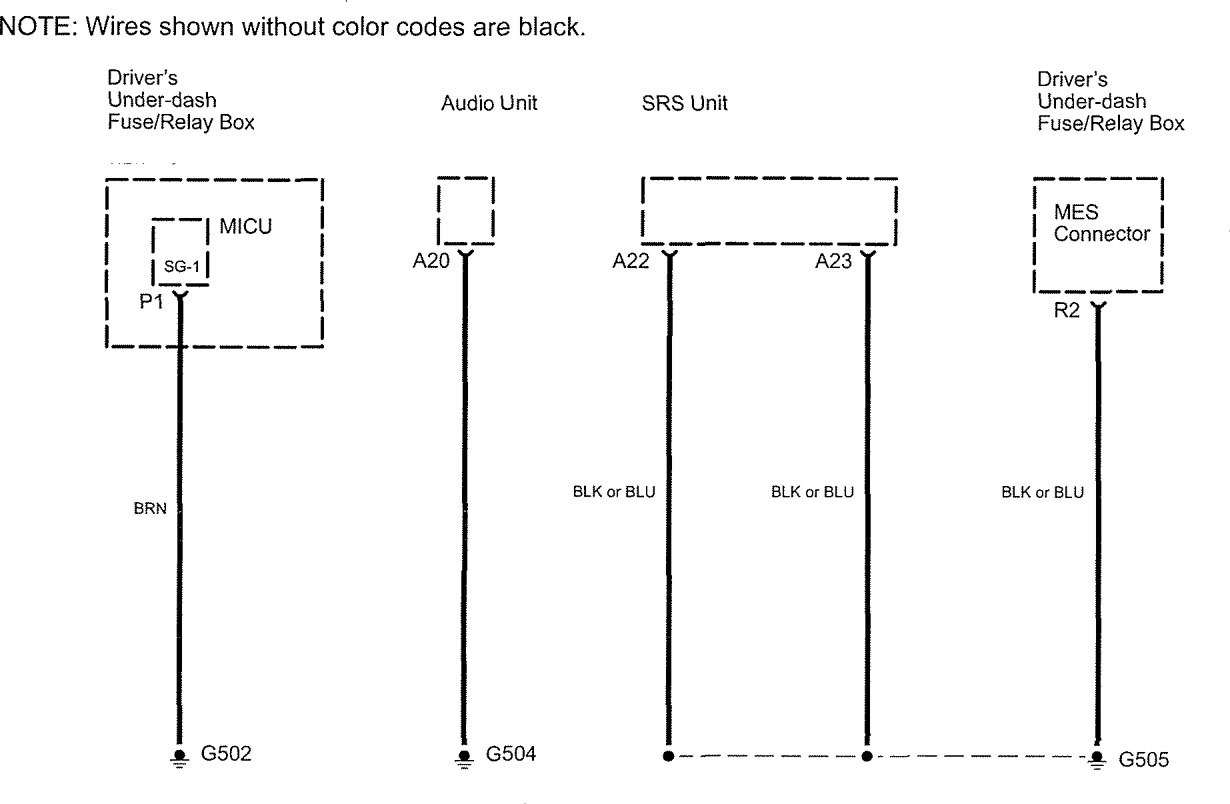

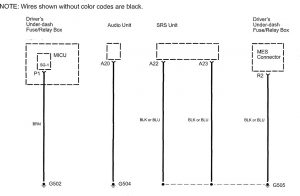

Acura RL - wiring diagram - ground distribution (part 2)
Acura RL – wiring diagram – ground distribution (part 2)

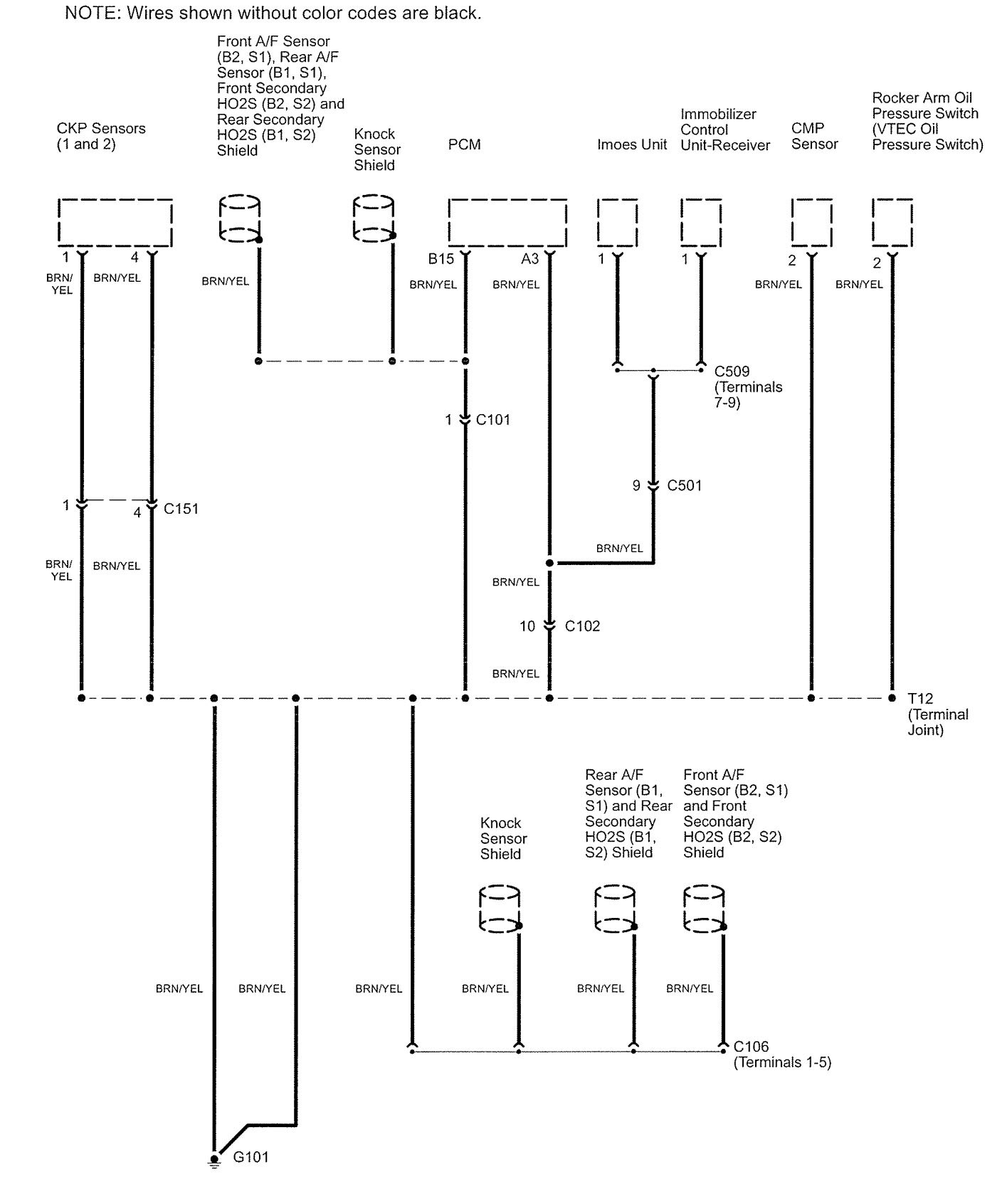

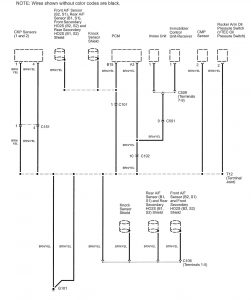

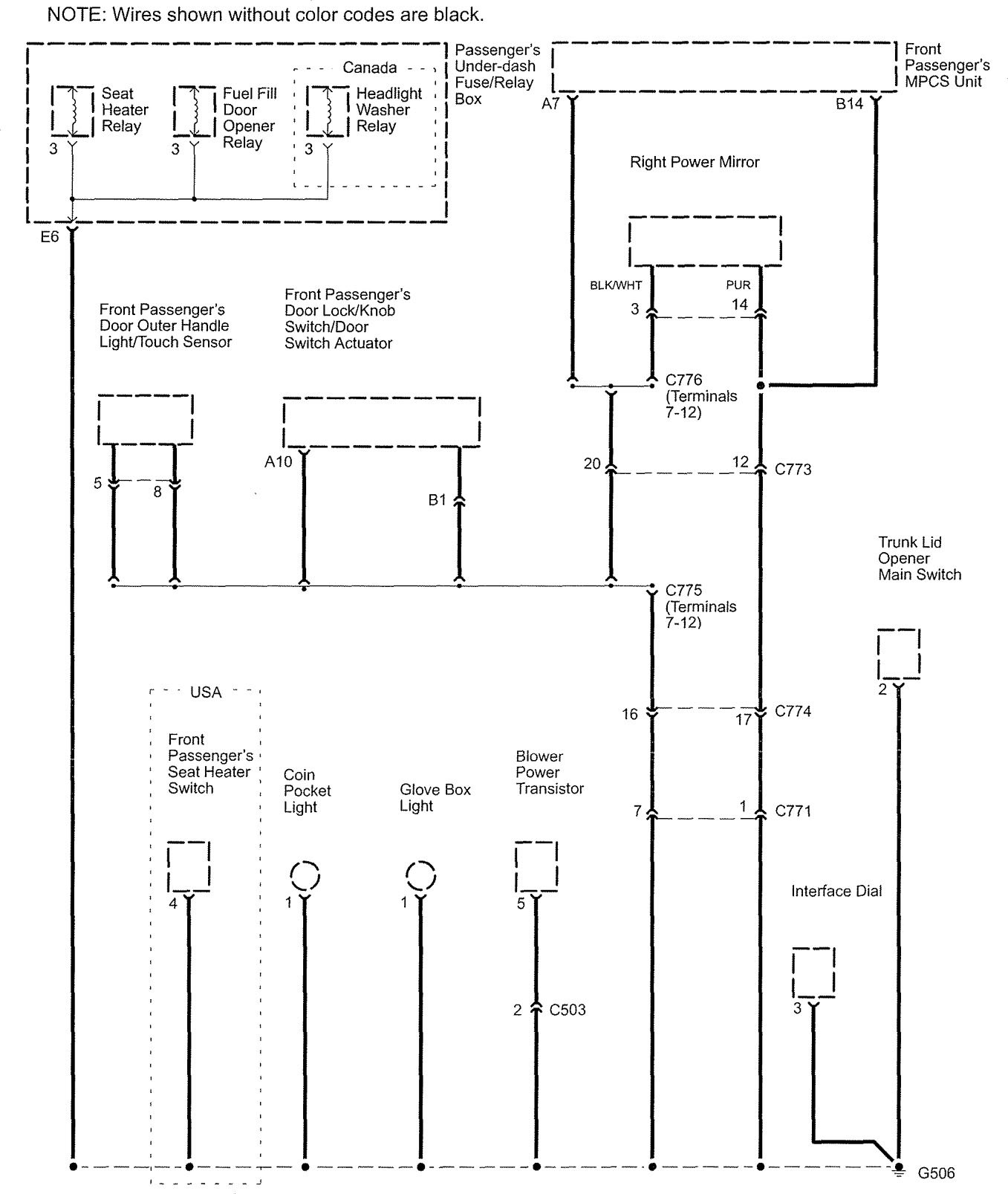

Acura RL - wiring diagram - ground distribution (part 3)
Acura RL – wiring diagram – ground distribution (part 3)

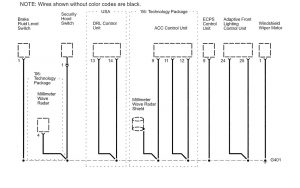

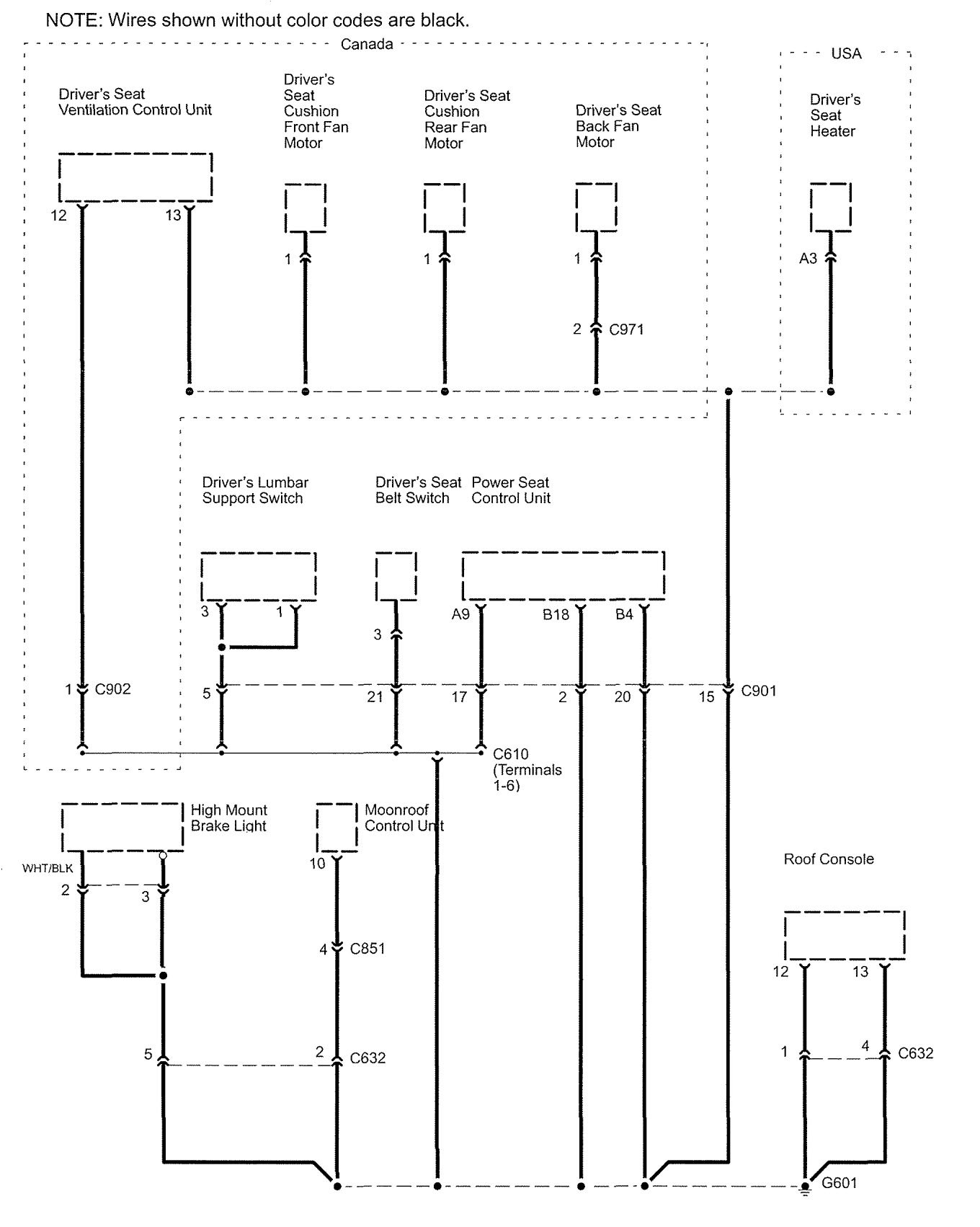

Acura RL - wiring diagram - ground distribution (part 4)
Acura RL – wiring diagram – ground distribution (part 4)
Acura RL - wiring diagram - ground distribution (part 5)
Acura RL – wiring diagram – ground distribution (part 5)

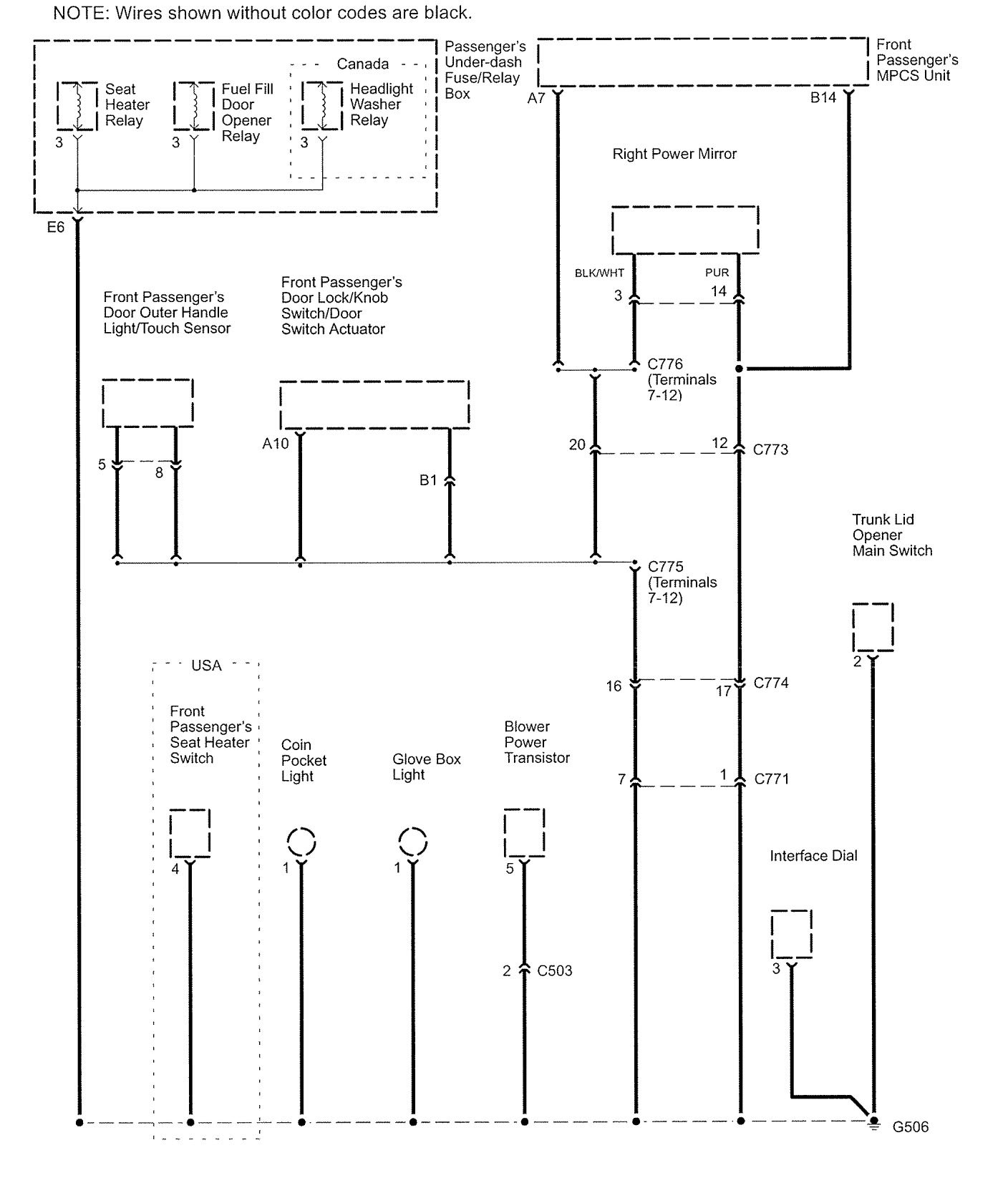

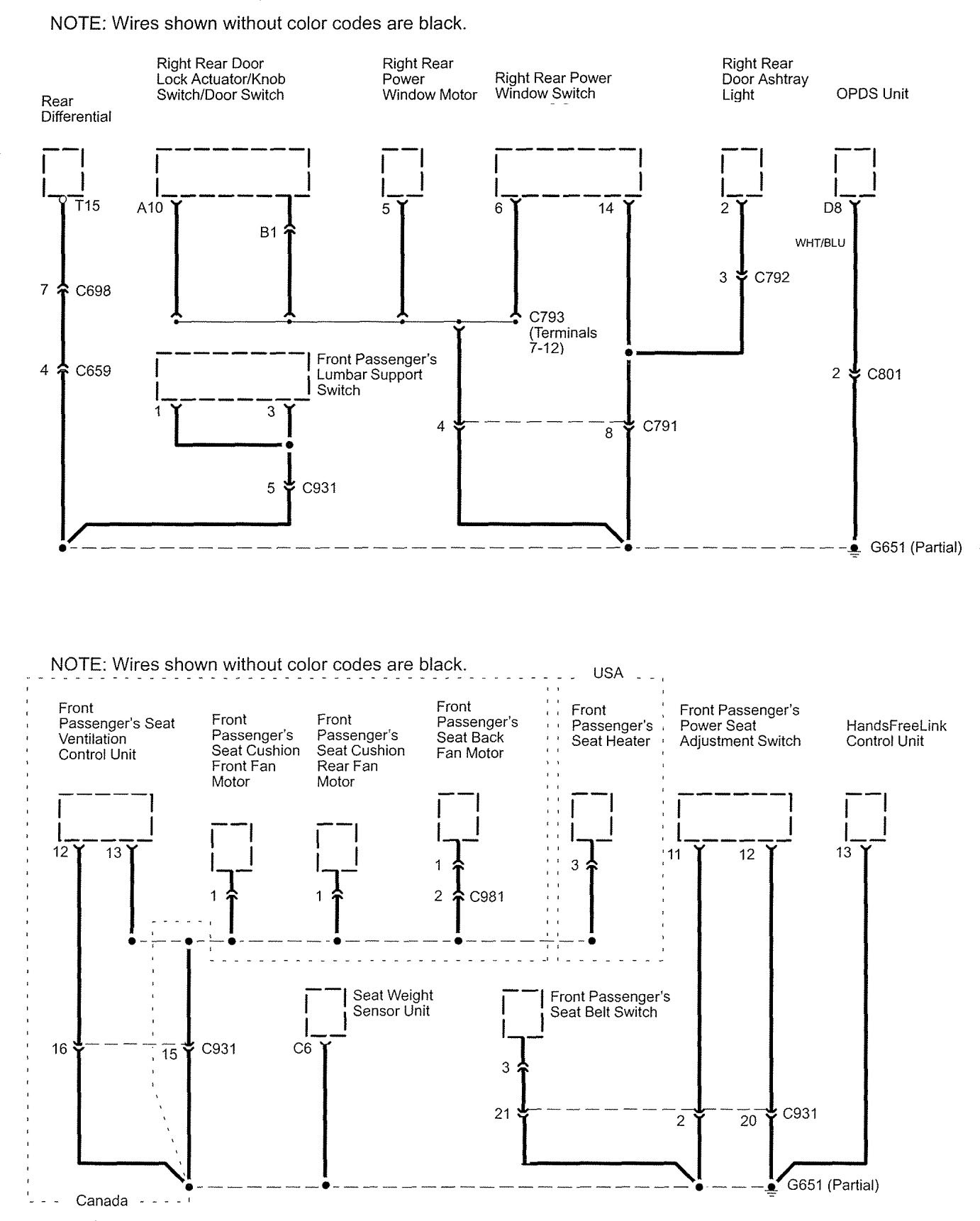

Acura RL - wiring diagram - ground distribution (part 6)
Acura RL – wiring diagram – ground distribution (part 6)

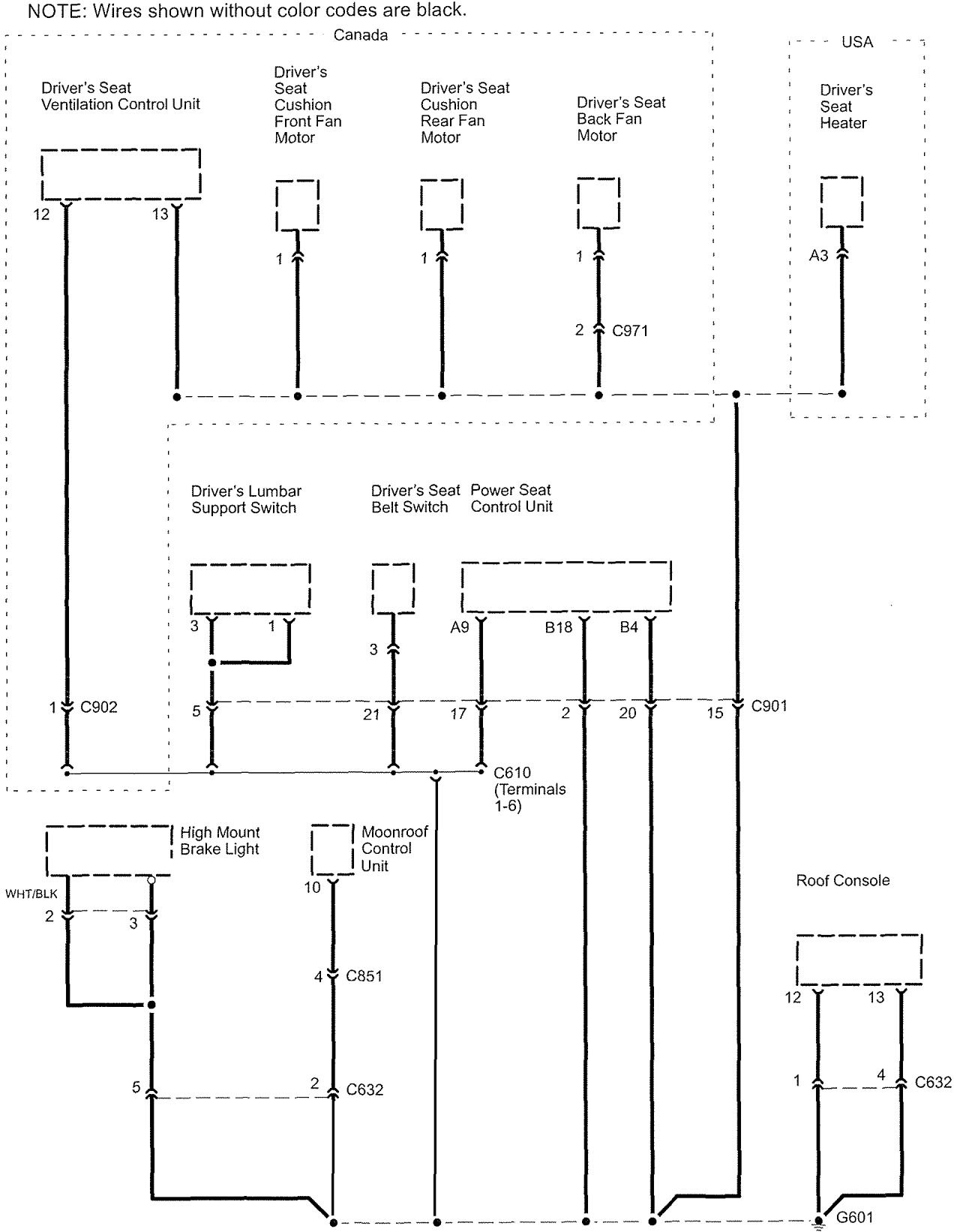

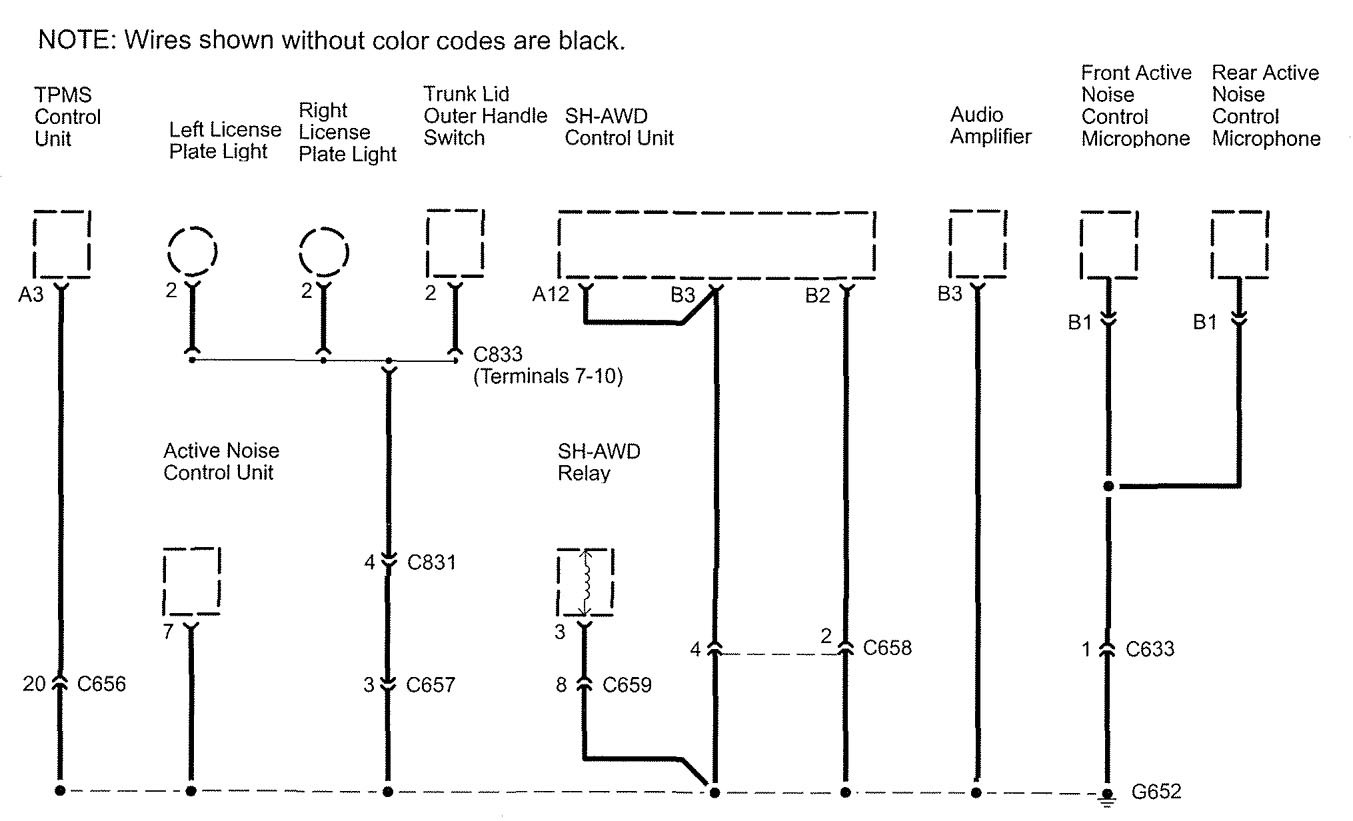

Acura RL - wiring diagram - ground distribution (part 7)
Acura RL – wiring diagram – ground distribution (part 7)

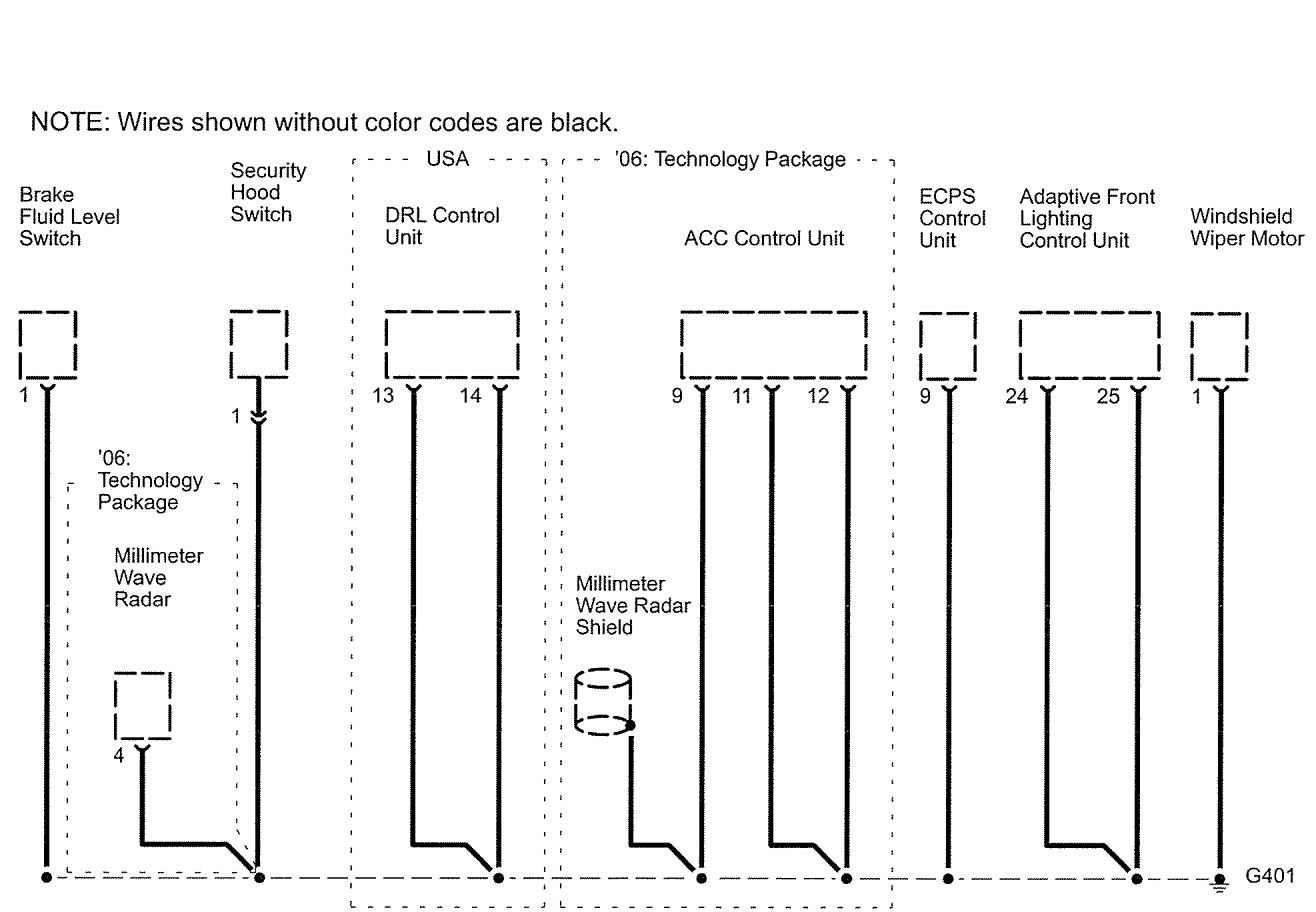

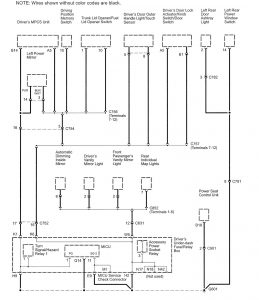

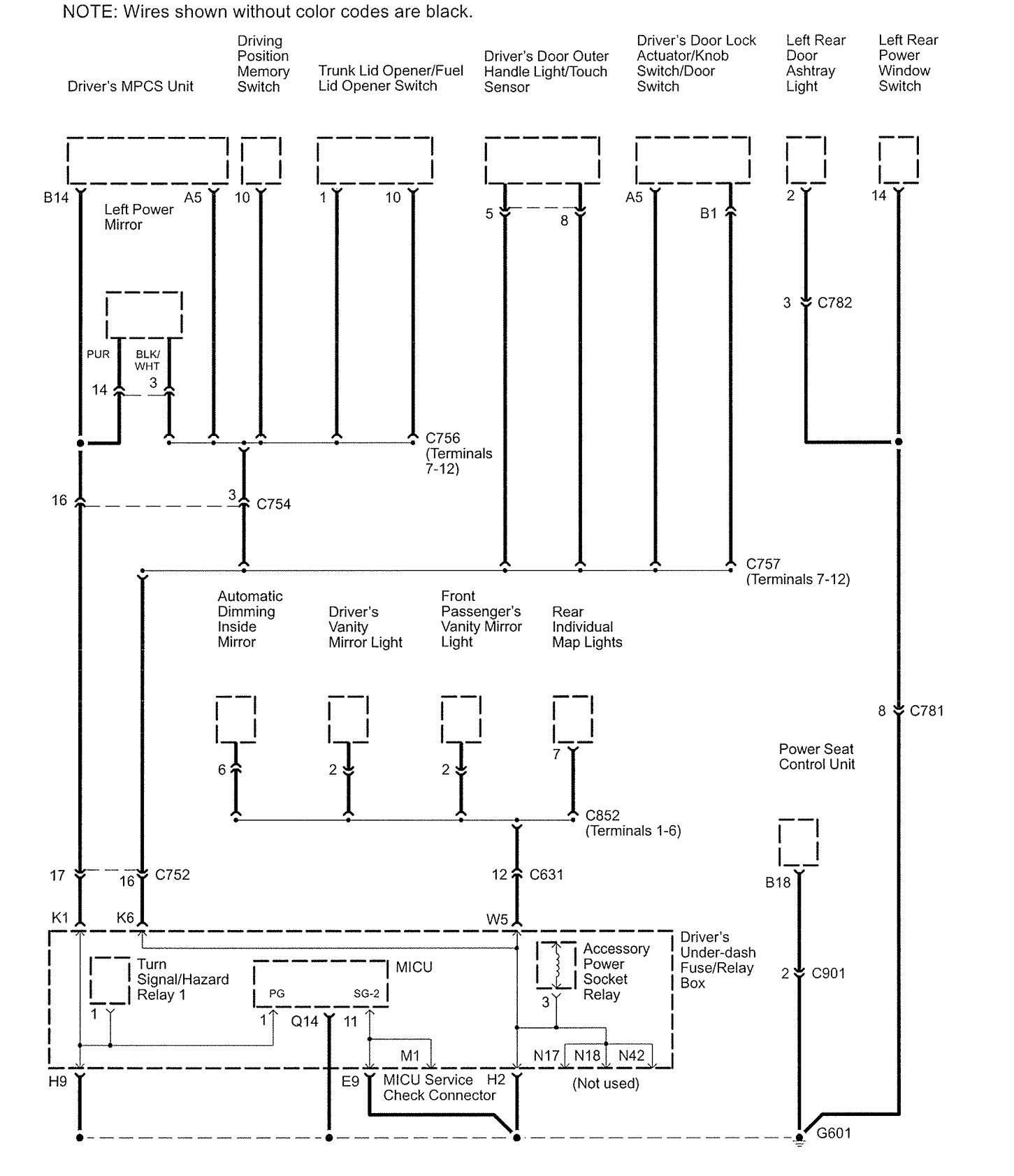

Acura RL - wiring diagram - ground distribution (part 8)
Acura RL – wiring diagram – ground distribution (part 8)

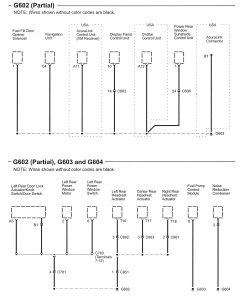

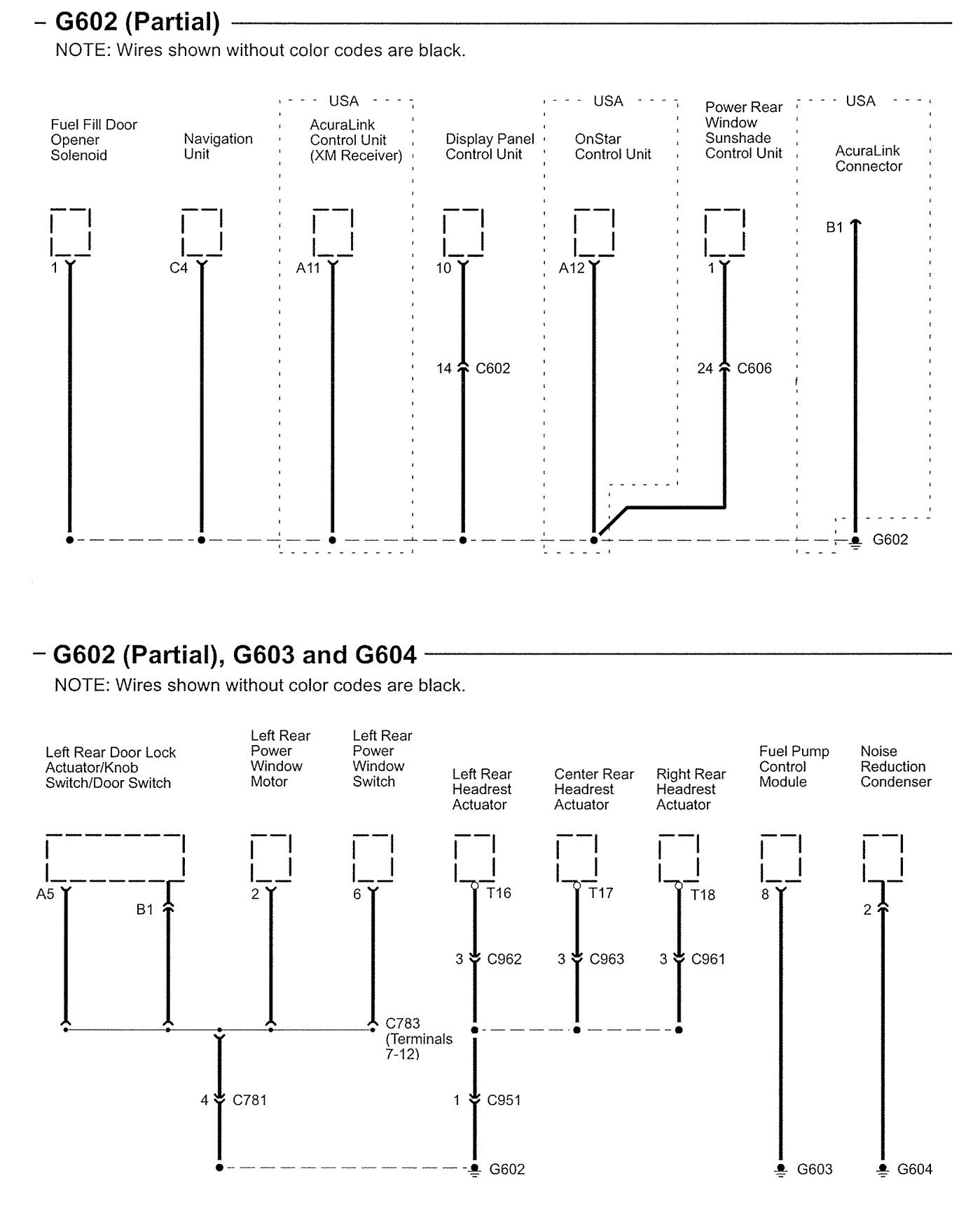

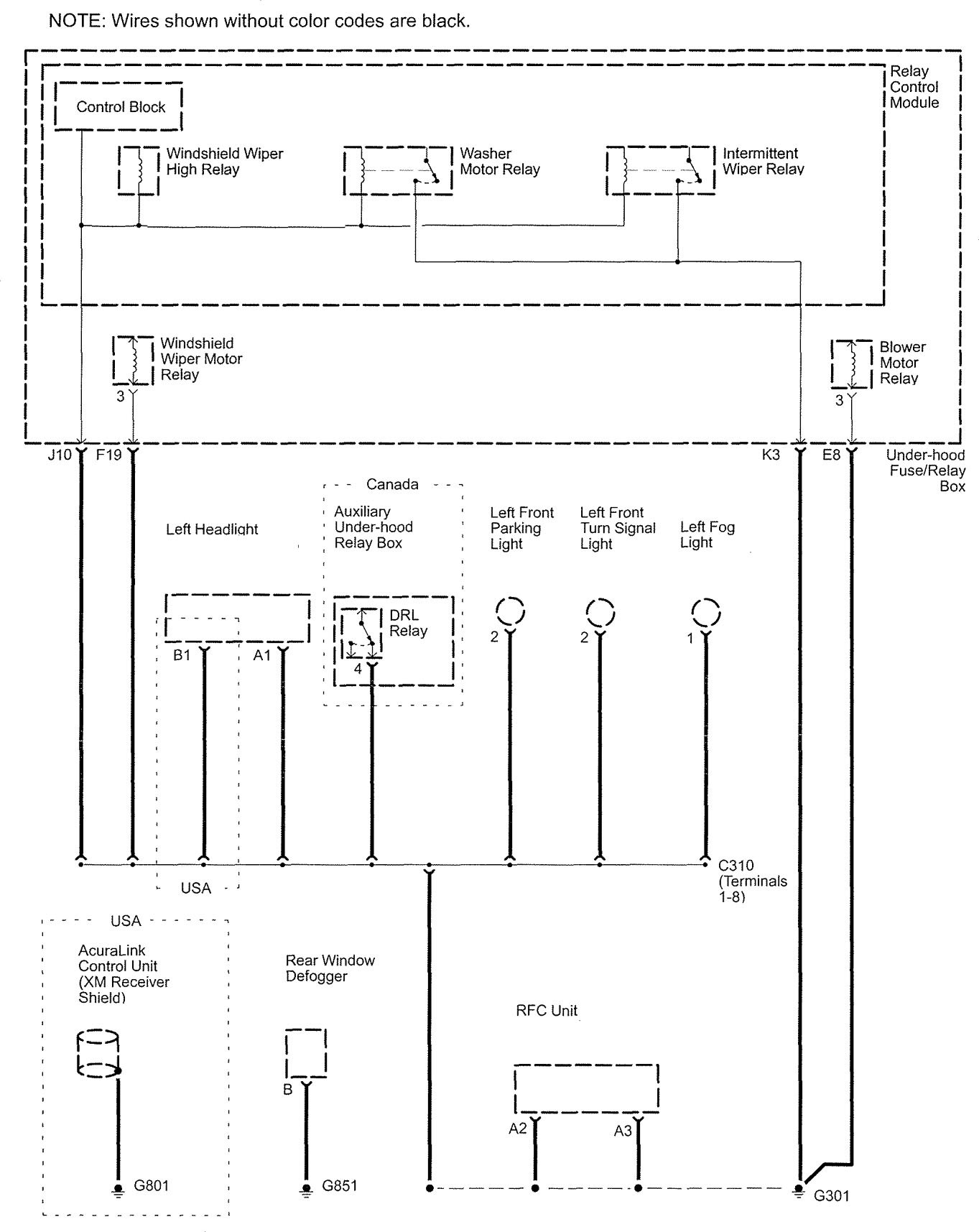

Acura RL - wiring diagram - ground distribution (part 9)
Acura RL – wiring diagram – ground distribution (part 9)

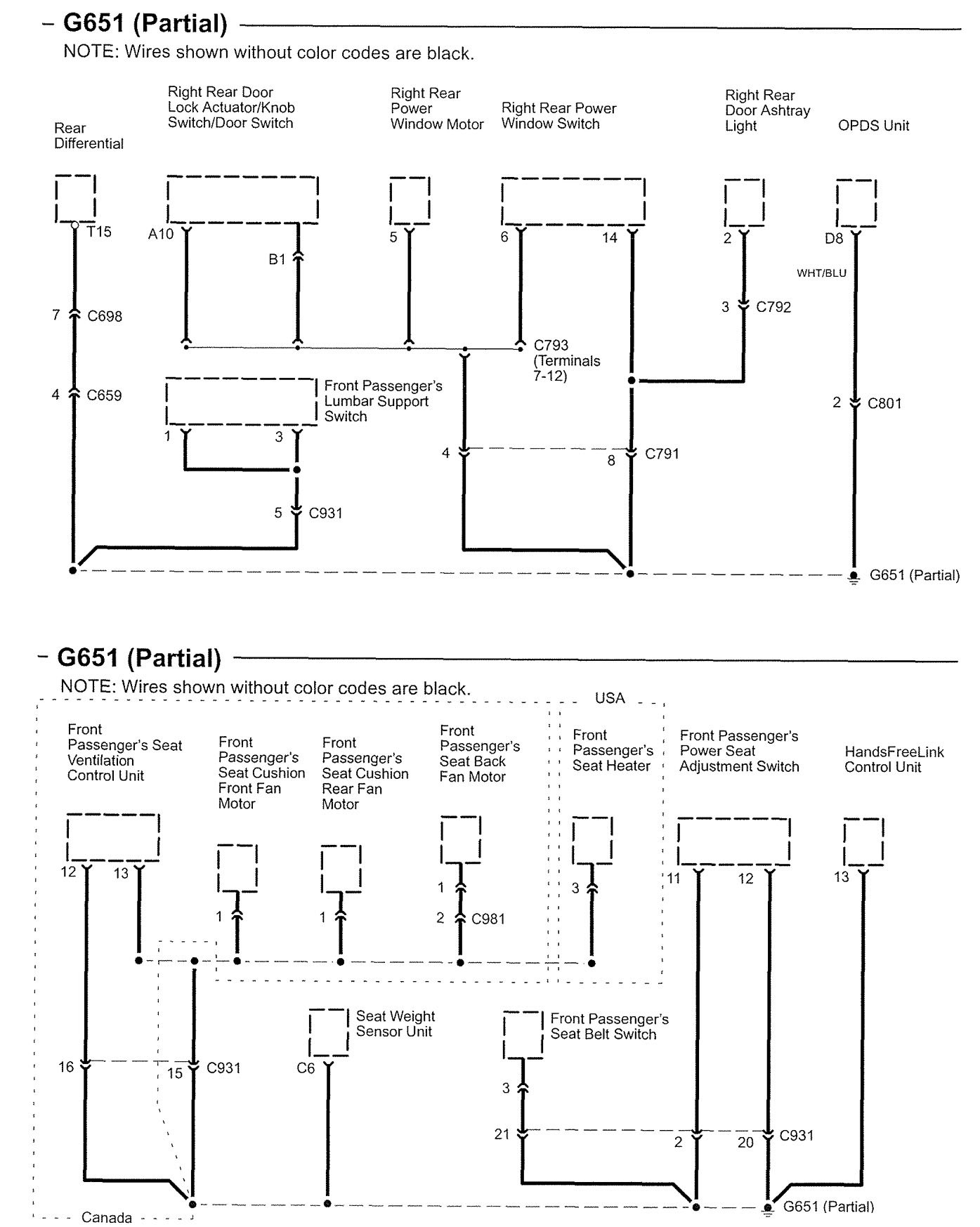

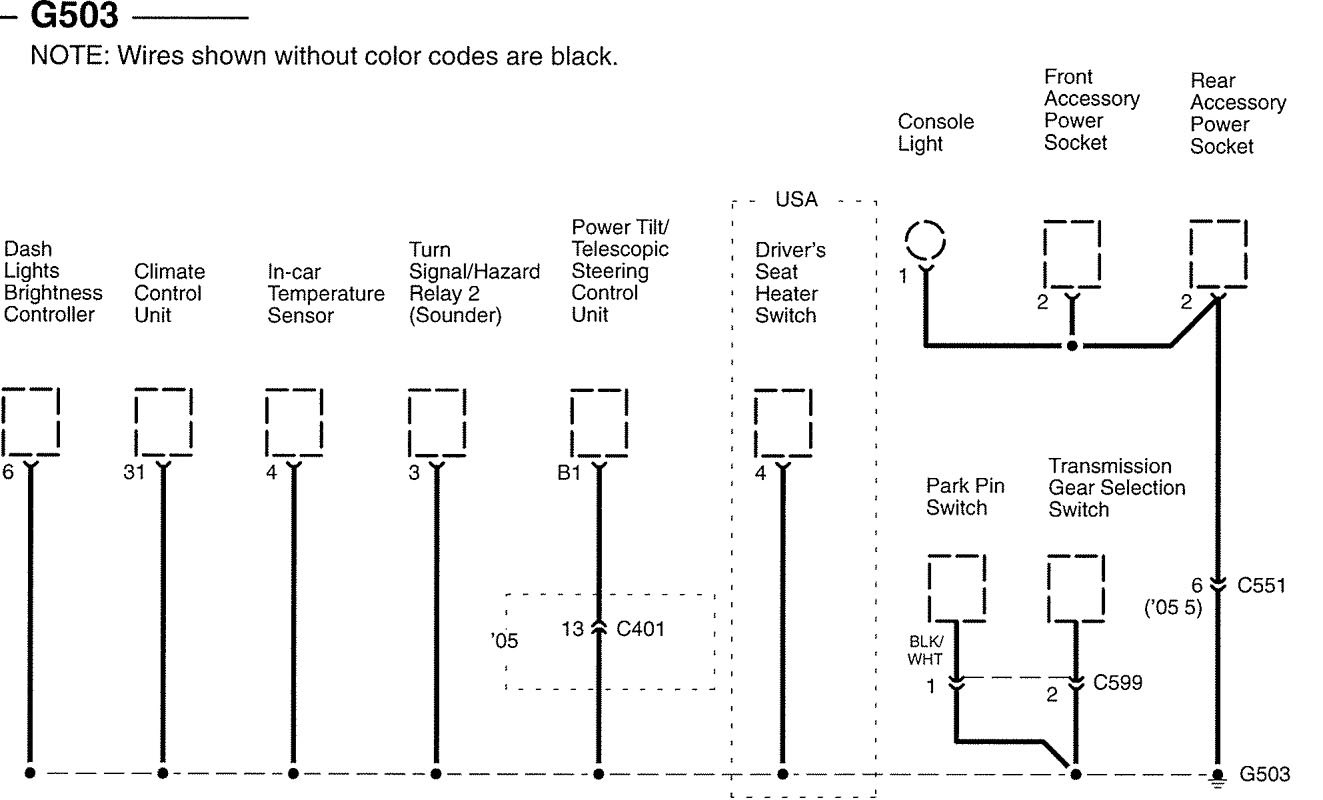

Acura RL - wiring diagram - ground distribution (part 10)
Acura RL – wiring diagram – ground distribution (part 10)

Version 3

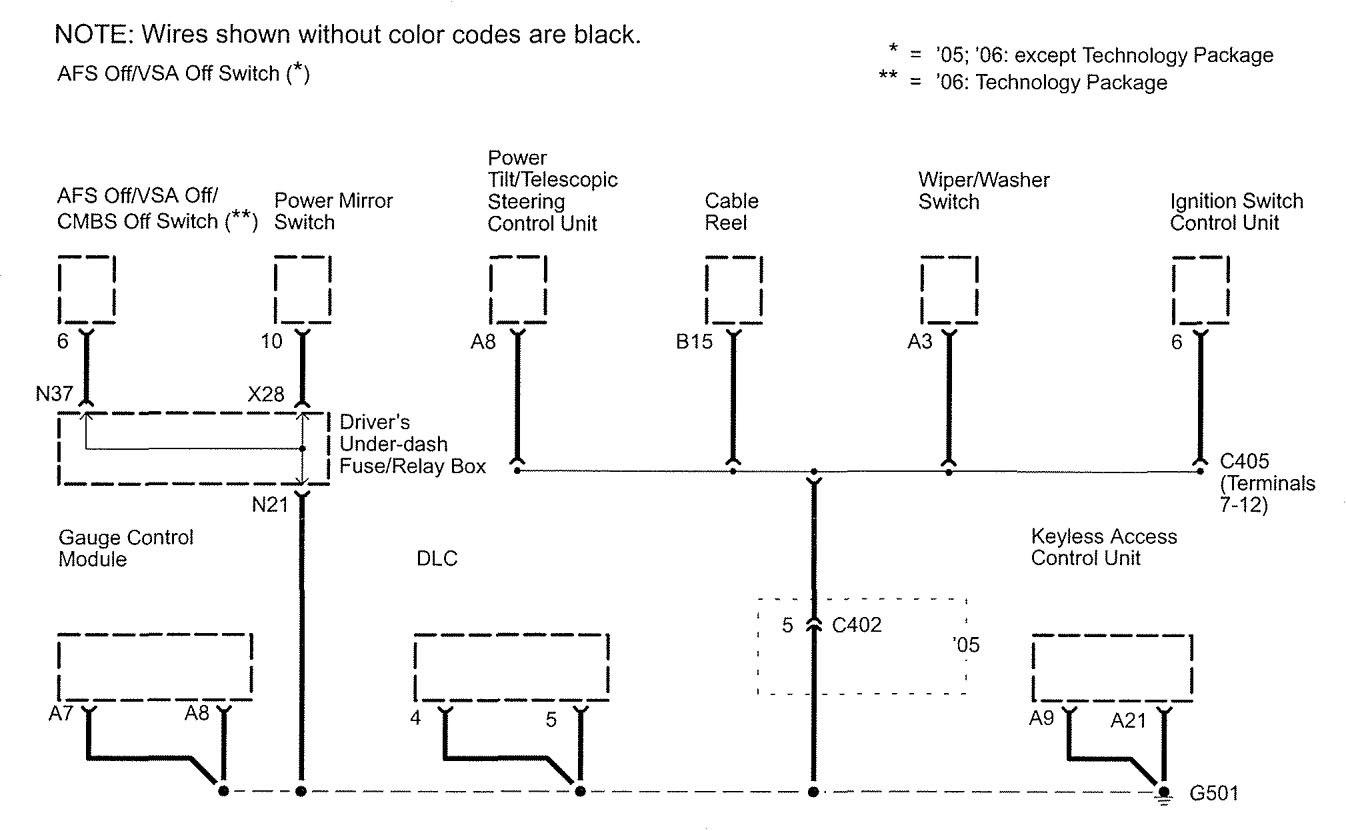

Acura RL - wiring diagram - ground distribution (part 1)
Acura RL – wiring diagram – ground distribution (part 1)
Acura RL - wiring diagram - ground distribution (part 2)
Acura RL – wiring diagram – ground distribution (part 2)

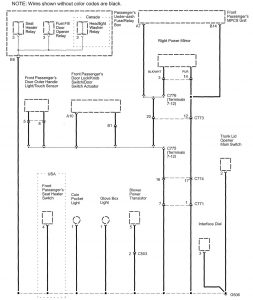

Acura RL - wiring diagram - ground distribution (part 3)
Acura RL – wiring diagram – ground distribution (part 3)

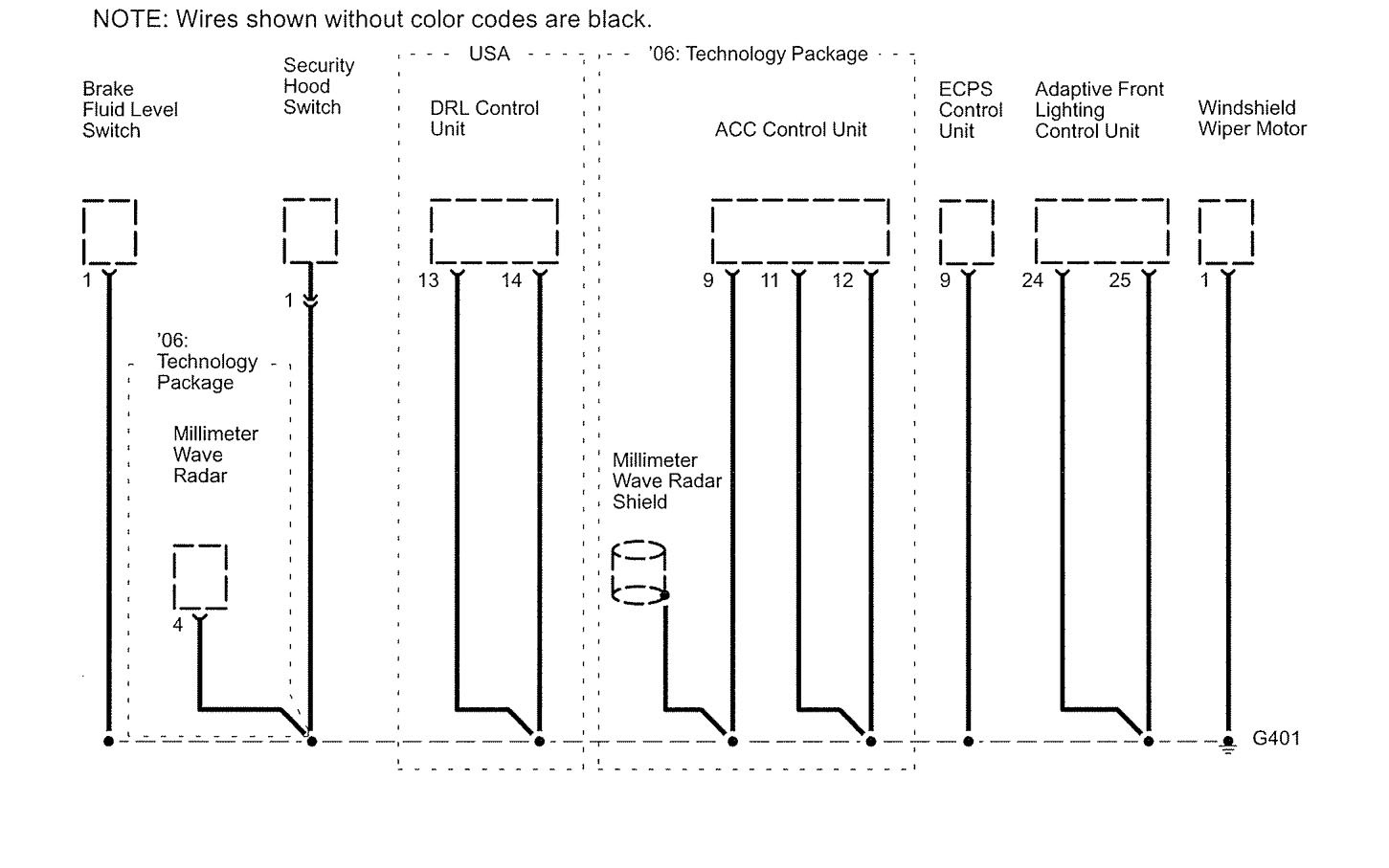

Acura RL - wiring diagram - ground distribution (part 4)
Acura RL – wiring diagram – ground distribution (part 4)

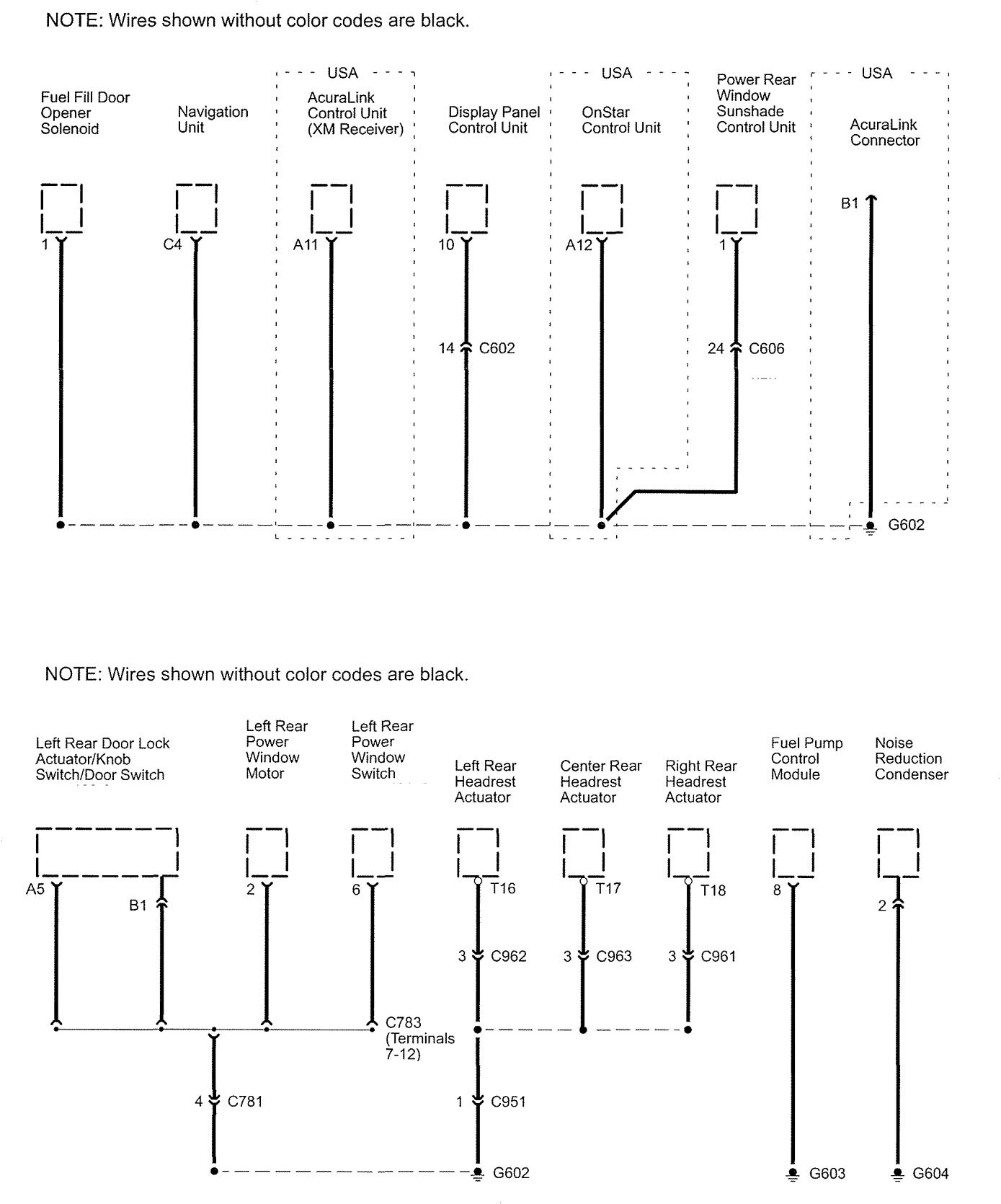

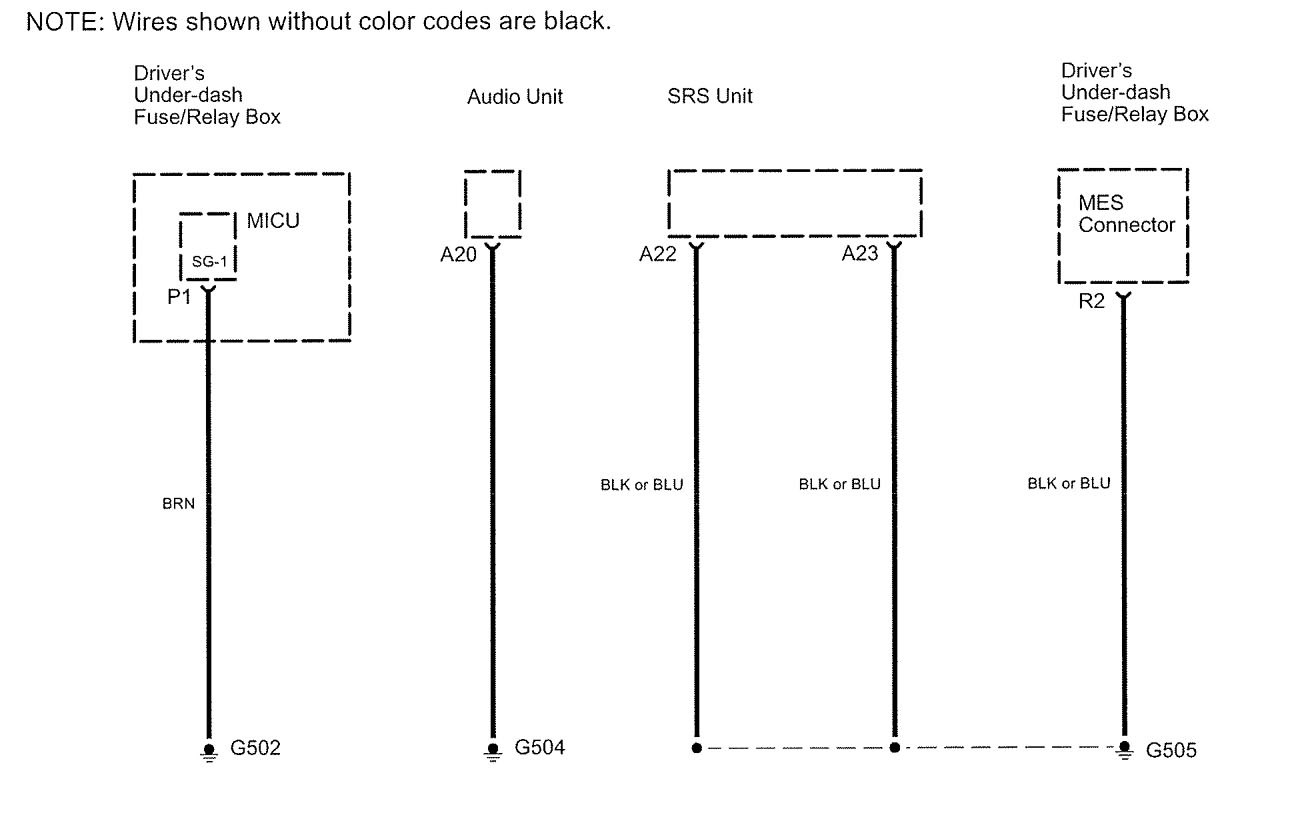

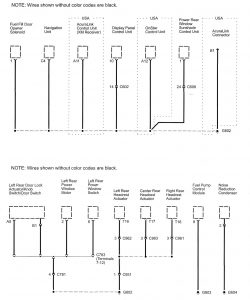

Acura RL - wiring diagram - ground distribution (part 5)
Acura RL – wiring diagram – ground distribution (part 5)

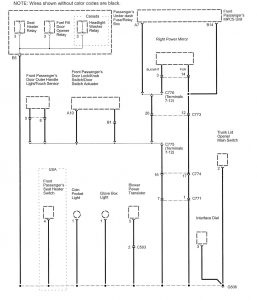

Acura RL - wiring diagram - ground distribution (part 6)
Acura RL – wiring diagram – ground distribution (part 6)
Acura RL - wiring diagram - ground distribution (part 7)
Acura RL – wiring diagram – ground distribution (part 7)
Acura RL - wiring diagram - ground distribution (part 8)
Acura RL – wiring diagram – ground distribution (part 8)
Acura RL - wiring diagram - ground distribution (part 9)
Acura RL – wiring diagram – ground distribution (part 9)
Acura RL - wiring diagram - ground distribution (part 10)
Acura RL – wiring diagram – ground distribution (part 10)

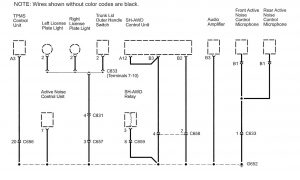

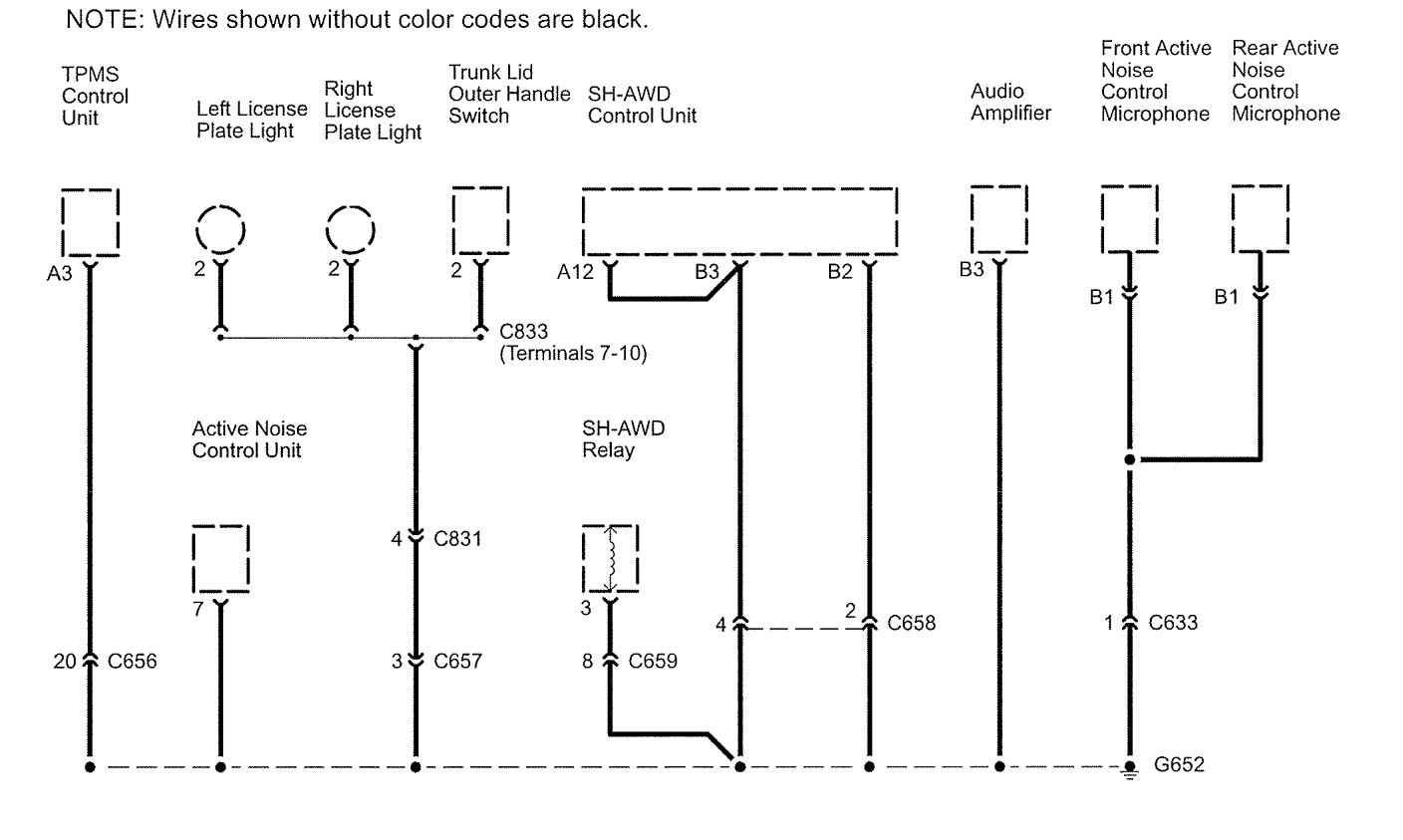

Acura RL - wiring diagram - ground distribution (part 11)
Acura RL – wiring diagram – ground distribution (part 11)

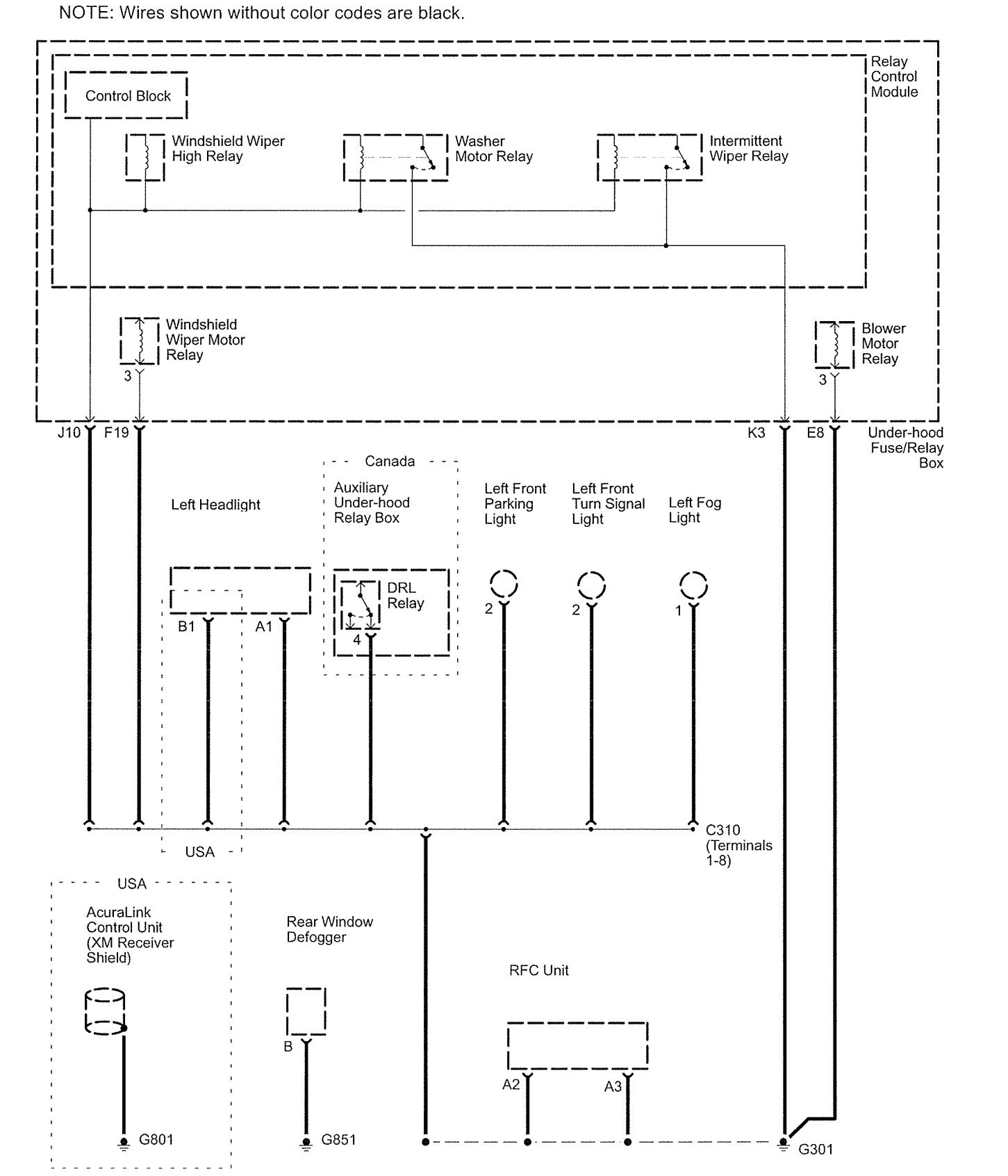

Acura RL - wiring diagram - ground distribution (part 12)
Acura RL – wiring diagram – ground distribution (part 12)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
