Acura RL (2003 – 2004) – wiring diagrams – HVAC controls

Year of productions:  2003, 2004

HVAC controls

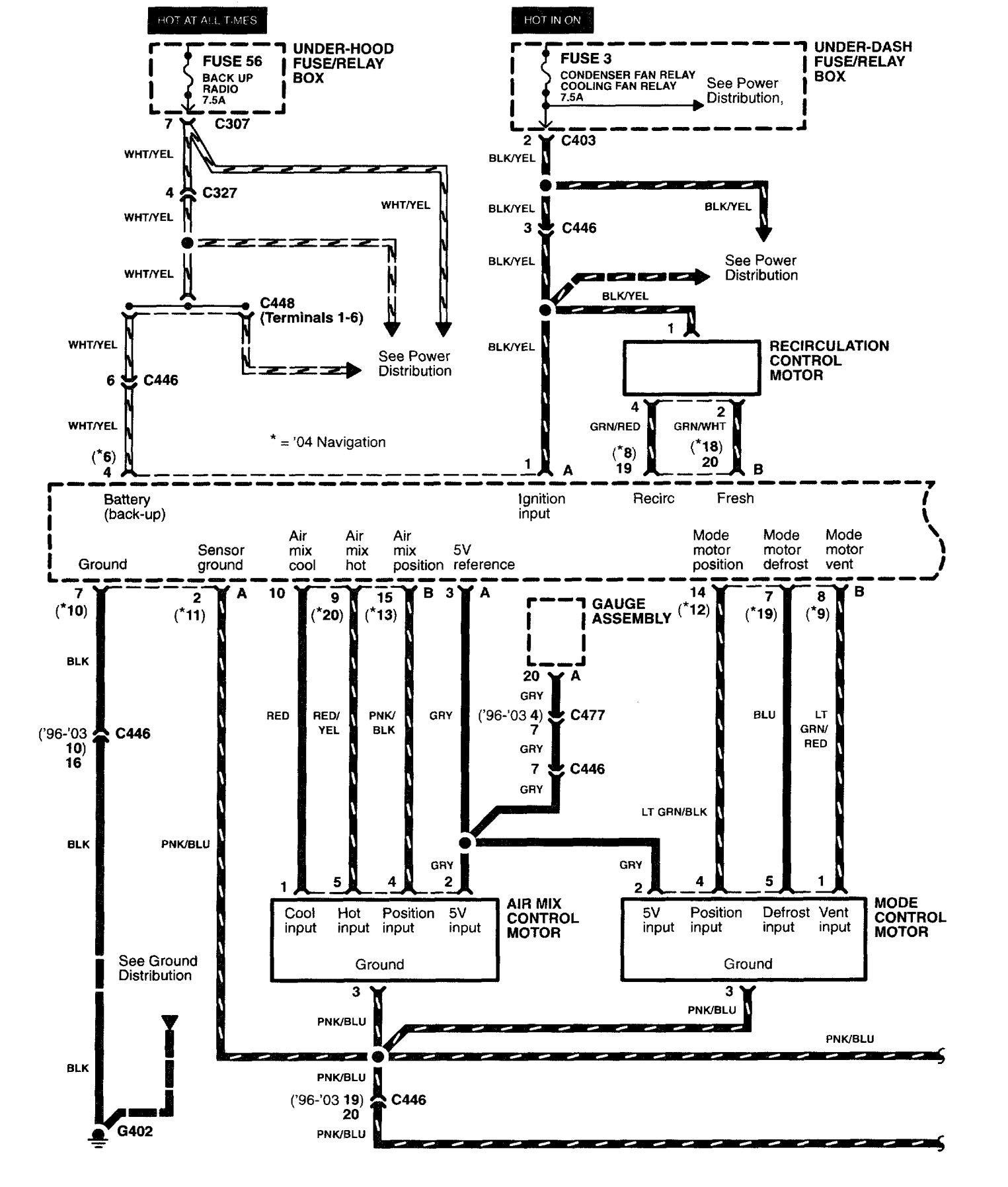

Acura RL - wiring diagram - HVAC controls (part 1)
Acura RL – wiring diagram – HVAC controls (part 1)

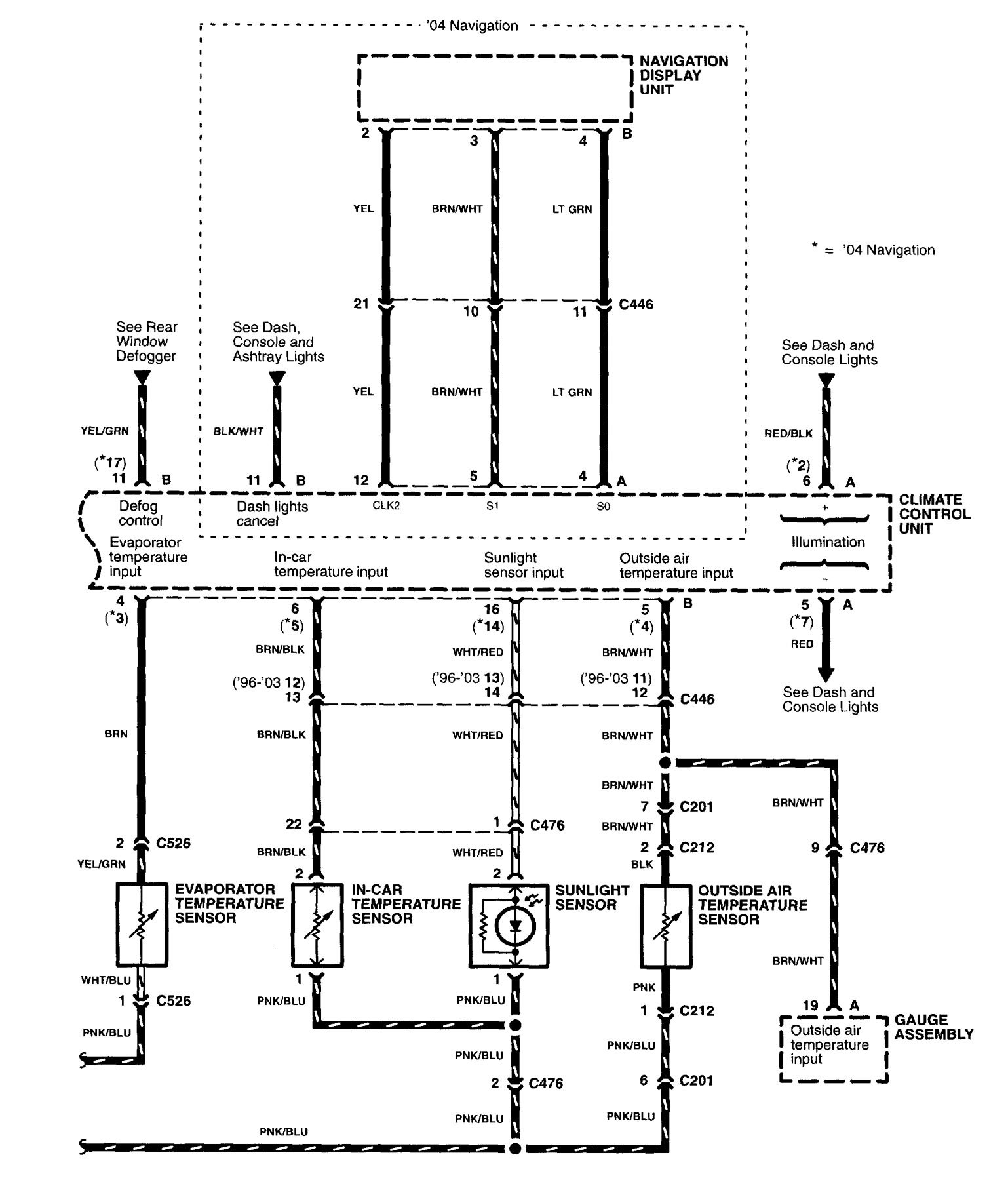

Acura RL - wiring diagram - HVAC controls (part 2)
Acura RL – wiring diagram – HVAC controls (part 2)

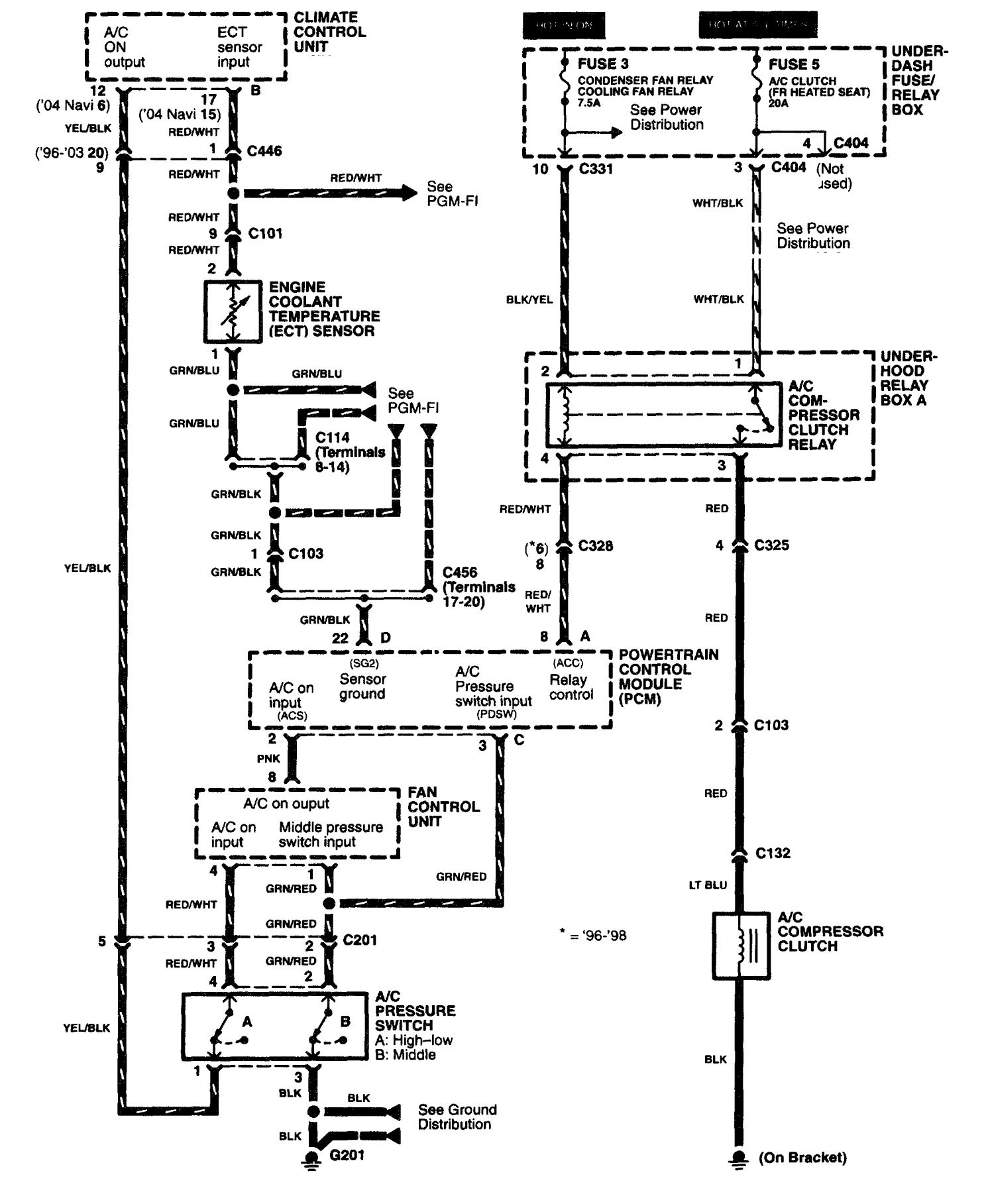

Acura RL - wiring diagram - HVAC controls (part 3)
Acura RL – wiring diagram – HVAC controls (part 3)

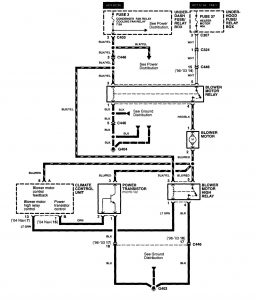

Acura RL - wiring diagram - HVAC controls (part 4)
Acura RL – wiring diagram – HVAC controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
